NSN 6150-00-935-5235 M39019162, M39019-1-62 , MILC390191
Product Details | ELECTRICAL POWER CABLE ASSEMBLY
6150-00-935-5235 A definite continuous length of CABLE, POWER, ELECTRICAL having one or both ends processed and/or terminated in fittings which provide for connection to other items. Excludes CABLE AND CONDUIT ASSEMBLY, ELECTRICAL and items having branches or forks. See also WIRING HARNESS.20511150037Nuclear Warheads and Warhead Sections11350043Fuzing and Firing Devices, Nuclear Ordnance11900057Specialized Test and Handling Equipment, Nuclear Ordnance5995000061500055Miscellaneous Electric Power and Distribution Equipment
Part Alternates: M39019162, M39019-1-62 , MILC390191, MILC39019-1 , ECM405, ECM-405, 1002028, 1002-028, 12042, 17405, 17405B, 210208, 499-023-013, 6150-00-935-5235, 00-935-5235, 6150009355235, 009355235, 499023013
Electric Wire, and Power and Distribution Equipment | Miscellaneous Electric Power and Distribution Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 20 MAR 1968 | 00-935-5235 | 00485 ( CABLE ASSEMBLY, POWER, ELECTRICAL ) |
Drawings & Photos | NSN 6150-00-935-5235
Demand History | NSN 6150-00-935-5235
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MILC390191 | 2008-11-310 | 750 | US |
Cross Reference | NSN 6150-00-935-5235
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1002-028 | 03626 | KAYPRO CORP |
| 1002-028 | 80126 | PACIFIC ELECTRICORD CO |
| 12042 | 24342 | GENERAL CABLE CO GUARDIAN PRODUCTS DIV |
| 17405 | 16428 | BELDEN WIRE & CABLE COMPANY LLC DBA BELDEN CDT ELECTRONICS DIVISION |
| 17405 | 2W733 | BELDEN WIRE AND CABLE CO WIRE AND CABLE OFFICE |
| 17405B | 03626 | KAYPRO CORP |
| 17405B | 2W733 | BELDEN WIRE AND CABLE CO WIRE AND CABLE OFFICE |
| 210208 | 32274 | CIPHER DATA PRODUCTS INC OEM MARKETING DIV |
| 499-023-013 | 07423 | SAMMONS FRED INC BISSELL HEALTH CARE DIV |
| ECM-405 | 0B445 | ELECTRI-CORD MFG CO INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6150-00-935-5235
Technical Data | NSN 6150-00-935-5235
| Characteristic | Specifications |
|---|---|
| CONDUCTOR QUANTITY | 2 |
| ACCESSORY WIRE TYPE AND QUANTITY | 1 GROUND |
| CONDUCTOR FORM | STRANDED ALL CONDUCTORS |
| MATERIAL | COPPER CORE CONDUCTOR ALL CONDUCTORS PLASTIC 1ST POSITION PRIMARY INSULATION ALL CONDUCTORS PLASTIC 1ST POSITION JACKET CABLE |
| ROUND CONDUCTOR SIZE | 18 AWG ALL CONDUCTORS |
| STRAND QUANTITY PER CONDUCTOR | 16 ALL CONDUCTORS |
| STRAND AWG SIZE PER CONDUCTOR | 30 ALL CONDUCTORS |
| CONDUCTOR ARRANGEMENT AND QUANTITY | 2 SINGLES |
| COLOR | GRAY 1ST POSITION COVER ALL CONDUCTORS |
| VOLTAGE RATING | 300.0 AC MAXIMUM RATED WORKING VOLTAGE ALL CONDUCTORS |

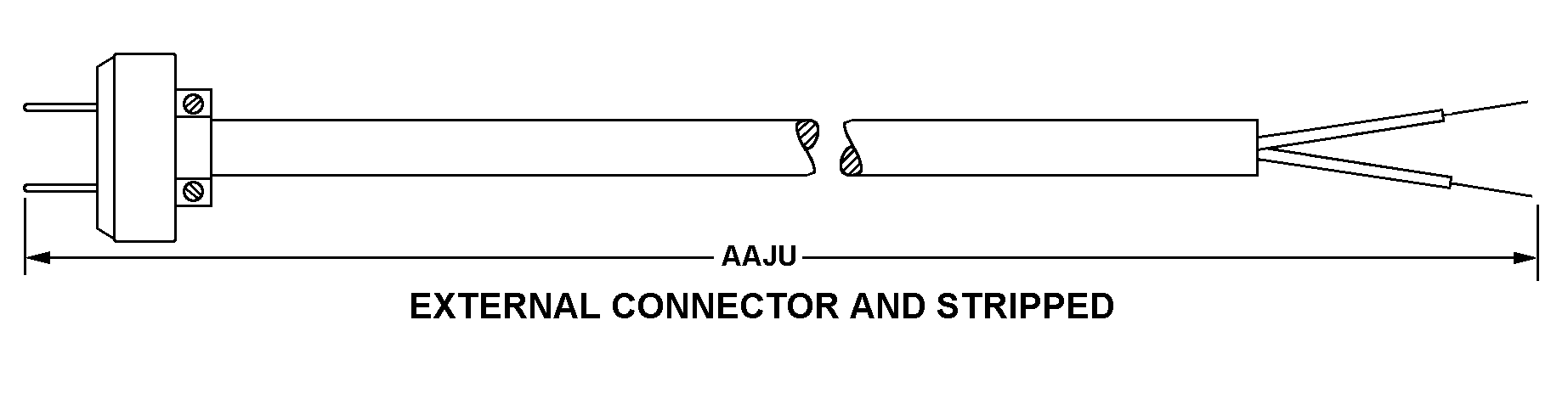

| STYLE DESIGNATOR | 12 EXTERNAL CONNECTOR AND STRIPPED |
| OVERALL LENGTH | 6.000 FEET |
| CROSS-SECTIONAL SHAPE STYLE | 6 ROUND |
| CROSS SECTION OUTSIDE DIAMETER | 0.328 INCHES NOMINAL |
| TEMP RATING | 60.0 DEG CELSIUS |
| TERMINATION TYPE | CONNECTOR EXTERNAL STRAIGHT 1ST END ALL CONDUCTORS STRIPPED 2ND END ALL CONDUCTORS |
| TERMINAL MANUFACTURER IDENTIFYING REFERENCE NUMBER | PH-185 1ST END ALL CONDUCTORS |
| TERMINAL COMMERCIAL AND GOVERNMENT ENTITY CODE | 16428 1ST END ALL CONDUCTORS |
| INDIVIDUAL CONDUCTOR LENGTH | 2.000 INCHES NOMINAL 2ND END ALL CONDUCTORS |
Restrictions/Controls & Freight Information | NSN 6150-00-935-5235
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6150-00-935-5235
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
