NSN 6150-00-476-9551 C78404, 1734, 2854
Product Details | ELECTRICAL POWER CABLE ASSEMBLY
6150-00-476-9551 A definite continuous length of CABLE, POWER, ELECTRICAL having one or both ends processed and/or terminated in fittings which provide for connection to other items. Excludes CABLE AND CONDUIT ASSEMBLY, ELECTRICAL and items having branches or forks. See also WIRING HARNESS.20511150037Nuclear Warheads and Warhead Sections11350043Fuzing and Firing Devices, Nuclear Ordnance11900057Specialized Test and Handling Equipment, Nuclear Ordnance5995000061500055Miscellaneous Electric Power and Distribution Equipment
Part Alternates: C78404, 1734, 2854, 285-4, 310048, 8774, 877-4, 93394, 9339-4, 6150-00-476-9551, 00-476-9551, 6150004769551, 004769551
Electric Wire, and Power and Distribution Equipment | Miscellaneous Electric Power and Distribution Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 00-476-9551 | 00485 ( CABLE ASSEMBLY, POWER, ELECTRICAL ) |

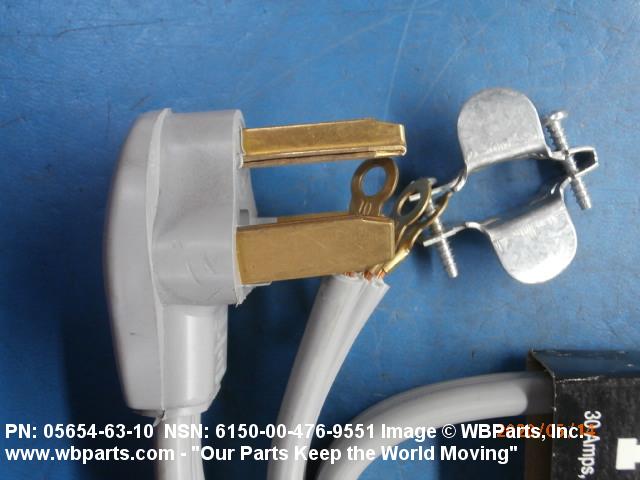

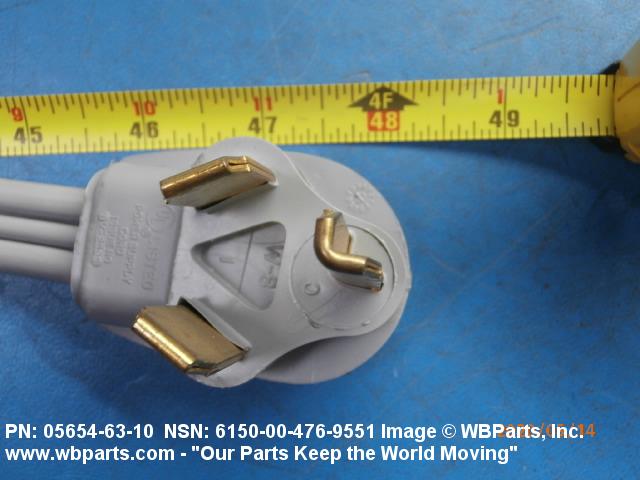

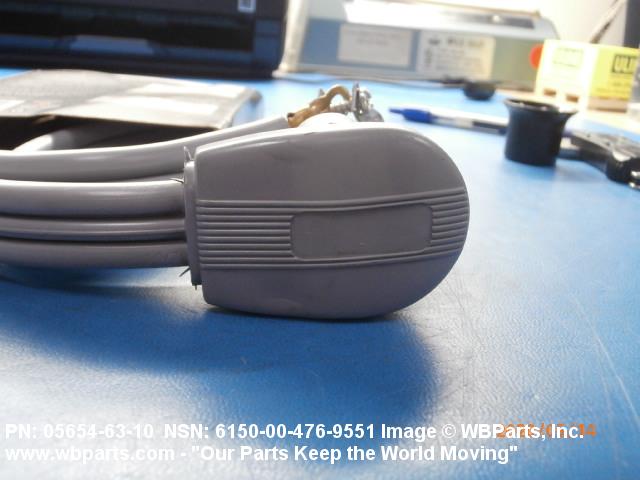

Drawings & Photos | NSN 6150-00-476-9551
Demand History | NSN 6150-00-476-9551
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6150-00-476-9551 | 2020-01-21 | 10 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6150-00-476-9551
Technical Data | NSN 6150-00-476-9551
| Characteristic | Specifications |
|---|---|
| CONDUCTOR QUANTITY | 2 |
| ACCESSORY WIRE TYPE AND QUANTITY | 1 GROUND |
| CONDUCTOR FORM | STRANDED ALL CONDUCTORS |
| MATERIAL | COPPER CORE CONDUCTOR ALL CONDUCTORS PLASTIC VINYL 1ST POSITION PRIMARY INSULATION ALL CONDUCTORS |
| ROUND CONDUCTOR SIZE | 10 AWG ALL CONDUCTORS |
| STRAND QUANTITY PER CONDUCTOR | 37 ALL CONDUCTORS |
| STRAND AWG SIZE PER CONDUCTOR | 26 ALL CONDUCTORS |
| CONDUCTOR ARRANGEMENT AND QUANTITY | 2 SINGLES |
| VOLTAGE RATING | 300.0 AC MAXIMUM RATED WORKING VOLTAGE ALL CONDUCTORS |

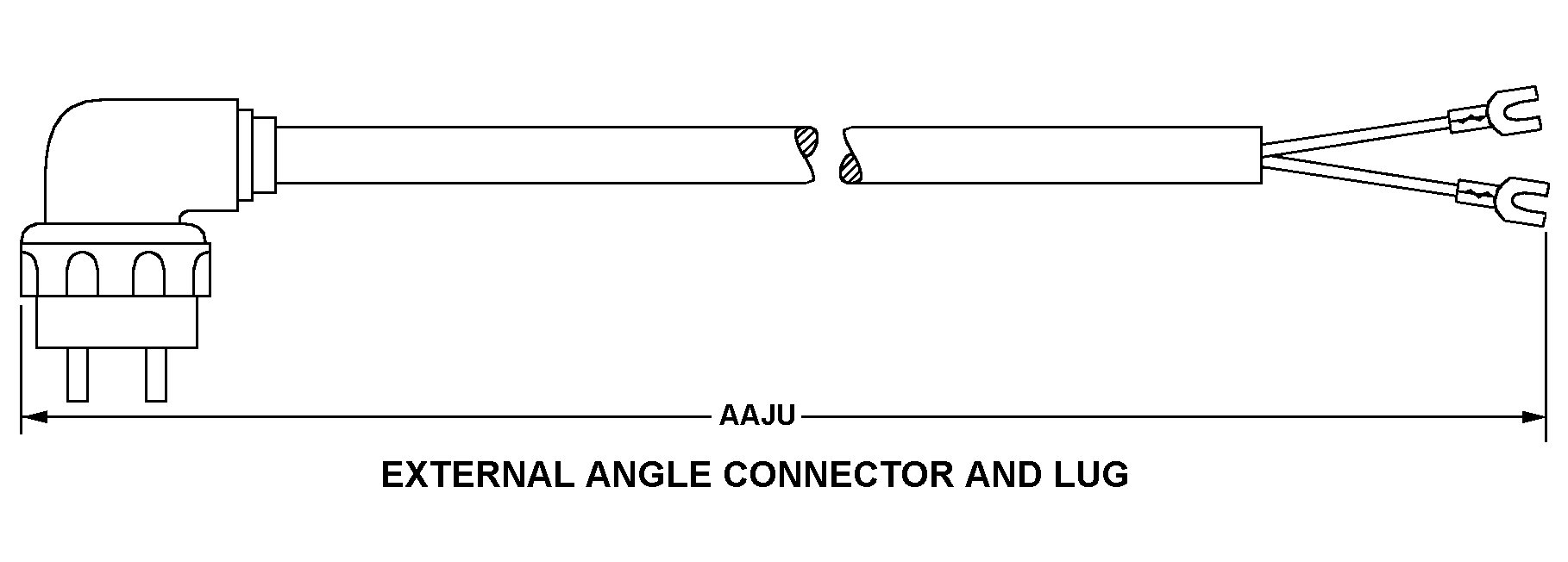

| STYLE DESIGNATOR | 17 EXTERNAL ANGLE CONNECTOR AND LUG |
| OVERALL LENGTH | 4.000 FEET |
| CROSS-SECTIONAL SHAPE STYLE | 6 ROUND |
| TEMP RATING | 60.0 DEG CELSIUS |
| TERMINATION TYPE | CONNECTOR EXTERNAL ANGLE 1ST END ALL CONDUCTORS LUG TERMINAL W/MOUNTING HOLE 2ND END ALL CONDUCTORS |
| TERMINAL LUG APERTURE SIZE | 0.281 INCHES 2ND END ALL CONDUCTORS |
| SPECIAL FEATURES | 1 CABLE CLAMP |
| MANUFACTURERS CODE | 74545 |
| DESIGN CONTROL REFERENCE | 9339-4 |
Restrictions/Controls & Freight Information | NSN 6150-00-476-9551
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
