NSN 6145-01-629-3000 M5846-1E2/18 , M58461E218, MILDTL5846

Product Details | ELECTRICAL SPECIAL PURPOSE CABLE

6145-01-629-3000 Two or more individually insulated conductors (solid or stranded) contained in a common covering, or two or more individually insulated conductors twisted or molded together without a common covering, or one insulated conductor with a metallic covering or shield; each having characteristics not completely conforming to CABLE, TELEPHONE; CABLE, POWER, ELECTRICAL; CABLE, RADIO FREQUENCY or CORD, ELECTRICAL. Includes items having the combined characteristics of two or more of the aforementioned names. Refers to bulk quantities only; for items of definite length with processed ends or terminated in fittings, see CABLE ASSEMBLY, SPECIAL PURPOSE, ELECTRICAL.

Part Alternates: M5846-1E2/18 , M58461E218, MILDTL5846, MIL-DTL-5846 , 6145-01-629-3000, 01-629-3000, 6145016293000, 016293000

Electric Wire, and Power and Distribution Equipment | Wire and Cable, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
61	2014176	01-629-3000	16488 ( CABLE, SPECIAL PURPOSE, ELECTRICAL )

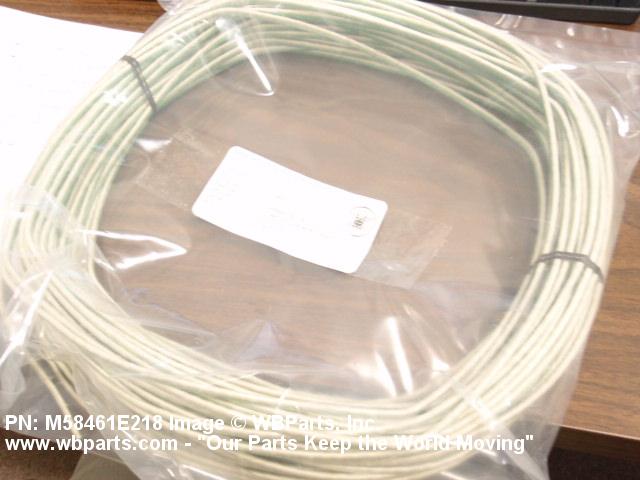

Drawings & Photos | NSN 6145-01-629-3000

Part Number	Request Date	QTY	Origin
6145-01-629-3000	2022-11-324	2500	DIBBS
6145-01-629-3000	2022-04-112	1000	DIBBS
6145-01-629-3000	2022-03-86	1000	DIBBS
6145-01-629-3000	2021-10-290	500	DIBBS
6145-01-629-3000	2021-05-145	500	DIBBS
6145-01-629-3000	2020-04-97	2000	DIBBS
6145-01-629-3000	2019-05-122	901	DIBBS
6145-01-629-3000	2017-05-124	1500	DIBBS
6145-01-629-3000	2017-03-76	390	France
6145-01-629-3000	2016-11-308	1403	DIBBS
6145-01-629-3000	2016-05-129	500	DIBBS
6145-01-629-3000	2014-12-335	500	DIBBS
6145-01-629-3000	2014-09-247	500	DIBBS
M58461E218	2013-10-280	50	United States
M58461E218	2010-10-298	150	United States
M58461E218	2007-08-234	200	US

Cross Reference | NSN 6145-01-629-3000

Part Number	Cage Code	Manufacturer
M5846-1E2/18	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-DTL-5846	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 6145-01-629-3000

Compare

Related Products | NSN 6145-01-629-3000

6145-01-629-3031, 6145-01-629-3491, 6145-01-629-3936, 6145-01-629-4078, 6145-01-629-4079

Technical Data | NSN 6145-01-629-3000

Characteristic	Specifications
III CONDUCTOR QUANTITY	2
CONDUCTOR FORM	STRANDED ALL CONDUCTORS
MATERIAL	NICKEL AND
ROUND CONDUCTOR SIZE	18 AWG ALL CONDUCTORS
STRAND QUANTITY PER CONDUCTOR	7 ALL CONDUCTORS
STRAND AWG SIZE PER CONDUCTOR	26 ALL CONDUCTORS
CROSS-SECTIONAL SHAPE STYLE	ROUND
III END ITEM IDENTIFICATION	KC-135 ACFT
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-DTL-5846
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M5846-1E2/18

Restrictions/Controls & Freight Information | NSN 6145-01-629-3000

Restrictions
Freight

Category	Code	Description
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	030310	CABLE OR WIRE
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	743	unknown
Originating Activity Code	SX	Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 6145-01-629-3000

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	V FT : Foot

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	V FT : Foot
