NSN 6145-01-348-3779 T10970, TD1360, TD-1360

Product Details | ELECTRICAL SPECIAL PURPOSE CABLE

6145-01-348-3779 Two or more individually insulated conductors (solid or stranded) contained in a common covering, or two or more individually insulated conductors twisted or molded together without a common covering, or one insulated conductor with a metallic covering or shield; each having characteristics not completely conforming to CABLE, TELEPHONE; CABLE, POWER, ELECTRICAL; CABLE, RADIO FREQUENCY or CORD, ELECTRICAL. Includes items having the combined characteristics of two or more of the aforementioned names. Refers to bulk quantities only; for items of definite length with processed ends or terminated in fittings, see CABLE ASSEMBLY, SPECIAL PURPOSE, ELECTRICAL.

Part Alternates: T10970, TD1360, TD-1360, 7724C16649, 7724C1664-9, 05A0781, 05A078-1, 6145-01-348-3779, 01-348-3779, 6145013483779, 013483779

Electric Wire, and Power and Distribution Equipment | Wire and Cable, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
61	08 NOV 1991	01-348-3779	16488 ( CABLE, SPECIAL PURPOSE, ELECTRICAL )

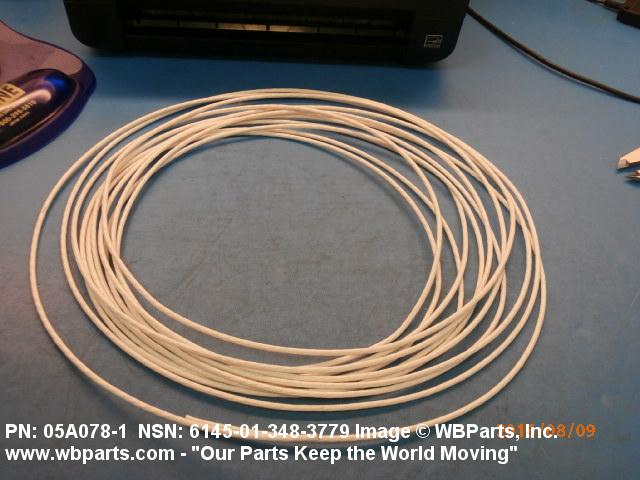

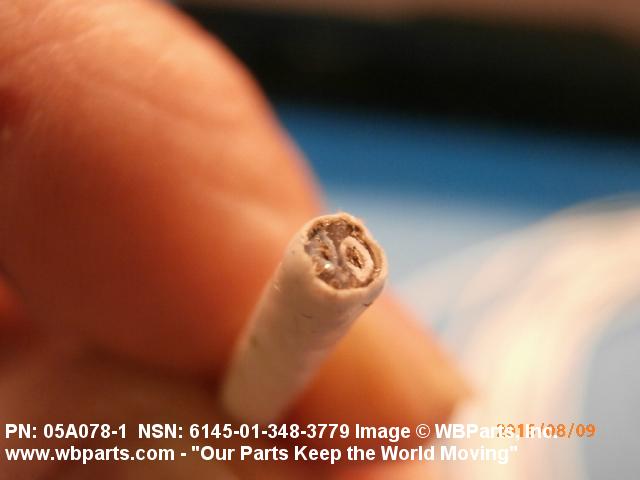

Drawings & Photos | NSN 6145-01-348-3779

Part Number	Request Date	QTY	Origin
6145-01-348-3779	2024-12-348	580	United States
7724C16649	2022-10-293	40	US
7724C16649	2022-10-293	100	US
05A078-1	2022-04-102	9500	DIBBS
T10970	2022-04-102	9500	DIBBS
TD-1360	2022-04-102	9500	DIBBS
05A0781	2021-05-133	7200	United States
05A0781	2021-05-133	7200	United States
05A078-1	2019-11-328	34500	DIBBS
T10970	2019-11-328	34500	DIBBS
TD-1360	2019-11-328	34500	DIBBS
6145-01-348-3779	2018-07-212	45000	DIBBS
6145-01-348-3779	2017-03-89	3000	DIBBS
05A0781	2016-12-348	100	United States
6145-01-348-3779	2016-10-285	2000	DIBBS
6145-01-348-3779	2016-09-274	500	DIBBS
6145-01-348-3779	2016-09-263	500	DIBBS
6145-01-348-3779	2016-07-193	1000	DIBBS
05A0781	2016-05-147	10	United States
6145-01-348-3779	2016-03-88	500	DIBBS
6145-01-348-3779	2016-03-85	500	DIBBS
6145-01-348-3779	2016-03-77	500	DIBBS
6145-01-348-3779	2016-03-74	500	DIBBS
6145-01-348-3779	2015-12-355	500	DIBBS
6145-01-348-3779	2015-12-343	500	DIBBS
6145-01-348-3779	2015-08-215	7500	DIBBS
6145-01-348-3779	2015-02-54	500	DIBBS
6145-01-348-3779	2014-08-215	1500	DIBBS
6145-01-348-3779	2014-07-194	500	DIBBS
6145-01-348-3779	2013-01-31	1000	DIBBS
6145-01-348-3779	2011-03-70	237	DIBBS
6145-01-348-3779	2011-01-20	414	DIBBS
6145-01-348-3779	2010-12-340	500	DIBBS
6145-01-348-3779	2010-11-322	684	DIBBS
6145-01-348-3779	2010-09-257	1000	DIBBS
6145-01-348-3779	2010-09-253	331	DIBBS
6145-01-348-3779	2008-06-162	600	DIBBS

Cross Reference | NSN 6145-01-348-3779

Part Number	Cage Code	Manufacturer
05A078-1	1W025	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
7724C1664-9	06090	TYCO ELECTRONICS CORPORATION
T10970	71124	GENERAL CABLE INDUSTRIES, INC. DBA WILLIMANTIC, CT PLANT
TD-1360	90484	ROCKBESTOS-SURPRENANT CABLE CORP

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 6145-01-348-3779

Compare

Related Products | NSN 6145-01-348-3779

6145-01-348-5152, 6145-01-348-5156, 6145-01-348-5368, 6145-01-348-5369, 6145-01-348-5370

Technical Data | NSN 6145-01-348-3779

Characteristic	Specifications
CONDUCTOR QUANTITY	2
CONDUCTOR FORM	STRANDED ALL CONDUCTORS
MATERIAL	COPPER ALLOY CORE CONDUCTOR ALL CONDUCTORS PLASTIC CROSS-LINKED MODIFIED ETHYLENE TETRAFLUOROETHYLENE 1ST POSITION PRIMARY INSULATION ALL CONDUCTORS COPPER ALLOY 2ND POSITION SHIELD BRAID, METALLIC CABLE PLASTIC CROSS-LINKED MODIFIED ETHYLENE TETRAFLUOROETHYLENE 3RD POSITION JACKET CABLE
MATERIAL DOCUMENT AND CLASSIFICATION	ASTM B624 ASSN STD SINGLE MATERIAL RESPONSE CORE CONDUCTOR ALL CONDUCTORS ASTM B624 ASSN STD SINGLE MATERIAL RESPONSE 2ND POSITION SHIELD BRAID, METALLIC CABLE
SURFACE TREATMENT	SILVER CORE CONDUCTOR ALL CONDUCTORS SILVER 2ND POSITION SHIELD BRAID, METALLIC CABLE
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	ASTM B298 ASSN STD SINGLE TREATMENT RESPONSE CORE CONDUCTOR ALL CONDUCTORS ASTM B298 ASSN STD SINGLE TREATMENT RESPONSE 2ND POSITION SHIELD BRAID, METALLIC CABLE
ROUND CONDUCTOR SIZE	24 AWG ALL CONDUCTORS
STRAND QUANTITY PER CONDUCTOR	19 ALL CONDUCTORS
STRAND AWG SIZE PER CONDUCTOR	36 ALL CONDUCTORS
CONDUCTOR ARRANGEMENT AND QUANTITY	1 TWISTED PAIR
COLOR	WHITE 1ST POSITION PRIMARY INSULATION FIRST CONDUCTOR BLUE, LIGHT 1ST POSITION PRIMARY INSULATION SECOND CONDUCTOR WHITE 3RD POSITION JACKET CABLE
CROSS-SECTIONAL SHAPE STYLE	6 ROUND
CROSS SECTION OUTSIDE DIAMETER	0.129 INCHES NOMINAL
TEMP RATING	-55.0 DEG CELSIUS AND 200.0 DEG CELSIUS
III PRECIOUS MATERIAL	SILVER
III PRECIOUS MATERIAL AND LOCATION	SURFACE ALL CONDUCTORS SILVER AND SURFACE SHIELD BRAID SILVER

Restrictions/Controls & Freight Information | NSN 6145-01-348-3779

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	S	Item contains silver
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	030310	CABLE OR WIRE
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	743	unknown
Originating Activity Code	KH	Defense Industrial Supply Center Philadelphia, PA 19111
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 6145-01-348-3779

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	V FT : Foot
