NSN 6145-01-579-9425 M2750024SD3T23, M27500-24SD3T23, 01-579-9425
Product Details | ELECTRICAL SPECIAL PURPOSE CABLE
6145-01-579-9425 Two or more individually insulated conductors (solid or stranded) contained in a common covering, or two or more individually insulated conductors twisted or molded together without a common covering, or one insulated conductor with a metallic covering or shield; each having characteristics not completely conforming to CABLE, TELEPHONE; CABLE, POWER, ELECTRICAL; CABLE, RADIO FREQUENCY or CORD, ELECTRICAL. Includes items having the combined characteristics of two or more of the aforementioned names. Refers to bulk quantities only; for items of definite length with processed ends or terminated in fittings, see CABLE ASSEMBLY, SPECIAL PURPOSE, ELECTRICAL.
Part Alternates: M2750024SD3T23, M27500-24SD3T23, 6145-01-579-9425, 01-579-9425, 6145015799425, 015799425
Electric Wire, and Power and Distribution Equipment | Wire and Cable, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 30 NOV 2009 | 01-579-9425 | 16488 ( CABLE, SPECIAL PURPOSE, ELECTRICAL ) |

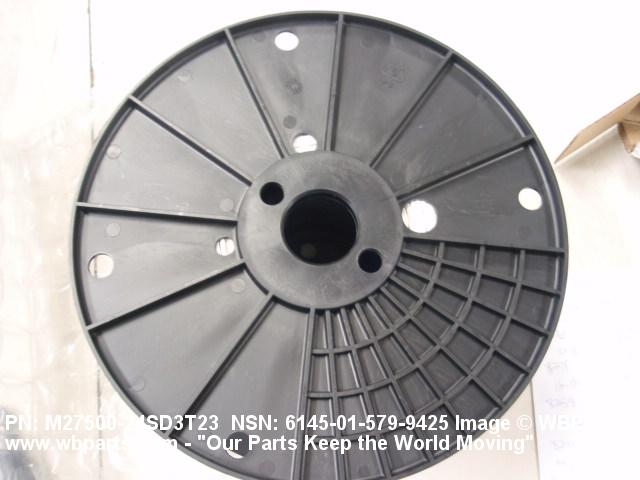

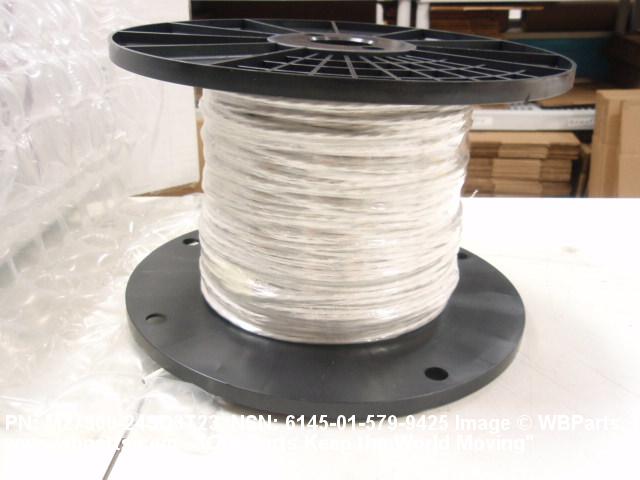

Drawings & Photos | NSN 6145-01-579-9425
Demand History | NSN 6145-01-579-9425
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M2750024SD3T23 | 2013-02-32 | 250 | US |
| 6145-01-579-9425 | 2012-12-338 | 500 | DIBBS |
| 6145-01-579-9425 | 2011-02-42 | 2000 | US |
| M2750024SD3T23 | 2011-01-12 | 1500 | US |
| M2750024SD3T23 | 2010-05-148 | 2200 | United States |
Cross Reference | NSN 6145-01-579-9425
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M27500-24SD3T23 | 1P787 | NATIONAL ELECTRICAL MFRS ASSN DBA NEMA |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6145-01-579-9425
Technical Data | NSN 6145-01-579-9425
| Characteristic | Specifications |
|---|---|
| END ITEM IDENTIFICATION | LAV-C2A2;2355-01-539-3589 |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-W-22759/34 MIL SPEC ALL MATERIAL RESPONSES CORE CONDUCTOR ALL CONDUCTORS |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | CABLE |
| CONDUCTOR FORM | SPIRAL ALL CONDUCTORS |
| CROSS-SECTIONAL SHAPE STYLE | ROUND |
| MATERIAL | PLASTIC POLYTETRAFLUOROETHYLENE CORE JACKET OVERALL AND PLASTIC POLYIMIDE CORE JACKET OVERALL |
| SPECIAL FEATURES | 24AWG,3 CONDUCTOR,TIN SHIELDED 85 PERCENT,WHITE XLETFE JACKET |
| CONDUCTOR QUANTITY | 3 |
| SPECIAL MARKINGS | 24AWG |
| COLOR CODING DOCUMENT | WC27500-2005;TABLE 2-4 STANDARD |
| COLOR | WHITE CORE TAPE CABLE |
Restrictions/Controls & Freight Information | NSN 6145-01-579-9425
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 030310 | CABLE OR WIRE |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 743 | unknown |
| Originating Activity Code | PA | Marine Corps Logistics Base Albany, GA 31704-1128 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6145-01-579-9425
Navy
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 FT : Foot |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 FT : Foot |
