NSN 6145-01-372-3039 12447, 28988/50823LXX-1, 2898850823LXX1
Product Details | RADIO FREQUENCY CABLE
6145-01-372-3039 An item consisting of electrical conductors separated from each other by a continuous homogeneous dielectric (including porous types and touching and/or interlocking beads or spacers), and designed primarily for the conduction of radio frequency energy. Includes a single conductor inclosed in an outer concentric conductor (coaxial) with or without a protective sheath; two or more coaxial cables laid parallel with an outer electrical shield and/or common sheath; two or more parallel conductors with an outer electrical shield and/or a common sheath; two or more individually insulated twisted conductors with or without an electrical shield and/or protective covering. All types have low-loss or special characteristics at high frequencies. Refers to bulk quantities only; for items of definite length with processed ends or terminated in fittings, see CABLE ASSEMBLY, RADIO FREQUENCY. See also LINE, RADIO FREQUENCY TRANSMISSION.
Part Alternates: 12447, 28988/50823LXX-1, 2898850823LXX1, 5M2397002, 5M2397-002, 8100321A, 81-00321A, 6145-01-372-3039, 01-372-3039, 6145013723039, 013723039
Electric Wire, and Power and Distribution Equipment | Wire and Cable, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 05 MAR 1993 | 01-372-3039 | 00779 ( CABLE, RADIO FREQUENCY ) |

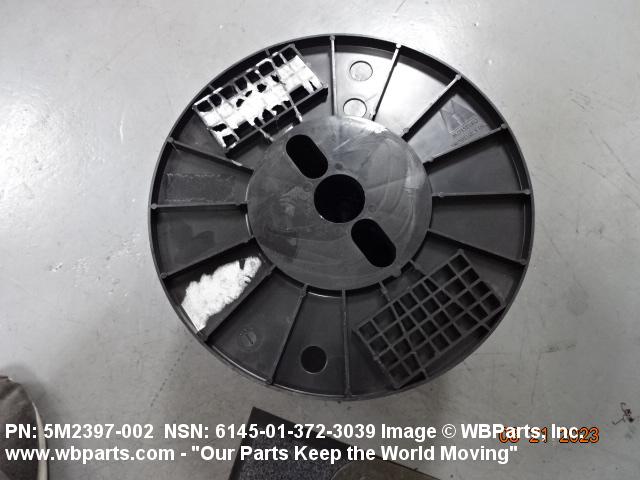

Drawings & Photos | NSN 6145-01-372-3039
Demand History | NSN 6145-01-372-3039
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6145-01-372-3039 | 2024-08-226 | 24 | US |
| 6145-01-372-3039 | 2024-02-38 | 1 | US |
| 6145-01-372-3039 | 2023-08-219 | 25 | United States |
| 6145-01-372-3039 | 2021-11-333 | 1703 | United States |
| 6145-01-372-3039 | 2021-07-210 | 1500 | United States |
| 6145-01-372-3039 | 2021-07-209 | 3000 | United States |
| 12447 | 2021-06-159 | 3000 | DIBBS |
| 28988/50823LXX-1 | 2021-06-159 | 3000 | DIBBS |
| 12447 | 2021-06-158 | 2000 | DIBBS |
| 28988/50823LXX-1 | 2021-06-158 | 2000 | DIBBS |
| 12447 | 2021-06-152 | 1000 | DIBBS |
| 28988/50823LXX-1 | 2021-06-152 | 1000 | DIBBS |
| 12447 | 2021-05-140 | 2000 | DIBBS |
| 28988/50823LXX-1 | 2021-05-140 | 2000 | DIBBS |
| 5M2397002 | 2020-11-324 | 1 | ID |
| 12447 | 2020-09-269 | 2000 | DIBBS |
| 28988/50823LXX-1 | 2020-09-269 | 2000 | DIBBS |
| 6145-01-372-3039 | 2020-08-237 | 100 | United Kingdom |
| 6145-01-372-3039 | 2020-08-237 | 100 | United Kingdom |
| 6145-01-372-3039 | 2020-08-237 | 100 | United Kingdom |
| 12447 | 2020-07-209 | 234 | DIBBS |
| 28988/50823LXX-1 | 2020-07-209 | 234 | DIBBS |
| 12447 | 2019-10-295 | 13000 | DIBBS |
| 28988/50823LXX-1 | 2019-10-295 | 13000 | DIBBS |
| 6145-01-372-3039 | 2018-09-255 | 14000 | DIBBS |
| 6145-01-372-3039 | 2018-08-218 | 13000 | DIBBS |
| 6145-01-372-3039 | 2018-01-09 | 13000 | DIBBS |
| 6145-01-372-3039 | 2017-12-362 | 12292 | DIBBS |
| 5M2397002 | 2013-12-343 | 1000 | us |
| 5M2397002 | 2013-02-58 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6145-01-372-3039
Related Products | NSN 6145-01-372-3039
Technical Data | NSN 6145-01-372-3039
| Characteristic | Specifications |
|---|---|
| CONDUCTOR QUANTITY | 1 |
| CONDUCTOR FORM | STRANDED SINGLE CONDUCTOR |
| MATERIAL | COPPER ALLOY CORE CONDUCTOR SINGLE CONDUCTOR PLASTIC FLUORINATED ETHYLENE PROPYLENE 1ST POSITION PRIMARY INSULATION SINGLE CONDUCTOR COPPER 2ND POSITION SHIELD BRAID, METALLIC SINGLE CONDUCTOR PLASTIC FLUORINATED ETHYLENE PROPYLENE 3RD POSITION SECONDARY INSULATION SINGLE CONDUCTOR STEEL AND COPPER 4TH POSITION SHIELD BRAID, METALLIC SINGLE CONDUCTOR PLASTIC FLUORINATED ETHYLENE PROPYLENE 5TH POSITION JACKET SINGLE CONDUCTOR |
| SURFACE TREATMENT | SILVER CORE CONDUCTOR SINGLE CONDUCTOR SILVER 2ND POSITION SHIELD BRAID, METALLIC SINGLE CONDUCTOR SILVER 4TH POSITION SHIELD BRAID, METALLIC SINGLE CONDUCTOR |
| ROUND CONDUCTOR SIZE | 28 AWG SINGLE CONDUCTOR |
| STRAND QUANTITY PER CONDUCTOR | 19 SINGLE CONDUCTOR |
| STRAND AWG SIZE PER CONDUCTOR | 40 SINGLE CONDUCTOR |
| CONDUCTOR ARRANGEMENT AND QUANTITY | 1 COAXIAL |
| COLOR | WHITE 1ST POSITION PRIMARY INSULATION SINGLE CONDUCTOR BROWN 5TH POSITION JACKET SINGLE CONDUCTOR |
| NOMINAL CAPACITANCE IN PICOFARADS | 19.0 PER FOOT |
| ELECTRICAL RESISTANCE | 75.00 OHMS IMPEDANCE |
| VOLTAGE RATING | 900.0 MAXIMUM ROOT MEAN SQUARE (RMS) OPERATING VOLTAGE SINGLE CONDUCTOR |
| CROSS-SECTIONAL SHAPE STYLE | 6 ROUND |
| CROSS SECTION OUTSIDE DIAMETER | 0.140 INCHES NOMINAL |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | SURFACE SINGLE CONDUCTOR SILVER AND SURFACE SHIELDS BRAID SILVER |
Restrictions/Controls & Freight Information | NSN 6145-01-372-3039
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 030310 | CABLE OR WIRE |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 743 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6145-01-372-3039
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 FT : Foot |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Z FT : Foot |
