NSN 6145-01-441-1201 LCN300A1000, LCN300A-1000, 01-441-1201
Product Details | RADIO FREQUENCY CABLE
6145-01-441-1201 An item consisting of electrical conductors separated from each other by a continuous homogeneous dielectric (including porous types and touching and/or interlocking beads or spacers), and designed primarily for the conduction of radio frequency energy. Includes a single conductor inclosed in an outer concentric conductor (coaxial) with or without a protective sheath; two or more coaxial cables laid parallel with an outer electrical shield and/or common sheath; two or more parallel conductors with an outer electrical shield and/or a common sheath; two or more individually insulated twisted conductors with or without an electrical shield and/or protective covering. All types have low-loss or special characteristics at high frequencies. Refers to bulk quantities only; for items of definite length with processed ends or terminated in fittings, see CABLE ASSEMBLY, RADIO FREQUENCY. See also LINE, RADIO FREQUENCY TRANSMISSION.
Part Alternates: LCN300A1000, LCN300A-1000, 6145-01-441-1201, 01-441-1201, 6145014411201, 014411201
Electric Wire, and Power and Distribution Equipment | Wire and Cable, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 04 FEB 1997 | 01-441-1201 | 00779 ( CABLE, RADIO FREQUENCY ) |

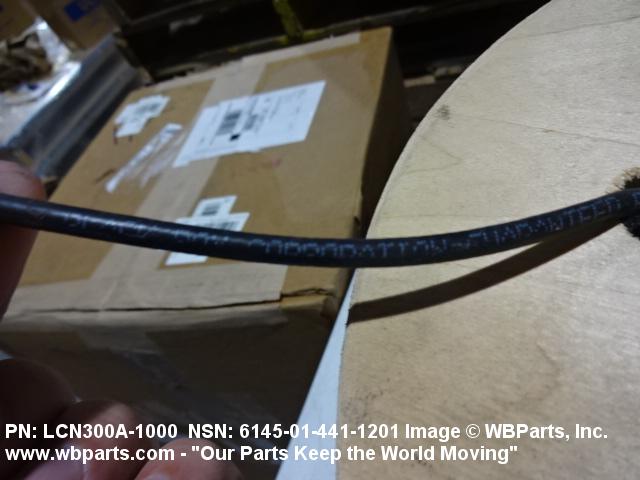

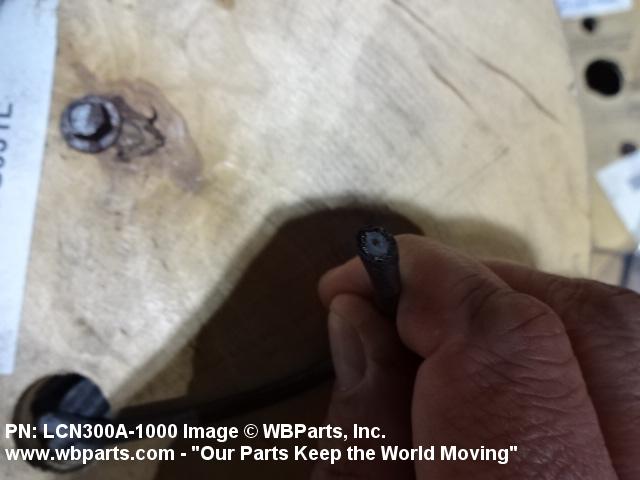

Drawings & Photos | NSN 6145-01-441-1201
Demand History | NSN 6145-01-441-1201
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6145-01-441-1201 | 2019-10-291 | 9 | us |
| CCAC0017915 | 2019-07-203 | 11 | DIBBS |
| CCAC0017915 | 2019-07-190 | 11 | DIBBS |
| CCAC0017915 | 2019-07-182 | 14 | DIBBS |
| CCAC0017915 | 2019-06-171 | 14 | DIBBS |
| CCAC0017915 | 2019-05-151 | 1 | DIBBS |
| CCAC0017915 | 2019-05-151 | 10 | DIBBS |
| CCAC0017915 | 2019-05-140 | 1 | DIBBS |
| CCAC0017915 | 2019-05-140 | 10 | DIBBS |
| CCAC0017915 | 2019-03-80 | 15 | DIBBS |
| LCN300A-1000 | 2019-01-25 | 15 | DIBBS |
| LCN300A-1000 | 2019-01-14 | 15 | DIBBS |
| 6145-01-441-1201 | 2018-10-274 | 4 | United States |
| 6145-01-441-1201 | 2018-09-253 | 4 | DIBBS |
| 6145-01-441-1201 | 2018-08-243 | 15 | DIBBS |
| 6145-01-441-1201 | 2018-08-242 | 4 | DIBBS |
| 6145-01-441-1201 | 2018-08-232 | 15 | DIBBS |
| 6145-01-441-1201 | 2018-08-218 | 3 | DIBBS |
| 6145-01-441-1201 | 2018-07-206 | 3 | DIBBS |
| 6145-01-441-1201 | 2018-05-145 | 3 | DIBBS |
| 6145-01-441-1201 | 2018-05-134 | 3 | DIBBS |
| 6145-01-441-1201 | 2009-06-170 | 1 | DIBBS |
Cross Reference | NSN 6145-01-441-1201
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| LCN300A-1000 | 59951 | BLACK BOX CORPORATION OF PENNSYLVANIA |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6145-01-441-1201
Technical Data | NSN 6145-01-441-1201
| Characteristic | Specifications |
|---|---|
| CONDUCTOR QUANTITY | 1 |
| CONDUCTOR FORM | SOLID SINGLE CONDUCTOR |
| MATERIAL | PLASTIC POLYTETRAFLUOROETHYLENE CORE CONDUCTOR SINGLE CONDUCTOR PLASTIC POLYTETRAFLUOROETHYLENE 4TH POSITION JACKET CABLE |
| COLOR | BLACK 4TH POSITION JACKET CABLE |
| ELECTRICAL RESISTANCE | 50.0 OHMS IMPEDANCE |
| CROSS-SECTIONAL SHAPE STYLE | 6 ROUND |
Restrictions/Controls & Freight Information | NSN 6145-01-441-1201
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 030310 | CABLE OR WIRE |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 743 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6145-01-441-1201
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 RL : Reel |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 RL : Reel |
