NSN 6145-01-204-5540 M24643/32-01UN, M246433201UN, MIL-C-24643/32
Product Details | ELECTRICAL SPECIAL PURPOSE CABLE
6145-01-204-5540 Two or more individually insulated conductors (solid or stranded) contained in a common covering, or two or more individually insulated conductors twisted or molded together without a common covering, or one insulated conductor with a metallic covering or shield; each having characteristics not completely conforming to CABLE, TELEPHONE; CABLE, POWER, ELECTRICAL; CABLE, RADIO FREQUENCY or CORD, ELECTRICAL. Includes items having the combined characteristics of two or more of the aforementioned names. Refers to bulk quantities only; for items of definite length with processed ends or terminated in fittings, see CABLE ASSEMBLY, SPECIAL PURPOSE, ELECTRICAL.
Part Alternates: M24643/32-01UN, M246433201UN, MIL-C-24643/32, MILC2464332, MIL-DTL-24643/32, MILDTL2464332, LS2SWAU3, LS2SWAU-3, 2SWAU3, 6145-01-204-5540, 01-204-5540, 6145012045540, 012045540
Electric Wire, and Power and Distribution Equipment | Wire and Cable, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 28 MAR 1985 | 01-204-5540 | 16488 ( CABLE, SPECIAL PURPOSE, ELECTRICAL ) |

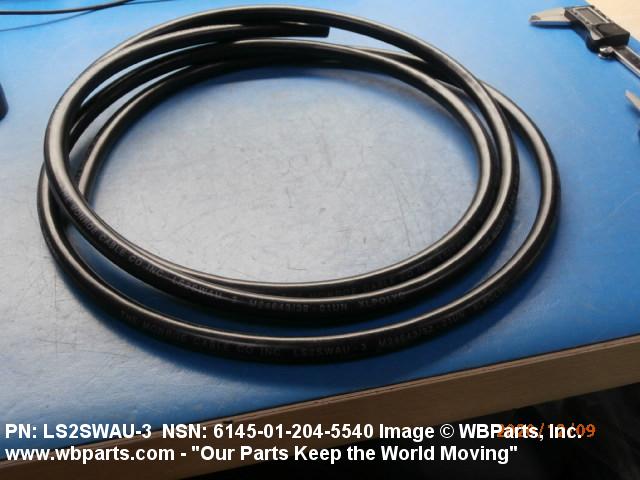

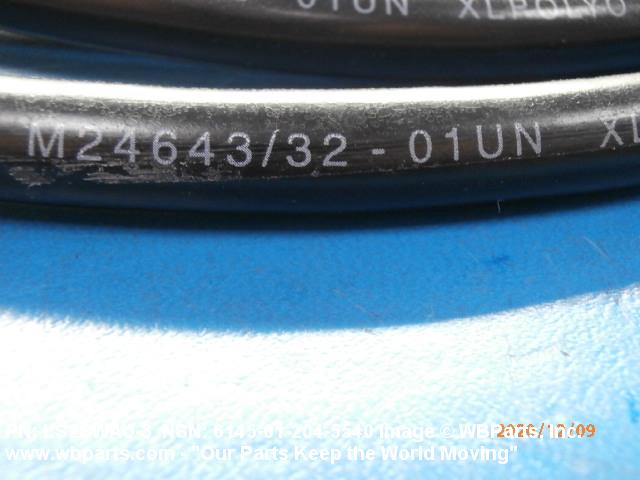

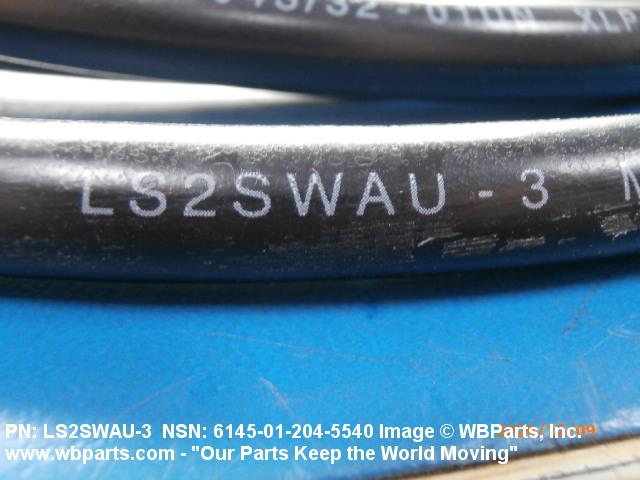

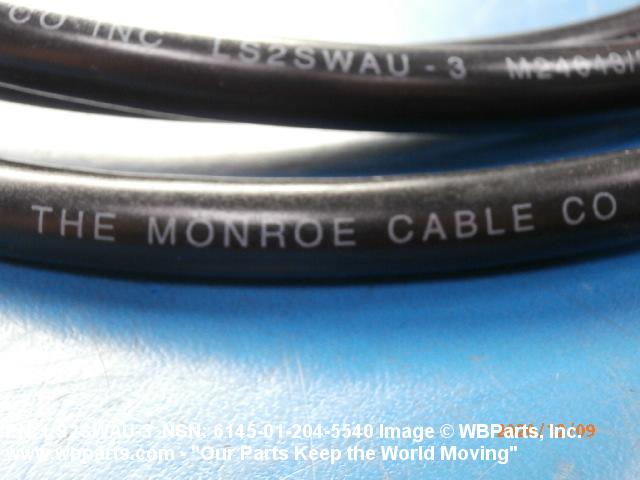

Drawings & Photos | NSN 6145-01-204-5540
Demand History | NSN 6145-01-204-5540
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6145-01-204-5540 | 2024-03-88 | 6534 | DIBBS |
| 6145-01-204-5540 | 2023-08-243 | 9036 | DIBBS |
| 6145-01-204-5540 | 2023-08-215 | 4634 | DIBBS |
| 6145-01-204-5540 | 2023-05-124 | 887 | DIBBS |
| 6145-01-204-5540 | 2023-02-33 | 2500 | DIBBS |
| 6145-01-204-5540 | 2022-11-329 | 2391 | DIBBS |
| 6145-01-204-5540 | 2022-11-317 | 2391 | DIBBS |
| 6145-01-204-5540 | 2020-11-321 | 10 | United States |
| 6145-01-204-5540 | 2019-06-162 | 200 | DIBBS |
| 6145-01-204-5540 | 2019-04-119 | 600 | DIBBS |
| 6145-01-204-5540 | 2019-04-119 | 900 | DIBBS |
| 6145-01-204-5540 | 2019-04-112 | 900 | DIBBS |
| 6145-01-204-5540 | 2019-04-108 | 900 | DIBBS |
| 6145-01-204-5540 | 2019-04-106 | 600 | DIBBS |
| 6145-01-204-5540 | 2019-04-100 | 900 | DIBBS |
| 6145-01-204-5540 | 2019-04-91 | 900 | DIBBS |
| 6145-01-204-5540 | 2019-03-78 | 900 | DIBBS |
| 6145-01-204-5540 | 2019-03-66 | 10805 | DIBBS |
| 6145-01-204-5540 | 2017-07-186 | 6321 | DIBBS |
| 6145-01-204-5540 | 2016-02-47 | 1000 | DIBBS |
| 6145-01-204-5540 | 2013-03-63 | 3000 | DIBBS |
| 6145-01-204-5540 | 2012-08-226 | 4000 | DIBBS |
| 6145-01-204-5540 | 2012-06-172 | 4000 | DIBBS |
| 6145-01-204-5540 | 2011-01-03 | 2000 | DIBBS |
| 6145-01-204-5540 | 2010-10-294 | 1000 | GU |
| 6145-01-204-5540 | 2010-02-43 | 2000 | DIBBS |
| 6145-01-204-5540 | 2009-12-351 | 2000 | DIBBS |
Cross Reference | NSN 6145-01-204-5540
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2SWAU3 | 77314 | PLASTOID CORP |
| LS2SWAU-3 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M24643/32-01UN | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-C-24643/32 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-DTL-24643/32 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6145-01-204-5540
Related Products | NSN 6145-01-204-5540
Technical Data | NSN 6145-01-204-5540

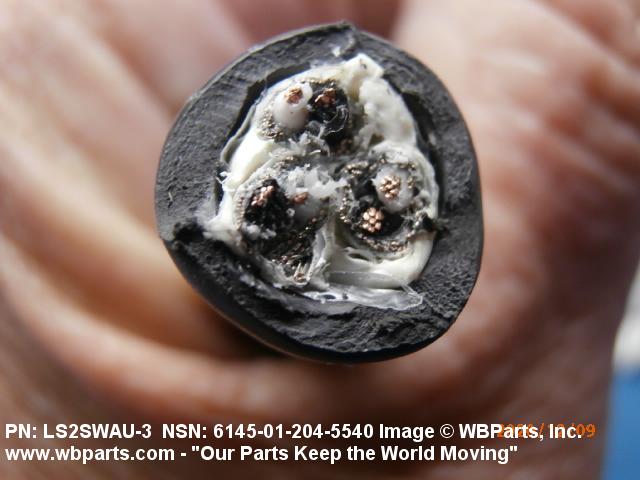

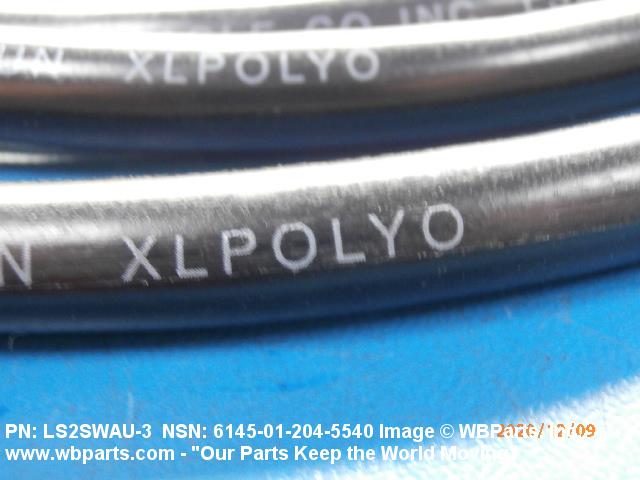

| Characteristic | Specifications |
|---|---|
| CONDUCTOR QUANTITY | 6 |
| CONDUCTOR FORM | STRANDED ALL CONDUCTORS |
| MATERIAL | COPPER CORE CONDUCTOR ALL CONDUCTORS PLASTIC CROSS LINKED POLYETHYLENE 1ST POSITION PRIMARY INSULATION ALL CONDUCTORS PLASTIC CROSS-LINKED POLYOLEFIN 1ST POSITION JACKET CABLE |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTMB3 ASSN STD SINGLE MATERIAL RESPONSE CORE CONDUCTOR ALL CONDUCTORS |
| ROUND CONDUCTOR SIZE | 22 AWG ALL CONDUCTORS |
| STRAND QUANTITY PER CONDUCTOR | 7 ALL CONDUCTORS |
| STRAND AWG SIZE PER CONDUCTOR | 30 ALL CONDUCTORS |
| CONDUCTOR ARRANGEMENT AND QUANTITY | 3 TWISTED PAIR |
| CONDUCTOR GROUPING ARRANGEMENT TYPE AND QUANTITY | 3 TWISTED PAIR ALL GROUPS |
| CONDUCTOR SEQUENCE WITHIN GROUPS | FIRST CONDUCTOR AND SECOND CONDUCTOR FIRST GROUP THIRD CONDUCTOR AND FOURTH CONDUCTOR SECOND GROUP FIFTH CONDUCTOR AND SIXTH CONDUCTOR THIRD GROUP |
| COLOR | BLACK 1ST POSITION JACKET CABLE BLACK 1ST POSITION COVER FIRST CONDUCTOR WHITE 2ND POSITION COVER SECOND CONDUCTOR BLACK 3RD POSITION COVER THIRD CONDUCTOR WHITE 4TH POSITION COVER FOURTH CONDUCTOR BLACK 5TH POSITION COVER FIFTH CONDUCTOR WHITE 6TH POSITION COVER SIXTH CONDUCTOR |
| CROSS-SECTIONAL SHAPE STYLE | 6 ROUND |

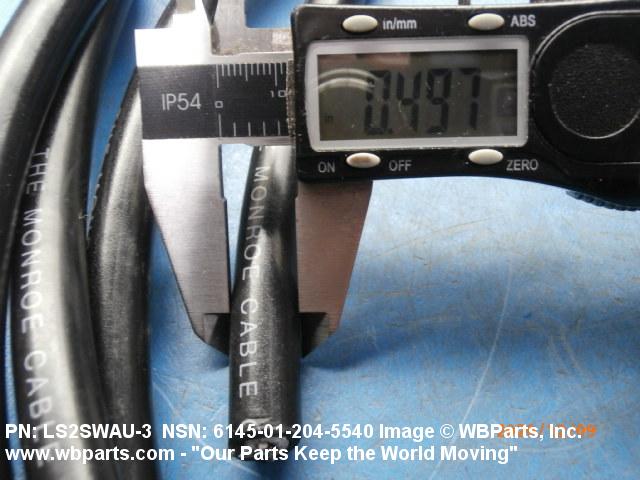

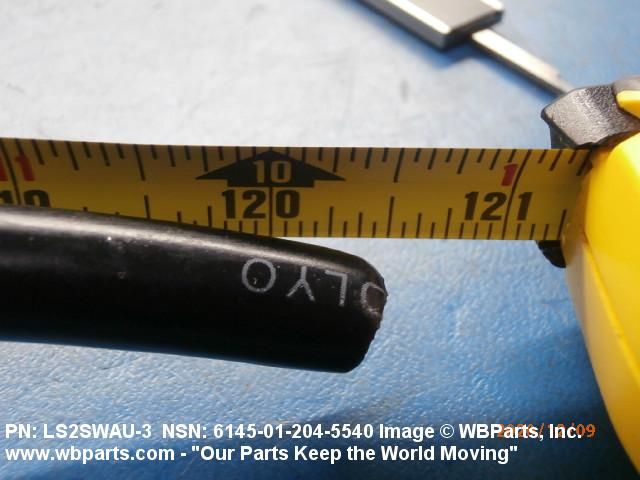

| CROSS SECTION OUTSIDE DIAMETER | 0.500 INCHES NOMINAL |
