NSN 6145-01-136-7177 0300255, 20116, 201-16
Product Details | ELECTRICAL SPECIAL PURPOSE CABLE
6145-01-136-7177 Two or more individually insulated conductors (solid or stranded) contained in a common covering, or two or more individually insulated conductors twisted or molded together without a common covering, or one insulated conductor with a metallic covering or shield; each having characteristics not completely conforming to CABLE, TELEPHONE; CABLE, POWER, ELECTRICAL; CABLE, RADIO FREQUENCY or CORD, ELECTRICAL. Includes items having the combined characteristics of two or more of the aforementioned names. Refers to bulk quantities only; for items of definite length with processed ends or terminated in fittings, see CABLE ASSEMBLY, SPECIAL PURPOSE, ELECTRICAL.
Part Alternates: 0300255, 20116, 201-16, 22232287, 2223228-7, 3302/16, 330216, 3302-16, 3583/16, 358316, 4240855040, 424-0855-040, 45504416, 455-044-16, 80610034060, 80-6100-3406-0, 81201869, 8120-1869, 6145-01-136-7177, 01-136-7177, 6145011367177, 011367177
Electric Wire, and Power and Distribution Equipment | Wire and Cable, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 13 AUG 1982 | 01-136-7177 | 16488 ( CABLE, SPECIAL PURPOSE, ELECTRICAL ) |

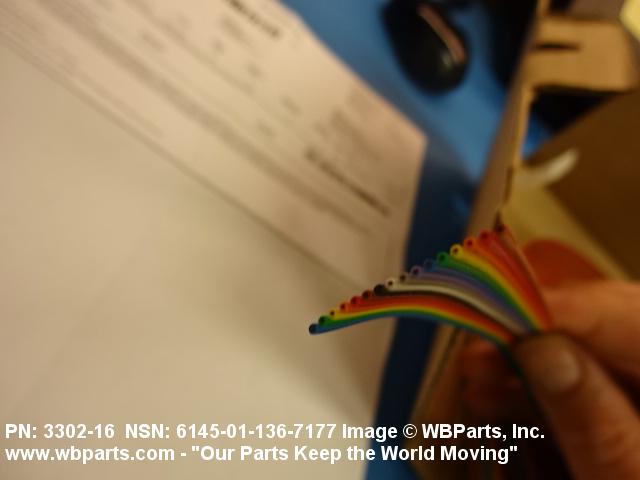

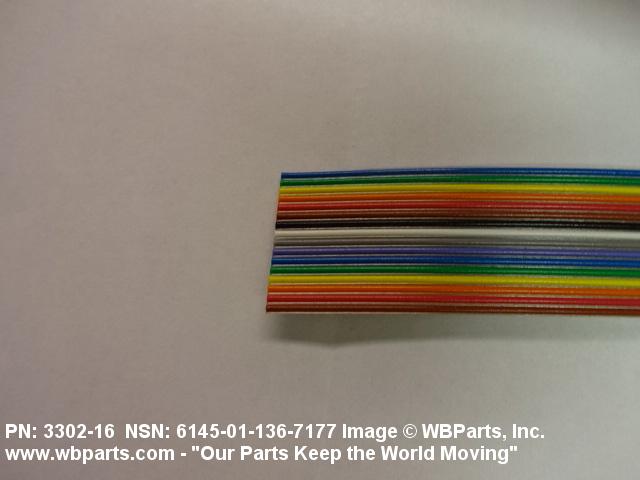

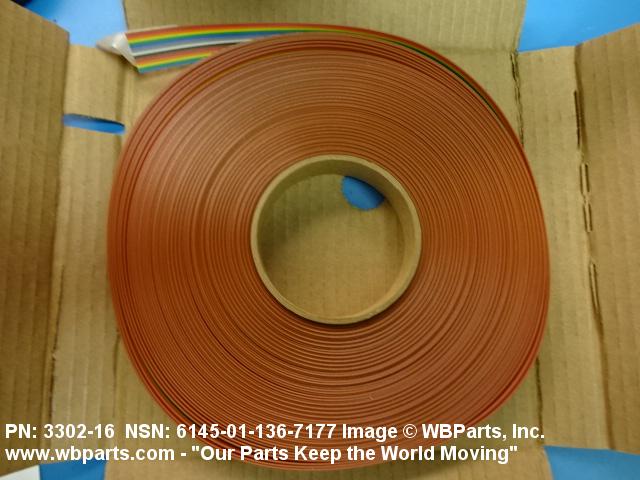

Drawings & Photos | NSN 6145-01-136-7177
Demand History | NSN 6145-01-136-7177
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 81201869 | 2019-08-239 | 4 | Singapore |
| 81201869 | 2019-04-119 | 10 | Singapore |
| 81201869 | 2019-04-119 | 10 | Singapore |
Cross Reference | NSN 6145-01-136-7177
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0300255 | 04855 | AEIRE CORP |
| 201-16 | 15912 | THOMAS AND BETTS CORP ELECTRONICS GROUP |
| 2223228-7 | 55974 | HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS |
| 3302-16 | 75037 | MINNESOTA MINING AND MFG CO 3M COMPANY |
| 3302/16 | 53387 | 3M COMPANY DIV ELECTRO AND COMMUNICATIONS |
| 3583/16 | 92194 | ALPHA WIRE CORPORATION |
| 424-0855-040 | 95105 | ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS |
| 455-044-16 | 08261 | SPECTRA-STRIP AN ELTRA CO |
| 80-6100-3406-0 | D2607 | 3M DEUTSCHLAND GMBH DIV 3M GOVERNMENT SERVICES, EUROPE & |
| 8120-1869 | 28480 | HEWLETT-PACKARD COMPANY DBA HEWLETT-PACKARD CO. OR HP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6145-01-136-7177
Related Products | NSN 6145-01-136-7177
Technical Data | NSN 6145-01-136-7177
| Characteristic | Specifications |
|---|---|
| CONDUCTOR QUANTITY | 16 |
| CONDUCTOR FORM | STRANDED ALL CONDUCTORS |
| MATERIAL | COPPER CORE CONDUCTOR ALL CONDUCTORS PLASTIC POLYVINYL CHLORIDE 1ST POSITION PRIMARY INSULATION ALL CONDUCTORS |
| SURFACE TREATMENT | TIN CORE CONDUCTOR ALL CONDUCTORS |
| ROUND CONDUCTOR SIZE | 28 AWG ALL CONDUCTORS |
| STRAND QUANTITY PER CONDUCTOR | 7 ALL CONDUCTORS |
| STRAND AWG SIZE PER CONDUCTOR | 36 ALL CONDUCTORS |
| CONDUCTOR ARRANGEMENT AND QUANTITY | 16 MOLDED TOGETHER W/NO OUTER COVERING |
| COLOR CODING DOCUMENT | 455-044-08261 DRAWING |
| COLOR | BROWN 1ST POSITION COVER FIRST CONDUCTOR RED 2ND POSITION COVER SECOND CONDUCTOR ORANGE 3RD POSITION COVER THIRD CONDUCTOR YELLOW 4TH POSITION COVER FOURTH CONDUCTOR GREEN 5TH POSITION COVER FIFTH CONDUCTOR BLUE 6TH POSITION COVER SIXTH CONDUCTOR VIOLET 7TH POSITION COVER SEVENTH CONDUCTOR GRAY 8TH POSITION COVER EIGHTH CONDUCTOR WHITE 9TH POSITION COVER NINTH CONDUCTOR BLACK 10TH POSITION COVER TENTH CONDUCTOR |
| VOLTAGE RATING | 300.0 MAXIMUM ROOT MEAN SQUARE (RMS) OPERATING VOLTAGE ALL CONDUCTORS |
| CROSS-SECTIONAL SHAPE STYLE | 3 FLAT |
| CROSS-SECTIONAL HEIGHT | 0.042 INCHES NOMINAL |
| CROSS-SECTIONAL WIDTH | 0.805 INCHES NOMINAL |
| TEMP RATING | 80.0 DEG CELSIUS |
| SPECIAL FEATURES | COLOR CODE IS A 10 COLOR REPEAT STARTING WITH BROWN |
Restrictions/Controls & Freight Information | NSN 6145-01-136-7177
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 030310 | CABLE OR WIRE |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 743 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6145-01-136-7177
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q FT : Foot |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q FT : Foot |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q FT : Foot |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q FT : Foot |
