NSN 6145-00-823-2544 M17/060-RG142, M17/60-RG142, M17060RG142

Product Details | RADIO FREQUENCY CABLE

6145-00-823-2544 An item consisting of electrical conductors separated from each other by a continuous homogeneous dielectric (including porous types and touching and/or interlocking beads or spacers), and designed primarily for the conduction of radio frequency energy. Includes a single conductor inclosed in an outer concentric conductor (coaxial) with or without a protective sheath; two or more coaxial cables laid parallel with an outer electrical shield and/or common sheath; two or more parallel conductors with an outer electrical shield and/or a common sheath; two or more individually insulated twisted conductors with or without an electrical shield and/or protective covering. All types have low-loss or special characteristics at high frequencies. Refers to bulk quantities only; for items of definite length with processed ends or terminated in fittings, see CABLE ASSEMBLY, RADIO FREQUENCY. See also LINE, RADIO FREQUENCY TRANSMISSION.

Part Alternates: M17/060-RG142, M17/60-RG142, M17060RG142, M1760RG142, A650502087, A65050-2087, FC09054, MIL-C-17/60, MILC1760, MILC17RG142UB, RG142, RG142B/U, RG-142B/U, RG142BU, RG142U, V45461B13F7, V45461-B13-F7, VG95216T026, 65050-2087, 02582CW12, 025-82C-W12, 072210031002, 10204678, 16597 28006, 1659728006, 3100288006, 31-00288-006, 425-1132-00, 4251132000, 425-1132-000, 530R802H03, 6145-00-823-2544, 00-823-2544, 6145008232544, 008232544, 650502087, 425113200

Electric Wire, and Power and Distribution Equipment | Wire and Cable, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
61	01 JAN 1962	00-823-2544	00779 ( CABLE, RADIO FREQUENCY )

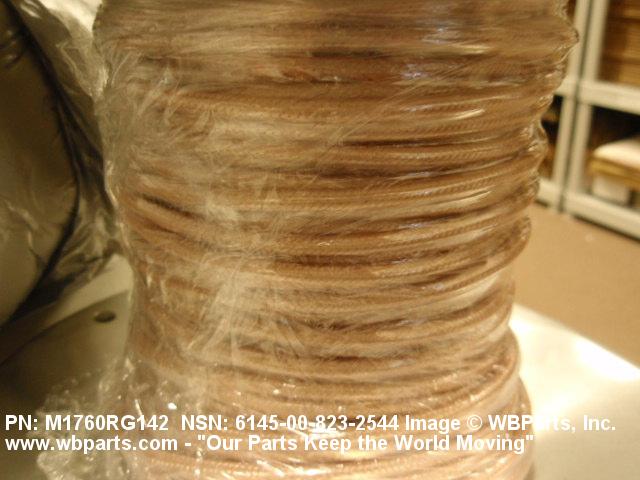

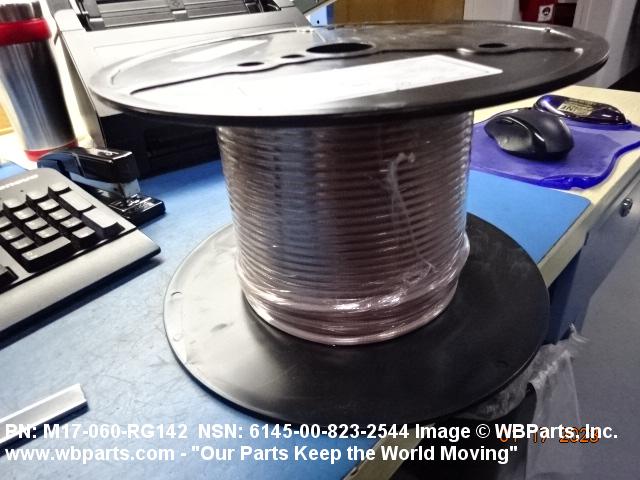

Drawings & Photos | NSN 6145-00-823-2544

Part Number	Request Date	QTY	Origin
RG142BU	2024-05-122	5	United States
6145-00-823-2544	2024-04-103	60	CN
6145-00-823-2544	2024-03-66	34000	DIBBS
6145-00-823-2544	2024-01-19	250	us
6145-00-823-2544	2023-08-219	12000	DIBBS
M1760RG142	2023-06-171	80	United States
6145-00-823-2544	2022-12-349	250	us
6145-00-823-2544	2022-12-335	28000	DIBBS
6145-00-823-2544	2022-11-324	28000	DIBBS
RG142BU	2022-10-299	40	us
6145-00-823-2544	2022-09-250	9000	DIBBS
6145-00-823-2544	2022-06-158	2000	DIBBS
6145-00-823-2544	2021-12-347	7000	DIBBS
6145-00-823-2544	2021-11-332	6000	DIBBS
6145-00-823-2544	2021-11-320	9000	DIBBS
6145-00-823-2544	2021-10-304	16000	DIBBS
RG142	2021-07-208	1200	CO
6145-00-823-2544	2021-03-81	33000	DIBBS
6145-00-823-2544	2021-03-61	1	US
6145-00-823-2544	2021-03-61	100	US
6145-00-823-2544	2020-12-342	14000	DIBBS
6145-00-823-2544	2020-10-282	23000	DIBBS
6145-00-823-2544	2020-07-191	14000	DIBBS
6145-00-823-2544	2020-06-180	14000	DIBBS
6145-00-823-2544	2019-08-233	1	US
6145-00-823-2544	2018-09-250	8000	DIBBS
6145-00-823-2544	2018-05-140	8000	DIBBS
RG142	2018-04-93	1000	United States
6145-00-823-2544	2018-03-66	9000	DIBBS
6145-00-823-2544	2018-03-66	29000	DIBBS
6145-00-823-2544	2018-03-65	29000	DIBBS
6145-00-823-2544	2017-11-309	9000	DIBBS
6145-00-823-2544	2017-10-295	1000	DIBBS
6145-00-823-2544	2017-10-283	6000	DIBBS
6145-00-823-2544	2017-10-283	10000	DIBBS
M1760RG142	2017-10-277	39	US
6145-00-823-2544	2017-10-277	6000	DIBBS
6145-00-823-2544	2017-09-248	10000	DIBBS
6145-00-823-2544	2017-08-226	9000	DIBBS
6145-00-823-2544	2017-08-226	19000	DIBBS
6145-00-823-2544	2017-08-226	24000	DIBBS
6145-00-823-2544	2017-06-155	24000	DIBBS
6145-00-823-2544	2017-05-124	19000	DIBBS
6145-00-823-2544	2017-04-93	25000	DIBBS
6145-00-823-2544	2017-04-92	25000	DIBBS
6145-00-823-2544	2017-02-57	16000	DIBBS
6145-00-823-2544	2017-02-54	2000	DIBBS
6145-00-823-2544	2016-08-224	30	DIBBS
6145-00-823-2544	2015-10-281	13000	DIBBS
6145-00-823-2544	2015-10-277	13000	DIBBS
6145008232544	2015-03-77	100	TR
6145-00-823-2544	2014-09-248	70000	DIBBS
6145-00-823-2544	2014-06-178	30000	DIBBS
M17/60-RG142	2014-06-176	100
M1760RG142	2014-01-29	881	United States
M1760RG142	2014-01-21	15	MX
M17060RG142	2013-10-284	1	US
M1760RG142	2013-09-253	210	United States
M1760RG142	2013-07-182	1623	United States
6145-00-823-2544	2013-02-39	63000	DIBBS
M1760RG142	2013-01-10	500	CN
M1760RG142	2012-08-222	700	CN
6145-00-823-2544	2012-08-215	21500	DIBBS
6145-00-823-2544	2012-06-171	25000	DIBBS
6145-00-823-2544	2012-05-136	26000	DIBBS
6145-00-823-2544	2012-04-114	24000	DIBBS
M17/60-RG142	2012-02-39	3973	IL
RG-142B/U	2012-02-39	3973	IL
RG142BU	2011-11-307	60	United States
6145-00-823-2544	2011-10-290	19000	DIBBS
6145-00-823-2544	2011-08-235	16000	DIBBS
RG142BU	2011-06-173	40	Malaysia
6145-00-823-2544	2011-05-139	43000	DIBBS
M1760RG142	2011-03-83	184	United States
6145-00-823-2544	2011-03-75	12000	DIBBS
6145-00-823-2544	2011-03-61	58000	DIBBS
6145-00-823-2544	2011-01-18	49000	DIBBS
6145-00-823-2544	2010-12-361	29000	DIBBS
6145-00-823-2544	2010-11-323	58000	DIBBS
6145-00-823-2544	2010-07-188	19000	DIBBS
6145-00-823-2544	2010-05-124	7000	DIBBS
6145-00-823-2544	2010-05-124	11000	DIBBS
6145-00-823-2544	2010-04-116	7000	DIBBS
6145-00-823-2544	2010-04-95	12000	DIBBS
6145-00-823-2544	2010-03-84	3000	DIBBS
6145-00-823-2544	2010-03-81	10000	DIBBS
6145-00-823-2544	2010-02-57	79000	DIBBS
6145-00-823-2544	2009-10-290	1	Portugal
6145-00-823-2544	2009-09-245	14000	DIBBS
M1760RG142	2009-08-216	170	United States
6145-00-823-2544	2009-08-215	11000	DIBBS
6145-00-823-2544	2009-06-155	61000	DIBBS
6145-00-823-2544	2008-11-312	1	Turkey
6145-00-823-2544	2008-11-308	100	Turkey
6145-00-823-2544	2008-08-232	42000	DIBBS
6145-00-823-2544	2008-06-155	18000	DIBBS
6145-00-823-2544	2008-05-148	7000	DIBBS
6145-00-823-2544	2008-05-140	21000	DIBBS
6145-00-823-2544	2008-05-137	36000	DIBBS
6145-00-823-2544	2008-05-134	39000	DIBBS
6145-00-823-2544	2008-02-55	1000	DIBBS
6145-00-823-2544	2008-02-53	300	US
RG142BU	2007-11-330	1969	Canada
RG142BU	2007-05-145	269	DE

Cross Reference | NSN 6145-00-823-2544

Part Number	Cage Code	Manufacturer
025-82C-W12	29355	NAVY, UNITED STATES DEPARTMENT OF THE
072210031002	H0673	ALCATEL-LUCENT NETWORK SYSTEMS
16597 28006	D8385	THALES ELECTRONIC SYSTEMS GMBH DBA VERTEIDIGUNGSSYSTEME SEL GMBH
31-00288-006	K0268	RAYTHEON SYSTEMS LTD
425-1132-00	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
425-1132-00	95105	ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS
425-1132-000	95105	ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS
530R802H03	97942	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS
65050-2087	K1384	RACAL RADAR DEFENCE SYSTEMS LTD
65050-2087	U4338	THALES UK LIMITED DBA THALES UK LTDDEFENCE MISSION SYSTEMS
A65050-2087	K1384	RACAL RADAR DEFENCE SYSTEMS LTD
A65050-2087	U4338	THALES UK LIMITED DBA THALES UK LTDDEFENCE MISSION SYSTEMS
FC09054	K1090	SIMOCO EUROPE LTD
M17/060-RG142	0C4C9	SHARP AND DUNNIGAN PUBLICATIONS INC
M17/060-RG142	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M17/60-RG142	0X4C9	ALLIED WIRE & CABLE, INC.
M17/60-RG142	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M17/60-RG142	D1973	TYCO ELECTRONICS RAYCHEM GMBH
MIL-C-17/60	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MILC17RG142UB	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
RG-142B/U	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
RG142	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
RG142B/U	C1375	HUBER + SUHNER GMBH
RG142BU	31550	EXELIS INC. DBA NIGHT VISION & COMMUNICATIONS
RG142BU	80795	ITT INDUSTRIES INC
RG142U	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
V45461-B13-F7	D1183	SIEMENS AG OEN NK VT
VG95216T026	D9477	BUNDESAMT FUER AUSRUESTUNG,

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 6145-00-823-2544

Compare

Related Products | NSN 6145-00-823-2544

6145-00-823-2625, 6145-00-823-2648, 6145-00-823-2672, 6145-00-823-2740, 6145-00-823-2743

Technical Data | NSN 6145-00-823-2544

Characteristic	Specifications
CONDUCTOR QUANTITY	1
CONDUCTOR FORM	SOLID SINGLE CONDUCTOR
MATERIAL	STEEL CORE CONDUCTOR SINGLE CONDUCTOR COPPER 1ST POSITION CONDUCTOR SINGLE CONDUCTOR PLASTIC POLYTETRAFLUOROETHYLENE 1ST POSITION PRIMARY INSULATION SINGLE CONDUCTOR COPPER 2ND POSITION SHIELD BRAID, METALLIC SINGLE CONDUCTOR COPPER 3RD POSITION SHIELD BRAID, METALLIC SINGLE CONDUCTOR COPPER 4TH POSITION SHIELD BRAID, METALLIC SINGLE CONDUCTOR PLASTIC FLUORINATED ETHYLENE PROPYLENE 5TH POSITION JACKET SINGLE CONDUCTOR
SURFACE TREATMENT	TIN ALLOY 2ND POSITION COATING SINGLE CONDUCTOR TIN ALLOY 3RD POSITION COATING SINGLE CONDUCTOR TIN ALLOY 4TH POSITION COATING SINGLE CONDUCTOR
CONDUCTOR ARRANGEMENT AND QUANTITY	1 COAXIAL
NOMINAL CAPACITANCE IN PICOFARADS	29.3 PER FOOT
ELECTRICAL RESISTANCE	50.0 OHMS IMPEDANCE
VOLTAGE RATING	1400.0 MAXIMUM ROOT MEAN SQUARE (RMS) OPERATING VOLTAGE SINGLE CONDUCTOR
CROSS-SECTIONAL SHAPE STYLE	6 ROUND

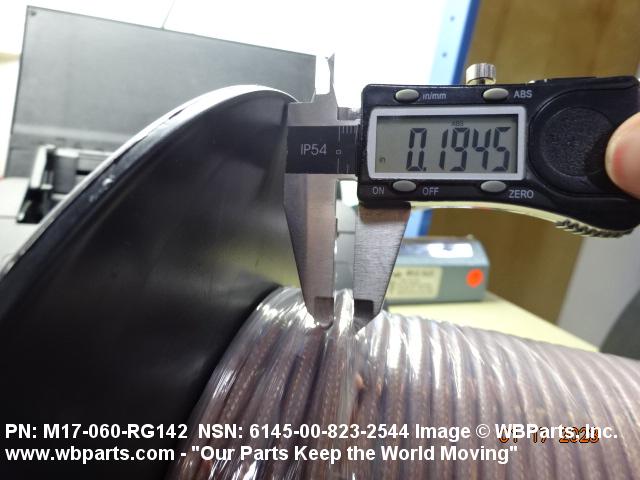

CROSS SECTION OUTSIDE DIAMETER	0.195 INCHES NOMINAL
