NSN 6145-00-681-7849 M17/084-RG223, M17/84-RG223, M17084RG223

Product Details | RADIO FREQUENCY CABLE

6145-00-681-7849 An item consisting of electrical conductors separated from each other by a continuous homogeneous dielectric (including porous types and touching and/or interlocking beads or spacers), and designed primarily for the conduction of radio frequency energy. Includes a single conductor inclosed in an outer concentric conductor (coaxial) with or without a protective sheath; two or more coaxial cables laid parallel with an outer electrical shield and/or common sheath; two or more parallel conductors with an outer electrical shield and/or a common sheath; two or more individually insulated twisted conductors with or without an electrical shield and/or protective covering. All types have low-loss or special characteristics at high frequencies. Refers to bulk quantities only; for items of definite length with processed ends or terminated in fittings, see CABLE ASSEMBLY, RADIO FREQUENCY. See also LINE, RADIO FREQUENCY TRANSMISSION.

Part Alternates: M17/084-RG223, M17/84-RG223, M17084RG223, M1784RG223, AA3413, AA-3413 , SW70151, SW7015-1, VG95212T023M1784RG223, FC09045, MIL-C-17/84, MILC1726, MILC17-26, MILC1784, MILC17TYPERG187A, PW72921, PW7292-1, Q 313 810 005, Q313810005, RG-223/U, RG223U, RG55/U, RG55BU, RG55U, 7945A93H01, 9223, 998482509000, 998-4-82509-000, 998482554000, 998-4-82554-000, 16597 28001, 1659728001, 3513 993 15000, 351399315000, 4251002000, 425-1002-000, 43032311, 430323-11, 608AM3092, 6145-00-681-7849, 00-681-7849, 6145006817849, 006817849

Electric Wire, and Power and Distribution Equipment | Wire and Cable, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
61	01 JAN 1963	00-681-7849	00779 ( CABLE, RADIO FREQUENCY )

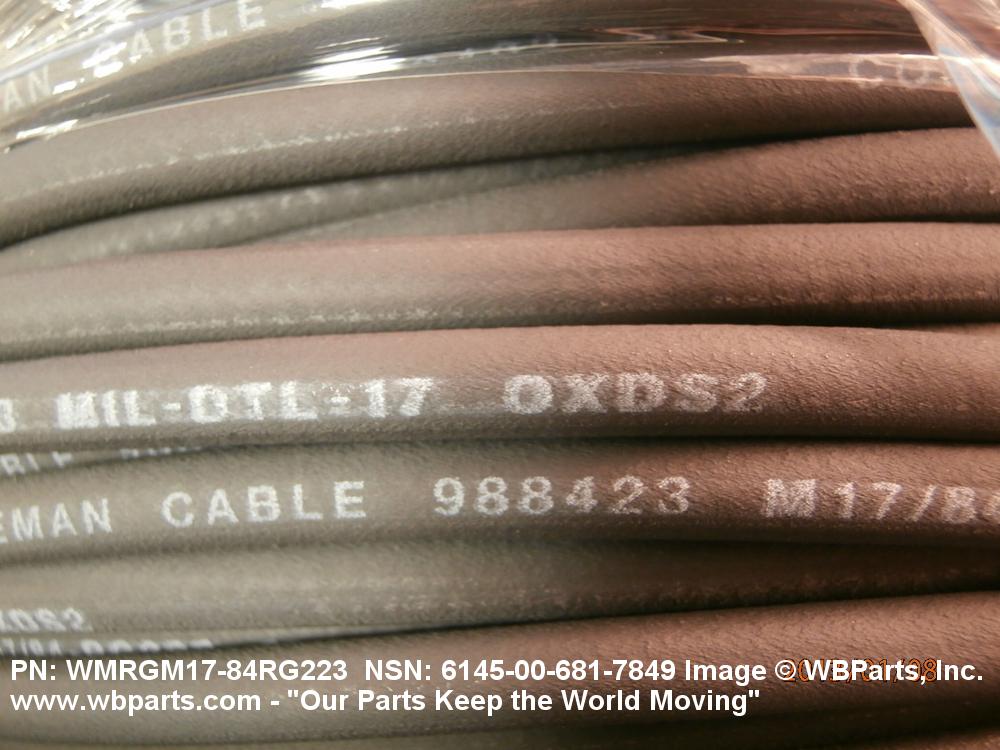

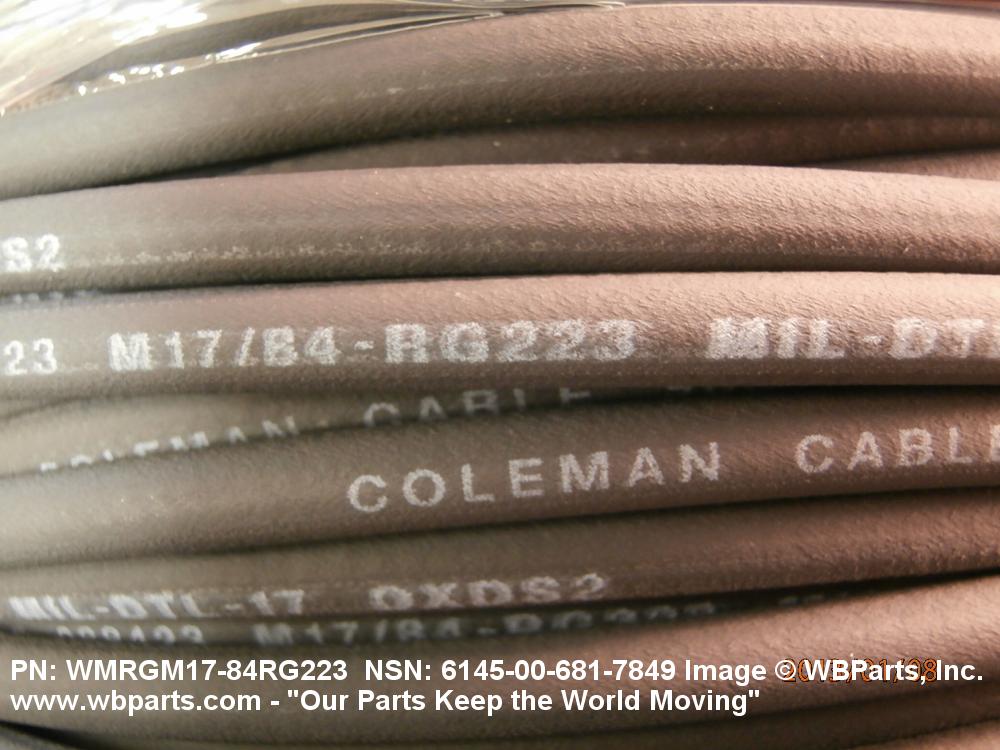

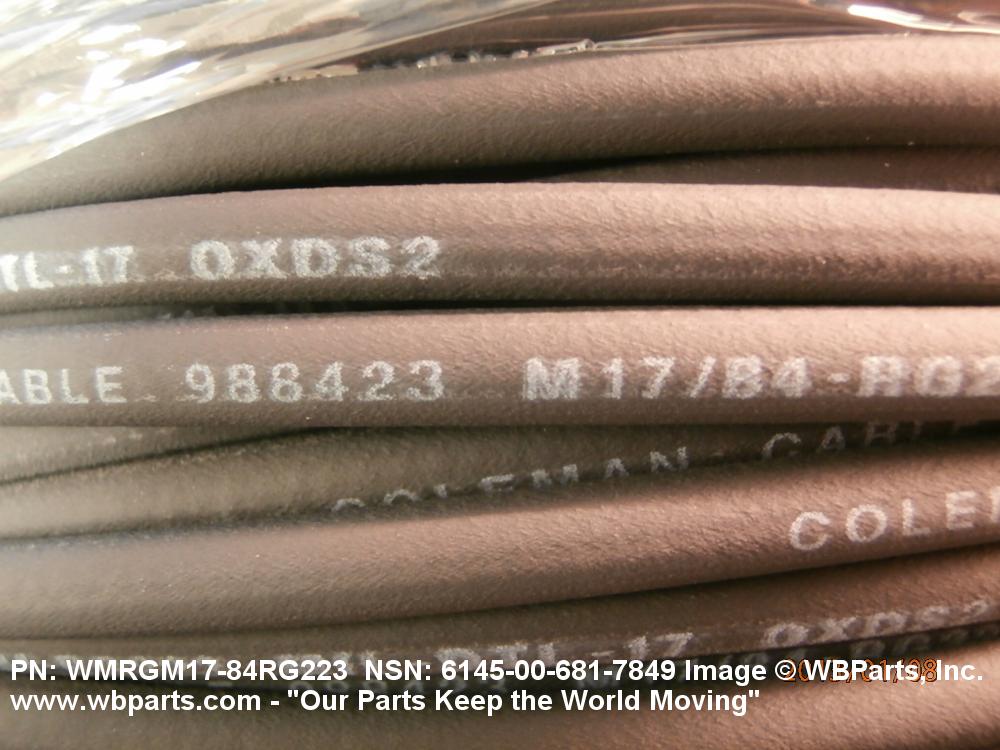

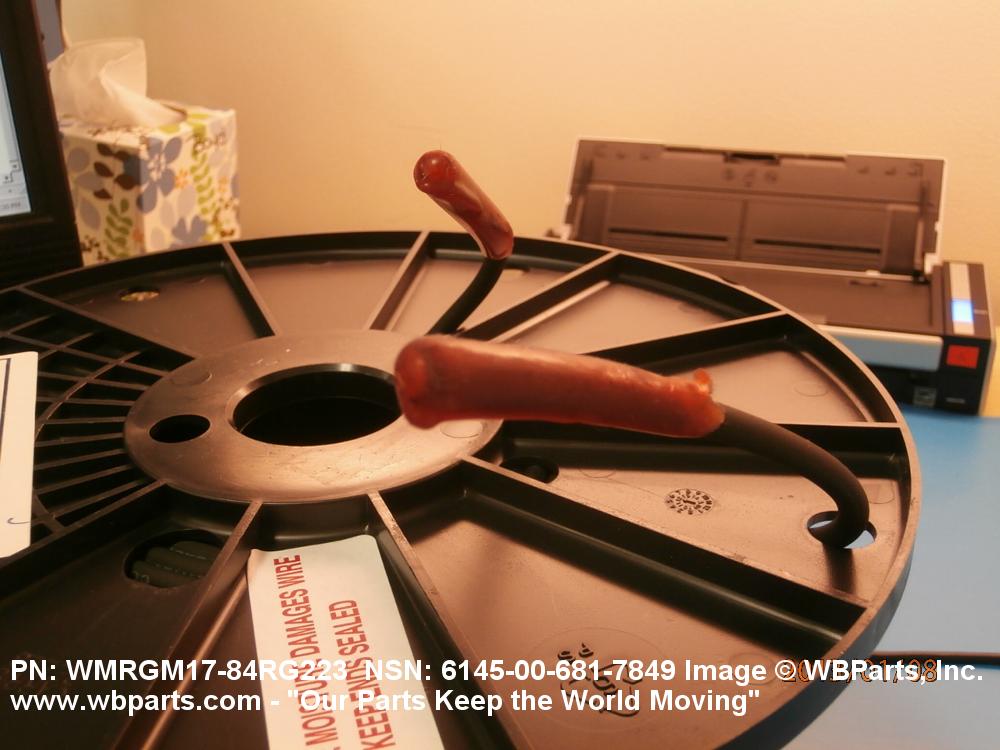

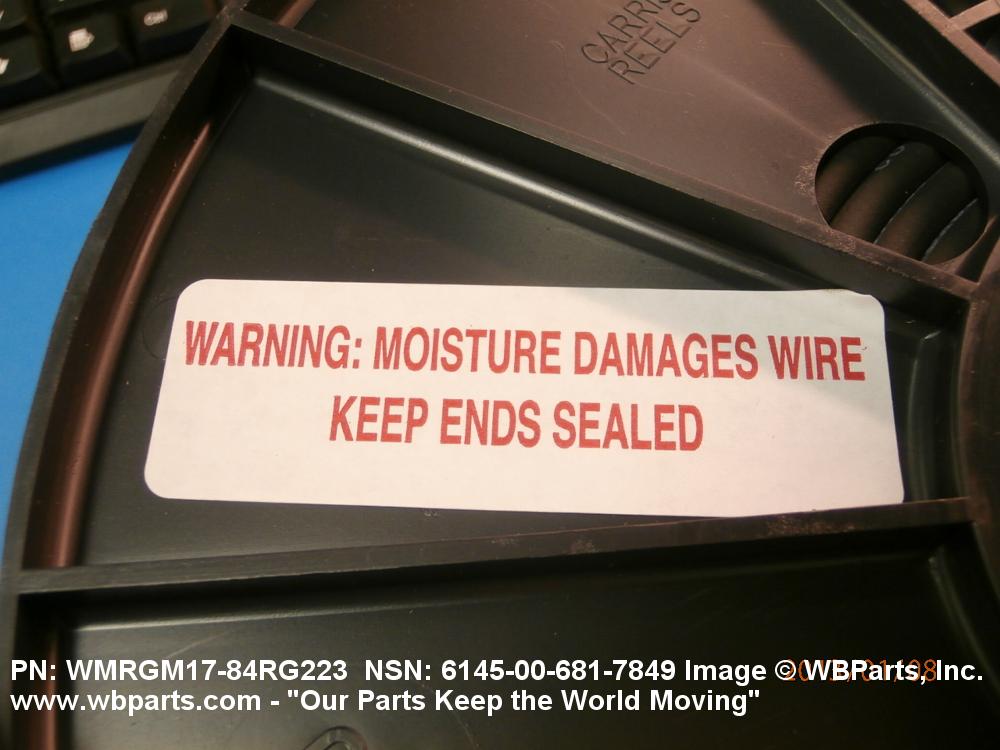

Drawings & Photos | NSN 6145-00-681-7849

Part Number	Request Date	QTY	Origin
6145-00-681-7849	2018-09-267	1	US
6145-00-681-7849	2018-09-267	1326	US
6145-00-681-7849	2014-11-324	11550	US
RG223U	2014-11-321	1368	United States
6145-00-681-7849	2014-04-94	20000	US
6145-00-681-7849	2011-01-29	50	Pakistan
M17084RG223	2010-08-221	64000	US
6145-00-681-7849	2010-06-173	3000	DIBBS
M1784RG223	2010-04-109	325	Taiwan
RG223U	2010-04-109	2	Taiwan
6145-00-681-7849	2009-02-49	49000	DIBBS
6145-00-681-7849	2008-12-345	121000	DIBBS
6145-00-681-7849	2008-09-256	35000	DIBBS
6145-00-681-7849	2008-09-256	55000	DIBBS
6145-00-681-7849	2008-09-254	35000	DIBBS
6145-00-681-7849	2008-09-254	55000	DIBBS
6145-00-681-7849	2008-06-171	96000	DIBBS

Cross Reference | NSN 6145-00-681-7849

Part Number	Cage Code	Manufacturer
16597 28001	D8385	THALES ELECTRONIC SYSTEMS GMBH DBA VERTEIDIGUNGSSYSTEME SEL GMBH
3513 993 15000	K1090	SIMOCO EUROPE LTD
425-1002-000	95105	ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS
430323-11	D1427	NEXANS DEUTSCHLAND INDUSTRIES GMBH& CO. KG
608AM3092	1LQK8	KEYSIGHT TECHNOLOGIES, INC.
7945A93H01	31442	NORTHROP GRUMMAN SYSTEMS CORPORATION
9223	92194	ALPHA WIRE CORPORATION
998-4-82509-000	K4547	SIEMENS AIR TRAFFIC MANAGEMENT
998-4-82554-000	K4547	SIEMENS AIR TRAFFIC MANAGEMENT
AA-3413	68999	TIMES MICROWAVE SYSTEMS, INC. DIV TIMES MICROWAVE SYSTEMS
FC09045	K1090	SIMOCO EUROPE LTD
M17/084-RG223	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M17/84-RG223	0JUD5	COLEMAN CABLE INC DBA CCI
M17/84-RG223	0TW39	ALMO WIRE & CABLE, INC.
M17/84-RG223	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M17/84-RG223	D1427	NEXANS DEUTSCHLAND INDUSTRIES GMBH& CO. KG
MIL-C-17/84	0TW39	ALMO WIRE & CABLE, INC.
MIL-C-17/84	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MILC17-26	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MILC17TYPERG187A	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
PW7292-1	K2555	G E C MARCONI COMMUNICATIONS LTD
PW7292-1	U2248	SELEX ES LTD
Q 313 810 005	C2463	RHEINMETALL SOLDIER ELECTRONICS GMB
RG-223/U	D1427	NEXANS DEUTSCHLAND INDUSTRIES GMBH& CO. KG
RG223U	02660	AMPHENOL CORP SPECTRA-STRIP/ITD
RG223U	80058	JOINT ELECTRONICS TYPE DESIGNATION SYSTEM
RG223U	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
RG55/U	92194	ALPHA WIRE CORPORATION
RG55BU	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
SW7015-1	K6894	BAE SYSTEMS RO DEFENCE
VG95212T023+M17/84-RG223	D9477	BUNDESAMT FUER AUSRUESTUNG,

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 6145-00-681-7849

Compare

Related Products | NSN 6145-00-681-7849

6145-00-681-8361, 6145-00-681-8362, 6145-00-681-8367, 6145-00-681-8370, 6145-00-681-8371

Technical Data | NSN 6145-00-681-7849

Characteristic	Specifications
CONDUCTOR QUANTITY	1
CONDUCTOR FORM	SOLID SINGLE CONDUCTOR
MATERIAL	COPPER CORE CONDUCTOR SINGLE CONDUCTOR PLASTIC POLYETHYLENE 1ST POSITION PRIMARY INSULATION SINGLE CONDUCTOR COPPER 2ND POSITION SHIELD BRAID, METALLIC SINGLE CONDUCTOR COPPER 3RD POSITION SHIELD BRAID, METALLIC SINGLE CONDUCTOR PLASTIC POLYVINYL CHLORIDE 4TH POSITION JACKET SINGLE CONDUCTOR
MATERIAL DOCUMENT AND CLASSIFICATION	ASTM B298 ASSN STD SINGLE MATERIAL RESPONSE CORE CONDUCTOR SINGLE CONDUCTOR
SURFACE TREATMENT	SILVER CORE CONDUCTOR SINGLE CONDUCTOR SILVER 2ND POSITION SHIELD BRAID, METALLIC SINGLE CONDUCTOR SILVER 3RD POSITION SHIELD BRAID, METALLIC SINGLE CONDUCTOR
CONDUCTOR ARRANGEMENT AND QUANTITY	1 COAXIAL
NOMINAL CAPACITANCE IN PICOFARADS	32.2 PER FOOT
ELECTRICAL RESISTANCE	50.0 OHMS IMPEDANCE
VOLTAGE RATING	1400.0 MAXIMUM ROOT MEAN SQUARE (RMS) OPERATING VOLTAGE SINGLE CONDUCTOR
CROSS-SECTIONAL SHAPE STYLE	6 ROUND

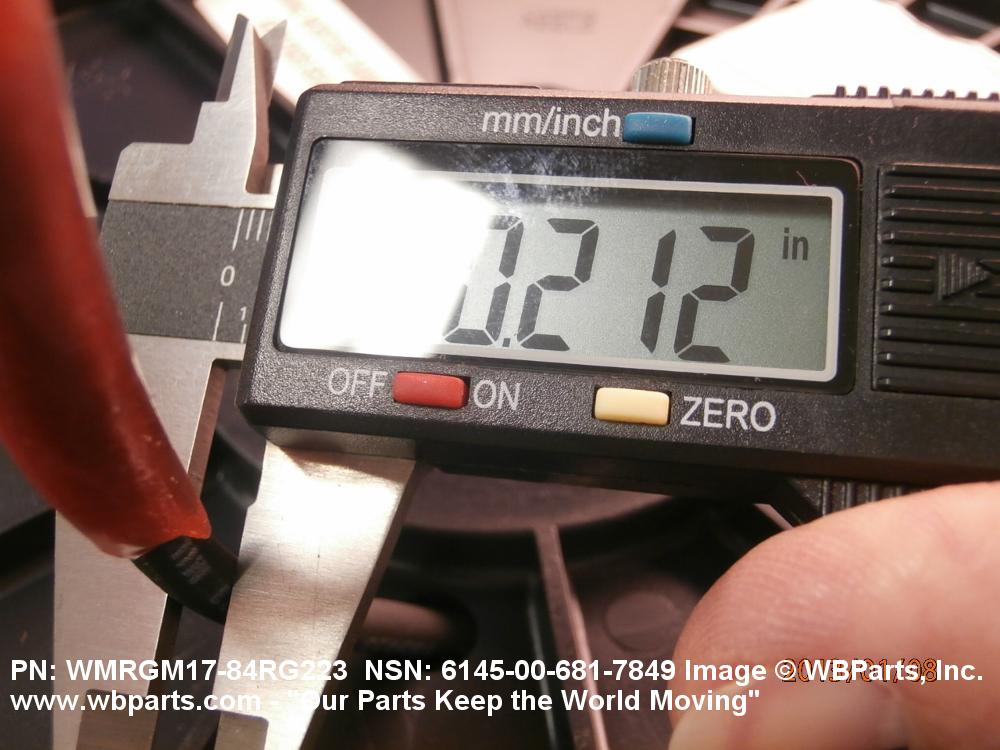

CROSS SECTION OUTSIDE DIAMETER	0.212 INCHES NOMINAL
