Product Details | WIRE BRAID

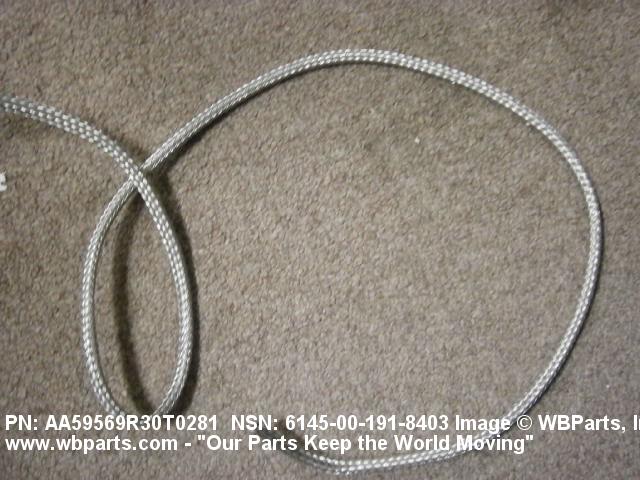

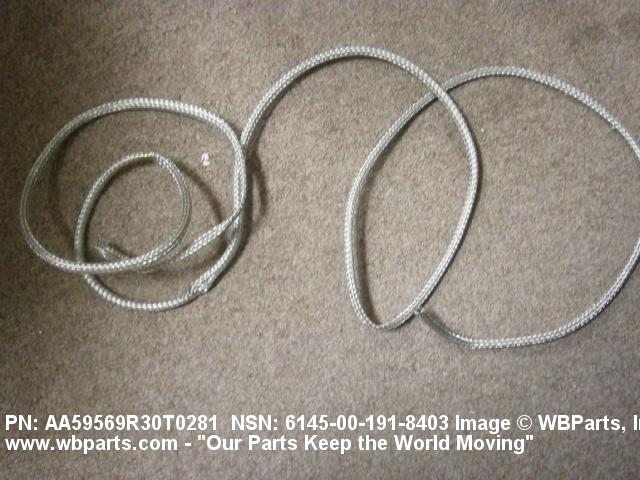

6145-00-191-8403 An item formed by crossing three or more electrical conductors diagonally in such a manner that each conductor passes alternately over and under one or more of the others. Manufactured in flat or tubular shapes. Refers to bulk quantities only. See also SHIELD, SPARK PLUG.
Part Alternates: AA59569, A-A-59569, AA59569R30T0281, QQB575, QQ-B-575, QQB575R30T0281, QQB575R30T281, 087013103035, 087-013103-035, 135B61512, 135B6151-2, 2171/1, 21711, 7600008619, 760-00086-19, 6145-00-191-8403, 00-191-8403, 6145001918403, 001918403
