NSN 6130-00-088-1339 C1B1SDCLD, 00-088-1339, 000881339
Product Details | METALLIC RECTIFIER
6130-00-088-1339 An electrical item (the working element of which is constructed essentially of metallic substances) which changes alternating current to direct current by the rectifying action occurring at the junction interface between a metallic conductor and a semiconductor. Excludes sets of metallic rectifiers which are not rated for rectifying capabilities but are used as suppressors. For items containing germanium or silicon, see SEMICONDUCTOR DEVICE (1), DIODE; SEMICONDUCTOR DEVICE SET and RECTIFIER, SEMICONDUCTOR DEVICE. For a complete power supply utilizing metallic rectifiers, see POWER SUPPLY.
Part Alternates: C1B1SDCLD, 6130-00-088-1339, 00-088-1339, 6130000881339, 000881339
Electric Wire, and Power and Distribution Equipment | Converters, Electrical, Nonrotating
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 01 JAN 1963 | 00-088-1339 | 00299 ( RECTIFIER, METALLIC ) |

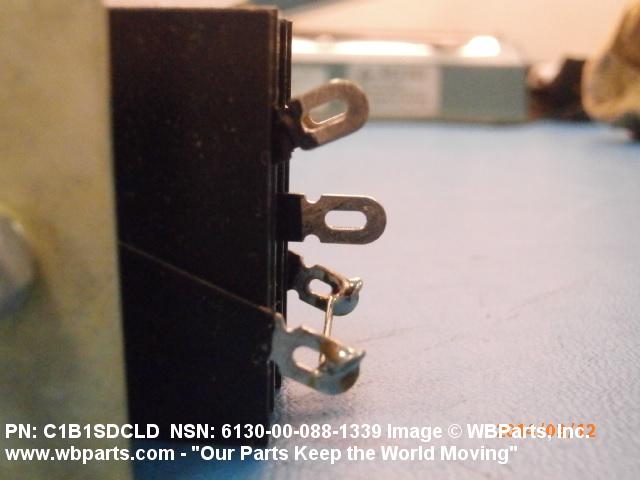

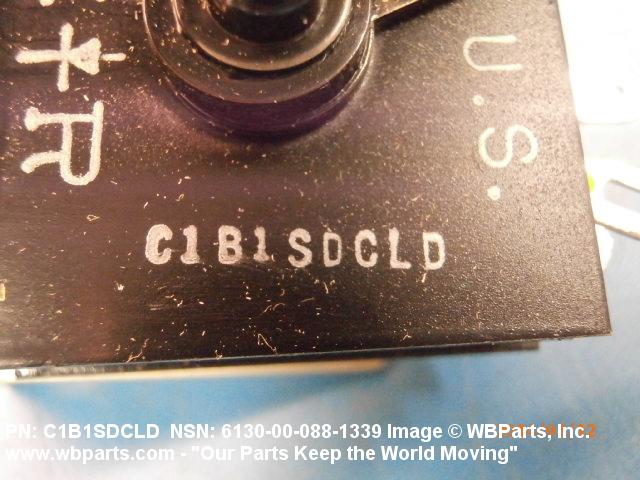

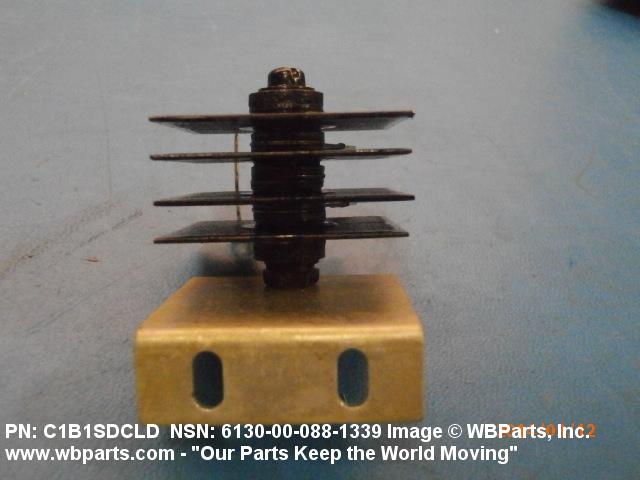

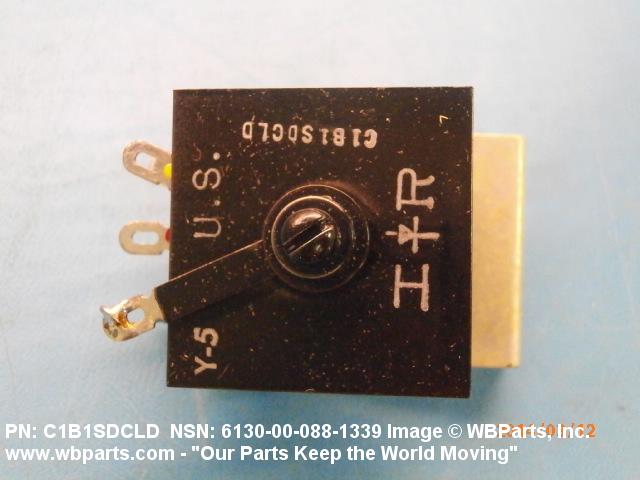

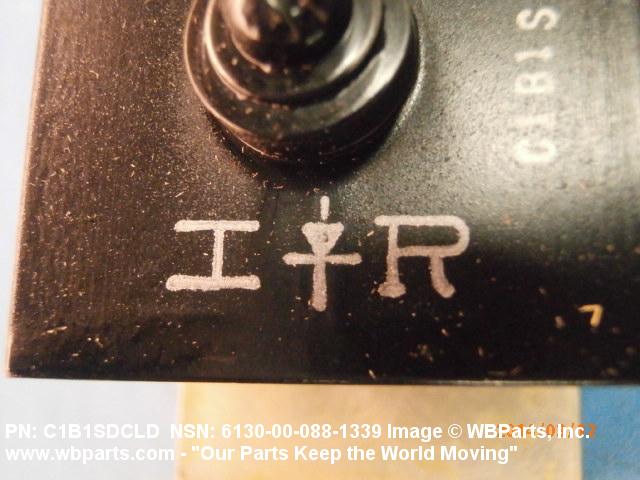

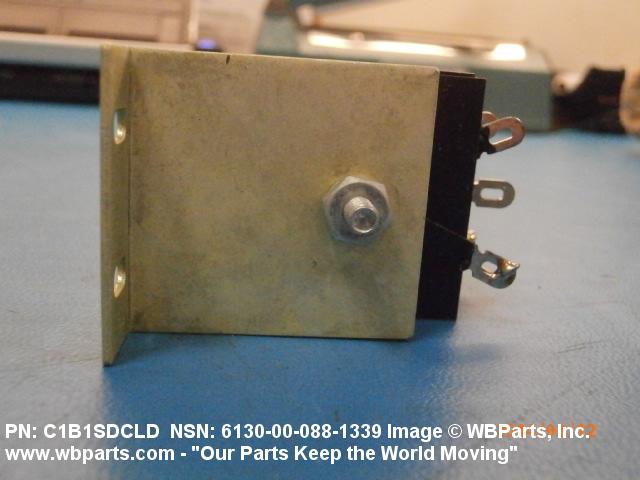

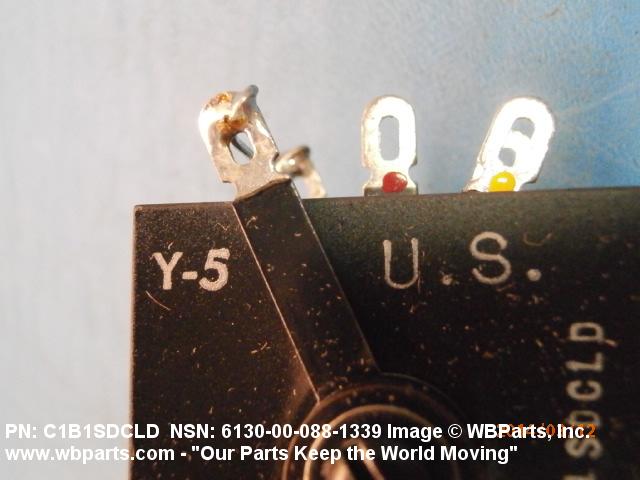

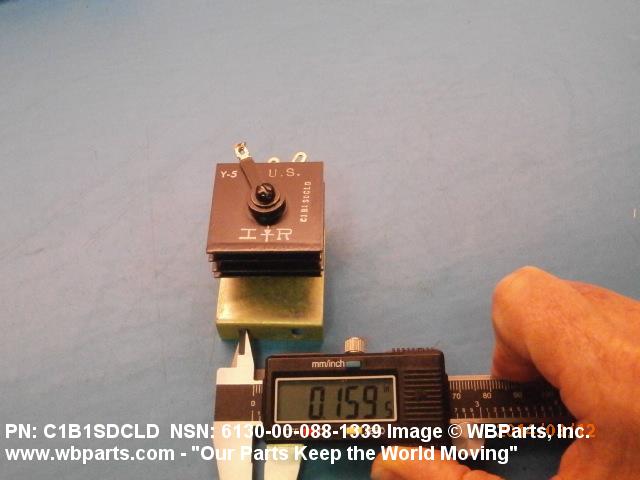

Drawings & Photos | NSN 6130-00-088-1339
Demand History | NSN 6130-00-088-1339
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6130-00-088-1339 | 2014-02-57 | 1 | United States |
Cross Reference | NSN 6130-00-088-1339
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C1B1SDCLD | 05300 | RECTICO, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6130-00-088-1339
Technical Data | NSN 6130-00-088-1339
| Characteristic | Specifications |
|---|---|
| MATERIAL | SELENIUM |
| ABSOLUTE MAXIMUM POWER RATING PER CHARACTERISTIC | 43.2 WATTS TOTAL POWER DISSIPATION |
| CIRCUIT CONNECTION STYLE DESIGNATOR | A2 CENTER TAP 1 PHASE |
| RMS INPUT MAXIMUM VOLTAGE RATING | 36.0 VOLTS |
| DC OUTPUT MAXIMUM CURRENT RATING | 1.200 AMPERES |
| LOAD TYPE | RESISTIVE AND INDUCTIVE |
| DC OUTPUT MAXIMUM VOLTAGE RATING | 36.0 VOLTS NEW |
| STACK QUANTITY | 1 |
| TEMP RATING | 40.0 DEG CELSIUS |
| TERMINAL QUANTITY | 3 |
| TERMINAL TYPE | SOLDER LUG |
| GROUNDED TERMINAL | NOT INCLUDED |
| MOUNTING METHOD | BRACKET |

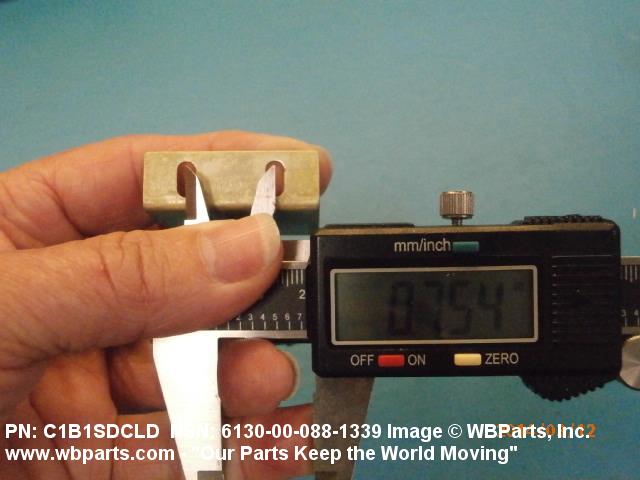

| MOUNTING CONFIGURATION | TWO 0.144 IN. DIA MTG HOLES ON 0.750 IN. MTG CENTERS |
| MANUFACTURERS CODE | 05300 |
| DESIGN CONTROL REFERENCE | C1B1SDCLD |
Restrictions/Controls & Freight Information | NSN 6130-00-088-1339
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062900 | RECTIFIERS NOI/BATTERY ELIMINATORS |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6130-00-088-1339
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | LP | Items initially authorized for local purchase. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
