NSN 6115-01-346-7585 8SA3064PC, 01-346-7585, 013467585
Product Details | ALTERNATING CURRENT GENERATOR
6115-01-346-7585 A generator having a characteristic of current and voltage that is continually reversing in direction of flow at regular intervals. Does not include rotary inverters, motor-generators, generator sets, synchros, and frequency or phase changers. Excludes GENERATOR, TACHOMETER.
Part Alternates: 8SA3064PC, 6115-01-346-7585, 01-346-7585, 6115013467585, 013467585
Electric Wire, and Power and Distribution Equipment | Generators and Generator Sets, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 09 OCT 1991 | 01-346-7585 | 00781 ( GENERATOR, ALTERNATING CURRENT ) |

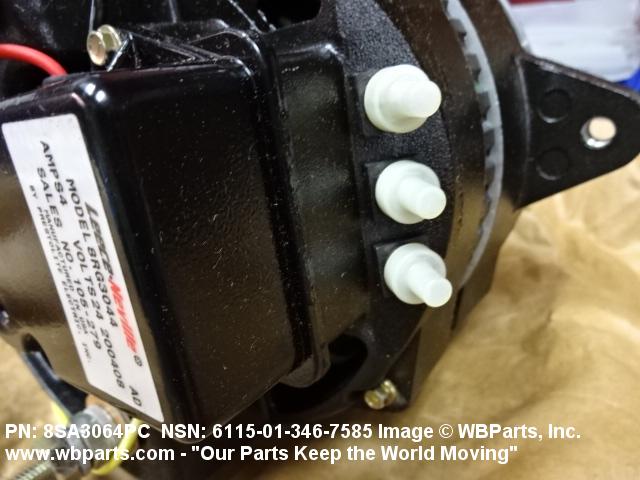

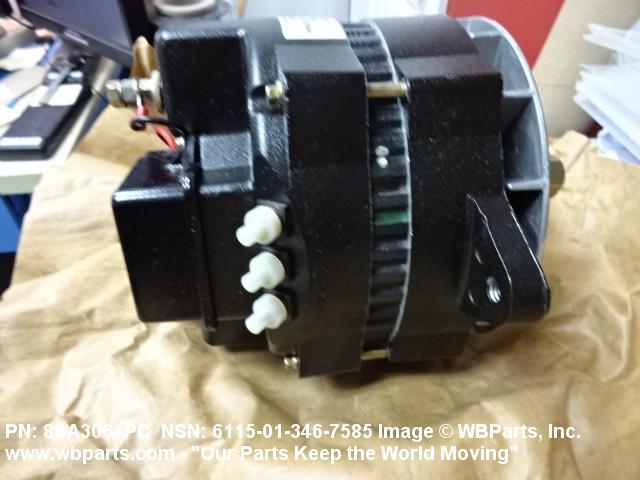

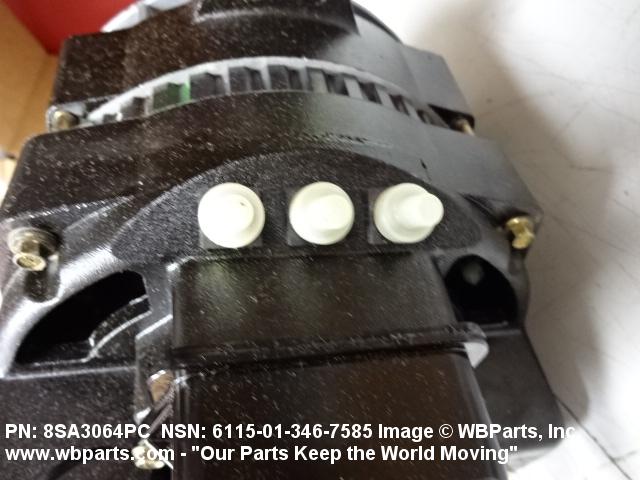

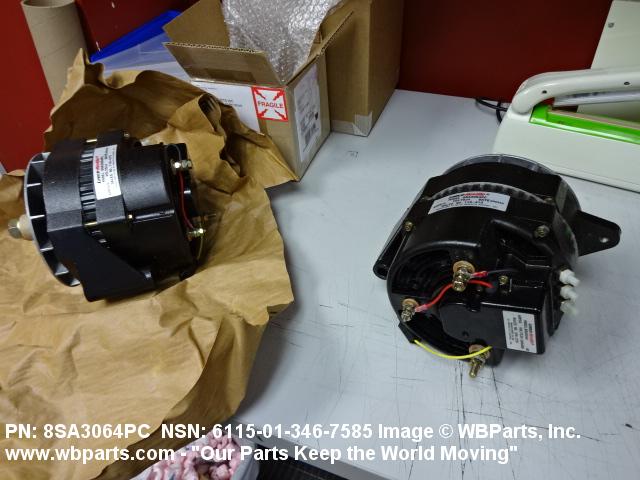

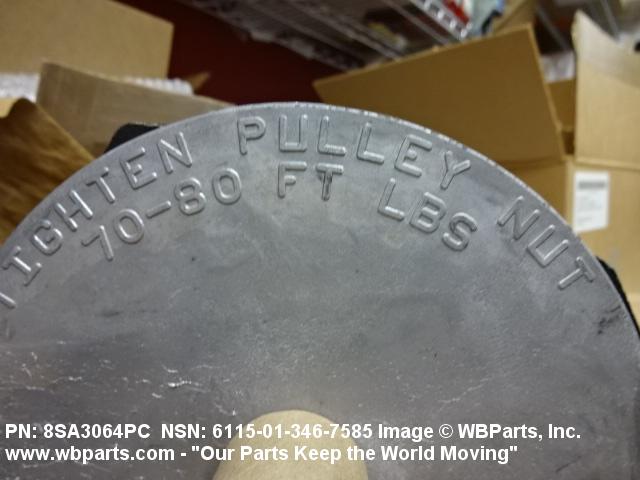

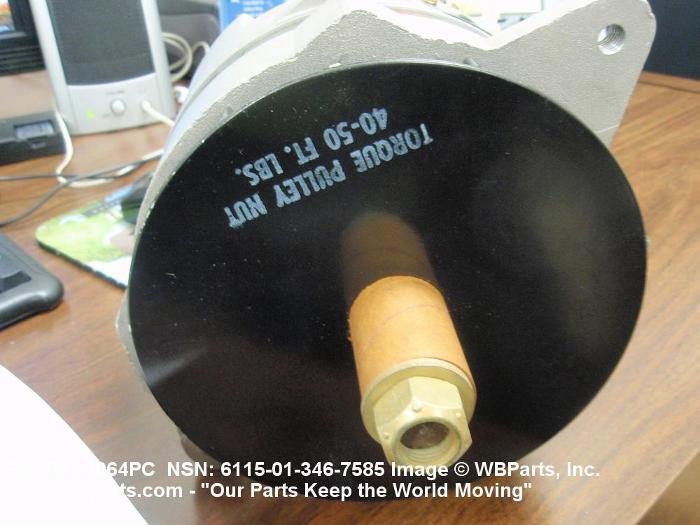

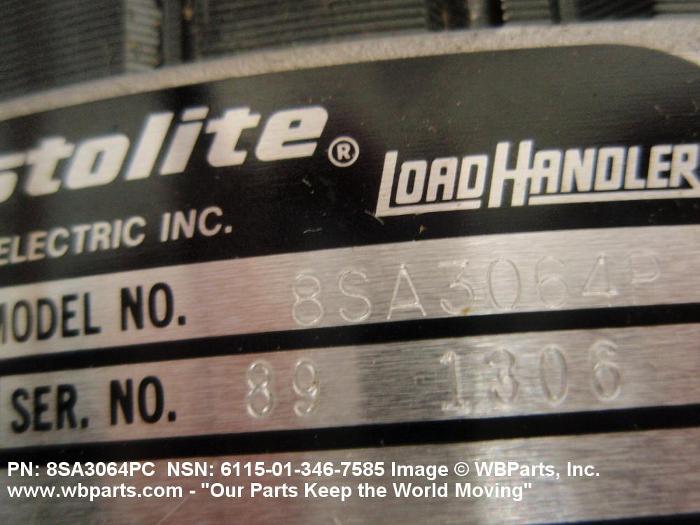

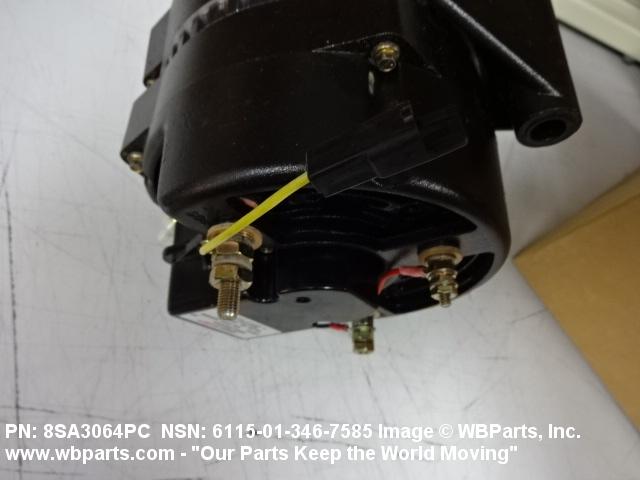

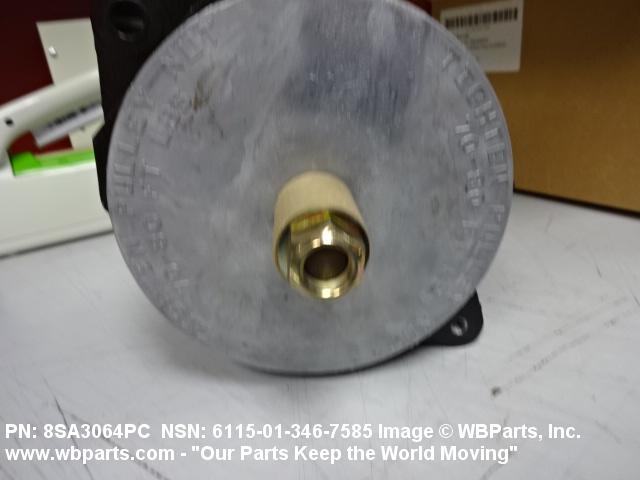

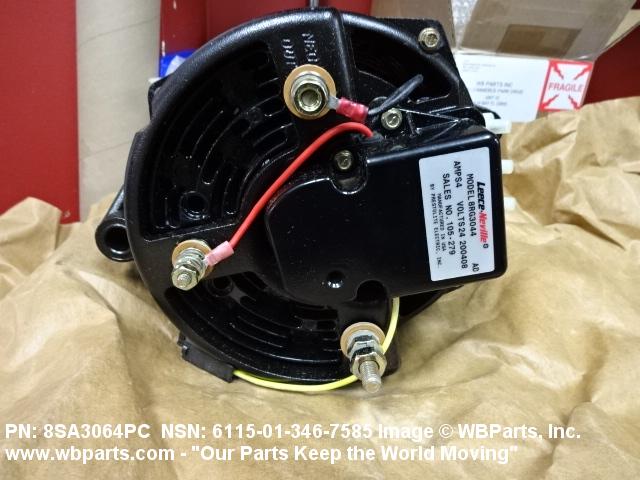

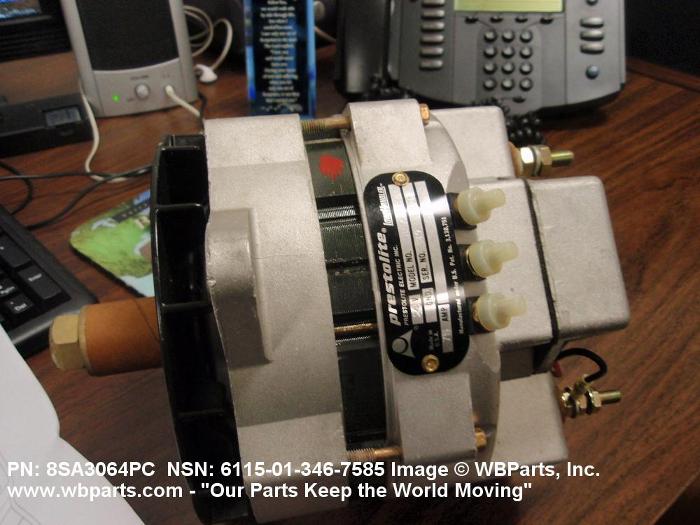

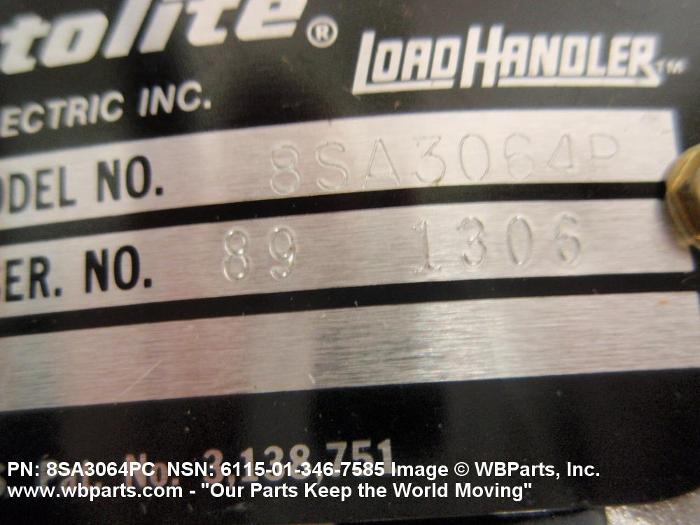

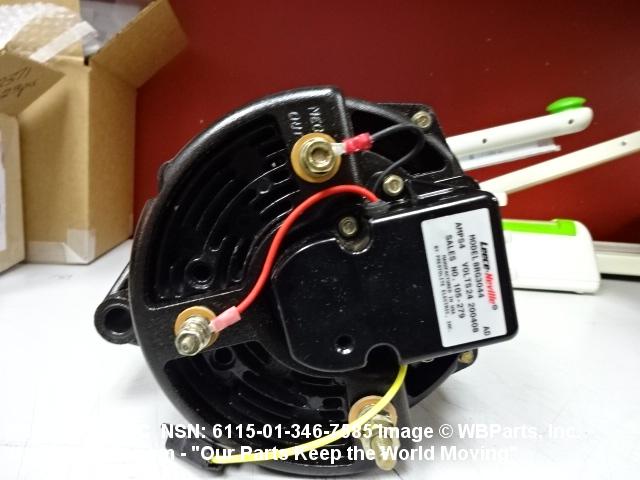

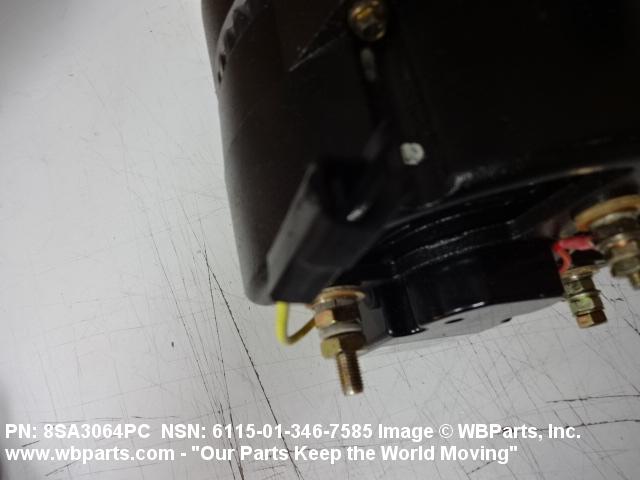

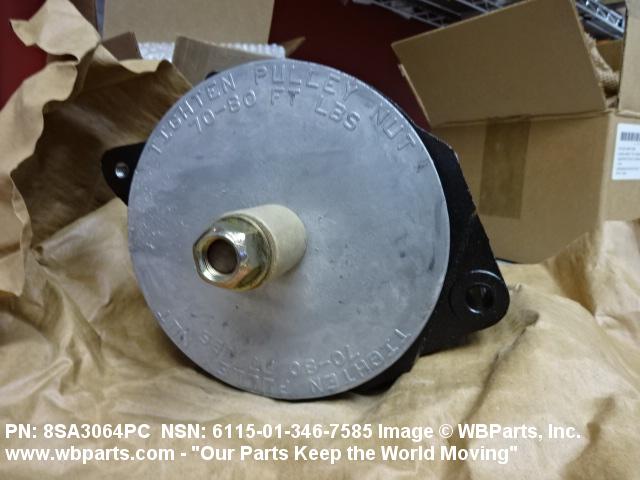

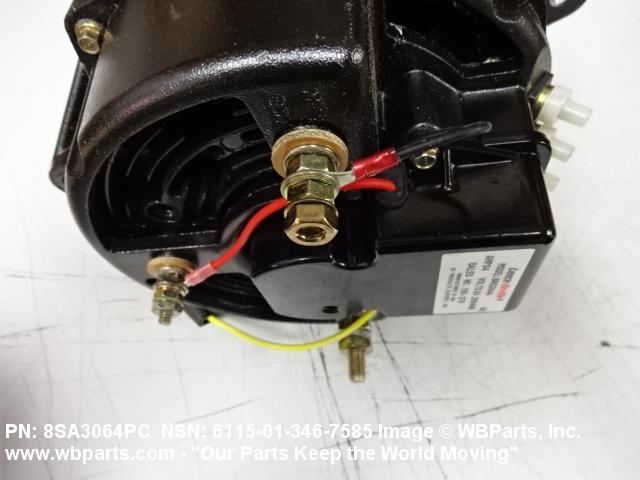

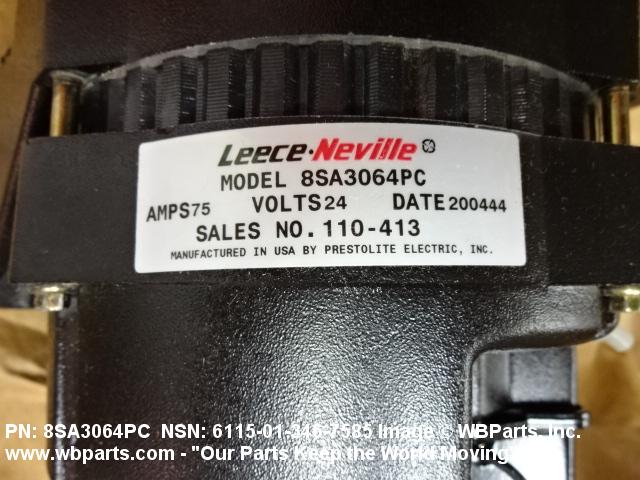

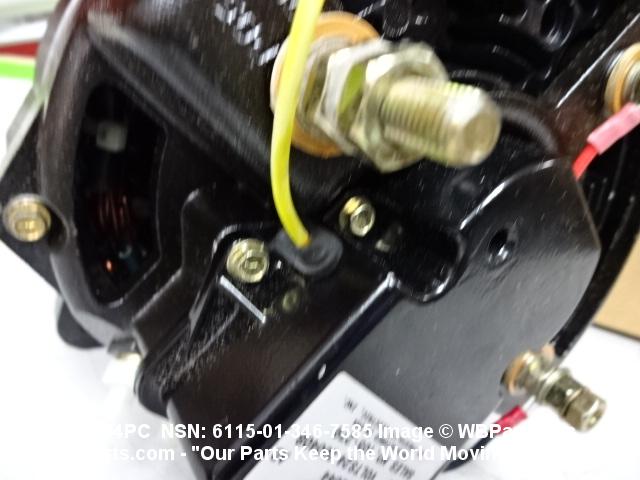

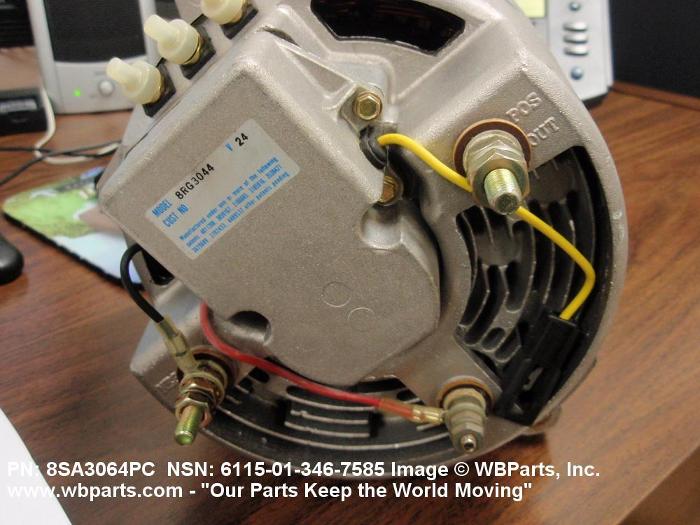

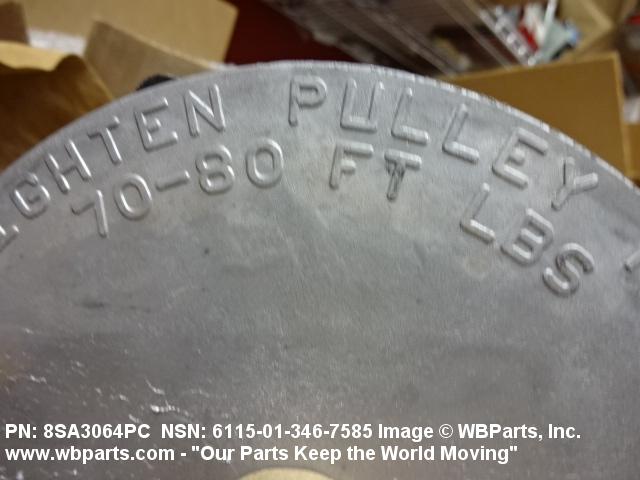

Drawings & Photos | NSN 6115-01-346-7585
Demand History | NSN 6115-01-346-7585
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6115-01-346-7585 | 2024-10-278 | 6 | DO |
| 6115-01-346-7585 | 2022-08-223 | 5 | Panama |
| 8SA3064PC | 2022-03-90 | 5 | US |
| 6115-01-346-7585 | 2021-11-308 | 2 | US |
| 6115-01-346-7585 | 2020-09-269 | 4 | United States |
| 6115-01-346-7585 | 2018-11-318 | 1 | us |
| 6115-01-346-7585 | 2017-01-10 | 8 | MANUAL |
| 6115-01-346-7585 | 2015-08-213 | 3 | IN |
| 6115-01-346-7585 | 2013-11-316 | 4 | DIBBS |
| 6115-01-346-7585 | 2013-09-266 | 2 | DIBBS |
| 6115-01-346-7585 | 2012-11-316 | 4 | DIBBS |
| 6115-01-346-7585 | 2012-03-85 | 1 | DIBBS |
| 6115-01-346-7585 | 2011-06-174 | 1 | DIBBS |
| 6115-01-346-7585 | 2010-12-336 | 1 | Japan |
| 8SA3064PC | 2010-12-336 | 1 | Japan |
| 6115-01-346-7585 | 2010-09-266 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6115-01-346-7585
Related Products | NSN 6115-01-346-7585
Technical Data | NSN 6115-01-346-7585
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 9.500 INCHES |
| OVERALL WIDTH | 9.500 INCHES |
| OVERALL HEIGHT | 9.500 INCHES |
| LENGTH OF SHAFT FROM HOUSING | 2.870 INCHES SINGLE END |
| SHAFT CENTER TO MOUNTING SURFACE DISTANCE | 3.000 INCHES SINGLE END |
| MOUNTING METHOD | FIXED BASE |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 THREADED HOLE |
| INCLOSURE FEATURE | WATERTIGHT |
| CURRENT RATING IN AMPS | 70.000 SINGLE OUTPUT |
| PHASE | SINGLE OUTPUT |
| CONNECTION TYPE AND VOLTAGE RATING IN VOLTS | 24.0 LINE TO LINE SINGLE OUTPUT |
| POWER RATING | 4.000 HORSEPOWER OUTPUT |
| WINDING TYPE | SERIES WOUND |
| DUTY CYCLE | CONTINUOUS |
| COOLING METHOD | AIR TO AIR COOLED |
| TERMINAL TYPE AND QUANTITY | 4 SCREW |
| SHAFT ROTATION DIRECTION | CLOCKWISE SINGLE END |
| SHAFT END CHARACTERISTIC | A1 FIRST STYLE SINGLE END |
| SHAFT DIAMETER | 0.875 INCHES NOMINAL SINGLE END |
| SPECIAL FEATURES | ITEM HAS A CORROSION RESISTANT COATING FOR USE IN A SALTWATER ENVIRONMENT |
| III CUBIC MEASURE | 857.370 CUBIC INCHES |
| MANUFACTURERS CODE | 24975 |
| DESIGN CONTROL REFERENCE | 8SA3064PC |
Restrictions/Controls & Freight Information | NSN 6115-01-346-7585
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062120 | GENERATORS/MOTORS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 590 | unknown |
| Originating Activity Code | XF | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6115-01-346-7585
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | E | General Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
