Product Details | ALTERNATING CURRENT GENERATOR

6115-01-506-5856 A generator having a characteristic of current and voltage that is continually reversing in direction of flow at regular intervals. Does not include rotary inverters, motor-generators, generator sets, synchros, and frequency or phase changers. Excludes GENERATOR, TACHOMETER.

Part Alternates: 09972305, 099723-05, 6115-01-506-5856, 01-506-5856, 6115015065856, 015065856

Electric Wire, and Power and Distribution Equipment | Generators and Generator Sets, Electrical

Supply Group (FSG) NSN Assign. NIIN
61 03 APR 2003 01-506-5856

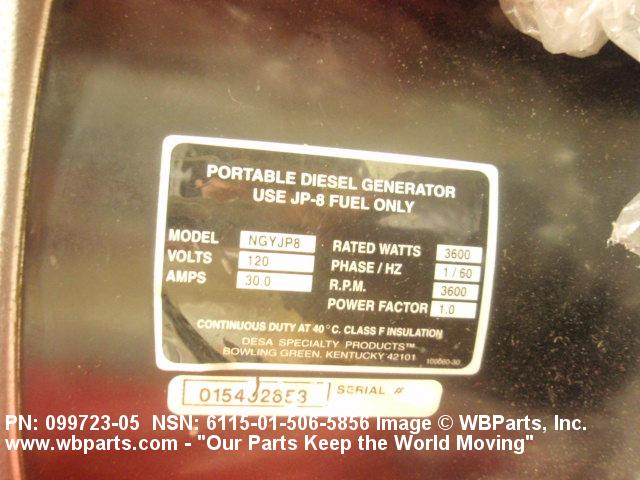

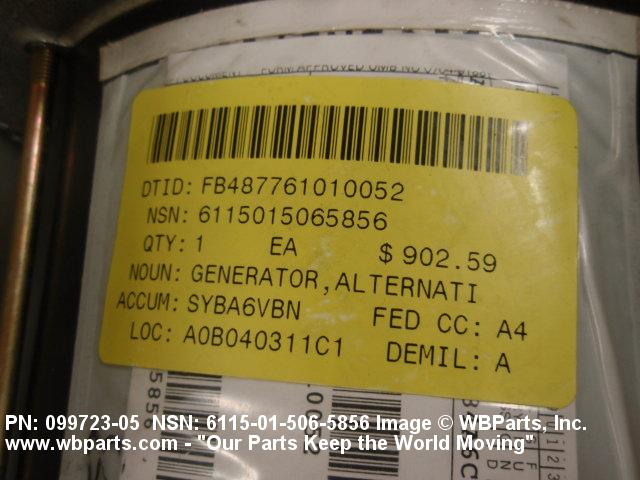

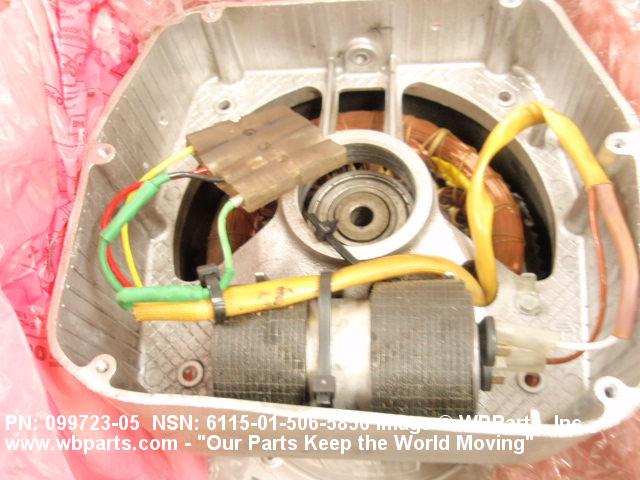

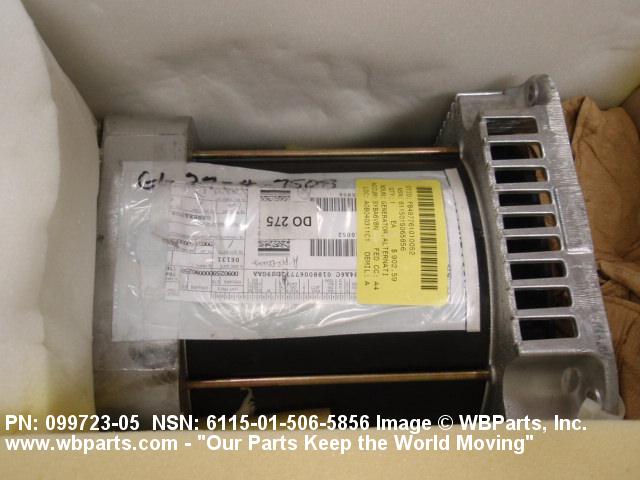

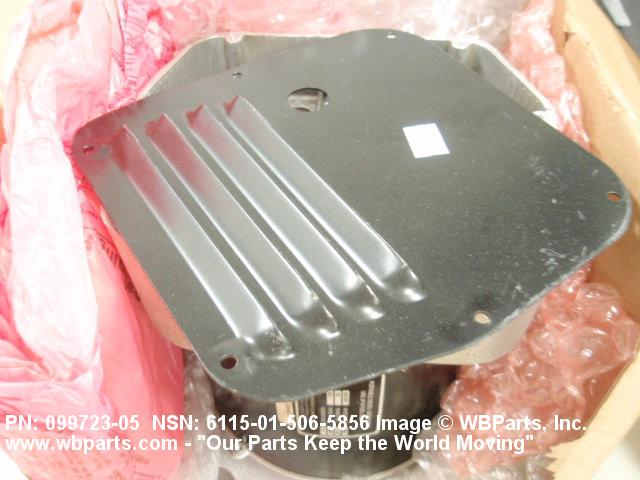

Drawings & Photos | NSN 6115-01-506-5856


Demand History | NSN 6115-01-506-5856

Part Number Request Date QTY Origin
6115-01-506-5856 2010-01-15 1 United States
6115-01-506-5856 2009-06-158 1 DIBBS
6115-01-506-5856 2009-04-111 1 United States
6115-01-506-5856 2009-02-43 93 DIBBS
6115-01-506-5856 2008-11-325 50 DIBBS
6115-01-506-5856 2008-10-304 45 DIBBS
6115-01-506-5856 2008-09-260 15 DIBBS
6115-01-506-5856 2008-05-127 22 DIBBS
6115-01-506-5856 2008-03-63 42 DIBBS
6115-01-506-5856 2008-02-52 14 DIBBS
6115-01-506-5856 2007-05-142 51 DIBBS

Cross Reference | NSN 6115-01-506-5856

Part Number Cage Code Manufacturer
099723-05 1T8G7 HEAT WAGONS INC

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6115-01-506-5856

Technical Data | NSN 6115-01-506-5856

Characteristic Specifications
OVERALL LENGTH 13.780 INCHES
OVERALL WIDTH 9.610 INCHES
OVERALL HEIGHT 9.840 INCHES
FREQUENCY IN HERTZ 60.0 INPUT
PHASE SINGLE OUTPUT
III END ITEM IDENTIFICATION NEW GENERATION HEATER
III PART NAME ASSIGNED BY CONTROLLING AGENCY ALTERNATOR ASSEMBLY,NGH,COMPLETE

Restrictions/Controls & Freight Information | NSN 6115-01-506-5856

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 062120 GENERATORS/MOTORS/PARTS NOI
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 590 unknown
Originating Activity Code CH Defense Supply Center Richmond
Richmond, VA 23297
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity H Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 6115-01-506-5856

Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price ValidationN The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
  • The price has not been analyzed or reviewed for accuracy.
  • ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation CodeTGTG:AF SICA RESIDUAL MMAC-WR-ALC
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityPStock Fund (except Munitions)
Acquisition Advice CodesVTERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
