NSN 6105-01-091-5663 SMC879310, SM-C-879310, 070911
Product Details | DIRECT CURRENT MOTOR
6105-01-091-5663 A motor which is designed for operation from a direct current source. Excludes MOTOR, ENGINE STARTER, ELECTRICAL. See also MOTOR, CONTROL.
Part Alternates: SMC879310, SM-C-879310, 070911, 0709-11, 166A468, 230A110, 4029310P1, 6105-01-091-5663, 01-091-5663, 6105010915663, 010915663
Electric Wire, and Power and Distribution Equipment | Motors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 09 MAR 1980 | 01-091-5663 | 16350 ( MOTOR, DIRECT CURRENT ) |

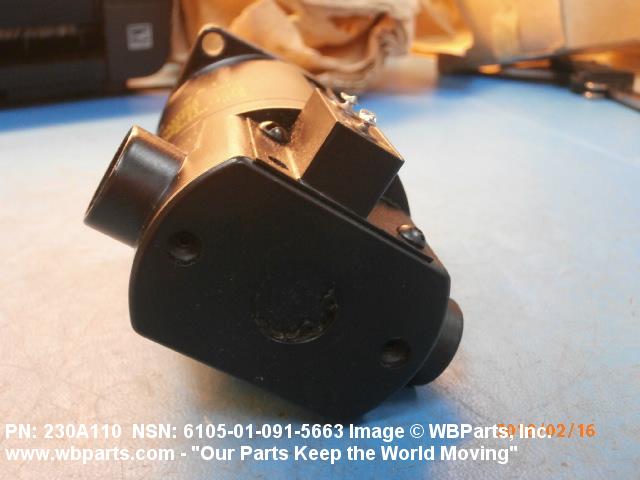

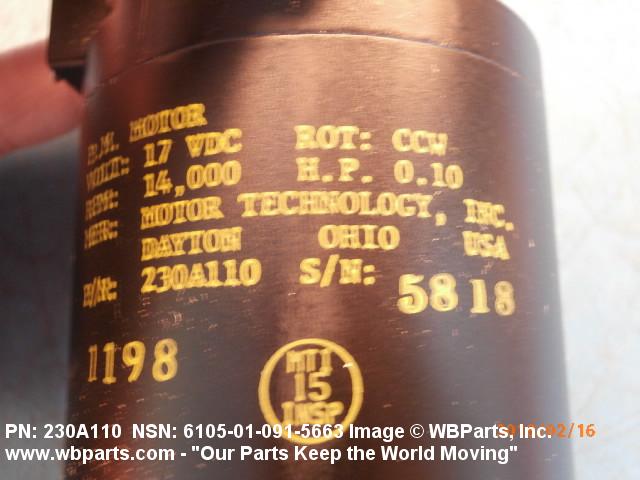

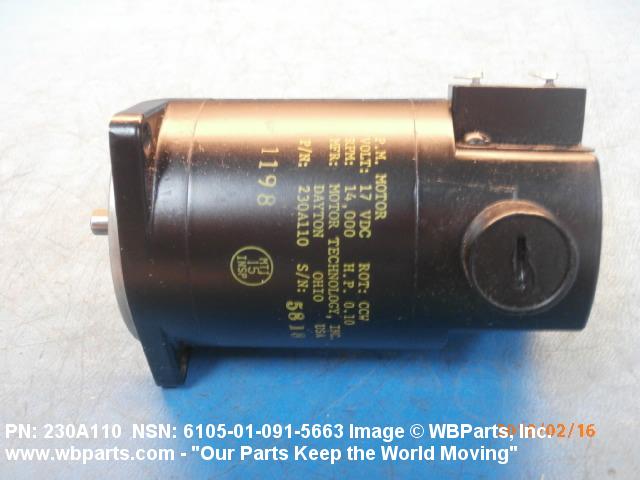

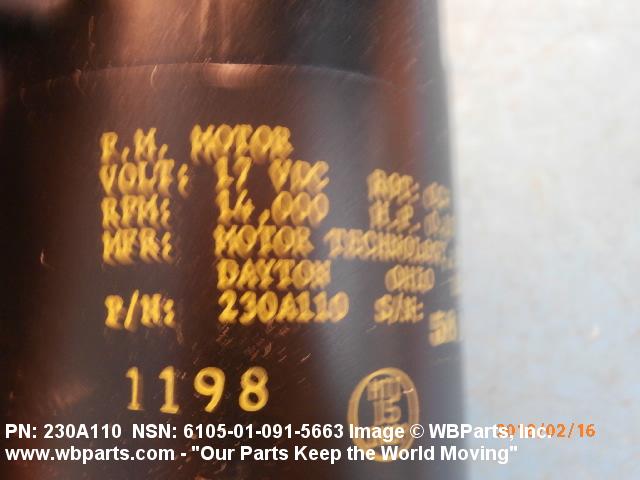

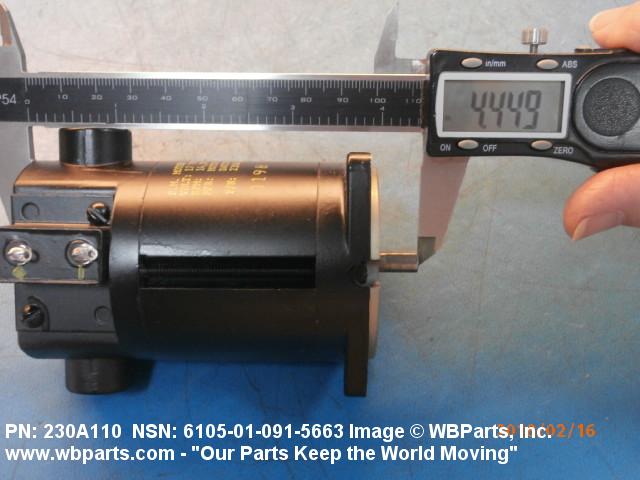

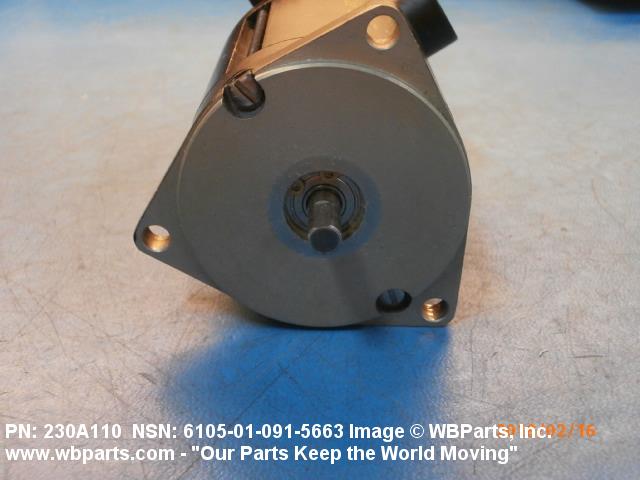

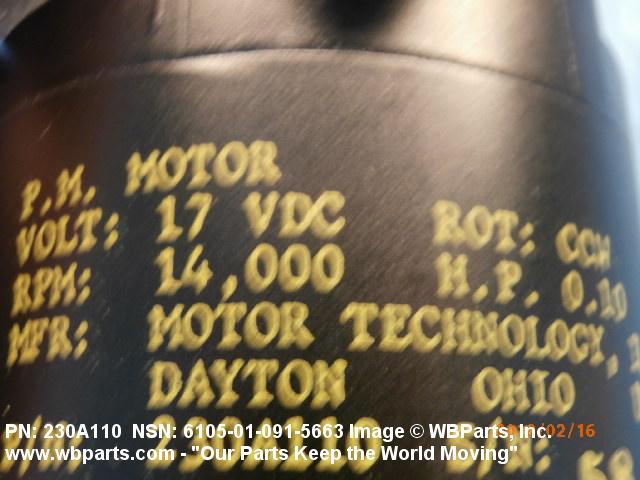

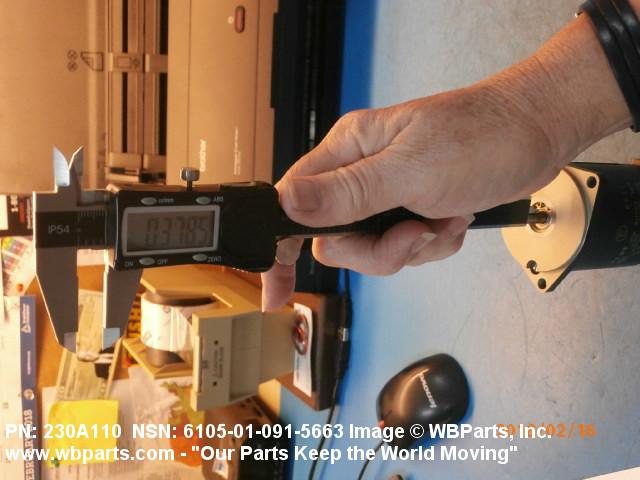

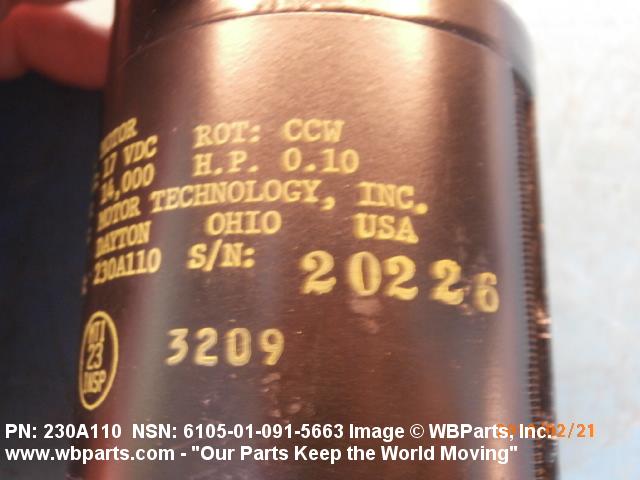

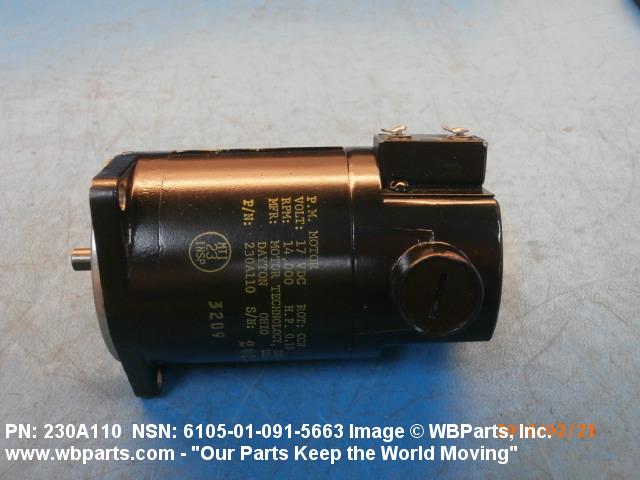

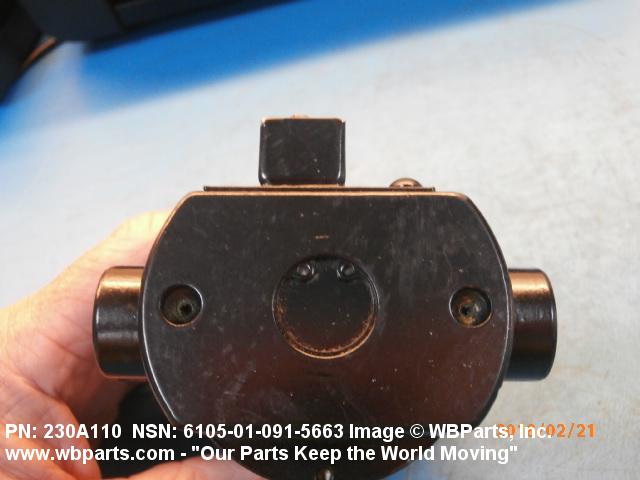

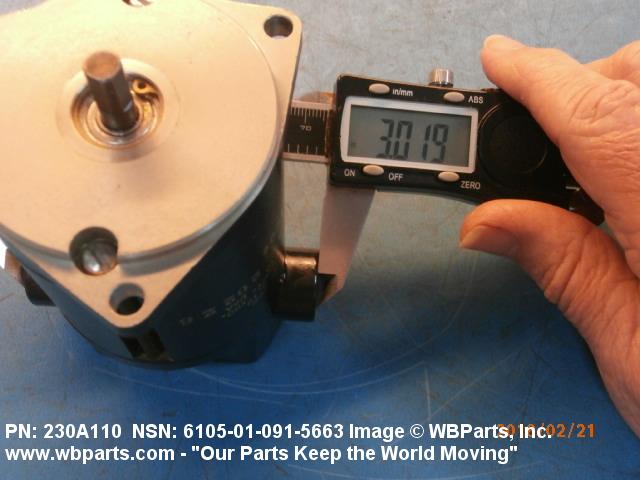

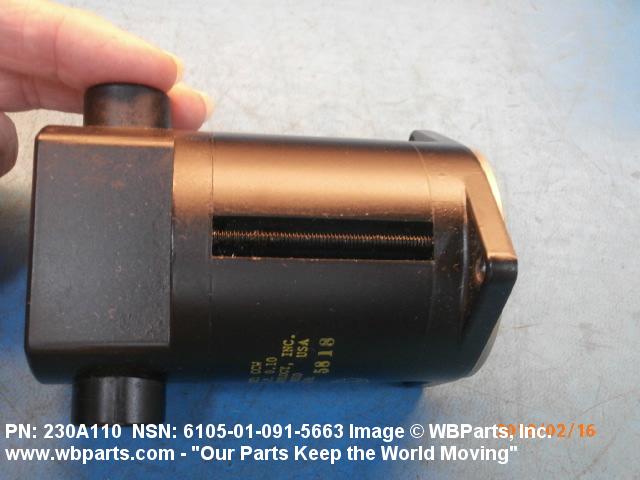

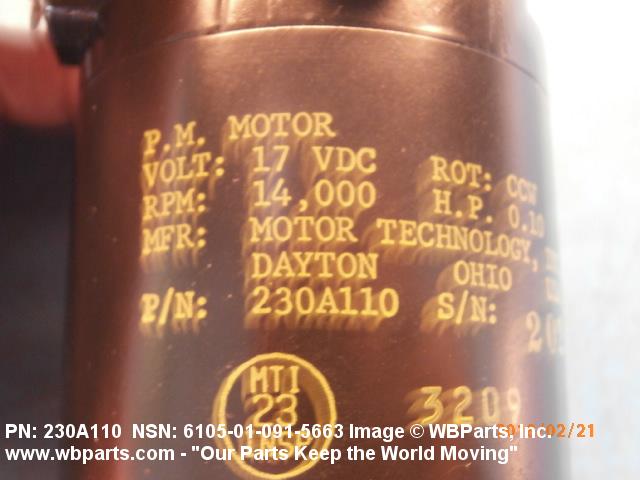

Drawings & Photos | NSN 6105-01-091-5663
Demand History | NSN 6105-01-091-5663
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6105-01-091-5663 | 2018-08-218 | 2 | TR |
| 6105-01-091-5663 | 2018-08-218 | 2 | us |
| 6105-01-091-5663 | 2018-05-138 | 2 | Turkey |
| 6105-01-091-5663 | 2018-04-114 | 5 | US |
| 6105-01-091-5663 | 2018-04-107 | 1 | Turkey |
| 6105-01-091-5663 | 2018-02-43 | 5 | Turkey |
| 6105-01-091-5663 | 2018-01-24 | 5 | Turkey |
| 6105-01-091-5663 | 2018-01-24 | 5 | Turkey |
| 6105-01-091-5663 | 2012-04-114 | 4 | MANUAL |
| SM-C-879310 | 2012-04-114 | 4 | Taiwan |
| 6105-01-091-5663 | 2009-06-166 | 225 | DIBBS |
| 230A110 | 2009-04-104 | 4 | JO |
Cross Reference | NSN 6105-01-091-5663
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0709-11 | 03024 | SENIOR OPERATIONS LLC DBA KETEMA AEROSPACE |
| 166A468 | 25140 | GLOBE MOTORS, INC. DBA GLOBE MOTORS |
| 230A110 | 57090 | MOTOR TECHNOLOGY, INC. |
| 4029310P1 | 94117 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC. |
| SM-C-879310 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6105-01-091-5663
Related Products | NSN 6105-01-091-5663
Technical Data | NSN 6105-01-091-5663
| Characteristic | Specifications |
|---|---|

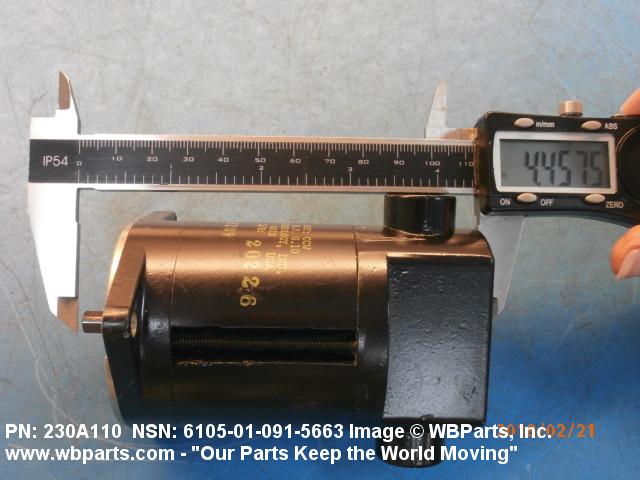

| OVERALL LENGTH | 4.465 INCHES |
| OVERALL WIDTH | 3.120 INCHES |
| OVERALL HEIGHT | 3.750 INCHES |

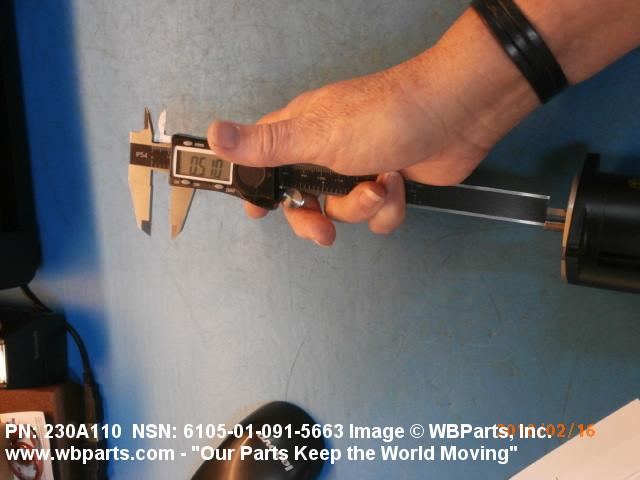

| LENGTH OF SHAFT FROM HOUSING | 0.500 INCHES SINGLE END |

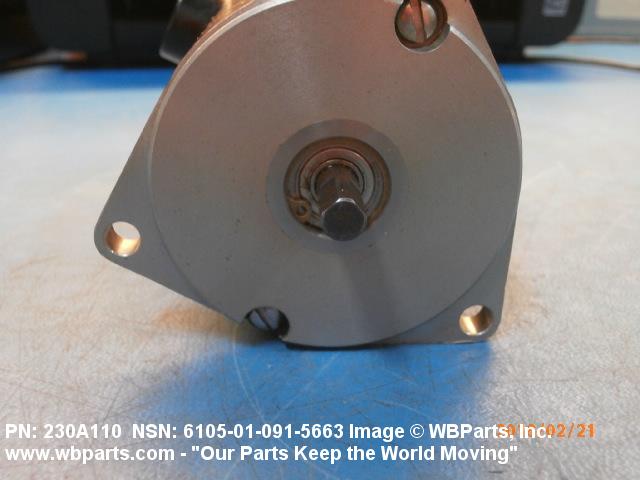

| MOUNTING METHOD | FACE |
| MOUNTING FACILITY TYPE AND QUANTITY | 3 UNTHREADED HOLE |
| MOUNTING FACILITY CIRCLE DIAMETER | 2.750 INCHES |
| INCLOSURE FEATURE | TOTALLY INCLOSED |
| INCLOSURE SPECIFICATION | COMMERCIAL |
| CURRENT RATING IN AMPS | 8.000 SINGLE INPUT |
| CURRENT RATING METHOD | LOAD |
| CONNECTION TYPE AND VOLTAGE RATING IN VOLTS | 17.0 LINE TO NEUTRAL SINGLE INPUT |
| POWER RATING | 0.100 HORSEPOWER OUTPUT |
| TORQUE RATING AND TYPE | 6.0 INCH-OUNCES RUNNING |
| WINDING TYPE | SHUNT WOUND |
| DUTY CYCLE | CONTINUOUS |
| TEMP RATING | -55.0 OPERATING DEG CELSIUS AND 100.0 OPERATING DEG CELSIUS |
| COOLING METHOD | NONVENTILATED |

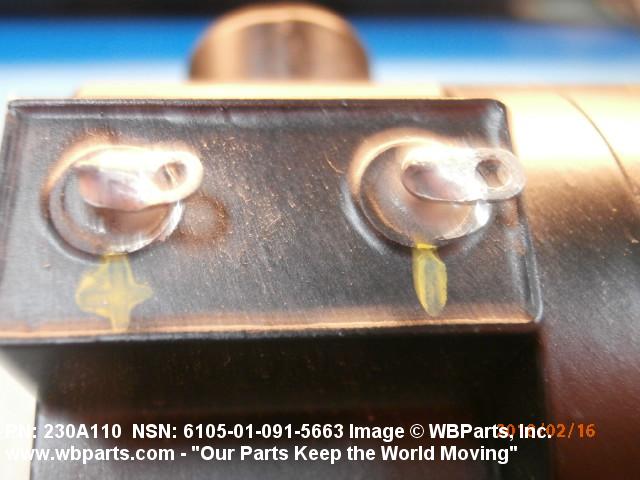

| TERMINAL TYPE AND QUANTITY | 2 PIN |
| SHAFT ROTATION DIRECTION | COUNTERCLOCKWISE SINGLE END |
| ROTOR SPEED RATING IN RPM | 7000.0 LOW NO LOAD AND 15750.0 HIGH NO LOAD |
| SHAFT END CHARACTERISTIC | A5 SINGLE STYLE SINGLE END |

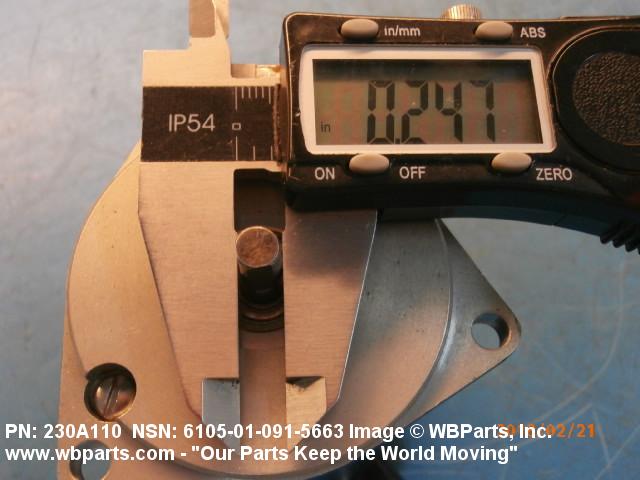

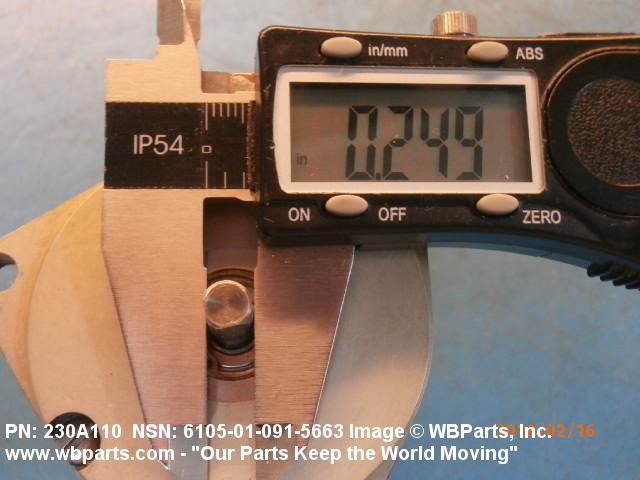

| SHAFT DIAMETER | 0.250 INCHES NOMINAL SINGLE END |
| FLATTED PORTION LENGTH | 0.375 INCHES NOMINAL SINGLE END |
| FLAT DEPTH | 0.010 INCHES NOMINAL SINGLE END |
| FEATURES PROVIDED | FRAME ELECTRICALLY GROUNDED AND HORIZONTAL MOUNTING POSITION AND VERTICAL MOUNTING POSITION |
| SPECIAL FEATURES | SHAFT W/SECOND FLAT 90 DEG SAME DIM. |
| MANUFACTURERS CODE | 80063 |
| MFR SOURCE CONTROLLING REFERENCE | SM-C-879310 |
Restrictions/Controls & Freight Information | NSN 6105-01-091-5663
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062120 | GENERATORS/MOTORS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6105-01-091-5663
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
