NSN 6105-00-449-0797 24A738, 00-449-0797, 004490797
Product Details | DIRECT CURRENT MOTOR
6105-00-449-0797 A motor which is designed for operation from a direct current source. Excludes MOTOR, ENGINE STARTER, ELECTRICAL. See also MOTOR, CONTROL.
Part Alternates: 24A738, 6105-00-449-0797, 00-449-0797, 6105004490797, 004490797
Electric Wire, and Power and Distribution Equipment | Motors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 08 MAY 1970 | 00-449-0797 | 16350 ( MOTOR, DIRECT CURRENT ) |

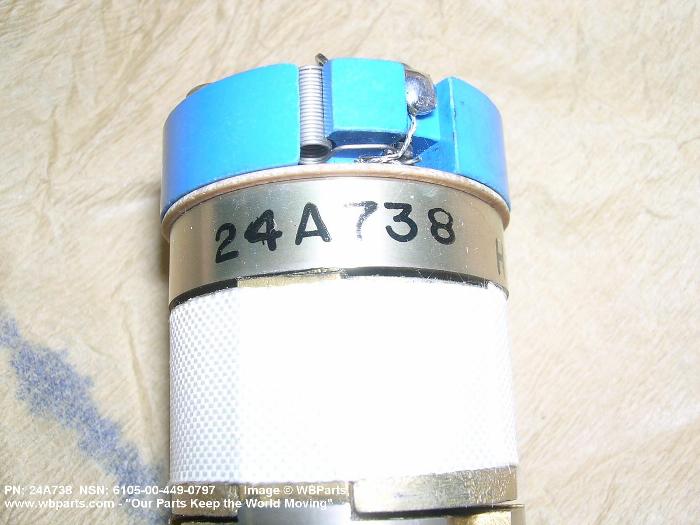

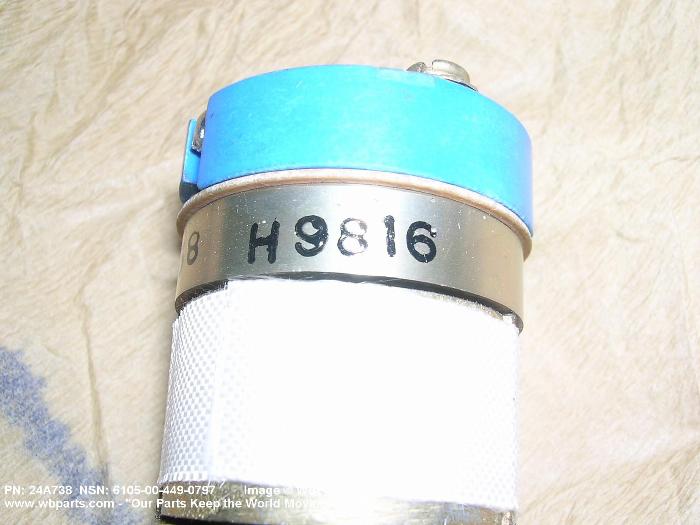

Drawings & Photos | NSN 6105-00-449-0797
Demand History | NSN 6105-00-449-0797
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6105-00-449-0797 | 2022-12-356 | 1 | Malaysia |
| 24A738 | 2022-07-188 | 31 | DIBBS |
| 24A738 | 2021-05-140 | 2 | US |
| 6105-00-449-0797 | 2021-05-140 | 2 | PT |
| 24A738 | 2019-01-03 | 46 | DIBBS |
| 6105-00-449-0797 | 2018-03-63 | 61 | DIBBS |
| 6105-00-449-0797 | 2017-10-290 | 1 | MY |
| 6105-00-449-0797 | 2017-01-25 | 1 | MY |
| 6105-00-449-0797 | 2015-10-291 | 36 | DIBBS |
| 6105-00-449-0797 | 2013-08-240 | 19 | DIBBS |
| 6105-00-449-0797 | 2011-09-245 | 8 | DIBBS |
| 6105-00-449-0797 | 2011-02-34 | 10 | DIBBS |
| 6105-00-449-0797 | 2010-12-347 | 12 | DIBBS |
| 6105-00-449-0797 | 2010-12-341 | 3 | DIBBS |
| 6105-00-449-0797 | 2010-06-165 | 1 | Malaysia |
| 24A738 | 2010-02-35 | 2 | Malaysia |
| 6105-00-449-0797 | 2009-09-246 | 16 | DIBBS |
| 6105-00-449-0797 | 2009-04-91 | 28 | DIBBS |
| 6105-00-449-0797 | 2008-12-352 | 1 | Malaysia |
| 6105-00-449-0797 | 2008-01-10 | 2 | Malaysia |
Cross Reference | NSN 6105-00-449-0797
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 24A738 | 25140 | GLOBE MOTORS, INC. DBA GLOBE MOTORS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6105-00-449-0797
Related Products | NSN 6105-00-449-0797
Technical Data | NSN 6105-00-449-0797
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 2.375 INCHES |
| OVERALL WIDTH | 1.000 INCHES |
| OVERALL HEIGHT | 1.000 INCHES |
| LENGTH OF SHAFT FROM HOUSING | 0.750 INCHES SINGLE END |
| MOUNTING METHOD | FACE |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 THREADED HOLE |
| MOUNTING FACILITY CIRCLE DIAMETER | 0.719 INCHES |
| INCLOSURE FEATURE | OPEN PROTECTED |
| INCLOSURE SPECIFICATION | COMMERCIAL |
| WINDING TYPE | PERMANENT MAGNET |
| DUTY CYCLE | CONTINUOUS |
| COOLING METHOD | NONVENTILATED |
| TERMINAL TYPE AND QUANTITY | 2 SOLDER LUG |
| SHAFT ROTATION DIRECTION | CLOCKWISE SINGLE END |
| SHAFT END CHARACTERISTIC | A1 SINGLE STYLE SINGLE END |
| SHAFT DIAMETER | 0.1250 INCHES NOMINAL SINGLE END |
| FEATURES PROVIDED | FRAME ELECTRICALLY GROUNDED AND HORIZONTAL MOUNTING POSITION AND VERTICAL MOUNTING POSITION |
| MANUFACTURERS CODE | 25140 |
| DESIGN CONTROL REFERENCE | 24A738 |
Restrictions/Controls & Freight Information | NSN 6105-00-449-0797
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062120 | GENERATORS/MOTORS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6105-00-449-0797
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
