NSN 6105-00-900-3361 CD6-A, 08MT0107, 08MT-0107
Product Details | MOTOR-TACHOMETER GENERATOR
6105-00-900-3361 An item which is an electrical rotating machine combining both control motor and tachometer generator action. The control motor and tachometer generator may be contained in the same or separate housings. It is designed for servo application where instant response to input signal is essential. It is generally used in circuits where the output potential from the tachometer generator is fed back to prevent excessive oscillation and for assuring high stability in a servo loop. Excludes DYNAMOTOR; and MOTOR-GENERATOR.
Part Alternates: CD6-A, 08MT0107, 08MT-0107, 62100301, 6210-03-01, 9300830001, 930-083-0001, CD6A, 6105-00-900-3361, 00-900-3361, 6105009003361, 009003361
Electric Wire, and Power and Distribution Equipment | Motors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 01 JAN 1960 | 00-900-3361 | 28454 ( MOTOR-TACHOMETER GENERATOR ) |

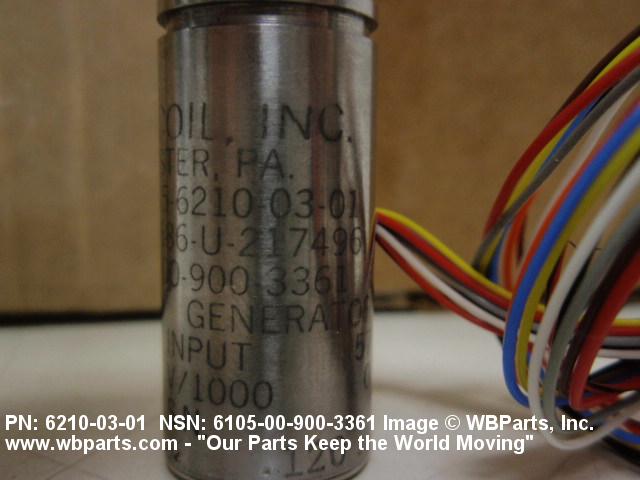

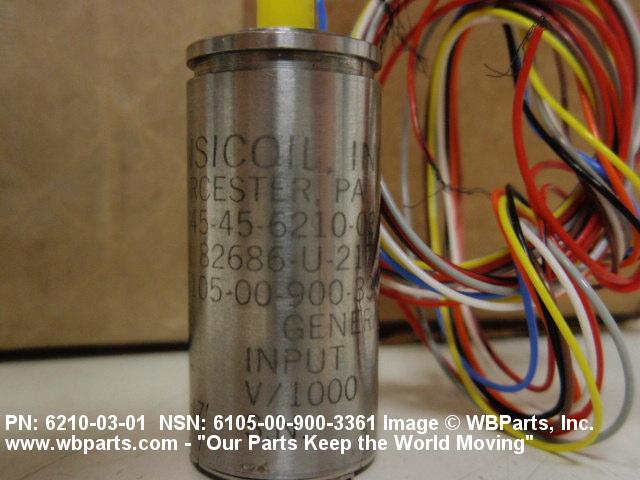

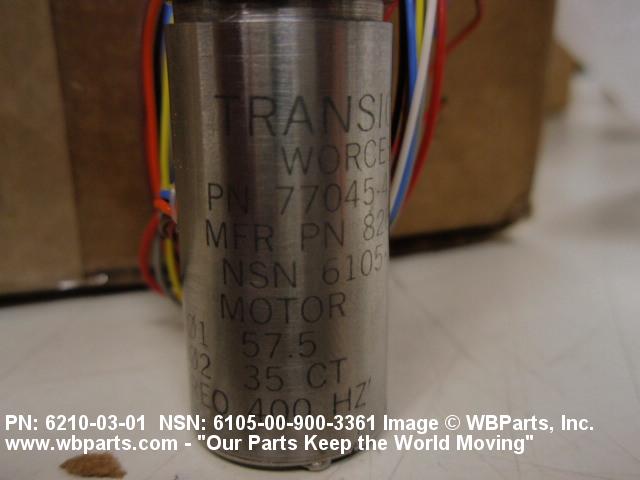

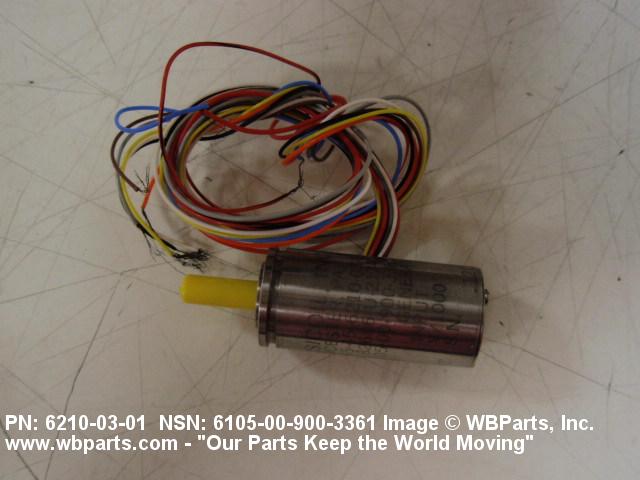

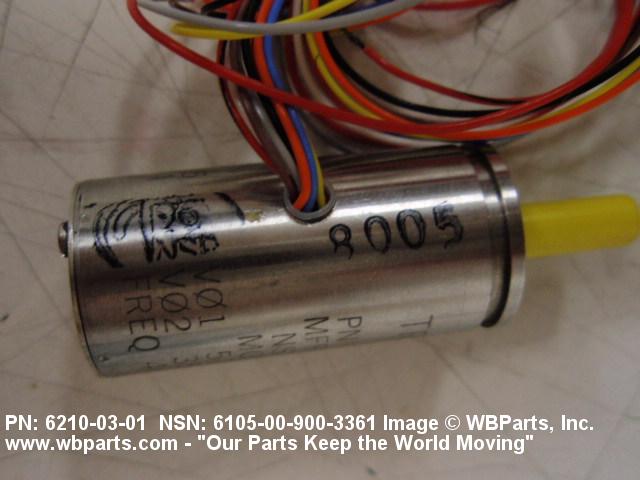

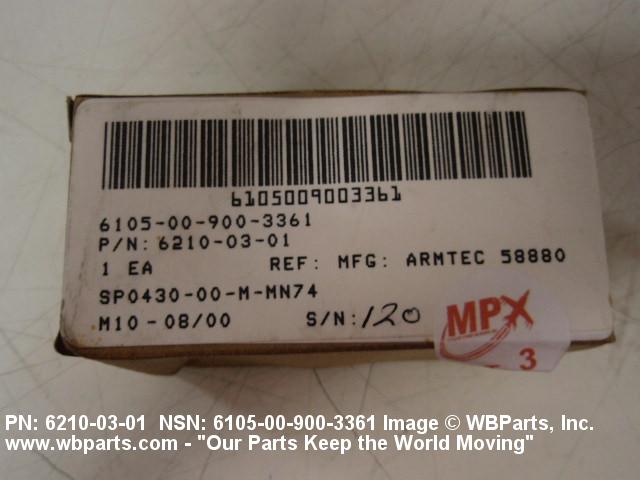

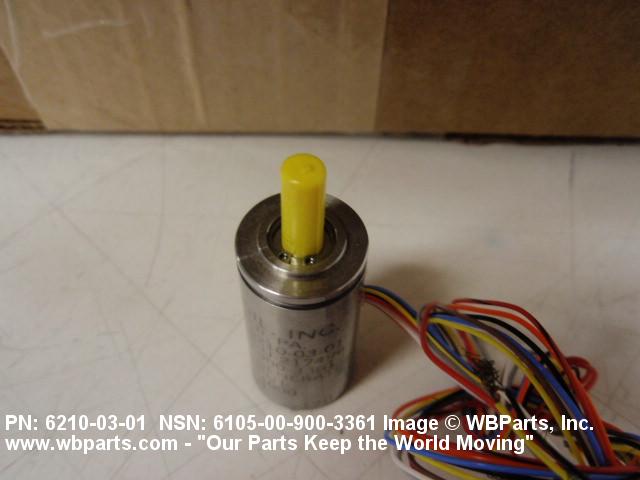

Drawings & Photos | NSN 6105-00-900-3361
Demand History | NSN 6105-00-900-3361
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| CD6-A | 2024-04-121 | 9 | DIBBS |
| CD6-A | 2023-04-117 | 9 | DIBBS |
| 6105-00-900-3361 | 2013-02-37 | 19 | DIBBS |
| 6105-00-900-3361 | 2013-01-03 | 11 | DIBBS |
| 6105-00-900-3361 | 2012-09-270 | 19 | DIBBS |
| 6105-00-900-3361 | 2012-08-215 | 10 | DIBBS |
| 6105-00-900-3361 | 2011-06-157 | 3 | DIBBS |
| 6105-00-900-3361 | 2011-02-49 | 11 | DIBBS |
| 6105-00-900-3361 | 2011-01-18 | 10 | DIBBS |
| 6105-00-900-3361 | 2011-01-14 | 0 | United States |
| 6105-00-900-3361 | 2010-11-333 | 15 | DIBBS |
| 6105-00-900-3361 | 2010-06-152 | 10 | DIBBS |
| 6105-00-900-3361 | 2009-02-49 | 9 | DIBBS |
| 6105-00-900-3361 | 2009-01-21 | 50 | DIBBS |
| 6105-00-900-3361 | 2009-01-06 | 15 | DIBBS |
| 6105-00-900-3361 | 2009-01-06 | 86 | DIBBS |
| 6105-00-900-3361 | 2008-06-176 | 15 | DIBBS |
| 6105-00-900-3361 | 2008-04-112 | 84 | DIBBS |
| 6105-00-900-3361 | 2008-02-58 | 86 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6105-00-900-3361
Related Products | NSN 6105-00-900-3361
Technical Data | NSN 6105-00-900-3361
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 1.975 INCHES |
| OVERALL WIDTH | 0.750 INCHES |
| LENGTH OF SHAFT FROM HOUSING | 0.375 INCHES SINGLE END |
| MOUNTING METHOD | CLAMP RING |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 CLAMP COLLAR |
| CURRENT TYPE | AC INPUT |
| FREQUENCY IN HERTZ | 400.0 OUTPUT |
| CONNECTION TYPE AND VOLTAGE RATING IN VOLTS | 57.5 LINE TO NEUTRAL SINGLE INPUT |
| TORQUE RATING AND TYPE | 0.2 INCH-OUNCES STALLED |
| EXCITOR TYPE | SEPARATELY EXCITED |
| TEMP RATING | -55.0 OPERATING DEG CELSIUS AND 125.0 OPERATING DEG CELSIUS |
| TERMINAL TYPE AND QUANTITY | 5 WIRE LEAD |
| CALIBRATION VOLTAGE OUTPUT TYPE IN VOLTS | 0.3 AC |
| CALIBRATION SPEED IN RPM | 1000.0 |
| CONTROL FIELD VOLTAGE TYPE AND RATING IN VOLTS | 35.0 AC |
| ROTOR SPEED RATING IN RPM | 6500.0 SINGLE NO LOAD |
| SHAFT END CHARACTERISTIC | A14 SINGLE STYLE SINGLE END |
| SHAFT DIAMETER | 0.1247 INCHES NOMINAL SINGLE END |
Restrictions/Controls & Freight Information | NSN 6105-00-900-3361
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062120 | GENERATORS/MOTORS/PARTS NOI SUB1 |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6105-00-900-3361
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
