NSN 6105-00-761-1290 ST100174, ST10017-4, 229-2007-00
Product Details | MOTOR-TACHOMETER GENERATOR
6105-00-761-1290 An item which is an electrical rotating machine combining both control motor and tachometer generator action. The control motor and tachometer generator may be contained in the same or separate housings. It is designed for servo application where instant response to input signal is essential. It is generally used in circuits where the output potential from the tachometer generator is fed back to prevent excessive oscillation and for assuring high stability in a servo loop. Excludes DYNAMOTOR; and MOTOR-GENERATOR.
Part Alternates: ST100174, ST10017-4, 229-2007-00, 2292007000, 229-2007-000, 6105-00-761-1290, 00-761-1290, 6105007611290, 229200700, 007611290
Electric Wire, and Power and Distribution Equipment | Motors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 01 JAN 1961 | 00-761-1290 | 28454 ( MOTOR-TACHOMETER GENERATOR ) |

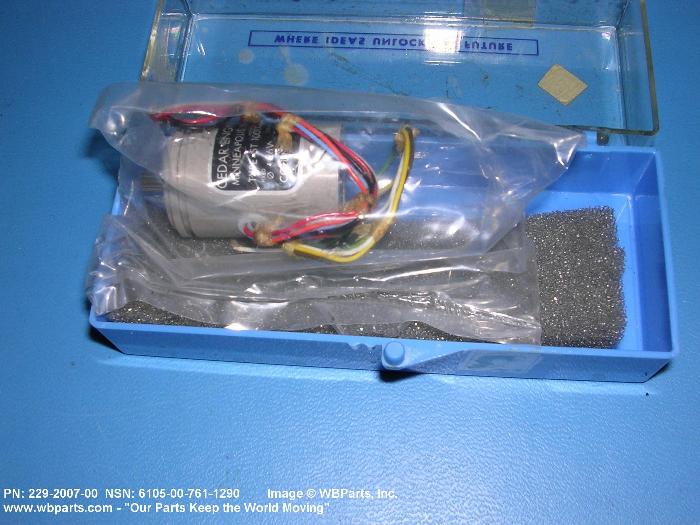

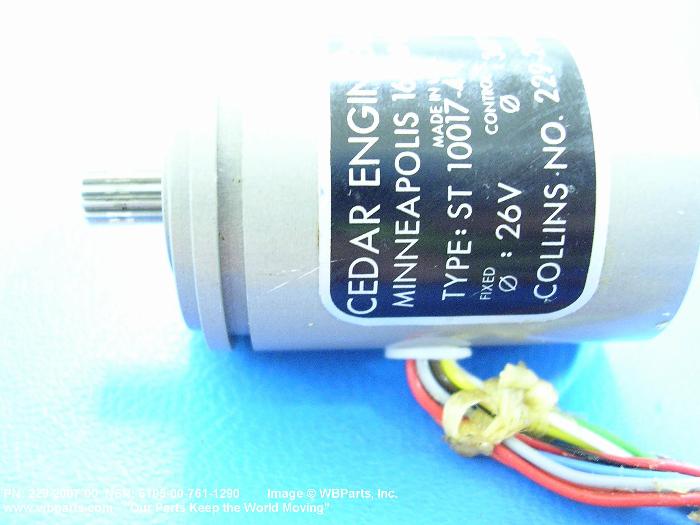

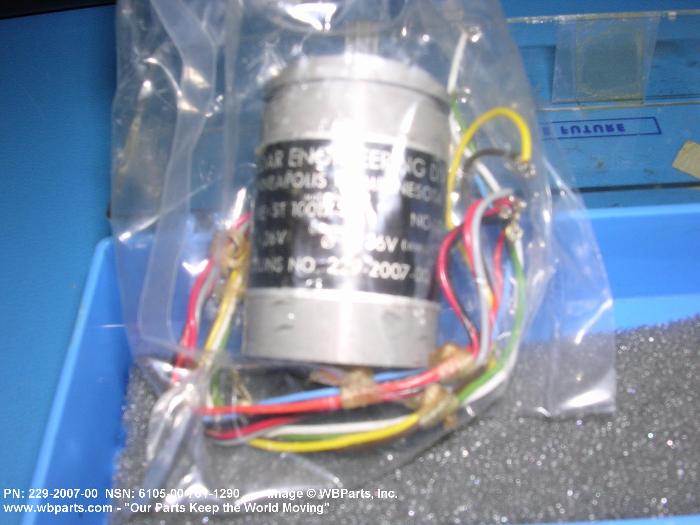

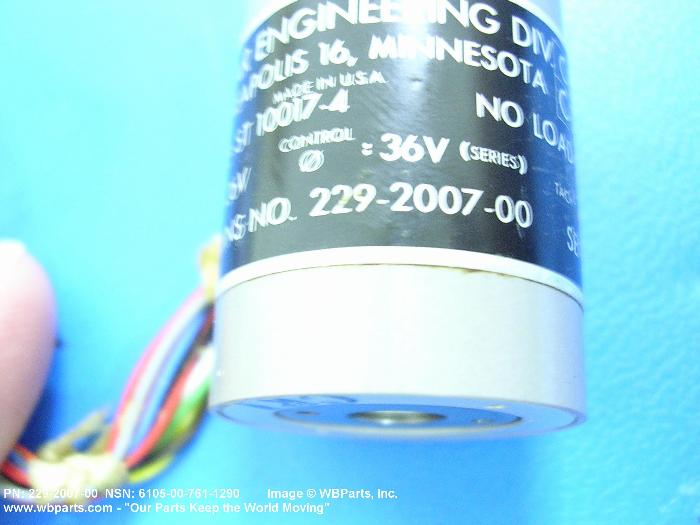

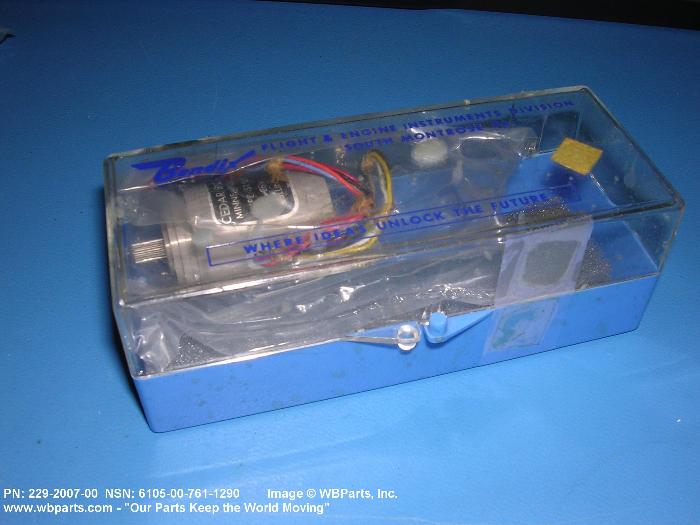

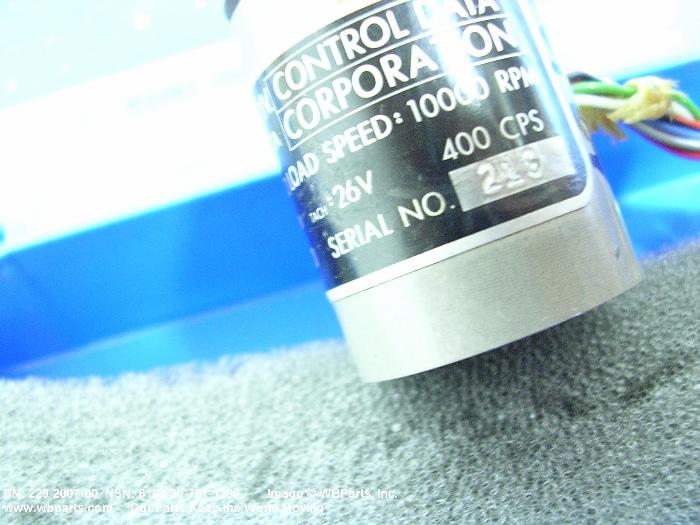

Drawings & Photos | NSN 6105-00-761-1290
Demand History | NSN 6105-00-761-1290
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6105-00-761-1290 | 2021-01-19 | 9 | DIBBS |
| 6105-00-761-1290 | 2021-01-07 | 9 | DIBBS |
| 6105-00-761-1290 | 2018-01-13 | 1 | US |
| 6105-00-761-1290 | 2017-09-256 | 9 | DIBBS |
| 6105-00-761-1290 | 2017-08-243 | 9 | DIBBS |
| 6105-00-761-1290 | 2017-08-229 | 8 | DIBBS |
| 6105-00-761-1290 | 2015-11-329 | 1 | ID |
| 229-2007-000 | 2015-08-229 | 2 | |
| 2292007000 | 2008-06-154 | 1 | Malaysia |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6105-00-761-1290
Related Products | NSN 6105-00-761-1290
Technical Data | NSN 6105-00-761-1290
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 2.412 INCHES |
| OVERALL WIDTH | 0.812 INCHES |
| OVERALL HEIGHT | 0.812 INCHES |
| LENGTH OF SHAFT FROM HOUSING | 0.269 INCHES SINGLE END |
| MOUNTING METHOD | CLAMP RING |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 CLAMP COLLAR |
| INCLOSURE FEATURE | TOTALLY INCLOSED |
| INCLOSURE SPECIFICATION | COMMERCIAL |
| CURRENT TYPE | AC INPUT |
| FREQUENCY IN HERTZ | 400.0 OUTPUT |
| PHASE | TWO INPUT |
| CONNECTION TYPE AND VOLTAGE RATING IN VOLTS | 26.0 LINE TO NEUTRAL SINGLE INPUT |
| POWER RATING | 2.400 WATTS OUTPUT |
| TORQUE RATING AND TYPE | 0.2 INCH-OUNCES STALLED |
| EXCITOR TYPE | SELF-EXCITED |
| TEMP RATING | -55.0 OPERATING DEG CELSIUS AND 85.0 OPERATING DEG CELSIUS |
| COOLING METHOD | AMBIENT AIR |
| MAXIMUM OPERATING ALTITUDE RATING | 55000.0 FEET |
| TERMINAL TYPE AND QUANTITY | 10 WIRE LEAD |
| CALIBRATION VOLTAGE OUTPUT TYPE IN VOLTS | 26.0 AC |
| CALIBRATION SPEED IN RPM | 9500.0 |
| CONTROL FIELD VOLTAGE TYPE AND RATING IN VOLTS | 26.0 AC AND 36.0 AC |
| ROTOR SPEED RATING IN RPM | 9500.0 SINGLE NO LOAD |
| SHAFT END CHARACTERISTIC | A14 SINGLE STYLE SINGLE END |
| SPLINE MINOR DIAMETER | 0.1083 INCHES NOMINAL SINGLE END |
| SHAFT DIAMETER | 0.1247 INCHES NOMINAL SINGLE END |
| SPLINE LENGTH | 0.2690 INCHES NOMINAL SINGLE END |
| SPLINE QUANTITY | 12 SINGLE END |
| FEATURES PROVIDED | HORIZONTAL MOUNTING POSITION AND VERTICAL MOUNTING POSITION |
Restrictions/Controls & Freight Information | NSN 6105-00-761-1290
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062120 | GENERATORS/MOTORS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6105-00-761-1290
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
