NSN 6105-00-824-1608 FYLM238002, FYLM23800-2, 00-824-1608
Product Details | DIRECT CURRENT MOTOR
6105-00-824-1608 A motor which is designed for operation from a direct current source. Excludes MOTOR, ENGINE STARTER, ELECTRICAL. See also MOTOR, CONTROL.
Part Alternates: FYLM238002, FYLM23800-2, 6105-00-824-1608, 00-824-1608, 6105008241608, 008241608
Electric Wire, and Power and Distribution Equipment | Motors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 01 JAN 1960 | 00-824-1608 | 16350 ( MOTOR, DIRECT CURRENT ) |

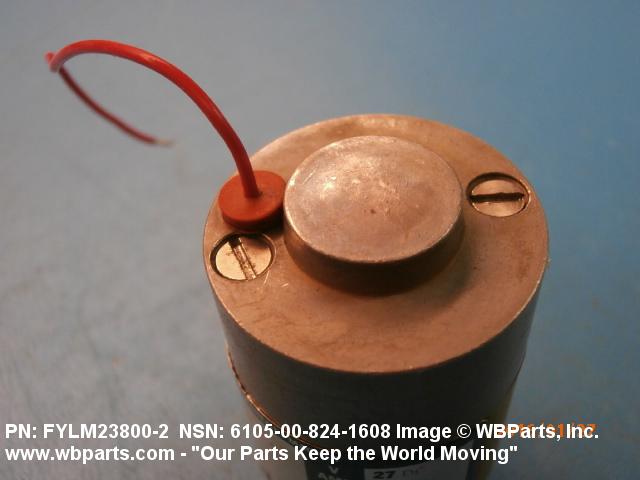

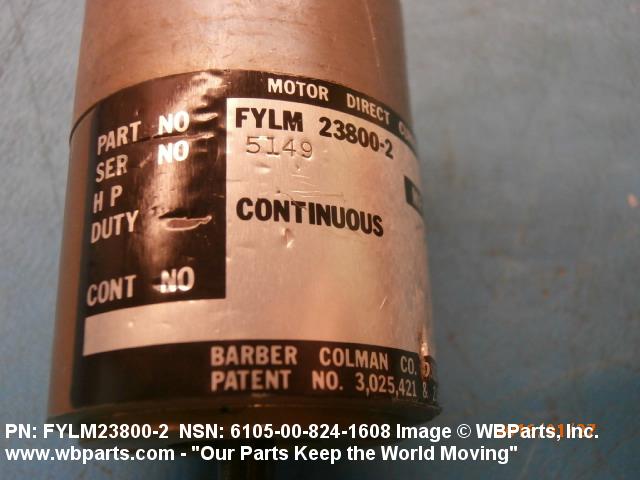

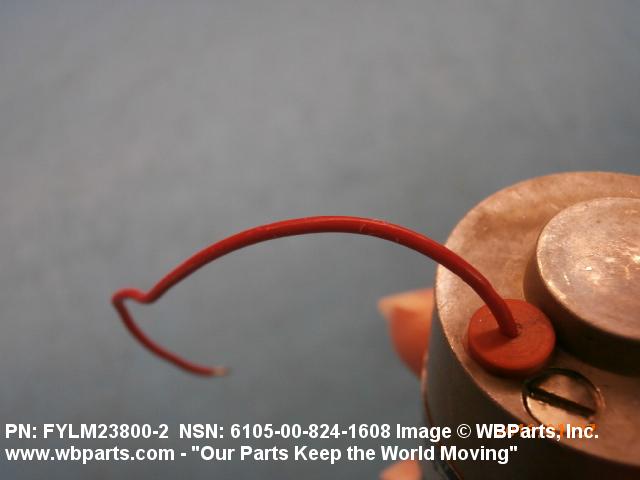

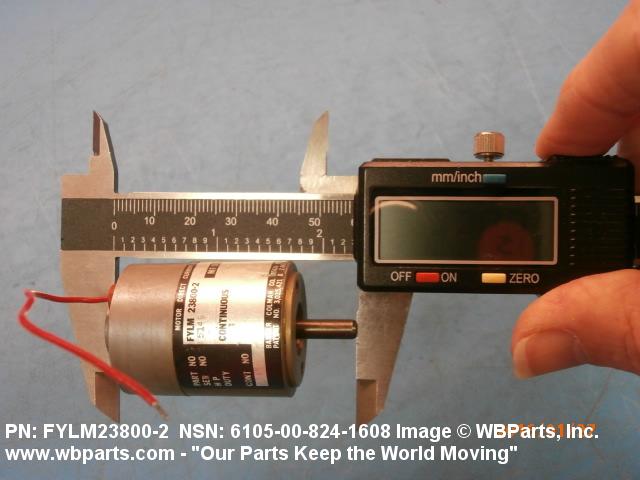

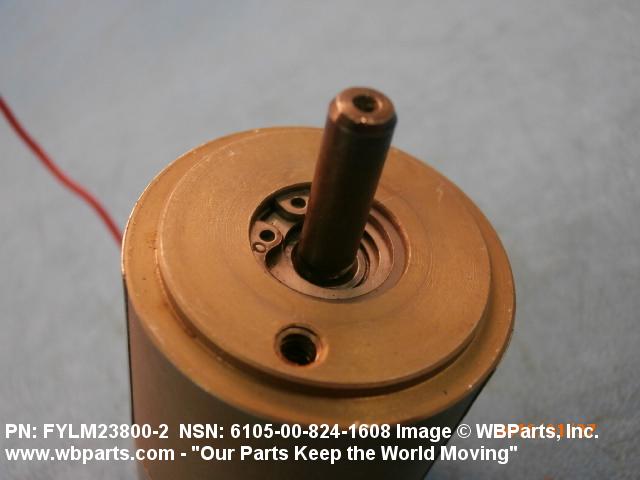

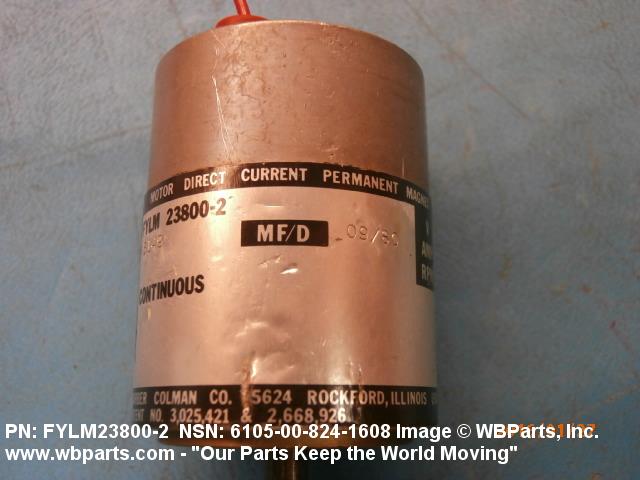

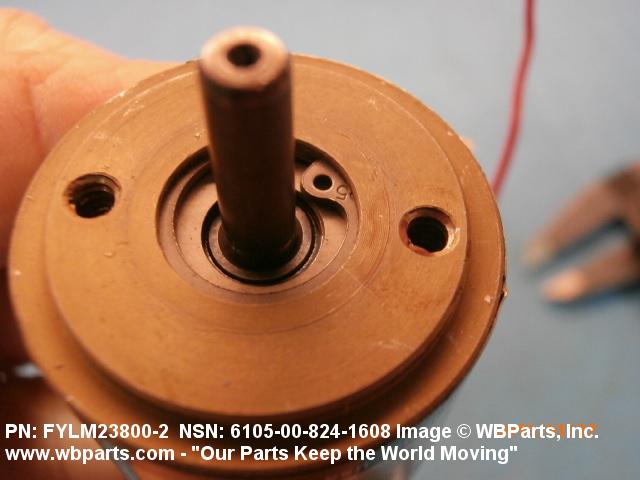

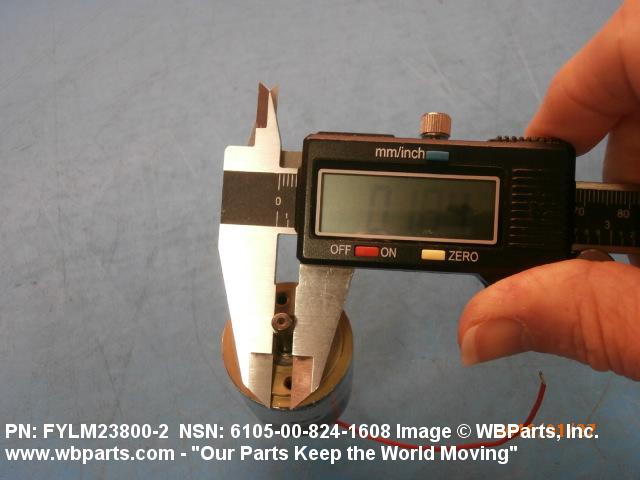

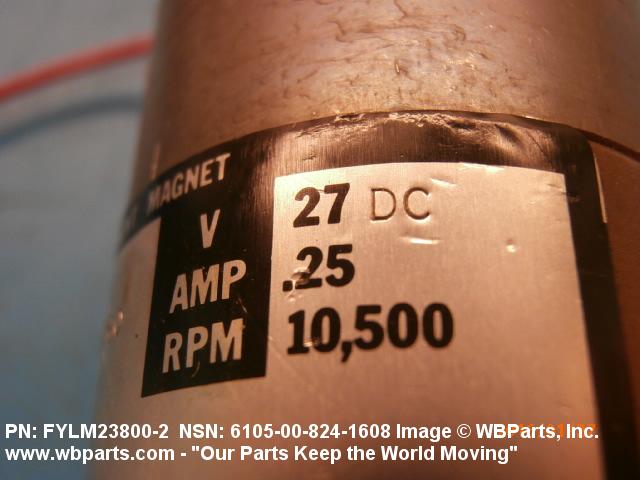

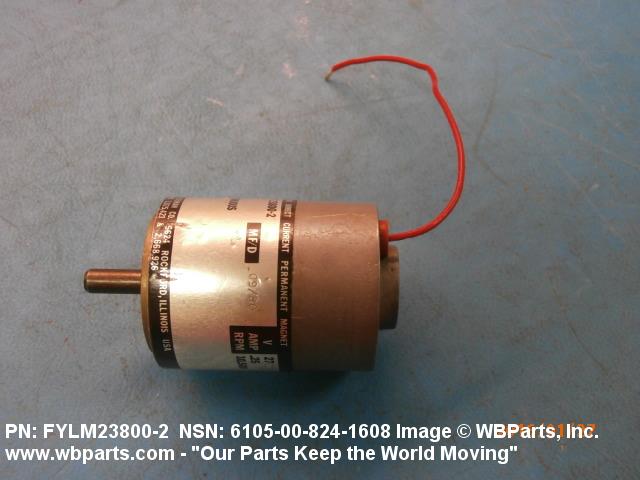

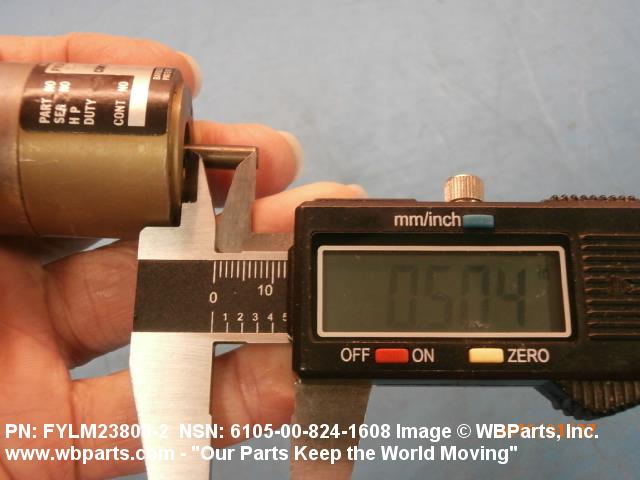

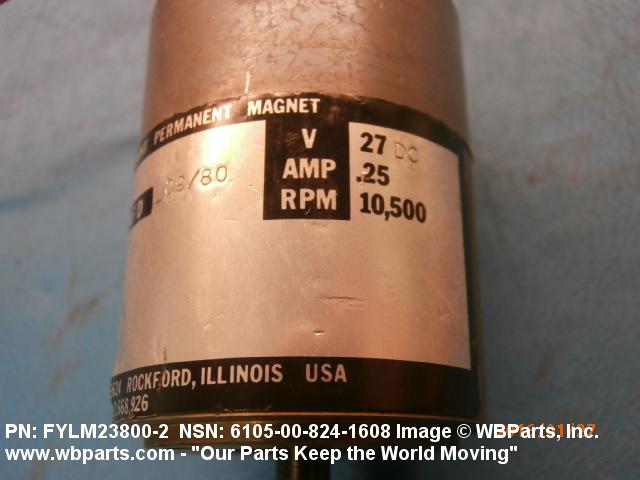

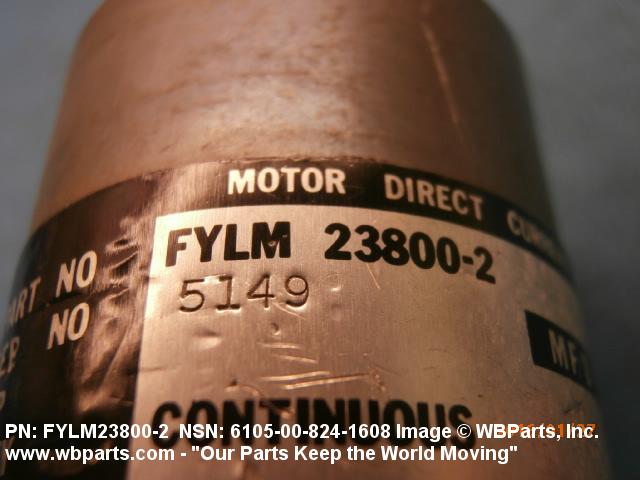

Drawings & Photos | NSN 6105-00-824-1608
Demand History | NSN 6105-00-824-1608
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| FYLM238002 | 2020-11-333 | 1 | US |
| 6105-00-824-1608 | 2016-08-216 | 1 | DIBBS |
| FYLM238002 | 2016-05-147 | 1 | US |
| FYLM238002 | 2016-01-18 | 1 | United States |
| FYLM238002 | 2015-12-352 | 1 | United States |
| FYLM238002 | 2014-03-90 | 1 | UM |
Cross Reference | NSN 6105-00-824-1608
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| FYLM23800-2 | 05624 | GE AVIATION SYSTEMS LLC DBA GE AVIATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6105-00-824-1608
Related Products | NSN 6105-00-824-1608
Technical Data | NSN 6105-00-824-1608
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 2.192 INCHES |
| OVERALL WIDTH | 1.250 INCHES |
| OVERALL HEIGHT | 1.250 INCHES |
| LENGTH OF SHAFT FROM HOUSING | 0.408 INCHES SINGLE END |
| MOUNTING METHOD | FACE |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 THREADED HOLE |

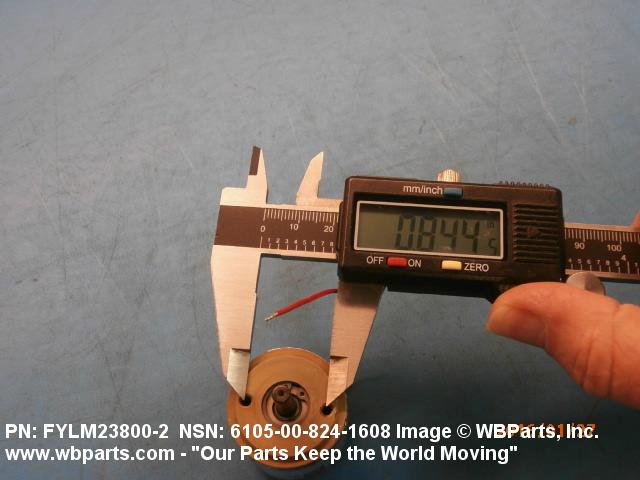

| MOUNTING FACILITY CIRCLE DIAMETER | 0.842 INCHES |
| INCLOSURE FEATURE | TOTALLY INCLOSED |
| INCLOSURE SPECIFICATION | COMMERCIAL |
| CURRENT RATING IN AMPS | 0.250 SINGLE INPUT |
| CURRENT RATING METHOD | LOAD |
| CONNECTION TYPE AND VOLTAGE RATING IN VOLTS | 27.0 LINE TO NEUTRAL SINGLE INPUT |
| WINDING TYPE | PERMANENT MAGNET |
| DUTY CYCLE | CONTINUOUS |
| COOLING METHOD | NONVENTILATED |
| TERMINAL TYPE AND QUANTITY | 1 WIRE LEAD |
| SHAFT ROTATION DIRECTION | COUNTERCLOCKWISE SINGLE END |
| SHAFT END CHARACTERISTIC | A1 SINGLE STYLE SINGLE END |
| SHAFT DIAMETER | 0.187 INCHES NOMINAL SINGLE END |
| FEATURES PROVIDED | FRAME ELECTRICALLY GROUNDED AND HORIZONTAL MOUNTING POSITION AND VERTICAL MOUNTING POSITION |
| MANUFACTURERS CODE | 05624 |
| DESIGN CONTROL REFERENCE | FYLM23800-2 |
Restrictions/Controls & Freight Information | NSN 6105-00-824-1608
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062120 | GENERATORS/MOTORS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6105-00-824-1608
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
