Product Details | CONTROL MOTOR

6105-00-787-2744 A motor which is designed to be operated from two independent voltage sources, in such a way that variations in one voltage source will determine the direction and speed of the motor. In the alternating current type the voltages are usually applied to a split-phase stator, whereas in the direct current type, one voltage is applied to the stator and the other to the armature. Low inertia and rapid reversibility are inherent characteristics of this type of motor. See also SERVOMOTOR, AUTOMATIC PILOT.

Part Alternates: R1102B, R110-2B, R1102BMOD, R110-2BMOD , 15515323, 15-5153-23, 1800329 , 2U2287, 51531601, 5153-16-01, 6655248, 665-52-48, 6655295, 665-52-95, 9072880, 6105-00-787-2744, 00-787-2744, 6105007872744, 007872744

Electric Wire, and Power and Distribution Equipment | Motors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
61	01 JAN 1962	00-787-2744	19258 ( MOTOR, CONTROL )

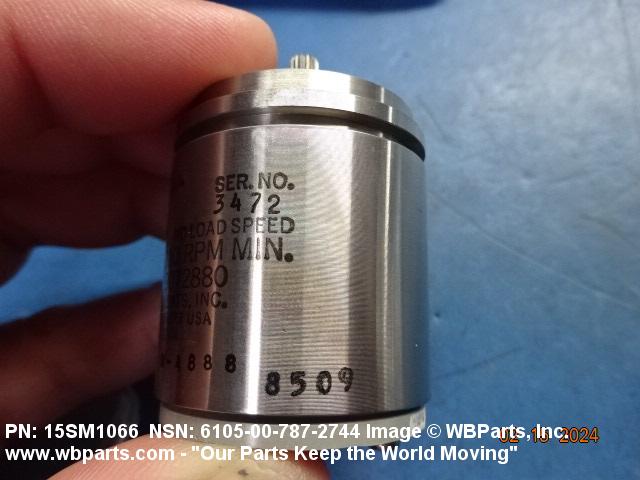

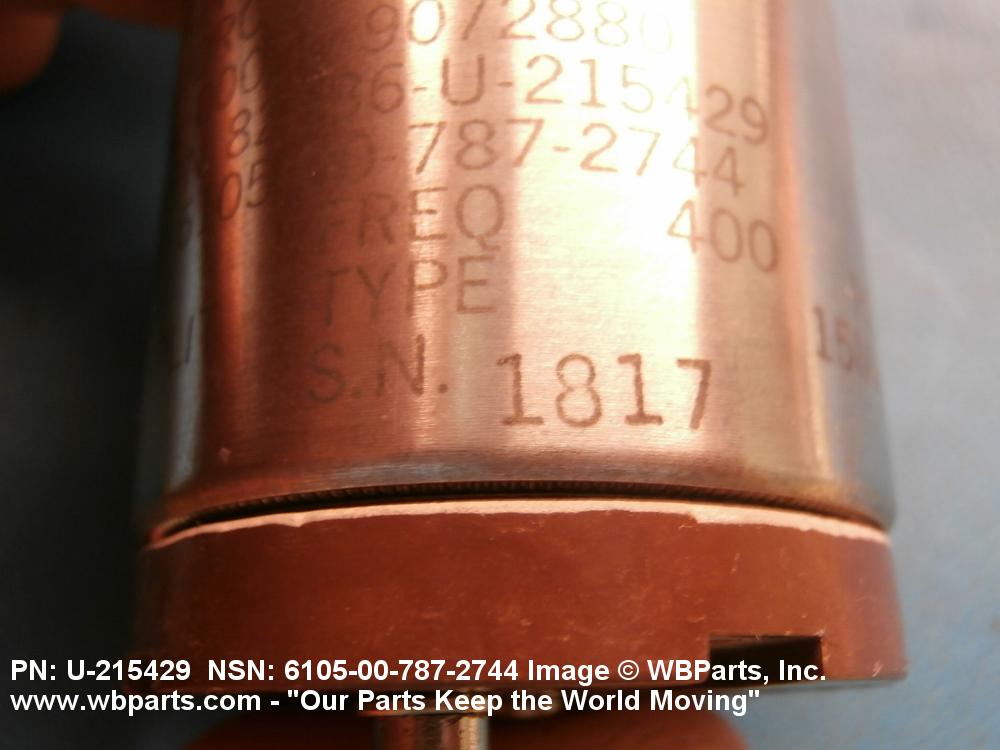

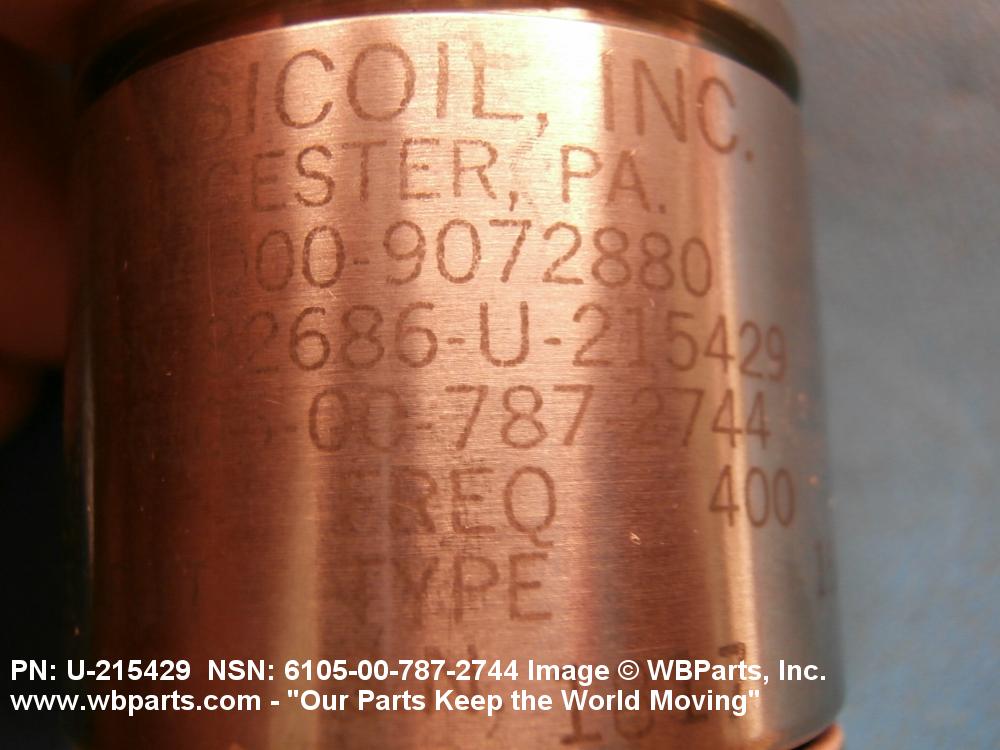

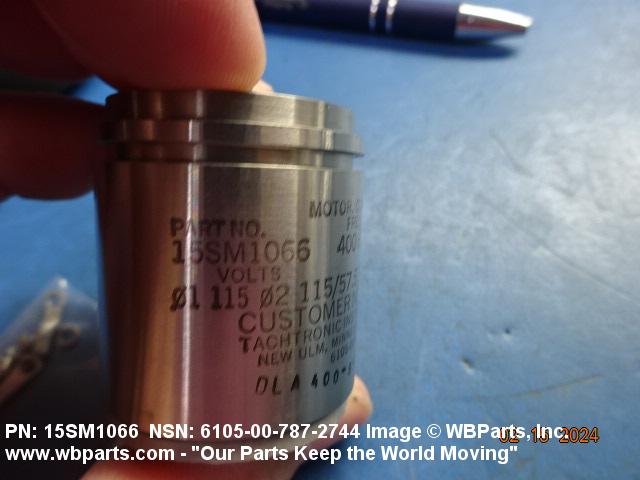

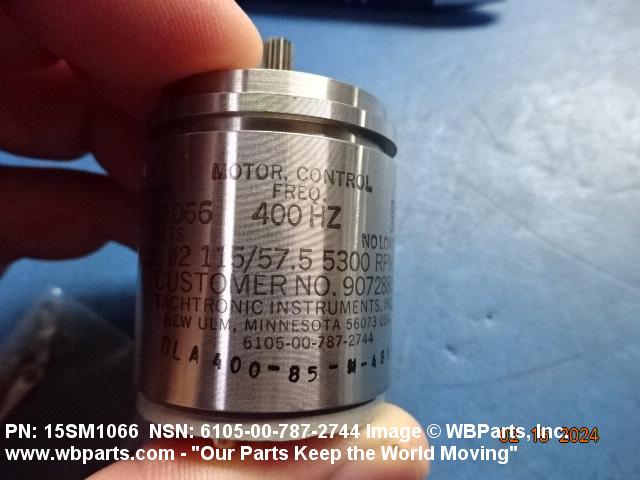

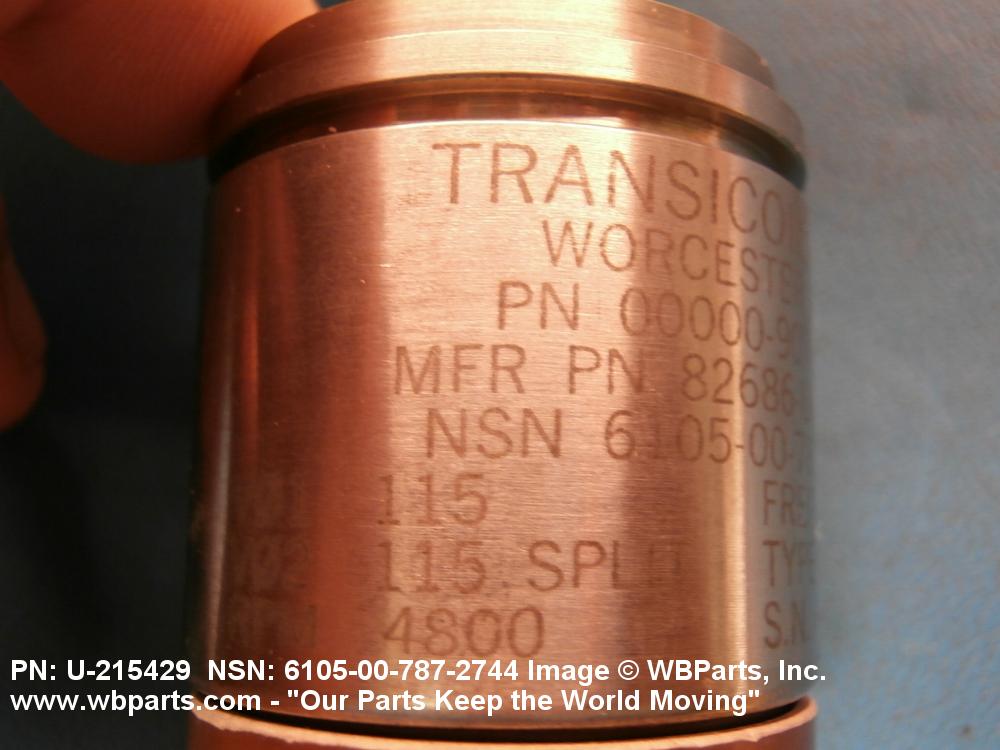

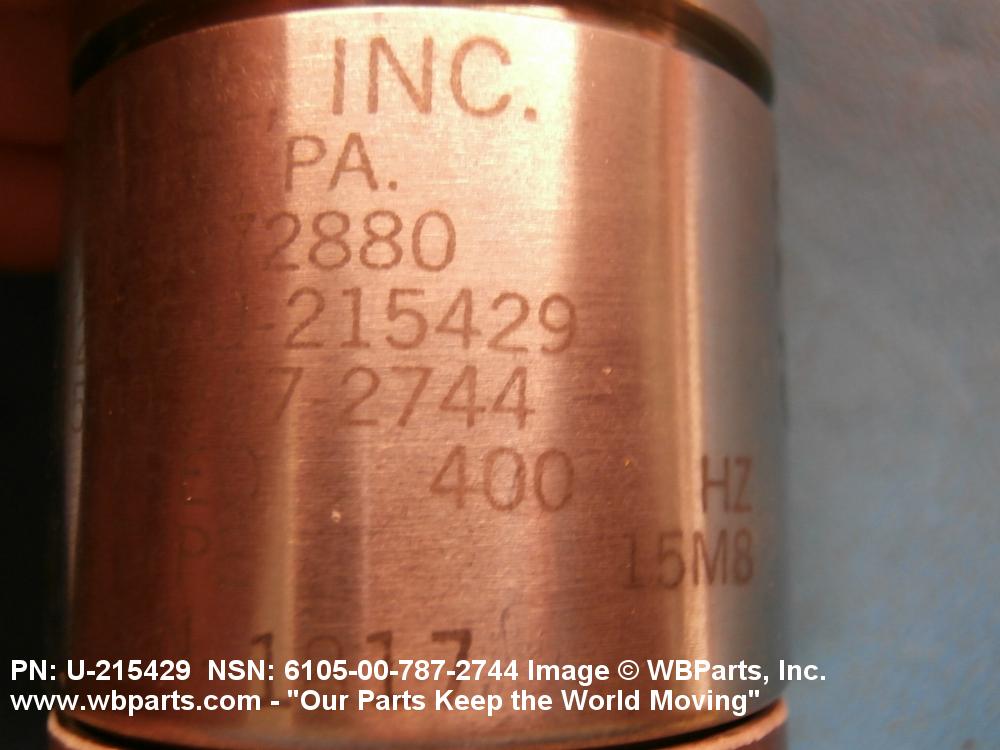

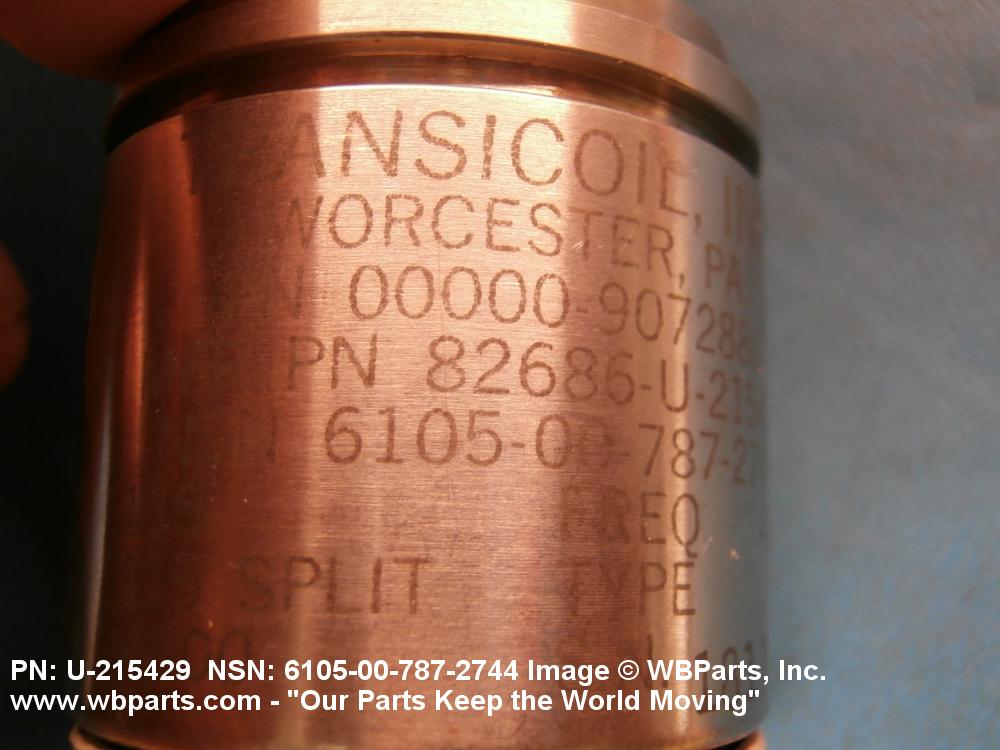

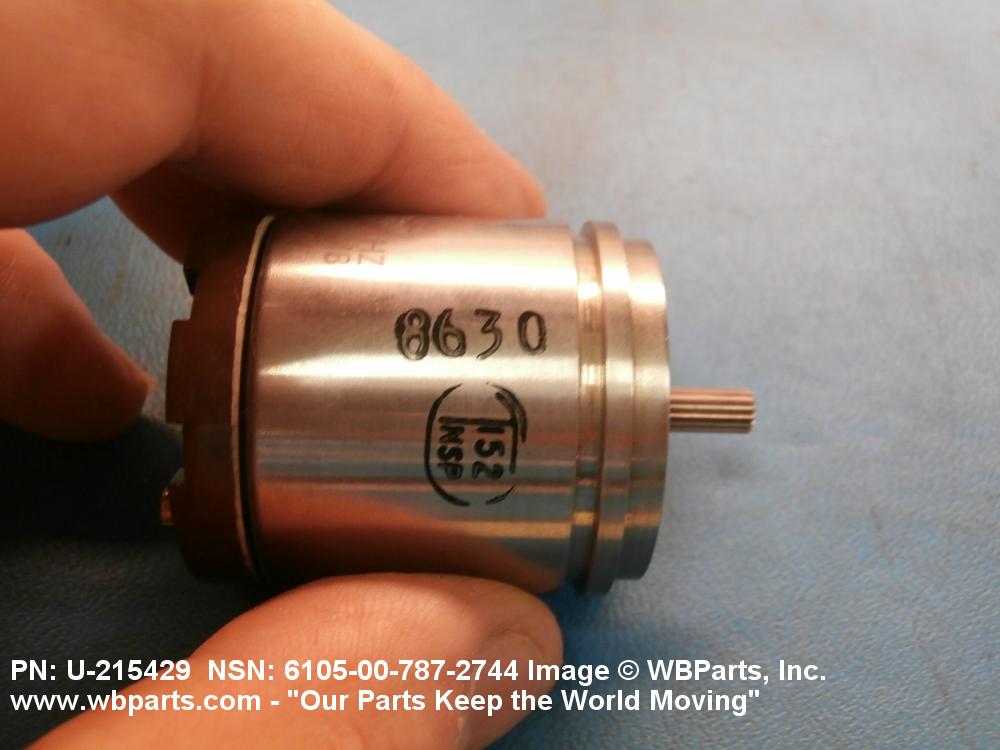

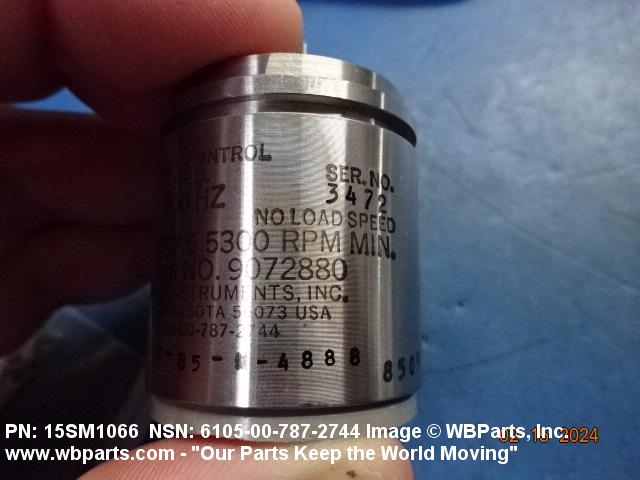

Drawings & Photos | NSN 6105-00-787-2744

Part Number	Request Date	QTY	Origin
6105-00-787-2744	2024-03-73	2	United States
6105-00-787-2744	2024-01-26	2	United States
6105-00-787-2744	2019-03-87	39	DIBBS
1800329	2017-09-257	1	United States
1800329	2017-04-115	1	United States
1800329	2017-02-47	1	United States
6105-00-787-2744	2016-09-273	36	DIBBS
6105-00-787-2744	2015-07-210	50	DIBBS
6105-00-787-2744	2015-03-77	1	CA
6105-00-787-2744	2015-03-71	7	DIBBS
6105-00-787-2744	2015-02-47	7	DIBBS
6105-00-787-2744	2014-10-295	7	DIBBS
6105-00-787-2744	2014-09-261	7	DIBBS
6105-00-787-2744	2014-04-98	9	DIBBS
6105-00-787-2744	2014-02-43	13	DIBBS
6105-00-787-2744	2013-03-82	3	United States
6105-00-787-2744	2013-02-32	16	DIBBS
6105-00-787-2744	2013-01-16	3	DIBBS
6105-00-787-2744	2009-11-323	5	DIBBS
6105-00-787-2744	2009-01-07	8	DIBBS
6105-00-787-2744	2008-11-318	13	DIBBS
6105-00-787-2744	2008-09-252	10	DIBBS

Cross Reference | NSN 6105-00-787-2744

Part Number	Cage Code	Manufacturer
15-5153-23	58880	MEGGITT (NEW HAMPSHIRE), INC
15-5153-23	99932	MOOG INC. DBA MOOG COMPONENTS GROUP
1800329	03956	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS
2U2287	58880	MEGGITT (NEW HAMPSHIRE), INC
2U2287	99932	MOOG INC. DBA MOOG COMPONENTS GROUP
5153-16-01	58880	MEGGITT (NEW HAMPSHIRE), INC
5153-16-01	99932	MOOG INC. DBA MOOG COMPONENTS GROUP
665-52-48	19710	MPC PRODUCTS CORPORATION DBA WOODWARD MPC
665-52-95	19710	MPC PRODUCTS CORPORATION DBA WOODWARD MPC
9072880	18876	U S ARMY AVIATION AND MISSILE COMMAND
R110-2B	88818	KEARFOTT CORPORATION DBA KEARFOTT
R110-2BMOD	81100	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 6105-00-787-2744

Compare

Related Products | NSN 6105-00-787-2744

6105-00-787-2805, 6105-00-787-3778, 6105-00-787-3837, 6105-00-787-4601, 6105-00-787-7559

Technical Data | NSN 6105-00-787-2744

Characteristic	Specifications

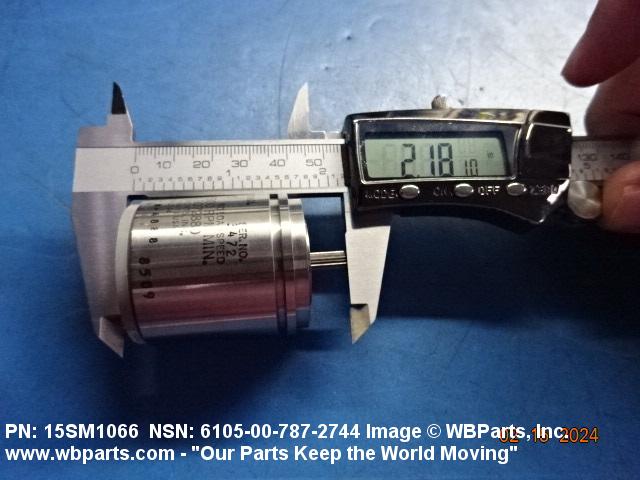

OVERALL LENGTH	2.235 INCHES

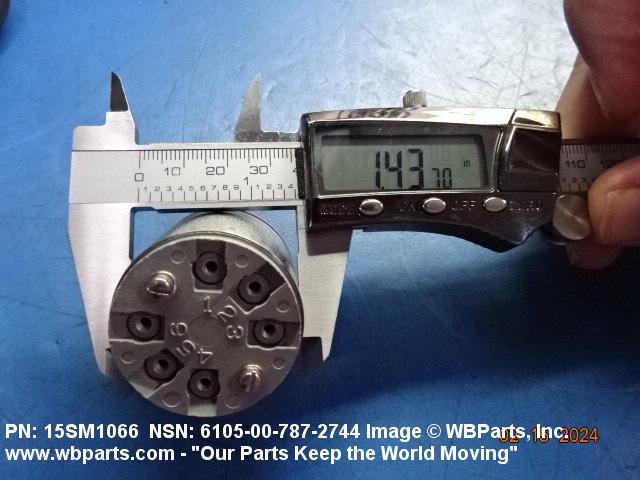

OVERALL WIDTH	1.436 INCHES
OVERALL HEIGHT	1.436 INCHES

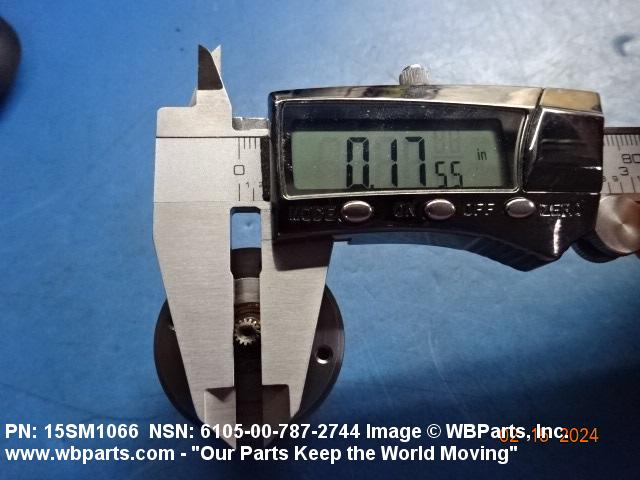

LENGTH OF SHAFT FROM HOUSING	0.397 INCHES SINGLE END

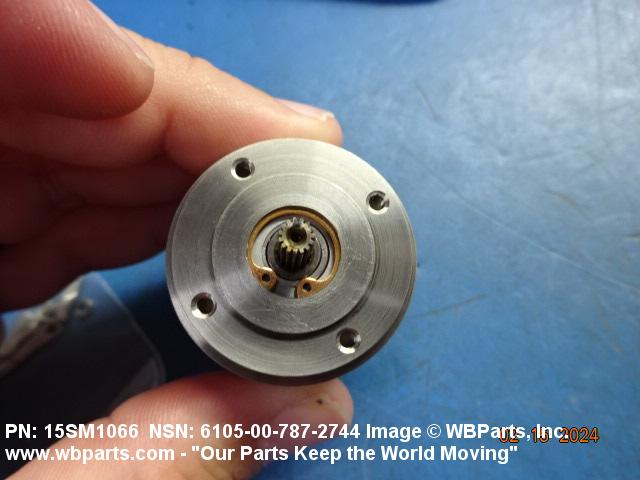

MOUNTING METHOD	FACE

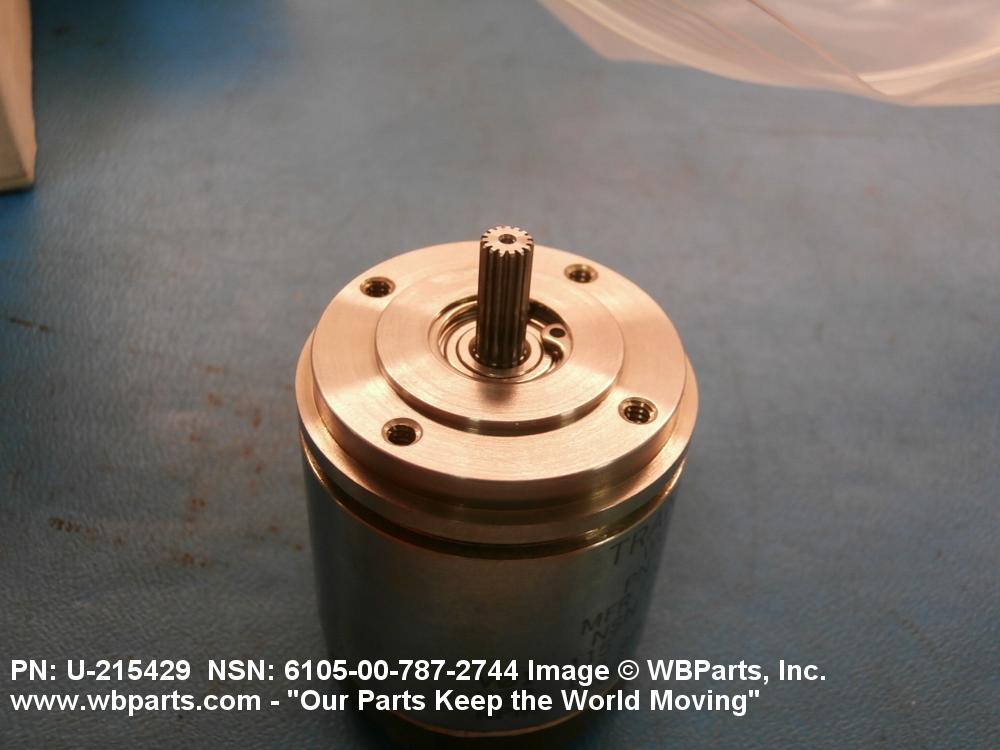

MOUNTING FACILITY TYPE AND QUANTITY	1 CLAMP COLLAR AND 4 THREADED HOLE
MOUNTING FACILITY CIRCLE DIAMETER	1.100 INCHES
INCLOSURE FEATURE	TOTALLY INCLOSED
INCLOSURE SPECIFICATION	COMMERCIAL
CURRENT TYPE	AC INPUT
CURRENT RATING IN AMPS	0.110 SINGLE INPUT
CURRENT RATING METHOD	LOCKED ROTOR
FREQUENCY IN HERTZ	400.0 INPUT
PHASE	TWO INPUT
CONNECTION TYPE AND VOLTAGE RATING IN VOLTS	115.0 LINE TO NEUTRAL SINGLE INPUT
TORQUE RATING AND TYPE	1.53 INCH-OUNCES STALLED
TEMP RATING	65.0 AMBIENT DEG CELSIUS AND -55.0 OPERATING DEG CELSIUS AND 100.0 OPERATING DEG CELSIUS
COOLING METHOD	NONVENTILATED

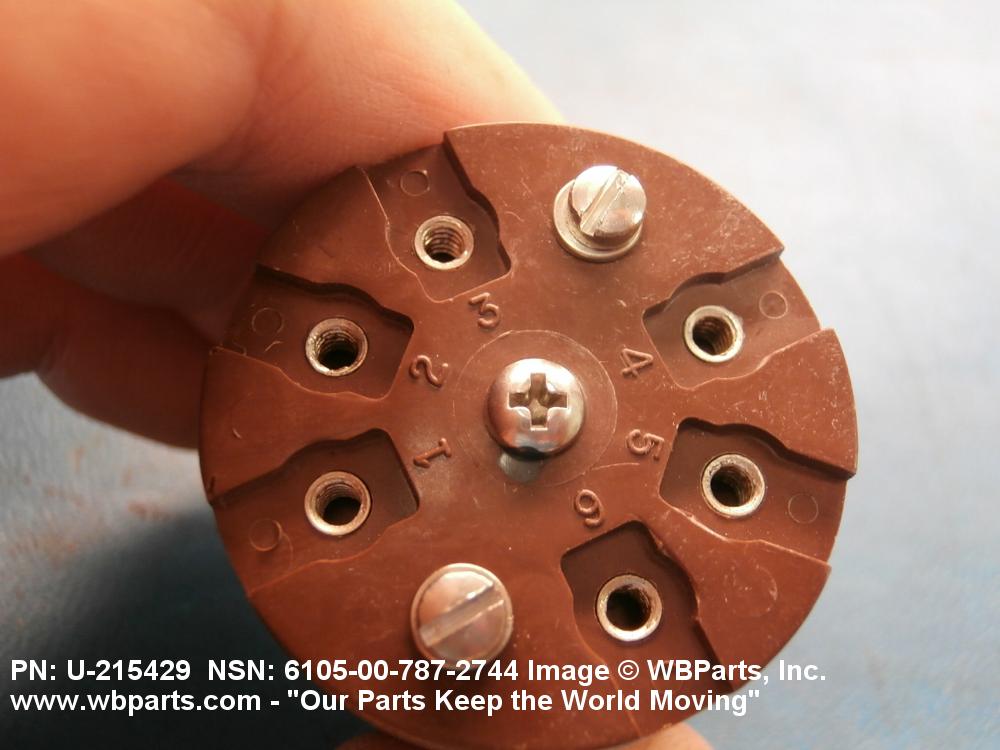

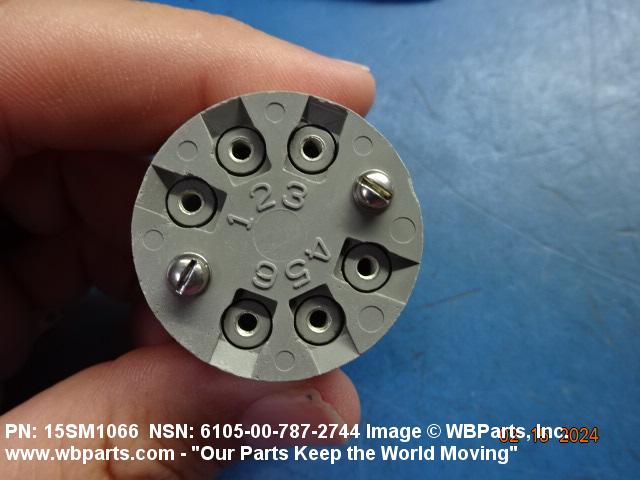

TERMINAL TYPE AND QUANTITY	6 SCREW
