NSN 6105-00-801-9874 4525734, 452573-4, 00-801-9874
Product Details | CONTROL MOTOR
6105-00-801-9874 A motor which is designed to be operated from two independent voltage sources, in such a way that variations in one voltage source will determine the direction and speed of the motor. In the alternating current type the voltages are usually applied to a split-phase stator, whereas in the direct current type, one voltage is applied to the stator and the other to the armature. Low inertia and rapid reversibility are inherent characteristics of this type of motor. See also SERVOMOTOR, AUTOMATIC PILOT.
Part Alternates: 4525734, 452573-4, 6105-00-801-9874, 00-801-9874, 6105008019874, 008019874
Electric Wire, and Power and Distribution Equipment | Motors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 01 JAN 1962 | 00-801-9874 | 19258 ( MOTOR, CONTROL ) |

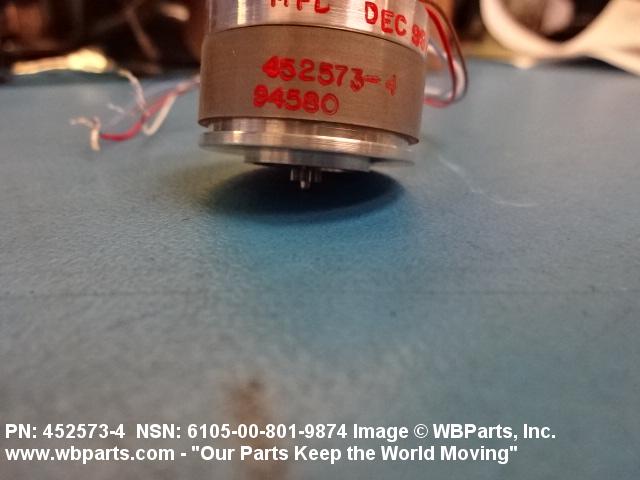

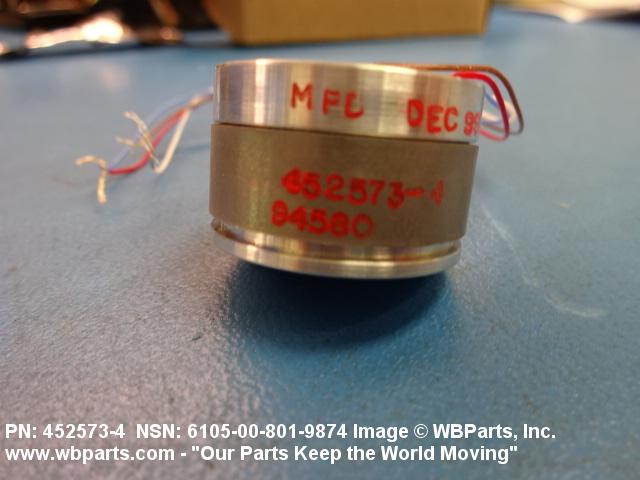

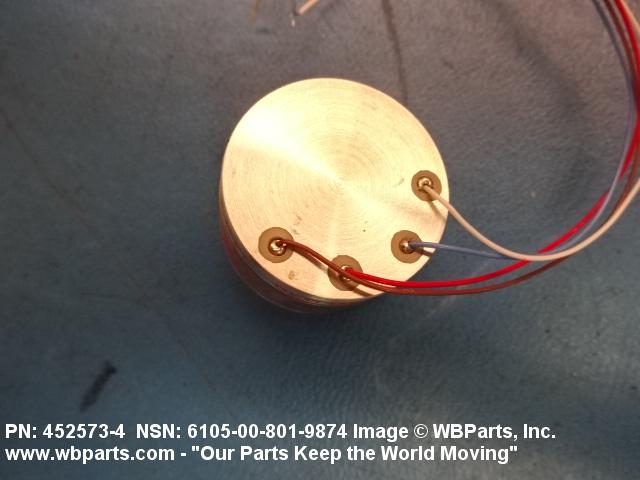

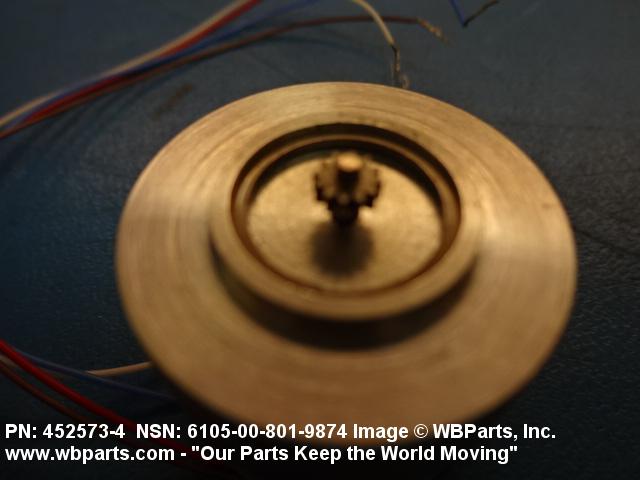

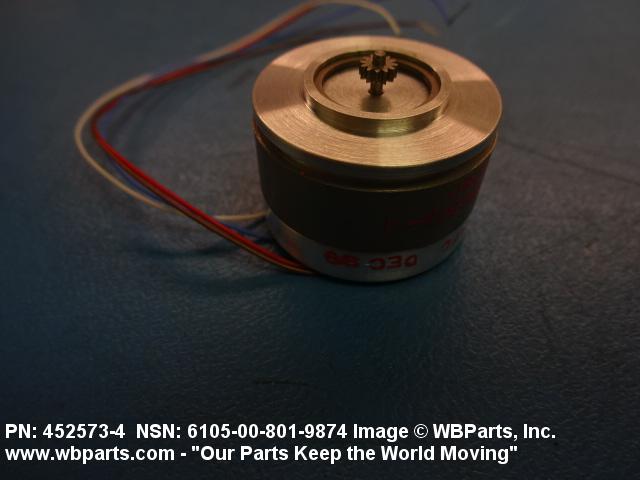

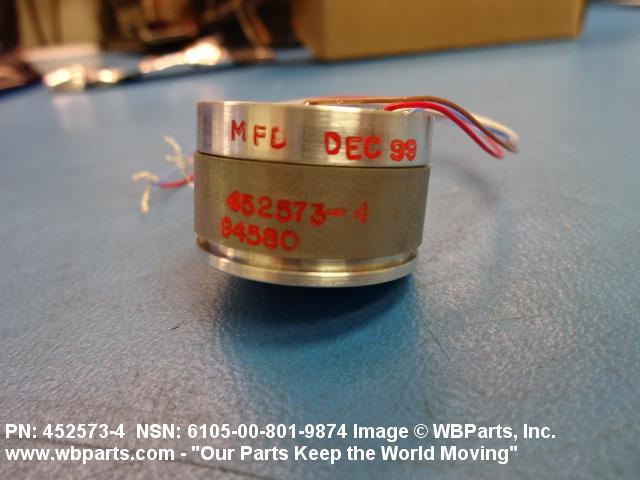

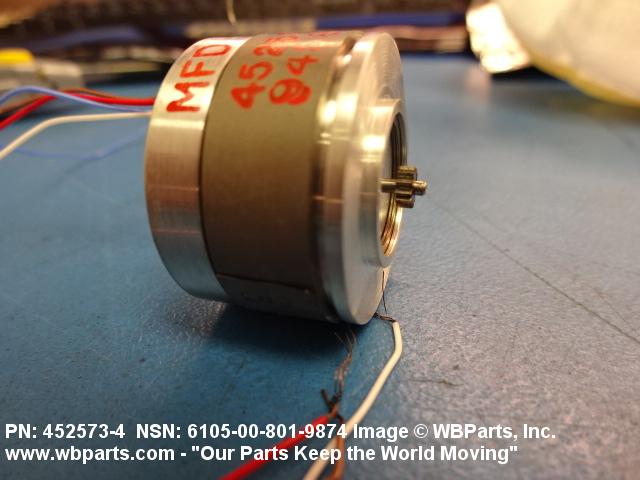

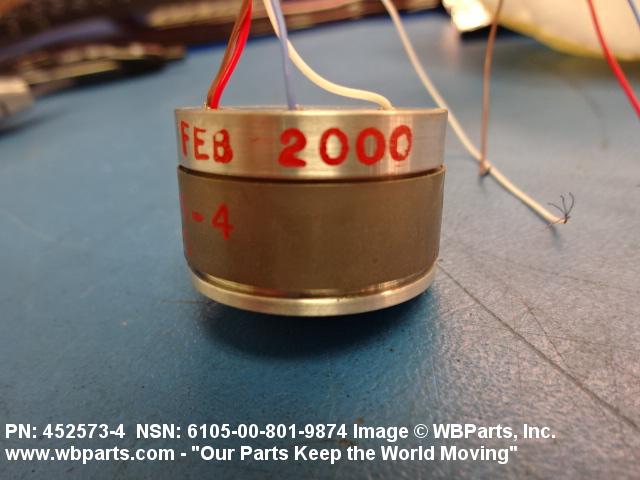

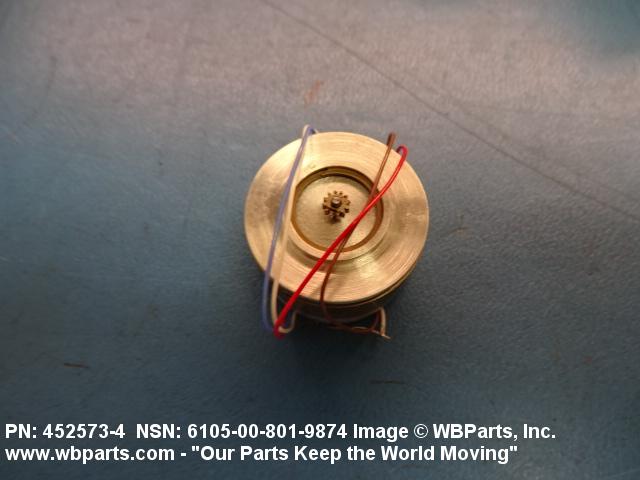

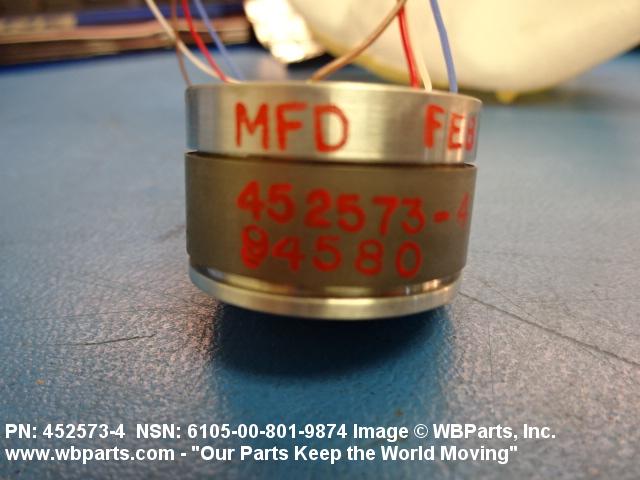

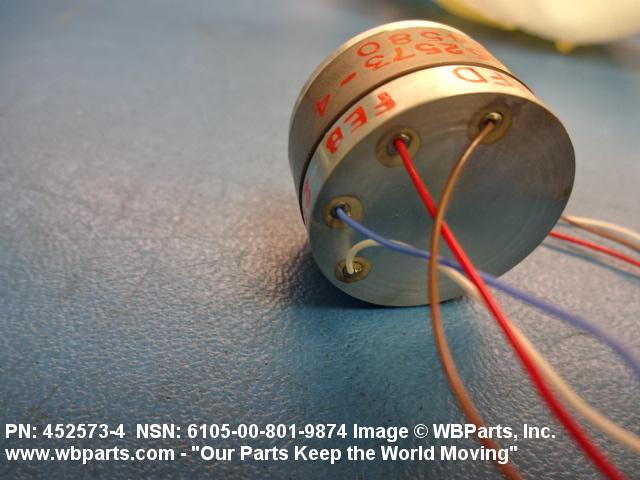

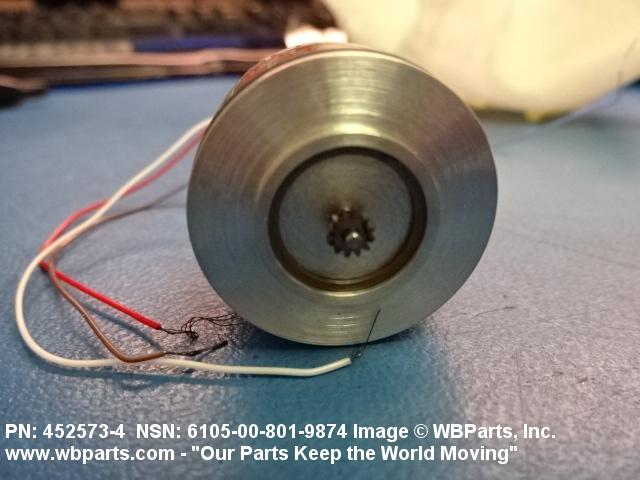

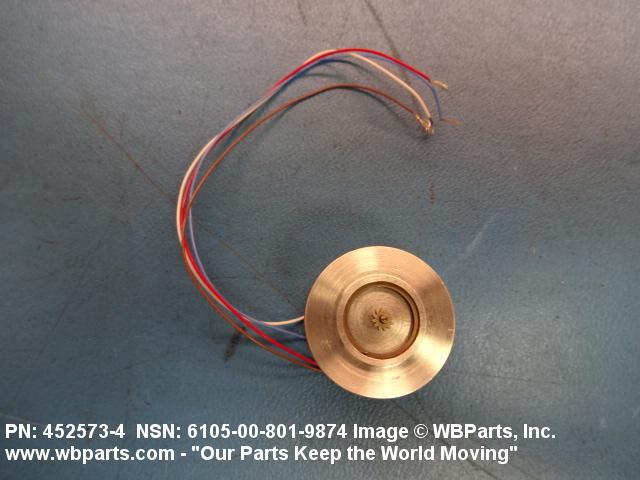

Drawings & Photos | NSN 6105-00-801-9874
Demand History | NSN 6105-00-801-9874
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 452573-4 | 2024-07-196 | 4 | DIBBS |
| 4525734 | 2024-03-67 | 5 | United States |
| 4525734 | 2024-03-67 | 10 | United States |
| 452573-4 | 2023-07-198 | 4 | DIBBS |
| 6105-00-801-9874 | 2022-11-334 | 1 | Malaysia |
| 6105-00-801-9874 | 2022-11-311 | 2 | US |
| 452573-4 | 2022-10-301 | 2 | Malaysia |
| 4525734 | 2021-10-293 | 2 | United States |
| 452573-4 | 2021-07-207 | 1 | DIBBS |
| 452573-4 | 2021-07-196 | 1 | DIBBS |
| 452573-4 | 2021-02-46 | 3 | DIBBS |
| 4525734 | 2020-12-350 | 1 | United States |
| 452573-4 | 2020-10-300 | 16 | DIBBS |
| 6105-00-801-9874 | 2020-10-293 | 16 | US |
| 452573-4 | 2020-10-288 | 16 | DIBBS |
| 4525734 | 2020-08-238 | 1 | MY |
| 452573-4 | 2020-07-211 | 6 | DIBBS |
| 452573-4 | 2020-05-126 | 26 | DIBBS |
| 452573-4 | 2019-06-161 | 21 | DIBBS |
| 452573-4 | 2019-05-150 | 21 | DIBBS |
| 6105-00-801-9874 | 2019-05-136 | 8 | United States |
| 6105-00-801-9874 | 2019-04-100 | 5 | United States |
| 6105-00-801-9874 | 2018-11-310 | 10 | DIBBS |
| 6105-00-801-9874 | 2018-10-288 | 16 | DIBBS |
| 6105-00-801-9874 | 2018-09-249 | 6 | DIBBS |
| 6105-00-801-9874 | 2018-07-190 | 5 | DIBBS |
| 6105-00-801-9874 | 2018-04-116 | 5 | DIBBS |
| 6105-00-801-9874 | 2018-02-43 | 5 | DIBBS |
| 6105-00-801-9874 | 2014-08-226 | 1 | US |
| 6105-00-801-9874 | 2014-07-202 | 19 | DIBBS |
| 6105-00-801-9874 | 2014-07-190 | 19 | DIBBS |
| 6105-00-801-9874 | 2014-06-153 | 18 | DIBBS |
| 6105-00-801-9874 | 2014-03-72 | 17 | DIBBS |
| 6105-00-801-9874 | 2013-11-328 | 18 | DIBBS |
| 6105-00-801-9874 | 2012-07-213 | 33 | DIBBS |
| 6105-00-801-9874 | 2011-12-357 | 49 | DIBBS |
| 6105-00-801-9874 | 2011-11-305 | 15 | DIBBS |
| 6105-00-801-9874 | 2011-10-291 | 12 | DIBBS |
| 6105-00-801-9874 | 2011-08-228 | 16 | DIBBS |
| 6105-00-801-9874 | 2011-03-67 | 4 | DIBBS |
| 6105-00-801-9874 | 2011-02-53 | 25 | DIBBS |
| 6105-00-801-9874 | 2010-12-340 | 11 | DIBBS |
| 6105-00-801-9874 | 2010-10-293 | 22 | DIBBS |
| 6105-00-801-9874 | 2010-05-147 | 21 | DIBBS |
| 6105-00-801-9874 | 2010-04-103 | 11 | DIBBS |
| 6105-00-801-9874 | 2010-01-22 | 12 | DIBBS |
| 6105-00-801-9874 | 2009-05-151 | 34 | DIBBS |
| 6105-00-801-9874 | 2009-03-75 | 12 | DIBBS |
| 6105-00-801-9874 | 2008-05-135 | 40 | DIBBS |
| 6105-00-801-9874 | 2008-04-106 | 8 | DIBBS |
| 6105-00-801-9874 | 2008-02-42 | 14 | DIBBS |
Cross Reference | NSN 6105-00-801-9874
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 452573-4 | 94580 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6105-00-801-9874
Related Products | NSN 6105-00-801-9874
Technical Data | NSN 6105-00-801-9874
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 0.844 INCHES |
| OVERALL WIDTH | 1.062 INCHES |
| OVERALL HEIGHT | 1.062 INCHES |
| LENGTH OF SHAFT FROM HOUSING | 0.094 INCHES SINGLE END |
| MOUNTING METHOD | CLAMP RING |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 CLAMP COLLAR |
| INCLOSURE FEATURE | TOTALLY INCLOSED |
| INCLOSURE SPECIFICATION | COMMERCIAL |
| CURRENT TYPE | AC INPUT |
| CURRENT RATING IN AMPS | 0.040 SINGLE INPUT |
| CURRENT RATING METHOD | NO LOAD |
| FREQUENCY IN HERTZ | 400.0 INPUT |
| PHASE | SINGLE INPUT |
| CONNECTION TYPE AND VOLTAGE RATING IN VOLTS | 115.0 LINE TO NEUTRAL SINGLE INPUT |
| TORQUE RATING AND TYPE | 0.2 INCH-OUNCES STALLED |
| TEMP RATING | -54.0 OPERATING DEG CELSIUS AND 149.0 OPERATING DEG CELSIUS |
| COOLING METHOD | NONVENTILATED |
| MAXIMUM OPERATING ALTITUDE RATING | 20000.0 FEET |

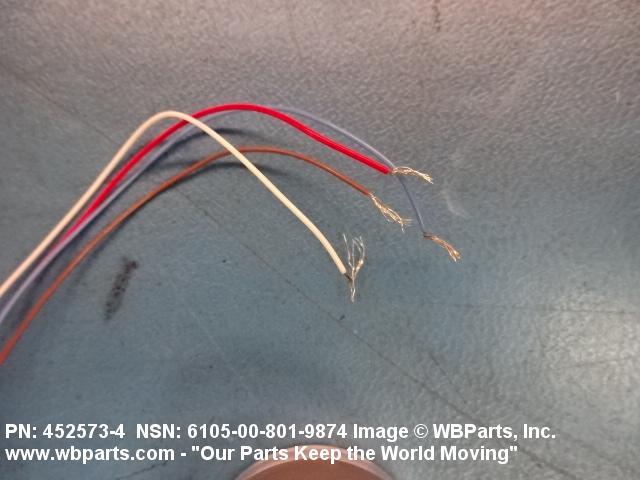

| TERMINAL TYPE AND QUANTITY | 4 WIRE LEAD |
| CONTROL FIELD VOLTAGE TYPE AND RATING IN VOLTS | 26.0 AC |
| CONTROL FIELD CURRENT RATING IN AMPS | 0.120 |
| CONTROL FIELD IMPEDANCE RATING IN OHMS | 215.0 |
| CONTROL FIELD WINDING TYPE | SINGLE WINDING |
| ROTOR SPEED RATING IN RPM | 10800.0 SINGLE NO LOAD |
| SHAFT END CHARACTERISTIC | A23 SINGLE STYLE SINGLE END |
| SHAFT DIAMETER | 0.1250 INCHES NOMINAL SINGLE END |
| TEETH QUANTITY | 12 SINGLE END |
| FEATURES PROVIDED | HORIZONTAL MOUNTING POSITION AND VERTICAL MOUNTING POSITION |
Restrictions/Controls & Freight Information | NSN 6105-00-801-9874
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062120 | GENERATORS/MOTORS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6105-00-801-9874
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | AW | SX:AIRBORNE WARNING AND CONTROL SYSTEM (AWACS) 411L |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | P | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
