NSN 6060-01-523-0620 MC300E2C195PN, MC300E2-C-19-5PN, 01-523-0620
Product Details | FIBER OPTIC RECEPTACLE CONNECTOR
6060-01-523-0620 A fiber optic fitting with or without contact(s) constructed to be affixed to a fiber optic cable to join with another fiber optic connector(s) and is designed to be mounted on a bulkhead, wall, chassis, panel, or PRINTED WIRING BOARD. It may or may not include facilities for holding a device, such as a semiconductor, but does not include the device itself. Excludes CONNECTOR, RECEPTACLE, ELECTRICAL; LAMPHOLDER; JACK, TELEPHONE; SOCKET (as modified); DUMMY CONNECTOR, RECEPTACLE; JACK ASSEMBLY, TIP; and PLUG ASSEMBLY, TIP. See also LEAD, ELECTRICAL; LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified).
Part Alternates: MC300E2C195PN, MC300E2-C-19-5PN, 6060-01-523-0620, 01-523-0620, 6060015230620, 015230620
Fiber Optics Materials, Components, Assemblies, and Accessories | Fiber Optic Interconnectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 60 | 19 AUG 2004 | 01-523-0620 | 33907 ( CONNECTOR, RECEPTACLE, FIBER OPTIC ) |
Drawings & Photos | NSN 6060-01-523-0620
Demand History | NSN 6060-01-523-0620
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MC300E2-C-19-5PN | 2023-08-236 | 6 | DIBBS |
| 6060-01-523-0620 | 2018-07-197 | 4 | DIBBS |
| 6060-01-523-0620 | 2018-07-185 | 4 | DIBBS |
| 6060-01-523-0620 | 2018-05-127 | 4 | DIBBS |
| 6060-01-523-0620 | 2018-04-116 | 4 | DIBBS |
| 6060-01-523-0620 | 2018-03-64 | 4 | DIBBS |
| 6060-01-523-0620 | 2009-12-349 | 1 | United Kingdom |
Cross Reference | NSN 6060-01-523-0620
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MC300E2-C-19-5PN | 0XY53 | GREENLEE TEXTRON INC. DBA GREENLEE TEXTRON TEMPO OPERATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6060-01-523-0620
Technical Data | NSN 6060-01-523-0620
| Characteristic | Specifications |
|---|---|

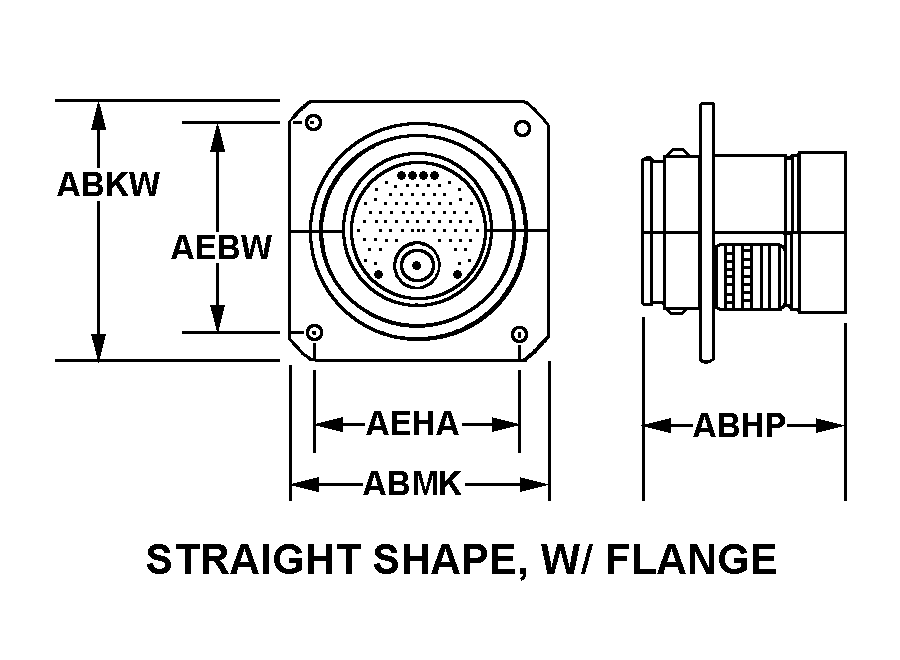

| BODY STYLE | 8M STRAIGHT SHAPE W/FLANGE |
| OVERALL LENGTH | 46.49 MILLIMETERS NOMINAL |
| OVERALL HEIGHT | 36.58 MILLIMETERS NOMINAL |
| OVERALL WIDTH | 36.58 MILLIMETERS NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 29.35 MILLIMETERS NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 29.35 MILLIMETERS NOMINAL |
| CRITICALITY CODE JUSTIFICATION | AGAV |
| III END ITEM IDENTIFICATION | CABLE ASSY,FIBER OPTIC |
Restrictions/Controls & Freight Information | NSN 6060-01-523-0620
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 057770 | CABLE LIGHTGUIDE/WAVE GLASS FIBRE |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6060-01-523-0620
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | QF | FIGHTERAIRCRAFT(F18 E/F) |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
