NSN 6060-01-523-1021 MIN04F0-FCR/L, MIN04F0FCRL, 01-523-1021
Product Details | FIBER OPTIC RECEPTACLE CONNECTOR
6060-01-523-1021 A fiber optic fitting with or without contact(s) constructed to be affixed to a fiber optic cable to join with another fiber optic connector(s) and is designed to be mounted on a bulkhead, wall, chassis, panel, or PRINTED WIRING BOARD. It may or may not include facilities for holding a device, such as a semiconductor, but does not include the device itself. Excludes CONNECTOR, RECEPTACLE, ELECTRICAL; LAMPHOLDER; JACK, TELEPHONE; SOCKET (as modified); DUMMY CONNECTOR, RECEPTACLE; JACK ASSEMBLY, TIP; and PLUG ASSEMBLY, TIP. See also LEAD, ELECTRICAL; LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified).
Part Alternates: MIN04F0-FCR/L, MIN04F0FCRL, 6060-01-523-1021, 01-523-1021, 6060015231021, 015231021
Fiber Optics Materials, Components, Assemblies, and Accessories | Fiber Optic Interconnectors
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
60 | 20 AUG 2004 | 01-523-1021 | 33907 ( CONNECTOR, RECEPTACLE, FIBER OPTIC ) |
Cross Reference | NSN 6060-01-523-1021
Part Number | Cage Code | Manufacturer |
---|---|---|
MIN04F0-FCR/L | 15789 | BRANTNER AND ASSOCIATES, INC. DBA SEA CON |
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 6060-01-523-1021
Technical Data | NSN 6060-01-523-1021
Characteristic | Specifications |
---|---|
BODY STYLE | 45G STRAIGHT SHAPE, FIBER OPTIC W/FLANGE |
OVERALL LENGTH | 1.630 INCHES NOMINAL |
OVERALL HEIGHT | 3.500 INCHES NOMINAL |
OVERALL WIDTH | 3.500 INCHES NOMINAL |
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 1.446 INCHES NOMINAL |
DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 1.446 INCHES NOMINAL |
SHELL TYPE | SOLID |
SHELL MATERIAL | STEEL CORROSION RESISTING |
MATING END QUANTITY | 1 |

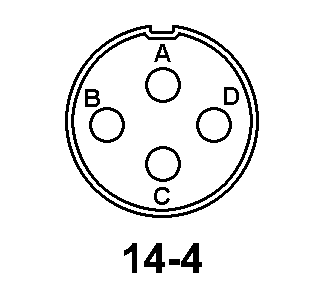

CONTACT POSITION ARRANGEMENT STYLE | AEKL 14-4 SINGLE MATING END |
INCLUDED CONTACT QUANTITY | 4 SINGLE MATING END SINGLE CONTACT GROUPING |
TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
ENVIRONMENTAL PROTECTION | MOISTURE PROOF |
III END ITEM IDENTIFICATION | RADAR ASSEMBLY, RMV; AN/WLD-1(V) REMOTE MINE HUNTING SYSTEM |
