NSN 6060-01-519-3953 M28876/9F11P3, M288769F11P3, MIL-C-28876/9
Product Details | FIBER OPTIC PLUG CONNECTOR
6060-01-519-3953 A fiber optic fitting with or without contact(s) constructed to be affixed to the end of a fiber optic cable for convenience in joining with another fiber optic connector(s), and is not designed to be mounted on a bulkhead, chassis, or panel. It may or may not include facilities for holding a device, such as a semiconductor, but does not include the device itself. Excludes CONNECTOR, PLUG, ELECTRICAL; PLUG, TIP; DUMMY PLUG, TELEPHONE; DUMMY CONNECTOR, PLUG; INSERT, ELECTRICAL CONNECTOR; SOCKET, PLUG-IN ELECTRONIC COMPONENTS; JACK ASSEMBLY, TIP; PLUG ASSEMBLY TIP; and JACK TIP. See also LEAD, ELECTRICAL; LEAD ASSEMBLY ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified).
Part Alternates: M28876/9F11P3, M288769F11P3, MIL-C-28876/9, MILC288769, 6060-01-519-3953, 01-519-3953, 6060015193953, 015193953
Fiber Optics Materials, Components, Assemblies, and Accessories | Fiber Optic Interconnectors
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
60 | 16 APR 2004 | 01-519-3953 | 33906 ( CONNECTOR, PLUG, FIBER OPTIC ) |
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 6060-01-519-3953
Technical Data | NSN 6060-01-519-3953
Characteristic | Specifications |
---|---|
BODY STYLE | 15A ANGLE SHAPE WITH CABLE/CLAMP |
OVERALL DIAMETER | 1.703 INCHES NOMINAL |
DISTANCE FROM CENTERLINE TO CONNECTOR END | 3.725 INCHES NOMINAL |
DISTANCE FROM CENTERLINE TO CABLE END | 4.915 INCHES MAXIMUM |
BODY ANGLE IN DEG | 90.0 |
CONNECTOR CABLE STRAIN RELIEF METHOD | SHRINKABLE TUBING |
POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
INSERT POSITION IN DEG | 49.0 AND 169.0 AND 200.0 AND 244.0 |
MATING END QUANTITY | 1 |

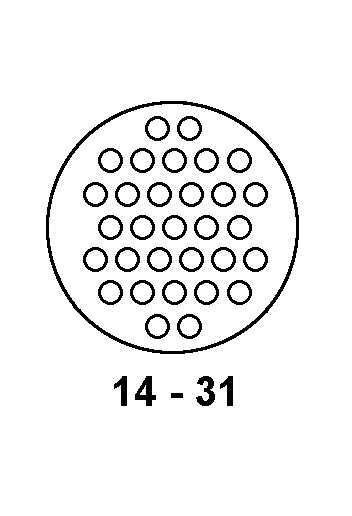

CONTACT POSITION ARRANGEMENT STYLE | BHAA 14-31 SINGLE MATING END |
INCLUDED CONTACT QUANTITY | 31 SINGLE MATING END SINGLE CONTACT GROUPING |
TEST DATA DOCUMENT | 81349-MIL-C-28876 SPECIFICATION |
III END ITEM IDENTIFICATION | OHIO CLASS SSBN TRIDENT |
MANUFACTURERS CODE | 81349 |
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-28876/9 |
MANUFACTURERS CODE | 81349 |
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M28876/9F11P3 |
