NSN 6060-01-466-8490 M28876/7B11P1, M288767B11P1, 01-466-8490
Product Details | FIBER OPTIC PLUG CONNECTOR
6060-01-466-8490 A fiber optic fitting with or without contact(s) constructed to be affixed to the end of a fiber optic cable for convenience in joining with another fiber optic connector(s), and is not designed to be mounted on a bulkhead, chassis, or panel. It may or may not include facilities for holding a device, such as a semiconductor, but does not include the device itself. Excludes CONNECTOR, PLUG, ELECTRICAL; PLUG, TIP; DUMMY PLUG, TELEPHONE; DUMMY CONNECTOR, PLUG; INSERT, ELECTRICAL CONNECTOR; SOCKET, PLUG-IN ELECTRONIC COMPONENTS; JACK ASSEMBLY, TIP; PLUG ASSEMBLY TIP; and JACK TIP. See also LEAD, ELECTRICAL; LEAD ASSEMBLY ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified).
Part Alternates: M28876/7B11P1, M288767B11P1, 6060-01-466-8490, 01-466-8490, 6060014668490, 014668490
Fiber Optics Materials, Components, Assemblies, and Accessories | Fiber Optic Interconnectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 60 | 04 AUG 1999 | 01-466-8490 | 33906 ( CONNECTOR, PLUG, FIBER OPTIC ) |

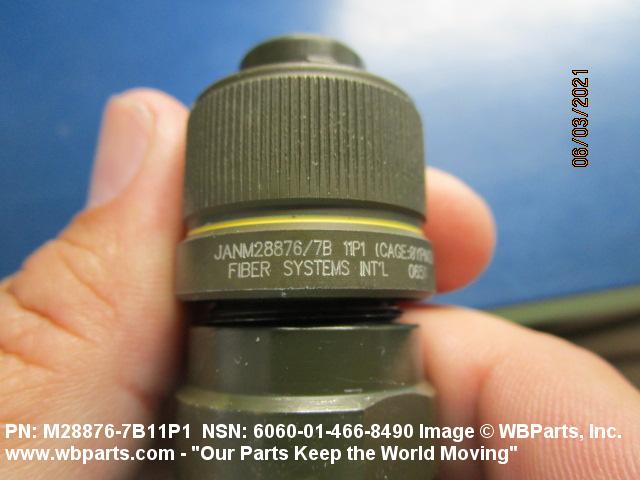

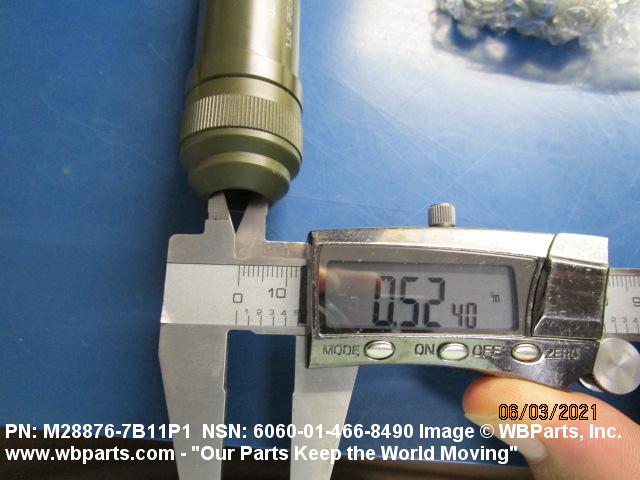

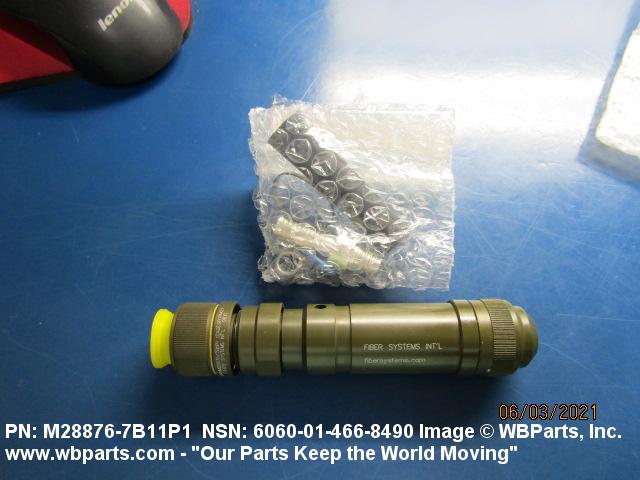

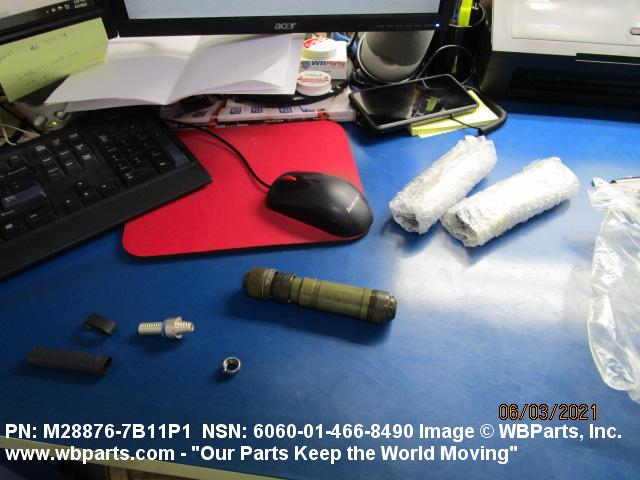

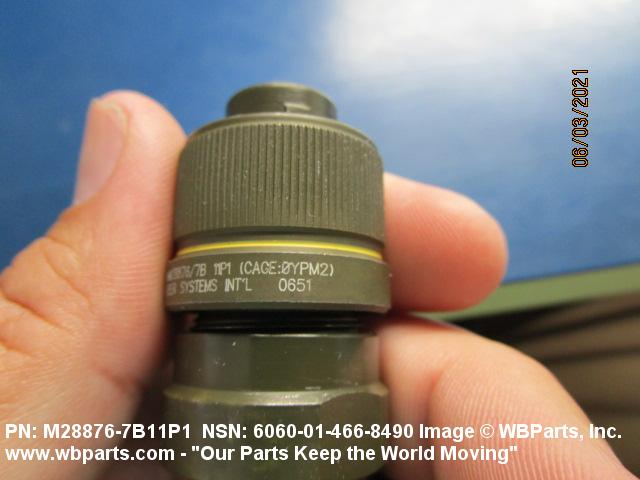

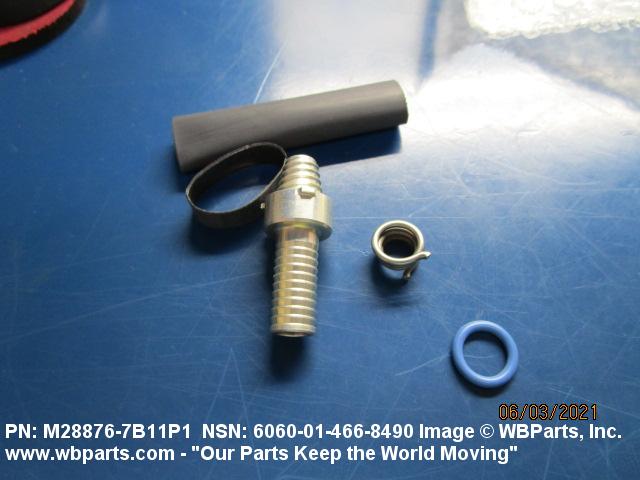

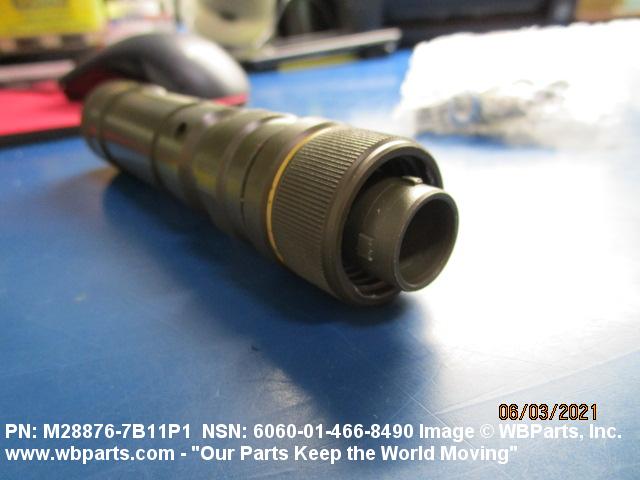

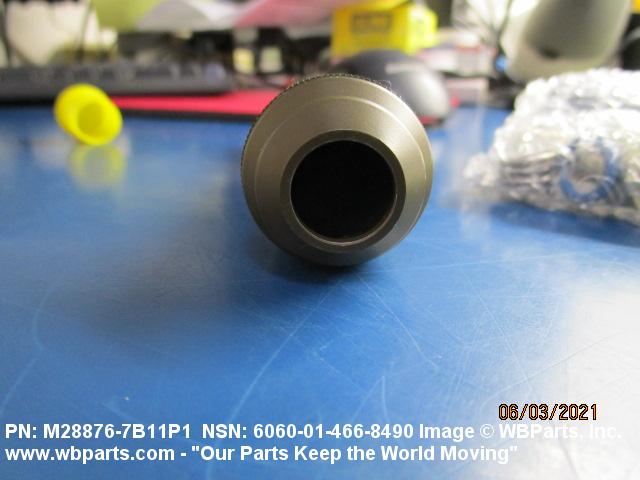

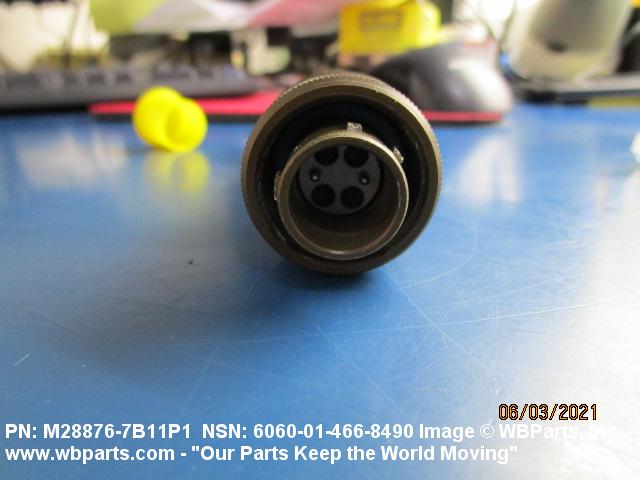

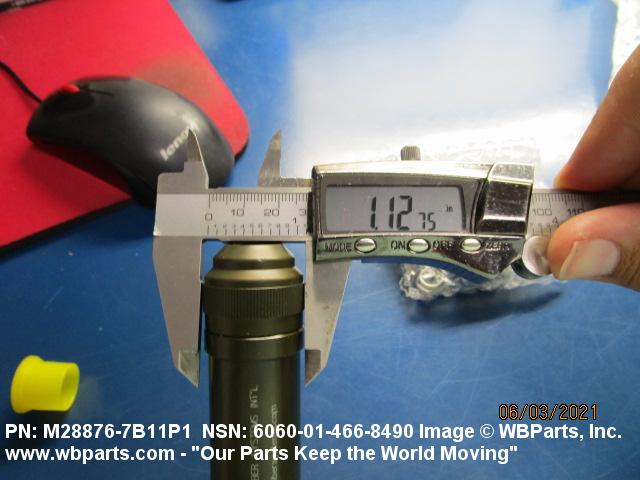

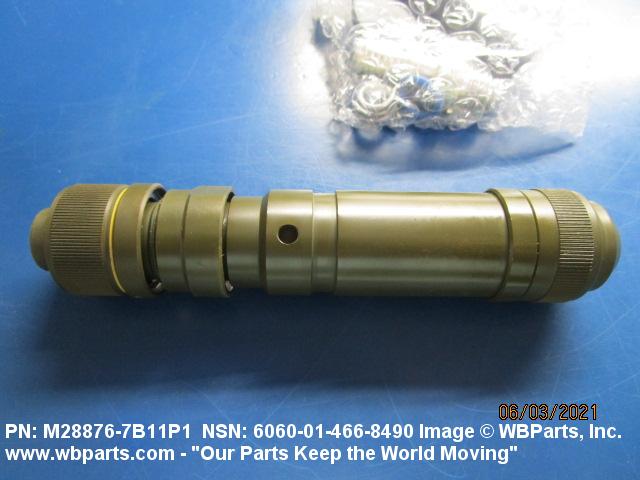

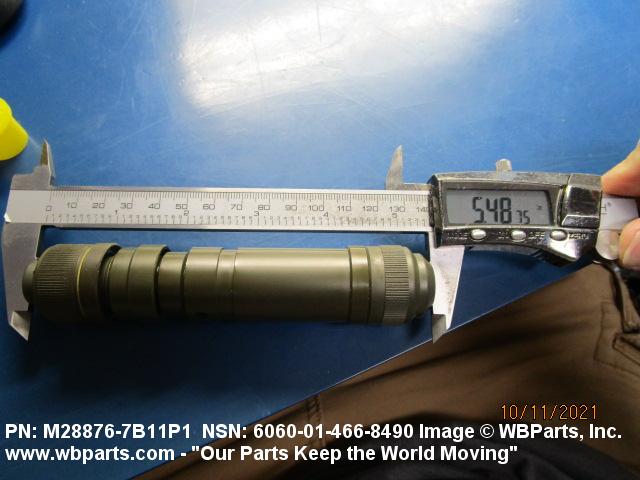

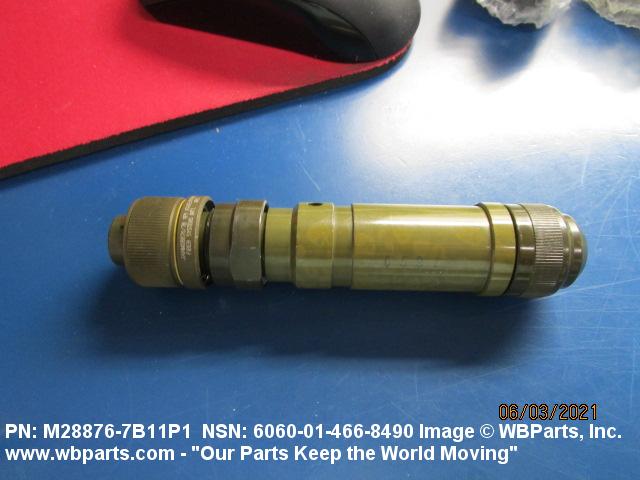

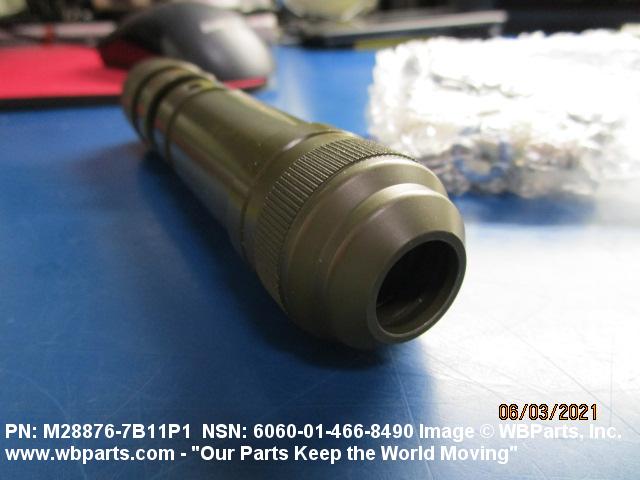

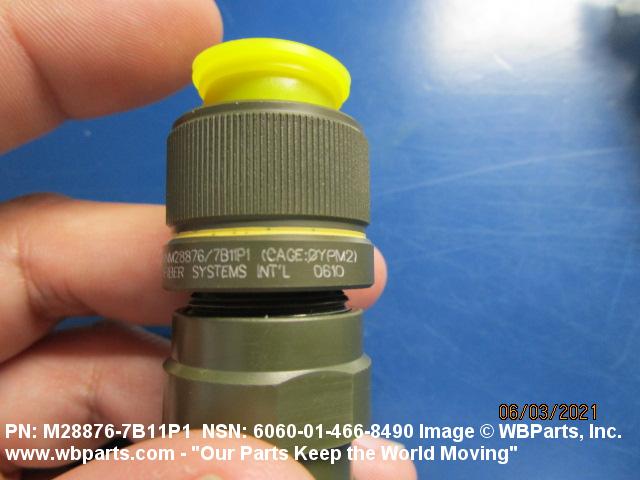

Drawings & Photos | NSN 6060-01-466-8490
Demand History | NSN 6060-01-466-8490
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6060-01-466-8490 | 2023-05-142 | 15 | DIBBS |
| 6060-01-466-8490 | 2023-05-142 | 13 | DIBBS |
| M288767B11P1 | 2021-10-291 | 8 | United States |
| M288767B11P1 | 2021-10-278 | 10 | United States |
| M288767B11P1 | 2021-05-144 | 4 | United States |
| 6060-01-466-8490 | 2018-12-347 | 3 | DIBBS |
| 6060-01-466-8490 | 2017-02-34 | 3 | DIBBS |
| 6060-01-466-8490 | 2016-06-165 | 6 | DIBBS |
| 6060-01-466-8490 | 2016-06-153 | 6 | DIBBS |
| 6060-01-466-8490 | 2015-10-277 | 6 | DIBBS |
| 6060-01-466-8490 | 2015-08-237 | 1 | DIBBS |
| 6060-01-466-8490 | 2015-05-142 | 3 | Canada |
| 6060-01-466-8490 | 2015-02-43 | 4 | DIBBS |
| 6060-01-466-8490 | 2013-03-62 | 3 | DIBBS |
| 6060-01-466-8490 | 2013-01-13 | 4 | DIBBS |
| 6060-01-466-8490 | 2010-12-343 | 2 | DIBBS |
| 6060-01-466-8490 | 2010-08-231 | 5 | DIBBS |
Cross Reference | NSN 6060-01-466-8490
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M28876/7B11P1 | 53669 | DELPHI CONNECTION SYSTEMS, LLC DIV DELPHI CONNECTION SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6060-01-466-8490
Technical Data | NSN 6060-01-466-8490
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 67A STRAIGHT SHAPE, FIBER OPTIC |
| OVERALL LENGTH | 5.960 INCHES MAXIMUM |
| OVERALL DIAMETER | 1.141 INCHES MAXIMUM |
| CONNECTOR CABLE STRAIN RELIEF METHOD | SHRINKABLE TUBING |
| CABLE ENTRANCE DIAMETER | 1.085 INCHES MAXIMUM |
| POLARIZATION METHOD | KEY OR MULTIPLE KEY |
| MATING END QUANTITY | 1 |
| CONTACT POSITION ARRANGEMENT STYLE | AEFB 4 SINGLE MATING END |
Restrictions/Controls & Freight Information | NSN 6060-01-466-8490
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6060-01-466-8490
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
