NSN 6060-01-383-3825 M28876/1B1P1, M288761B1P1, MILC28876
Product Details | FIBER OPTIC RECEPTACLE CONNECTOR
6060-01-383-3825 A fiber optic fitting with or without contact(s) constructed to be affixed to a fiber optic cable to join with another fiber optic connector(s) and is designed to be mounted on a bulkhead, wall, chassis, panel, or PRINTED WIRING BOARD. It may or may not include facilities for holding a device, such as a semiconductor, but does not include the device itself. Excludes CONNECTOR, RECEPTACLE, ELECTRICAL; LAMPHOLDER; JACK, TELEPHONE; SOCKET (as modified); DUMMY CONNECTOR, RECEPTACLE; JACK ASSEMBLY, TIP; and PLUG ASSEMBLY, TIP. See also LEAD, ELECTRICAL; LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified).
Part Alternates: M28876/1B1P1, M288761B1P1, MILC28876, MIL-C-28876, MILPRF28876, MIL-PRF-28876, MIL-PRF-28876/1, MILPRF288761, 6060-01-383-3825, 01-383-3825, 6060013833825, 013833825
Fiber Optics Materials, Components, Assemblies, and Accessories | Fiber Optic Interconnectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 60 | 24 NOV 1993 | 01-383-3825 | 33907 ( CONNECTOR, RECEPTACLE, FIBER OPTIC ) |
Drawings & Photos | NSN 6060-01-383-3825
Demand History | NSN 6060-01-383-3825
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6060-01-383-3825 | 2021-03-77 | 6 | DIBBS |
| 6060-01-383-3825 | 2017-04-114 | 9 | DIBBS |
| 6060-01-383-3825 | 2017-04-101 | 9 | DIBBS |
| 6060-01-383-3825 | 2015-03-75 | 3 | DIBBS |
| 6060-01-383-3825 | 2014-03-84 | 4 | DIBBS |
| 6060-01-383-3825 | 2009-10-278 | 2 | DIBBS |
| 6060-01-383-3825 | 2009-09-244 | 5 | DIBBS |
| 6060-01-383-3825 | 2008-08-233 | 4 | DIBBS |
| 6060-01-383-3825 | 2008-03-87 | 7 | DIBBS |
| 6060-01-383-3825 | 2007-04-93 | 4 | DIBBS |
Cross Reference | NSN 6060-01-383-3825
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M28876/1B1P1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-C-28876 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-PRF-28876 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-PRF-28876/1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6060-01-383-3825
Technical Data | NSN 6060-01-383-3825
| Characteristic | Specifications |
|---|---|

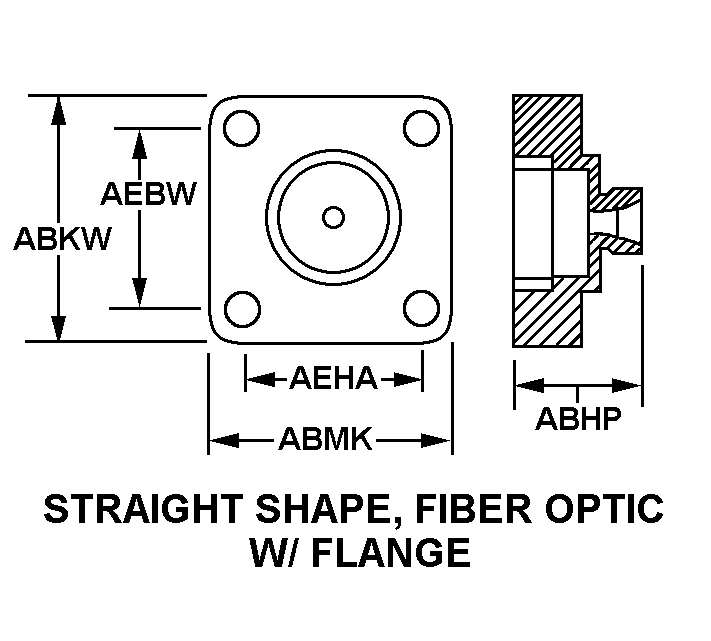

| BODY STYLE | 45G STRAIGHT SHAPE, FIBER OPTIC W/FLANGE |
| OVERALL LENGTH | 1.990 INCHES NOMINAL |
| OVERALL HEIGHT | 1.158 INCHES NOMINAL |
| OVERALL WIDTH | 1.158 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 0.843 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 0.843 INCHES NOMINAL |
| MOUNTING METHOD | SCREW |
| UNTHREADED MOUNTING HOLE DIAMETER | 1.085 INCHES MAXIMUM |
| CONNECTOR LOCKING METHOD | EXTERNALLY THREADED SHELL |
| THREADED DEVICE TYPE | BACK SHELL |
| SHELL TYPE | SOLID |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 0.0 |
| MATING END QUANTITY | 1 |

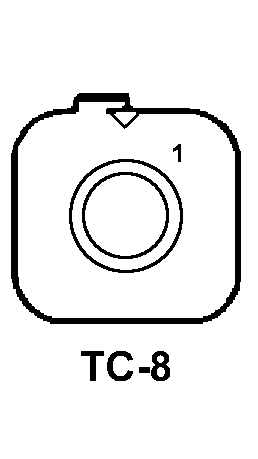

| CONTACT POSITION ARRANGEMENT STYLE | ABEC TC-8 SINGLE MATING END |
| OPTICAL FIBER DIAMETER ACCOMMODATED | 0.118 INCHES MAXIMUM SINGLE MATING END SINGLE CONTACT GROUPING |
| OPTICAL FIBER ATTACHMENT METHOD | FRICTION SINGLE MATING END SINGLE CONTACT GROUPING |
| TEST DATA DOCUMENT | 81349-MIL-C-28876D SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-C-28876/1D GOVERNMENT SPECIFICATION |
| III OPERATING TEMP RATING | -54.0 DEG CELSIUS MINIMUM AND 65.0 DEG CELSIUS MAXIMUM |
| III UNPACKAGED UNIT WEIGHT | 2.500 OUNCES |
| III STORAGE TEMP RANGE | -62.0 TO 71.0 DEG CELSIUS |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-28876 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M28876/1B1P1 |
