NSN 6060-01-383-8359 M28876/11, M28876/11B1P1, M2887611
Product Details | FIBER OPTIC RECEPTACLE CONNECTOR
6060-01-383-8359 A fiber optic fitting with or without contact(s) constructed to be affixed to a fiber optic cable to join with another fiber optic connector(s) and is designed to be mounted on a bulkhead, wall, chassis, panel, or PRINTED WIRING BOARD. It may or may not include facilities for holding a device, such as a semiconductor, but does not include the device itself. Excludes CONNECTOR, RECEPTACLE, ELECTRICAL; LAMPHOLDER; JACK, TELEPHONE; SOCKET (as modified); DUMMY CONNECTOR, RECEPTACLE; JACK ASSEMBLY, TIP; and PLUG ASSEMBLY, TIP. See also LEAD, ELECTRICAL; LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified).
Part Alternates: M28876/11, M28876/11B1P1, M2887611, M2887611B1P1, MIL-PRF-28876/11, MILPRF2887611, 6060-01-383-8359, 01-383-8359, 6060013838359, 013838359
Fiber Optics Materials, Components, Assemblies, and Accessories | Fiber Optic Interconnectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 60 | 04 DEC 1993 | 01-383-8359 | 33907 ( CONNECTOR, RECEPTACLE, FIBER OPTIC ) |
Drawings & Photos | NSN 6060-01-383-8359
Demand History | NSN 6060-01-383-8359
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MILPRF2887611 | 2023-08-226 | 8 | US |
| M2887611B1P1 | 2021-10-291 | 8 | United States |
| 6060-01-383-8359 | 2019-09-262 | 24 | DIBBS |
| 6060-01-383-8359 | 2018-12-347 | 1 | us |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6060-01-383-8359
Technical Data | NSN 6060-01-383-8359
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 25G STRAIGHT SHAPE, EXTERNAL COUPLING, W/CLAMP |
| OVERALL LENGTH | 1.990 INCHES MAXIMUM |
| OVERALL DIAMETER | 1.485 INCHES MINIMUM AND 1.508 INCHES MAXIMUM |
| DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE | 0.443 INCHES NOMINAL |
| MOUNTING FACILITY THICKNESS | 0.580 INCHES MAXIMUM |
| MOUNTING METHOD | JAM MUT |
| UNTHREADED MOUNTING HOLE DIAMETER | 1.005 INCHES MINIMUM AND 1.015 INCHES MAXIMUM |
| CONNECTOR LOCKING METHOD | EXTERNALLY THREADED SHELL |
| THREADED DEVICE TYPE | BACK SHELL |
| SHELL TYPE | ARMORED |
| SHELL MATERIAL | ALUMINUM ALLOY |
| POLARIZATION METHOD | GUIDE PIN/SOCKET |
| MATING END QUANTITY | 1 |

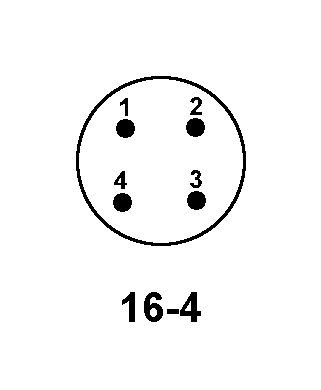

| CONTACT POSITION ARRANGEMENT STYLE | AEFC 16-4 SINGLE MATING END |
| OPTICAL FIBER DIAMETER ACCOMMODATED | 0.118 INCHES NOMINAL SINGLE MATING END SINGLE CONTACT GROUPING |
| OPTICAL FIBER ATTACHMENT METHOD | CRIMP SINGLE MATING END SINGLE CONTACT GROUPING |
| TEST DATA DOCUMENT | 81349-M28876 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-M28876/11 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M28876/11 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M28876/11B1P1 |
Restrictions/Controls & Freight Information | NSN 6060-01-383-8359
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 057770 | CABLE LIGHTGUIDE/WAVE GLASS FIBRE |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6060-01-383-8359
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
