NSN 5999-01-544-8071 5793533 FIND 002, 5793533FIND002, 6393162
Product Details | ELECTRONIC SHIELDING GASKET
5999-01-544-8071 A shaped metallic item designed to increase the effectiveness of radio frequency/electromagnetic interference, or a nonmetallic item containing a wire mesh, metal, or other electrically conductive particles designed to provide environmental sealing and radio frequency/electromagnetic interference shielding. For bulk items see WIRE MESH, KNITTED or GASKETING MATERIAL, CONDUCTIVE.
Part Alternates: 5793533 FIND 002, 5793533FIND002, 6393162, 63931621, 6393162-1, 5999-01-544-8071, 01-544-8071, 5999015448071, 015448071
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 24 OCT 2006 | 01-544-8071 | 20281 ( SHIELDING GASKET, ELECTRONIC ) |
Drawings & Photos | NSN 5999-01-544-8071
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5999-01-544-8071
Technical Data | NSN 5999-01-544-8071
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY AND COPPER EMI/RFI CONDUCTOR RUBBER SILICONE CLASS Q ENVIRONMENTAL SEAL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-N-281 MIL STD SINGLE MATERIAL RESPONSE EMI/RFI CONDUCTOR ZZ-R-765,CLASS 3,GRADE 30 MIL STD SINGLE MATERIAL RESPONSE ENVIRONMENTAL SEAL |
| ENVIRONMENTAL PROTECTION MATERIAL LOCATION | THROUGHOUT SEALING GASKET |
| CROSS-SECTIONAL SHAPE STYLE | F89 WIRE AND COMPOSITION |
| CROSS-SECTIONAL HEIGHT | 0.032 INCHES NOMINAL |

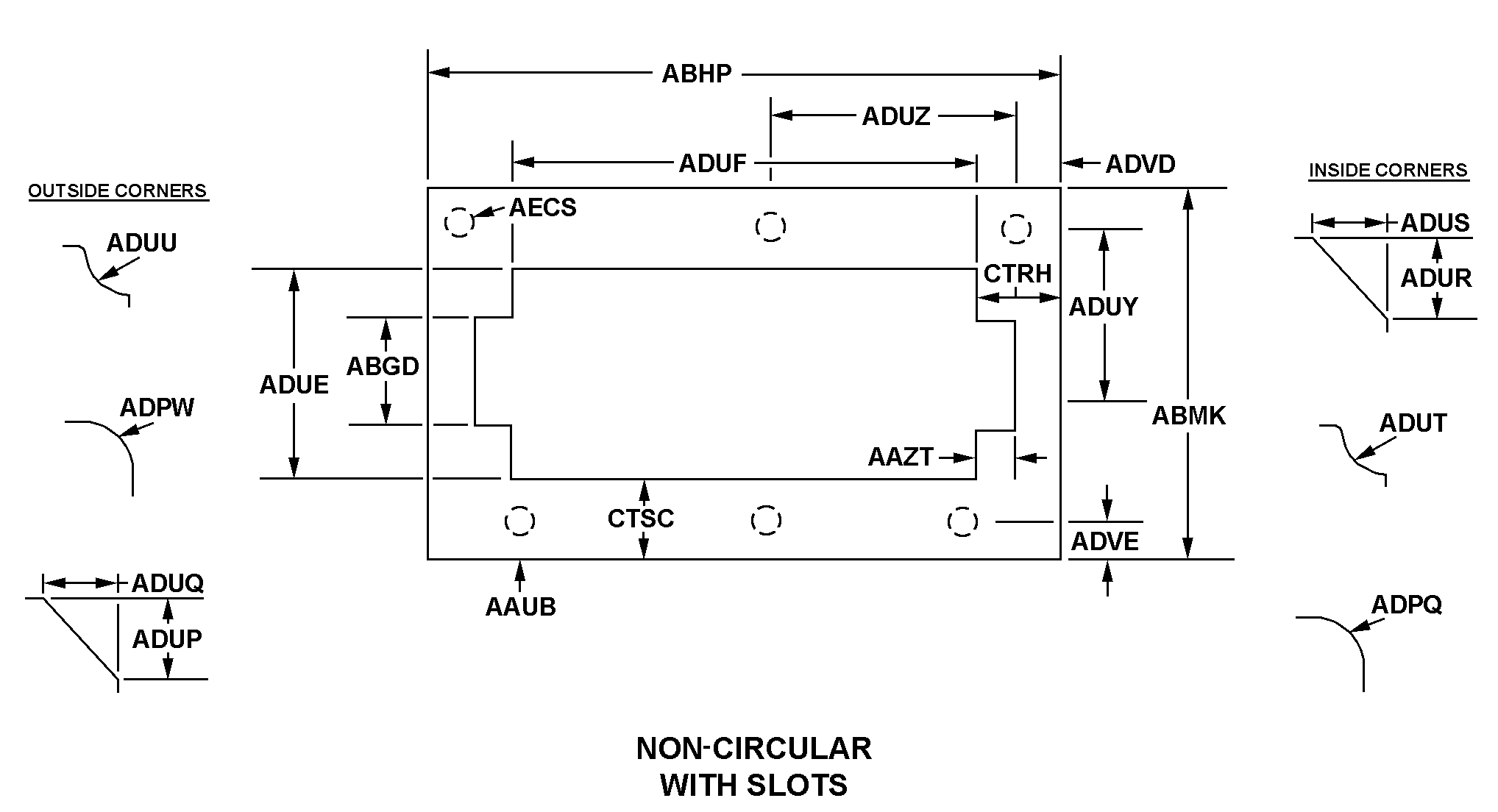

| STYLE DESIGNATOR | B45AA NON-CIRCULAR WITH SLOTS |
| SLOT DEPTH | 0.125 INCHES NOMINAL |
| OVERALL LENGTH | 1.820 INCHES NOMINAL |
| OVERALL WIDTH | 0.750 INCHES NOMINAL |
| APERTURE WIDTH | 0.490 INCHES NOMINAL |
| APERTURE LENGTH | 1.130 INCHES NOMINAL |
| OUTSIDE EDGE TO INSIDE EDGE SMALLEST DISTANCE ALONG WIDTH | 0.345 INCHES NOMINAL |
| OUTSIDE EDGE TO INSIDE EDGE SMALLEST DISTANCE ALONG LENGTH | 0.130 INCHES NOMINAL |
| SLOT LENGTH | 0.130 INCHES NOMINAL |
| SPECIAL FEATURES | SLOTS ARE CIRCULAR WITH A 0.065 INCH RADIUS;ACRYLIC PSA ONE SIDE |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | VIDEO SWITCHING ASSEMBLY |
