NSN 5999-01-240-4086 0602042674, 06-0204-2674, 11454399
Product Details | ELECTRONIC SHIELDING GASKET
5999-01-240-4086 A shaped metallic item designed to increase the effectiveness of radio frequency/electromagnetic interference, or a nonmetallic item containing a wire mesh, metal, or other electrically conductive particles designed to provide environmental sealing and radio frequency/electromagnetic interference shielding. For bulk items see WIRE MESH, KNITTED or GASKETING MATERIAL, CONDUCTIVE.
Part Alternates: 0602042674, 06-0204-2674, 11454399, 5100379, 51-00379, 5100379A, 51-00379A, 5100379B, 51-00379B, 5999-01-240-4086, 01-240-4086, 5999012404086, 012404086
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 13 SEP 1986 | 01-240-4086 | 20281 ( SHIELDING GASKET, ELECTRONIC ) |

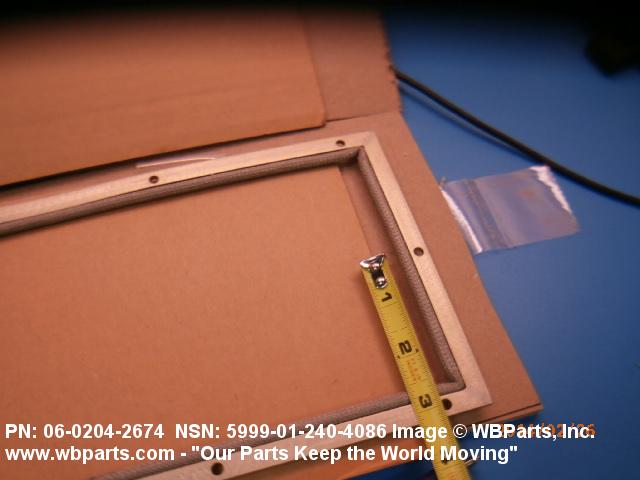

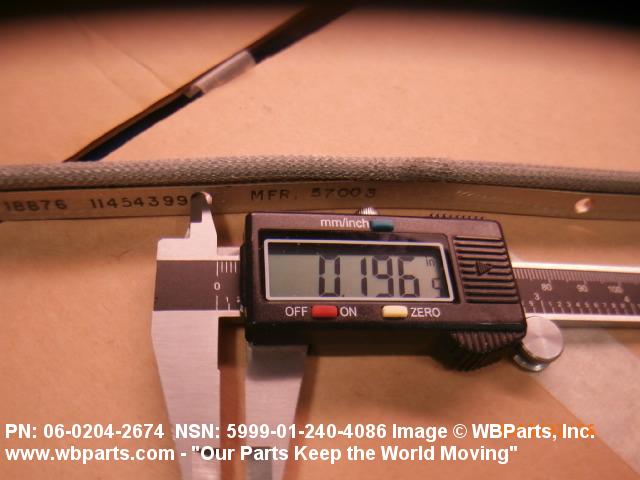

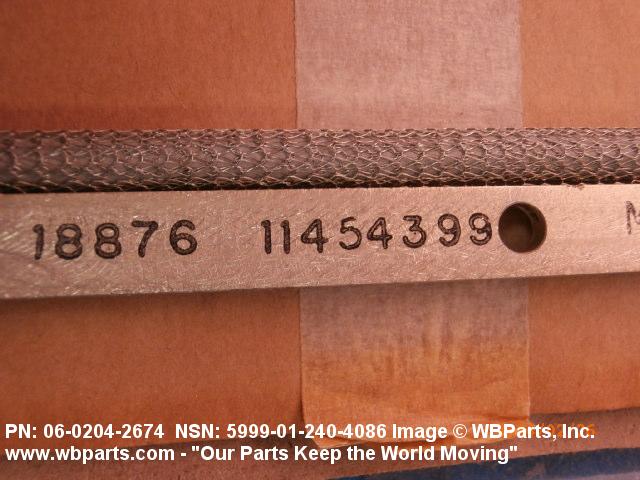

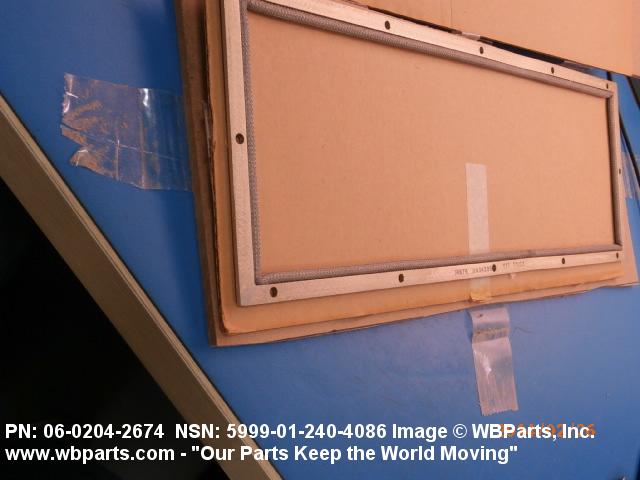

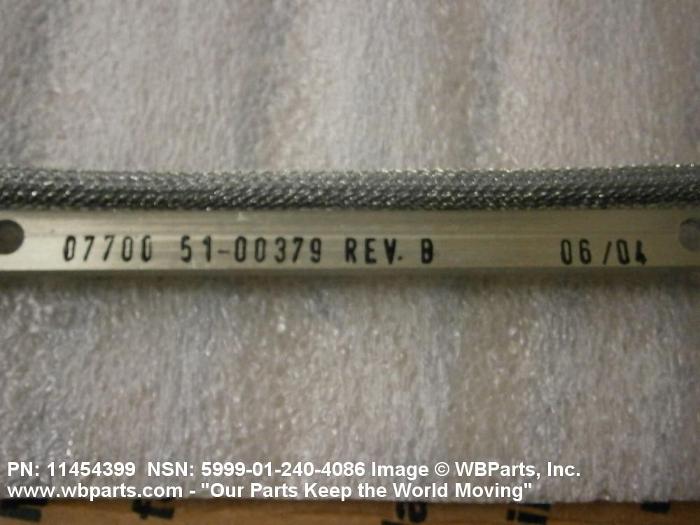

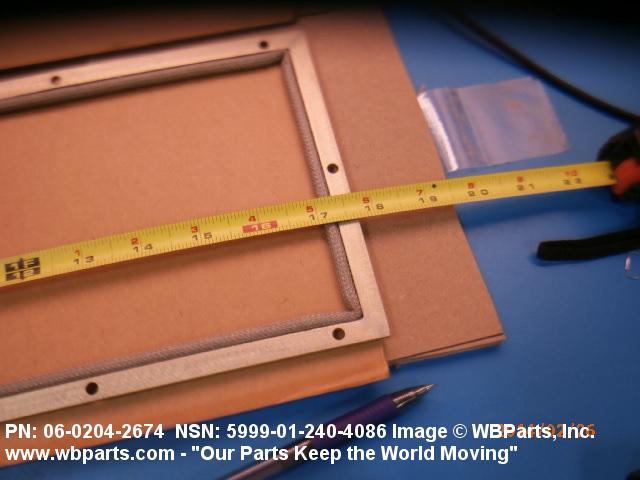

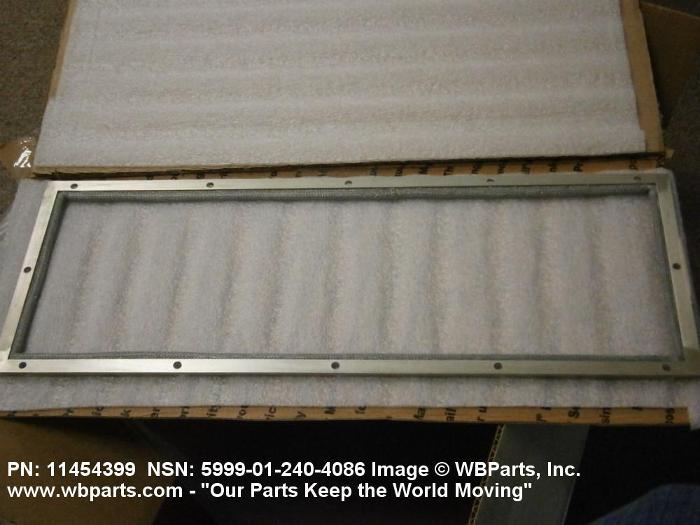

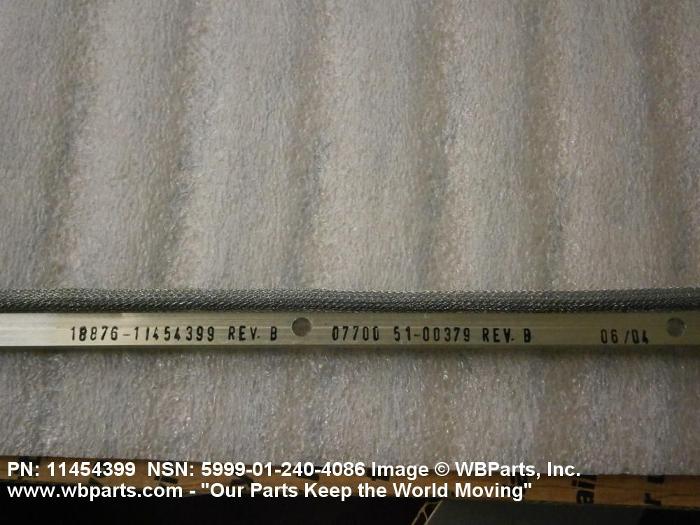

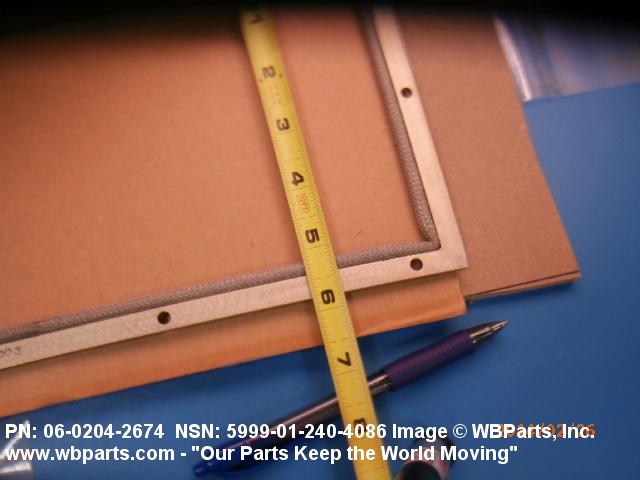

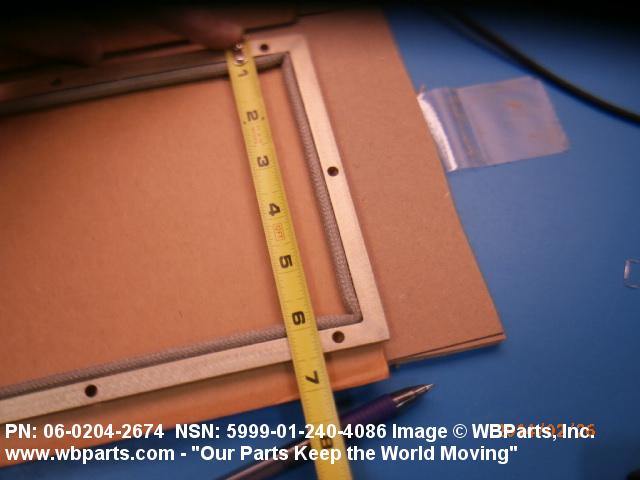

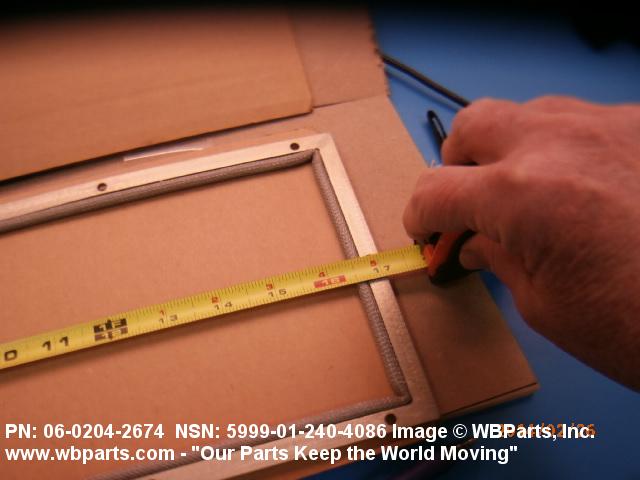

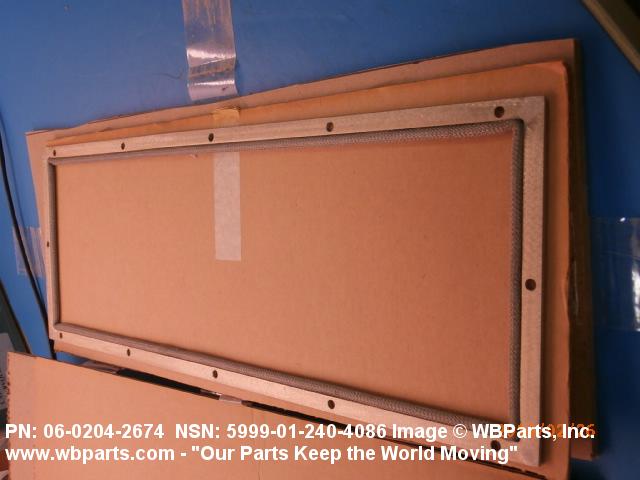

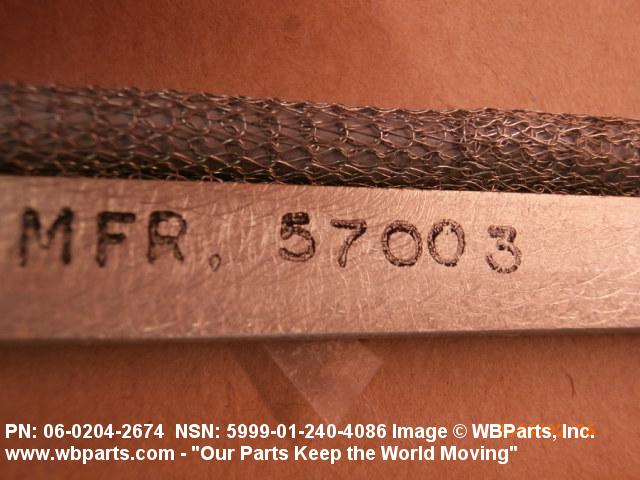

Drawings & Photos | NSN 5999-01-240-4086
Demand History | NSN 5999-01-240-4086
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 11454399 | 2014-02-43 | 1 | United States |
| 5999-01-240-4086 | 2014-02-43 | 1 | United States |
| 11454399 | 2011-09-244 | 1 | United States |
Cross Reference | NSN 5999-01-240-4086
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 06-0204-2674 | 18565 | PARKER-HANNIFIN, CORPORATION DBA PARKER CHOMERICS DIV |
| 11454399 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 11454399 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| 11454399 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 51-00379 | 07700 | TECHNICAL WIRE PRODUCTS LLC DBA TWP |
| 51-00379A | 07700 | TECHNICAL WIRE PRODUCTS LLC DBA TWP |
| 51-00379B | 07700 | TECHNICAL WIRE PRODUCTS LLC DBA TWP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5999-01-240-4086
Related Products | NSN 5999-01-240-4086
Technical Data | NSN 5999-01-240-4086
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL EMI/RFI CONDUCTOR RUBBER SILICONE CLASS Q ENVIRONMENTAL SEAL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM B-520 FED SPEC SINGLE MATERIAL RESPONSE EMI/RFI CONDUCTOR AMS-3195 FED SPEC SINGLE MATERIAL RESPONSE ENVIRONMENTAL SEAL |
| ENVIRONMENTAL PROTECTION MATERIAL LOCATION | THROUGHOUT RF SHIELDING GASKET |
| SURFACE TREATMENT | COPPER AND TIN EMI/RFI CONDUCTOR |

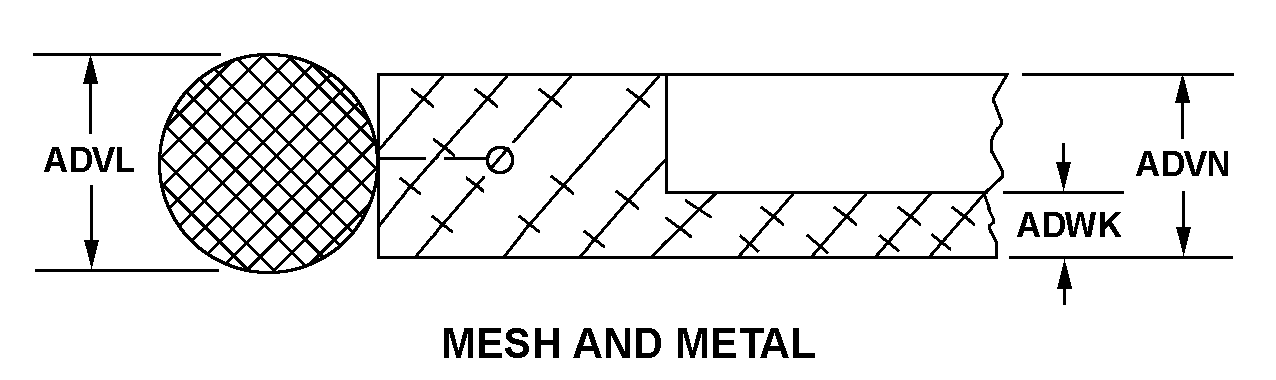

| CROSS-SECTIONAL SHAPE STYLE | F87 MESH AND METAL |
