NSN 5999-01-463-4390 11476909005, 11476909-005, 390199201285
Product Details | ELECTRONIC SHIELDING GASKET
5999-01-463-4390 A shaped metallic item designed to increase the effectiveness of radio frequency/electromagnetic interference, or a nonmetallic item containing a wire mesh, metal, or other electrically conductive particles designed to provide environmental sealing and radio frequency/electromagnetic interference shielding. For bulk items see WIRE MESH, KNITTED or GASKETING MATERIAL, CONDUCTIVE.
Part Alternates: 11476909005, 11476909-005, 390199201285, 39-01-9920-1285, 8900729, 89-00729, 5999-01-463-4390, 01-463-4390, 5999014634390, 014634390
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 23 MAR 1999 | 01-463-4390 | 20281 ( SHIELDING GASKET, ELECTRONIC ) |
Drawings & Photos | NSN 5999-01-463-4390
Demand History | NSN 5999-01-463-4390
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5999-01-463-4390 | 2016-03-82 | 96 | DIBBS |
| 5999-01-463-4390 | 2012-06-165 | 22 | DIBBS |
| 5999-01-463-4390 | 2012-04-96 | 92 | DIBBS |
| 5999-01-463-4390 | 2011-09-259 | 19 | DIBBS |
| 5999-01-463-4390 | 2011-03-63 | 14 | DIBBS |
| 390199201285 | 2010-02-36 | 3 | Italy |
| 5999-01-463-4390 | 2009-01-30 | 2 | DIBBS |
| 5999-01-463-4390 | 2009-01-09 | 1 | DIBBS |
| 5999-01-463-4390 | 2008-01-25 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5999-01-463-4390
Related Products | NSN 5999-01-463-4390
Technical Data | NSN 5999-01-463-4390
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY AND SILVER EMI/RFI CONDUCTOR RUBBER SILICONE CLASS Q ENVIRONMENTAL SEAL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIS-46930,T4 MFR REF ALL MATERIAL RESPONSES EMI/RFI CONDUCTOR |
| ENVIRONMENTAL PROTECTION MATERIAL LOCATION | THROUGHOUT RF SHIELDING GASKET |

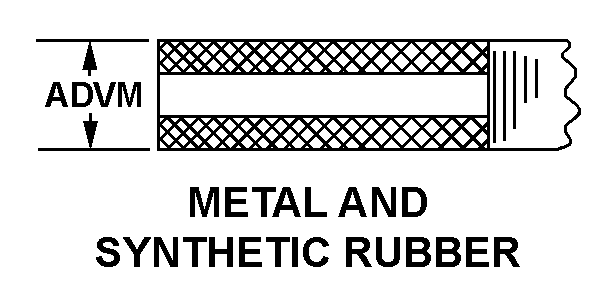

| CROSS-SECTIONAL SHAPE STYLE | F37 METAL AND SYNTHETIC RUBBER |
| CROSS-SECTIONAL THICKNESS | 0.026 INCHES MINIMUM AND 0.041 INCHES MAXIMUM |
| STYLE DESIGNATOR | B18B NON-CIRCULAR |
| HOLE DIAMETER | 0.156 INCHES NOMINAL |
| OVERALL LENGTH | 1.125 INCHES NOMINAL |
| OVERALL WIDTH | 1.125 INCHES NOMINAL |
| APERTURE DIAMETER | 0.875 INCHES NOMINAL |
| OUTSIDE CORNER RADIUS | 0.109 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG WIDTH | 0.906 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG LENGTH | 0.906 INCHES NOMINAL |
| OUTSIDE EDGE TO BOLT HOLE CENTER DISTANCE ALONG WIDTH | 0.219 INCHES NOMINAL |
| OUTSIDE EDGE TO BOLT HOLE CENTER DISTANCE ALONG LENGTH | 0.219 INCHES NOMINAL |
| BOLT HOLE QUANTITY | 4 |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | THROUGHOUT SHIELDING GASKET SILVER |
| III TEMP RATING | -55.0 DEG CELSIUS AND 160.0 DEG CELSIUS |
| III END ITEM IDENTIFICATION | SEMITRAILER MOUNTED RADAR SET, 1430014184396 |
Restrictions/Controls & Freight Information | NSN 5999-01-463-4390
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062800 | RADIO/TV RECEIVING SET CHASSIS ETC |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5999-01-463-4390
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
