NSN 5999-01-359-1801 3399521, 339952-1, 8310119
Product Details | ELECTRONIC SHIELDING GASKET
5999-01-359-1801 A shaped metallic item designed to increase the effectiveness of radio frequency/electromagnetic interference, or a nonmetallic item containing a wire mesh, metal, or other electrically conductive particles designed to provide environmental sealing and radio frequency/electromagnetic interference shielding. For bulk items see WIRE MESH, KNITTED or GASKETING MATERIAL, CONDUCTIVE.
Part Alternates: 3399521, 339952-1, 8310119, 83-10119, 5999-01-359-1801, 01-359-1801, 5999013591801, 013591801
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01-359-1801 | 20281 ( SHIELDING GASKET, ELECTRONIC ) |

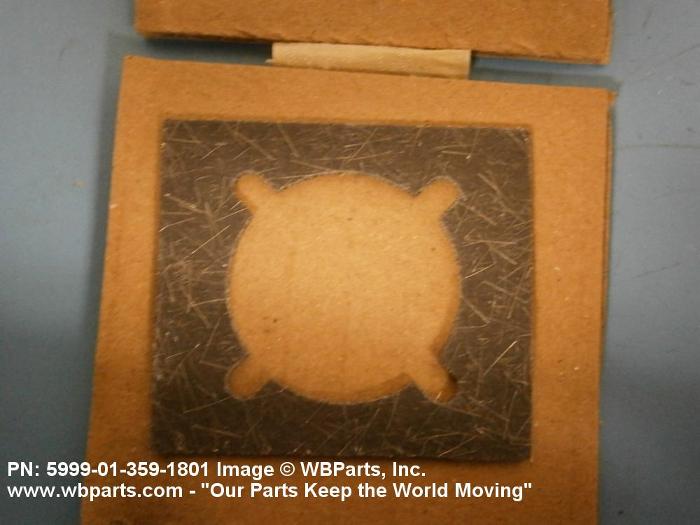

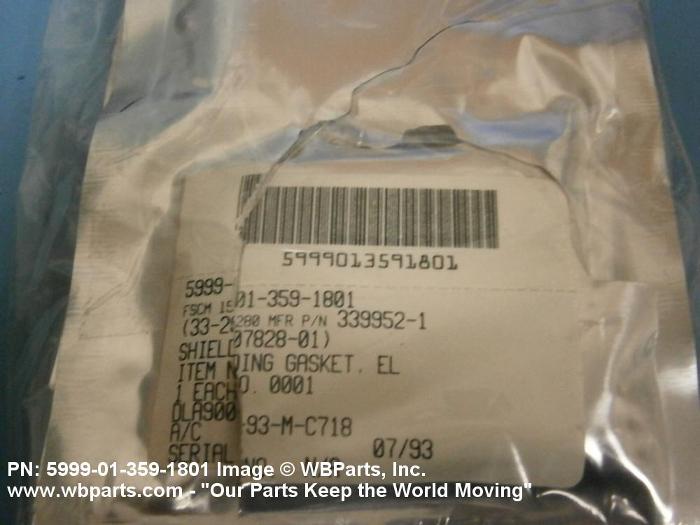

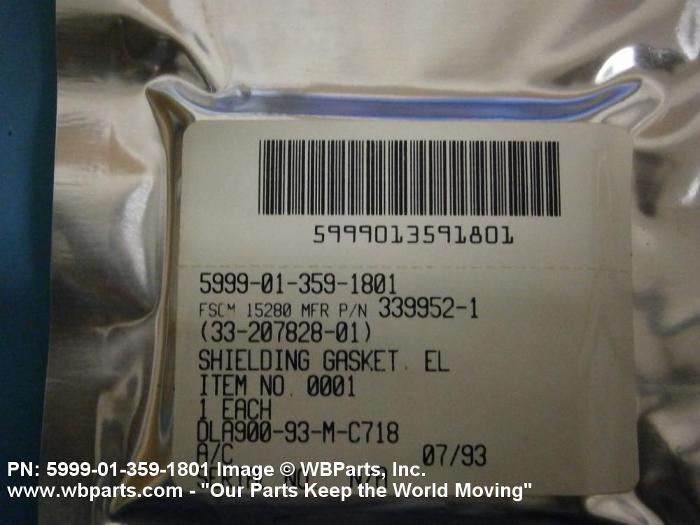

Drawings & Photos | NSN 5999-01-359-1801
Demand History | NSN 5999-01-359-1801
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5999-01-359-1801 | 2013-02-46 | 5 | United States |
| 5999-01-359-1801 | 2011-10-297 | 2 | United States |
| 5999-01-359-1801 | 2009-10-278 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5999-01-359-1801
Technical Data | NSN 5999-01-359-1801
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY EMI/RFI CONDUCTOR RUBBER SILICONE CLASS Q ENVIRONMENTAL SEAL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ZZ-R-765,CLASS 3,GRADE 50 FED SPEC SINGLE MATERIAL RESPONSE ENVIRONMENTAL SEAL |
| ENVIRONMENTAL PROTECTION MATERIAL LOCATION | THROUGHOUT RF SHIELDING GASKET |
| CROSS-SECTIONAL SHAPE STYLE | F69 EMI |
| CROSS-SECTIONAL HEIGHT | 0.060 INCHES NOMINAL |
| STYLE DESIGNATOR | B18B NON-CIRCULAR |
| HOLE DIAMETER | 0.080 INCHES NOMINAL |
| OVERALL LENGTH | 1.920 INCHES NOMINAL |
| OVERALL WIDTH | 1.720 INCHES NOMINAL |
| APERTURE DIAMETER | 1.187 INCHES NOMINAL |
| OUTSIDE CORNER RADIUS | 0.030 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG WIDTH | 1.000 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG LENGTH | 1.000 INCHES NOMINAL |
| OUTSIDE EDGE TO BOLT HOLE CENTER DISTANCE ALONG WIDTH | 0.360 INCHES NOMINAL |
| OUTSIDE EDGE TO BOLT HOLE CENTER DISTANCE ALONG LENGTH | 0.460 INCHES NOMINAL |
| BOLT HOLE QUANTITY | 4 |
Restrictions/Controls & Freight Information | NSN 5999-01-359-1801
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
