NSN 5999-01-347-9164 100429991215, 10-04-2999-1215, 88100440002
Product Details | ELECTRONIC SHIELDING GASKET
5999-01-347-9164 A shaped metallic item designed to increase the effectiveness of radio frequency/electromagnetic interference, or a nonmetallic item containing a wire mesh, metal, or other electrically conductive particles designed to provide environmental sealing and radio frequency/electromagnetic interference shielding. For bulk items see WIRE MESH, KNITTED or GASKETING MATERIAL, CONDUCTIVE.
Part Alternates: 100429991215, 10-04-2999-1215, 88100440002, 88100440-002, 5999-01-347-9164, 01-347-9164, 5999013479164, 013479164
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 NOV 1991 | 01-347-9164 | 20281 ( SHIELDING GASKET, ELECTRONIC ) |
Drawings & Photos | NSN 5999-01-347-9164
Demand History | NSN 5999-01-347-9164
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5999-01-347-9164 | 2011-05-140 | 24 | United States |
| 100429991215 | 2011-05-123 | 1 | US |
Cross Reference | NSN 5999-01-347-9164
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10-04-2999-1215 | 18565 | PARKER-HANNIFIN, CORPORATION DBA PARKER CHOMERICS DIV |
| 88100440-002 | 06424 | ALLIANT TECHSYSTEMS OPERATIONS LLC DIV DEFENSE ELECTRONIC SYSTEMS |
| 88100440-002 | 18565 | PARKER-HANNIFIN, CORPORATION DBA PARKER CHOMERICS DIV |
| 88100440-002 | 98750 | SAN ANTONIO AIR LOGISTICS CENTER |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5999-01-347-9164
Technical Data | NSN 5999-01-347-9164
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER EMI/RFI CONDUCTOR RUBBER SILICONE CLASS Q ENVIRONMENTAL SEAL |
| ENVIRONMENTAL PROTECTION MATERIAL LOCATION | THROUGHOUT RF SHIELDING GASKET |
| SURFACE TREATMENT | SILVER EMI/RFI CONDUCTOR |

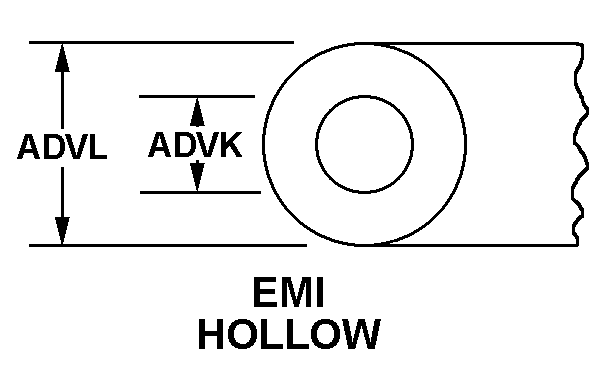

| CROSS-SECTIONAL SHAPE STYLE | F74 EMI HOLLOW |
| CROSS SECTION INSIDE DIAMETER | 0.045 INCHES NOMINAL |
| CROSS SECTION OUTSIDE DIAMETER | 0.125 INCHES NOMINAL |
| STYLE DESIGNATOR | B1 CIRCULAR |
| OUTSIDE DIAMETER | 8.175 INCHES NOMINAL |
| APERTURE DIAMETER | 7.925 INCHES NOMINAL |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | EMI/RFI CONDUCTIVE PARTICLES SILVER |
Restrictions/Controls & Freight Information | NSN 5999-01-347-9164
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
