Product Details | ELECTRONIC SHIELDING GASKET
5999-01-192-5495 A shaped metallic item designed to increase the effectiveness of radio frequency/electromagnetic interference, or a nonmetallic item containing a wire mesh, metal, or other electrically conductive particles designed to provide environmental sealing and radio frequency/electromagnetic interference shielding. For bulk items see WIRE MESH, KNITTED or GASKETING MATERIAL, CONDUCTIVE.
Part Alternates: 12703524, 5999-01-192-5495, 01-192-5495, 5999011925495, 011925495
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 22 OCT 1984 | 01-192-5495 | 20281 ( SHIELDING GASKET, ELECTRONIC ) |

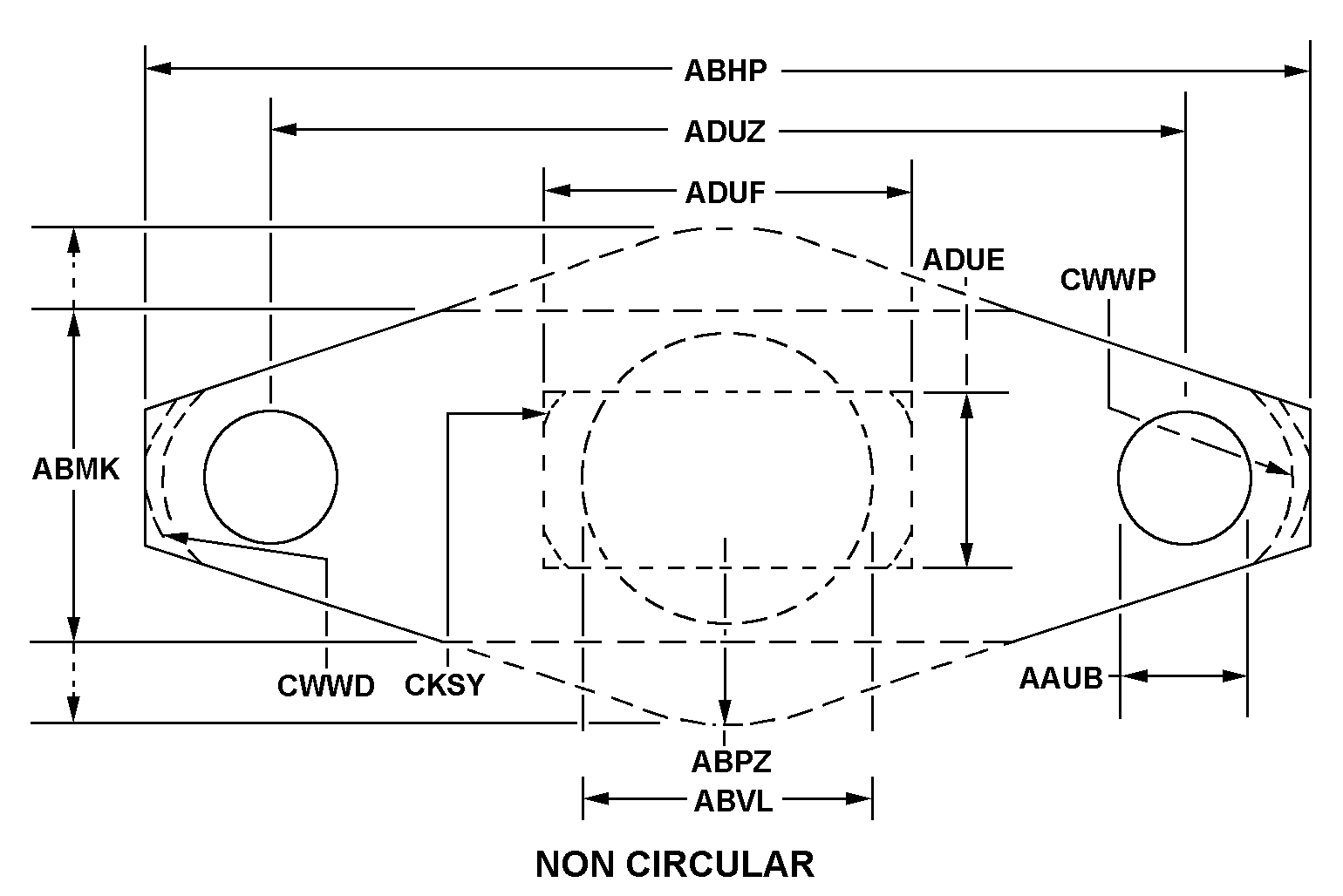

Drawings & Photos | NSN 5999-01-192-5495
Cross Reference | NSN 5999-01-192-5495
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12703524 | 19200 | US ARMY ARDEC RDECOM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5999-01-192-5495
Related Products | NSN 5999-01-192-5495
Technical Data | NSN 5999-01-192-5495
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 5056 EMI/RFI CONDUCTOR RUBBER SILICONE CLASS Q ENVIRONMENTAL SEAL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 4182 ASSN STD SINGLE MATERIAL RESPONSE EMI/RFI CONDUCTOR AMS 3302 ASSN STD SINGLE MATERIAL RESPONSE ENVIRONMENTAL SEAL |
| ENVIRONMENTAL PROTECTION MATERIAL LOCATION | THROUGHOUT RF SHIELDING GASKET |
| CROSS-SECTIONAL SHAPE STYLE | F69 EMI |
| CROSS-SECTIONAL HEIGHT | 0.020 INCHES NOMINAL |
| STYLE DESIGNATOR | B22E NON-CIRCULAR |
| HOLE DIAMETER | 0.125 INCHES NOMINAL |
| OVERALL LENGTH | 1.320 INCHES NOMINAL |
| END RADIUS | 0.440 INCHES NOMINAL |
| APERTURE WIDTH | 0.520 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG LENGTH | 1.000 INCHES NOMINAL |
| SIDE RADIUS | 0.160 INCHES NOMINAL |
| III TEMP RATING | -54.0 DEG CELSIUS AND 260.0 DEG CELSIUS |
