NSN 5999-01-126-2186 0408027015, 04-0802-7015, 7071595-00
Product Details | ELECTRONIC SHIELDING GASKET
5999-01-126-2186 A shaped metallic item designed to increase the effectiveness of radio frequency/electromagnetic interference, or a nonmetallic item containing a wire mesh, metal, or other electrically conductive particles designed to provide environmental sealing and radio frequency/electromagnetic interference shielding. For bulk items see WIRE MESH, KNITTED or GASKETING MATERIAL, CONDUCTIVE.
Part Alternates: 0408027015, 04-0802-7015, 7071595-00, 5999-01-126-2186, 01-126-2186, 5999011262186, 011262186, 707159500
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 07 FEB 1982 | 01-126-2186 | 20281 ( SHIELDING GASKET, ELECTRONIC ) |
Drawings & Photos | NSN 5999-01-126-2186
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5999-01-126-2186
Technical Data | NSN 5999-01-126-2186
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM EMI/RFI CONDUCTOR RUBBER SILICONE CLASS Q ENVIRONMENTAL SEAL |
| ENVIRONMENTAL PROTECTION MATERIAL LOCATION | THROUGHOUT RF SHIELDING GASKET |

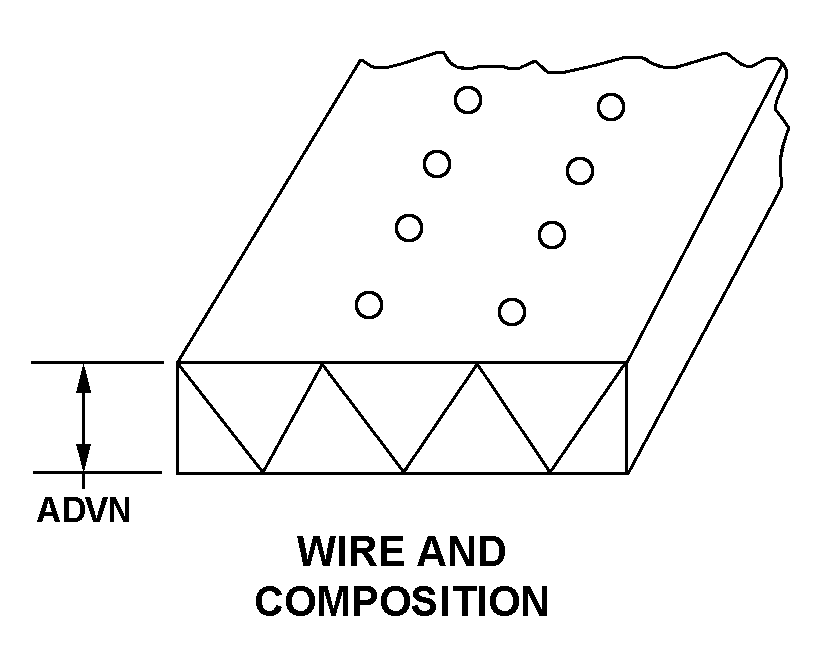

| CROSS-SECTIONAL SHAPE STYLE | F91 WIRE AND COMPOSITION |
| CROSS-SECTIONAL HEIGHT | 0.016 INCHES NOMINAL |
| STYLE DESIGNATOR | B19A NON-CIRCULAR |
| HOLE DIAMETER | 0.167 INCHES MINIMUM AND 0.207 INCHES MAXIMUM |
| OVERALL LENGTH | 16.110 INCHES MINIMUM AND 16.140 INCHES MAXIMUM |
| OVERALL WIDTH | 0.422 INCHES MINIMUM AND 0.452 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG LENGTH | 2.485 INCHES MINIMUM AND 2.515 INCHES MAXIMUM |
| OUTSIDE EDGE TO BOLT HOLE CENTER DISTANCE ALONG LENGTH | 3.047 INCHES MINIMUM AND 3.077 INCHES MAXIMUM |
| BOLT HOLE CENTERLINE TO NEAREST EDGE DISTANCE | 0.172 INCHES MINIMUM AND 0.202 INCHES MAXIMUM |
| BOLT HOLE QUANTITY | 5 |
