Product Details | ELECTRONIC SHIELDING GASKET

5999-00-610-7629 A shaped metallic item designed to increase the effectiveness of radio frequency/electromagnetic interference, or a nonmetallic item containing a wire mesh, metal, or other electrically conductive particles designed to provide environmental sealing and radio frequency/electromagnetic interference shielding. For bulk items see WIRE MESH, KNITTED or GASKETING MATERIAL, CONDUCTIVE.

Part Alternates: 1940B4406, 5999-00-610-7629, 00-610-7629, 5999006107629, 006107629

Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components

Supply Group (FSG) NSN Assign. NIIN
59 01 JAN 1963 00-610-7629

Drawings & Photos | NSN 5999-00-610-7629


Cross Reference | NSN 5999-00-610-7629

Part Number Cage Code Manufacturer
1940B4406 87557 LOCKHEED CORP LOCKHEED ELECTRONICS CO INC
1940B4406 94117 BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC.

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5999-00-610-7629

Technical Data | NSN 5999-00-610-7629

Characteristic Specifications
MATERIAL NICKEL ALLOY EMI/RFI CONDUCTOR RUBBER SILICONE CLASS Q ENVIRONMENTAL SEAL
ENVIRONMENTAL PROTECTION MATERIAL LOCATION AROUND RF SHIELDING GASKET APERTURE

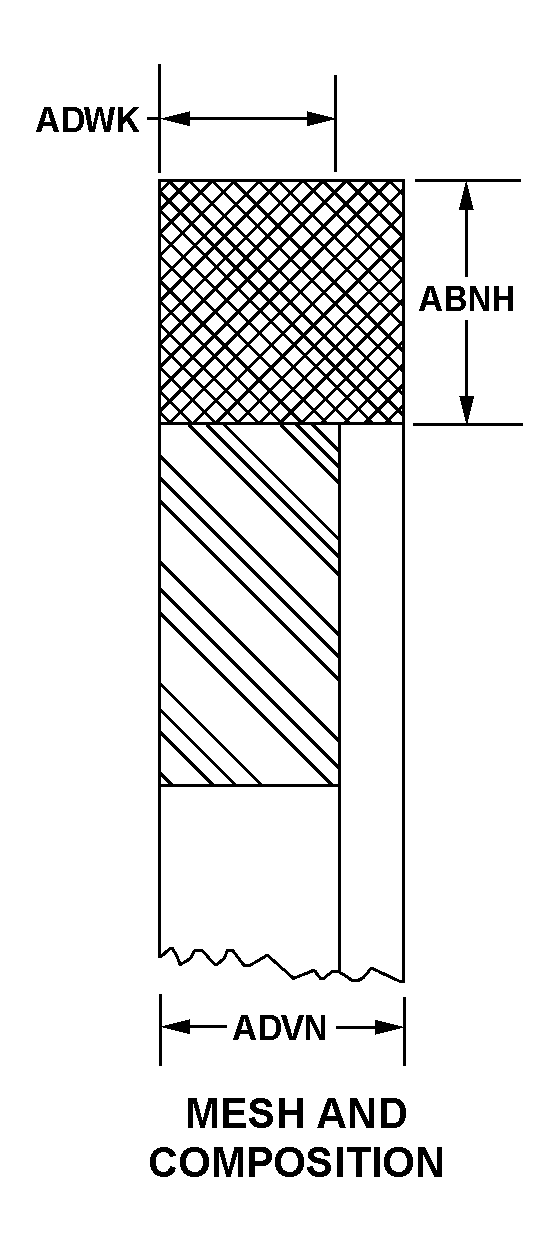

CROSS-SECTIONAL SHAPE STYLE F85 MESH AND COMPOSITION
MINOR WIDTH 0.125 INCHES NOMINAL
CROSS-SECTIONAL HEIGHT 0.156 INCHES NOMINAL
MINOR HEIGHT 0.125 INCHES NOMINAL
STYLE DESIGNATOR B12E NON-CIRCULAR
HOLE DIAMETER 0.312 INCHES NOMINAL
OVERALL LENGTH 3.875 INCHES NOMINAL
OVERALL WIDTH 2.125 INCHES NOMINAL
INSIDE CORNER RADIUS 0.062 INCHES NOMINAL
APERTURE WIDTH 1.875 INCHES NOMINAL
APERTURE LENGTH 3.625 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG WIDTH 2.500 INCHES NOMINAL
OUTSIDE EDGE TO BOLT HOLE CENTER DISTANCE ALONG WIDTH 0.312 INCHES NOMINAL
OUTSIDE EDGE TO BOLT HOLE CENTER DISTANCE ALONG LENGTH 0.312 INCHES NOMINAL
BOLT HOLE QUANTITY 4
SPECIAL FEATURES TWO 0.312 IN. W X 0.344 IN. LG SLOTS
