NSN 5999-00-187-2205 K42C01092, K42C0109-2, 20155011412
Product Details | ELECTRONIC SHIELDING GASKET
5999-00-187-2205 A shaped metallic item designed to increase the effectiveness of radio frequency/electromagnetic interference, or a nonmetallic item containing a wire mesh, metal, or other electrically conductive particles designed to provide environmental sealing and radio frequency/electromagnetic interference shielding. For bulk items see WIRE MESH, KNITTED or GASKETING MATERIAL, CONDUCTIVE.
Part Alternates: K42C01092, K42C0109-2, 20155011412, 2015-50114-12, 4400187, 44-00187, 5999-00-187-2205, 00-187-2205, 5999001872205, 001872205
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 08 SEP 1972 | 00-187-2205 | 20281 ( SHIELDING GASKET, ELECTRONIC ) |
Drawings & Photos | NSN 5999-00-187-2205
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5999-00-187-2205
Technical Data | NSN 5999-00-187-2205
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL AND COPPER EMI/RFI CONDUCTOR RUBBER SILICONE CLASS Q ENVIRONMENTAL SEAL |
| ENVIRONMENTAL PROTECTION MATERIAL LOCATION | AROUND RF SHIELDING GASKET APERTURE |
| SURFACE TREATMENT | TIN EMI/RFI CONDUCTOR |

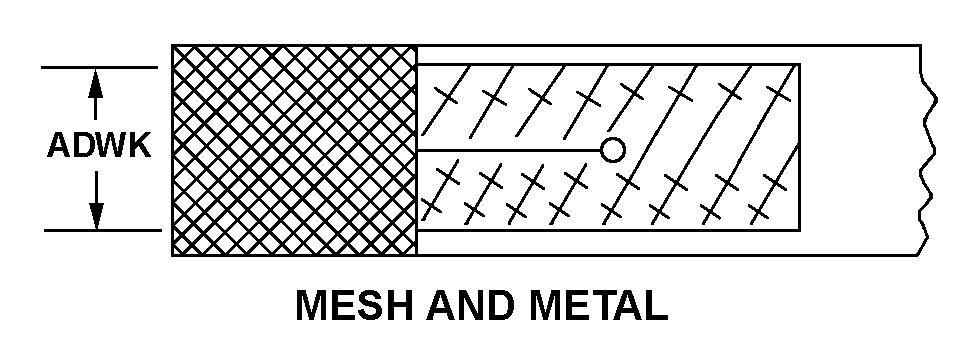

| CROSS-SECTIONAL SHAPE STYLE | F86 MESH AND METAL |
| MINOR HEIGHT | 0.125 INCHES NOMINAL |
| STYLE DESIGNATOR | B12F NON-CIRCULAR |
| HOLE DIAMETER | 0.250 INCHES NOMINAL |
| OVERALL LENGTH | 18.000 INCHES NOMINAL |
| OVERALL WIDTH | 14.500 INCHES NOMINAL |
| INSIDE CORNER RADIUS | 0.130 INCHES NOMINAL |
| OUTSIDE CORNER RADIUS | 0.380 INCHES NOMINAL |
| APERTURE WIDTH | 13.260 INCHES NOMINAL |
| APERTURE LENGTH | 16.660 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG WIDTH | 5.870 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG LENGTH | 5.870 INCHES NOMINAL |
| OUTSIDE EDGE TO BOLT HOLE CENTER DISTANCE ALONG WIDTH | 0.310 INCHES NOMINAL |
| OUTSIDE EDGE TO BOLT HOLE CENTER DISTANCE ALONG LENGTH | 0.310 INCHES NOMINAL |
| BOLT HOLE QUANTITY | 10 |
Restrictions/Controls & Freight Information | NSN 5999-00-187-2205
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062800 | RADIO/TV RECEIVING SET CHASSIS ETC |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
