NSN 5999-00-136-9518 6981108, 698-1-108, 00-136-9518
Product Details | ELECTRONIC SHIELDING GASKET
5999-00-136-9518 A shaped metallic item designed to increase the effectiveness of radio frequency/electromagnetic interference, or a nonmetallic item containing a wire mesh, metal, or other electrically conductive particles designed to provide environmental sealing and radio frequency/electromagnetic interference shielding. For bulk items see WIRE MESH, KNITTED or GASKETING MATERIAL, CONDUCTIVE.
Part Alternates: 6981108, 698-1-108, 5999-00-136-9518, 00-136-9518, 5999001369518, 001369518
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 11 JUL 1971 | 00-136-9518 | 20281 ( SHIELDING GASKET, ELECTRONIC ) |
Drawings & Photos | NSN 5999-00-136-9518
Cross Reference | NSN 5999-00-136-9518
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 698-1-108 | 07421 | INTERSTATE ELECTRONICS CORPORATION DBA L-3 INTERSTATE ELECTRONICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5999-00-136-9518
Technical Data | NSN 5999-00-136-9518
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL AND COPPER EMI/RFI CONDUCTOR |
| SURFACE TREATMENT | TIN EMI/RFI CONDUCTOR |

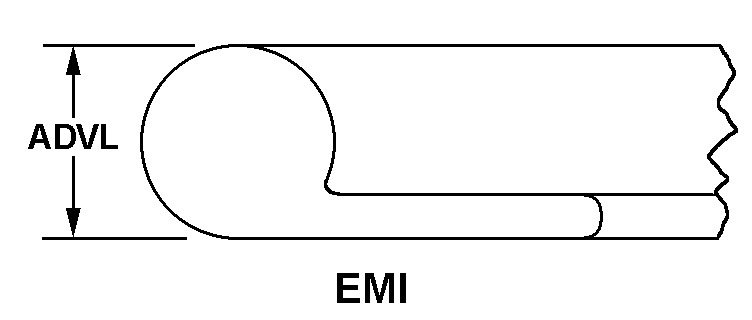

| CROSS-SECTIONAL SHAPE STYLE | F75 EMI |
| CROSS SECTION OUTSIDE DIAMETER | 0.047 INCHES MINIMUM AND 0.077 INCHES MAXIMUM |
| STYLE DESIGNATOR | B12A NON-CIRCULAR |
| HOLE DIAMETER | 0.291 INCHES MINIMUM AND 0.301 INCHES MAXIMUM |
| OVERALL LENGTH | 7.740 INCHES MINIMUM AND 7.760 INCHES MAXIMUM |
| OVERALL WIDTH | 3.490 INCHES MINIMUM AND 3.510 INCHES MAXIMUM |
| APERTURE WIDTH | 2.386 INCHES MINIMUM AND 2.792 INCHES MAXIMUM |
| APERTURE LENGTH | 6.636 INCHES MINIMUM AND 6.866 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG WIDTH | 2.983 INCHES MINIMUM AND 2.993 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG LENGTH | 2.026 INCHES MINIMUM AND 2.036 INCHES MAXIMUM |
| OUTSIDE EDGE TO BOLT HOLE CENTER DISTANCE ALONG WIDTH | 0.240 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| OUTSIDE EDGE TO BOLT HOLE CENTER DISTANCE ALONG LENGTH | 0.240 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| BOLT HOLE QUANTITY | 8 |
Restrictions/Controls & Freight Information | NSN 5999-00-136-9518
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062800 | RADIO/TV RECEIVING SET CHASSIS ETC |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
