NSN 5999-00-052-1758 00-052-1758, 000521758
Product Details | ELECTRICAL SHIELD RETAINER
5999-00-052-1758 An item specifically designed to position and restrain the movement of an electrical shield in relation to another item. Retainer must not be an integral part of the shield.
Part Alternates: 5999-00-052-1758, 00-052-1758, 5999000521758, 000521758
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 00-052-1758 | 16130 ( RETAINER, ELECTRICAL SHIELD ) |
Drawings & Photos | NSN 5999-00-052-1758
Cross Reference | NSN 5999-00-052-1758
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5999-00-052-1758
Technical Data | NSN 5999-00-052-1758
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |
| SURFACE TREATMENT | OXIDE FILM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-5541 MIL SPEC SINGLE TREATMENT RESPONSE |

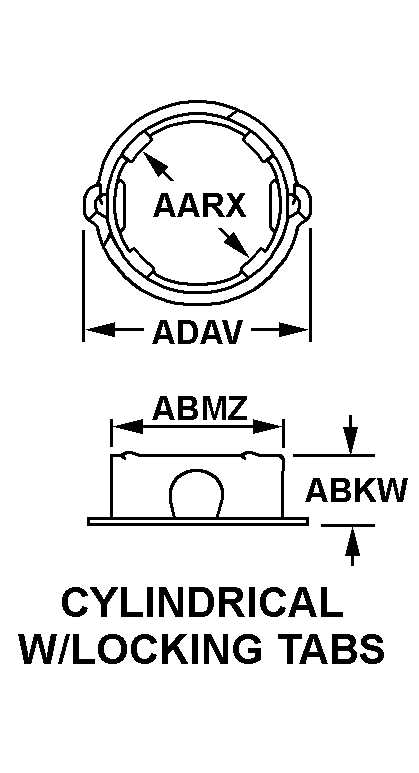

| STYLE DESIGNATOR | 65B CYLINDRICAL W/LOCKING TABS |
| INSIDE DIAMETER | 1.000 INCHES NOMINAL |
| OVERALL HEIGHT | 0.427 INCHES NOMINAL |
| DIAMETER | 1.125 INCHES NOMINAL |
| OVERALL DIAMETER | 1.390 INCHES NOMINAL |
| ACCOMMODATED ITEM SECURING DEVICE TYPE | TWIST LOCK |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE SINGLE MOUNTING FACILITY |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.128 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.125 INCHES NOMINAL SINGLE MOUNTING FACILITY SINGLE CENTER GROUP |
| TEST DATA DOCUMENT | 96906-MILSTD242 STANDARD |
| MANUFACTURERS CODE | 96906 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILSTD242 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | 804-3B |
Restrictions/Controls & Freight Information | NSN 5999-00-052-1758
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
