NSN 5999-00-052-2300 MS178031620, MS17803-16-20, MS39029/34-272

Product Details | ELECTRICAL CONTACT

5999-00-052-2300 An item consisting of an electrically conductive material designed to furnish a surface which will physically and electrically meet another conducting surface for the purpose of transferring electrical energy and/or opening and closing circuits. Includes moving contacts which make and/or slide over stationary contacts or other stationary conductive material to a resulting fixed position. Excludes items which are used in conjunction with continually moving surfaces or which make contact by gripping action of the contact surfaces. See also CLIP, ELECTRICAL; CLAMP, ELECTRICAL; BRUSH, ELECTRICAL CONTACT; PLUG, TIP; and JACK, TIP.

Part Alternates: MS178031620, MS17803-16-20, MS39029/34-272, MS3902934272, M39029/34-272, M39029/35-272, M3902934272, M3902935272, NE2722, NE27-22, SAE AS39029/34, SAEAS3902934, B65050412, B65050-412, BIN272, BIN-272, DX5178107, DX517810-7, GX178107, GX17810-7, L01942, MIL-C-39029/34, MILC3902934, R154620R50, R1546-20R50, 7228368P007, 9198284, 499-008-018, 5238, 0523034, 100R0915P95, 100R1020P95, 100R-1020P95, 2049020003, 204902-0003, 2049023, 204902-3, 2500P6A20, 2505P6A20, 2762094P4, 276-2094P4, 30867628501, 30-867-6285-01, 3373971, 337397-1, 3502721, 350272-1, 352250015222, 401001020P, 40-100-1020P, 4015487371, 401-5487371, 5999-00-052-2300, 00-052-2300, 5999000522300, 000522300, 499008018

Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	03 FEB 1977	00-052-2300	00443 ( CONTACT, ELECTRICAL )

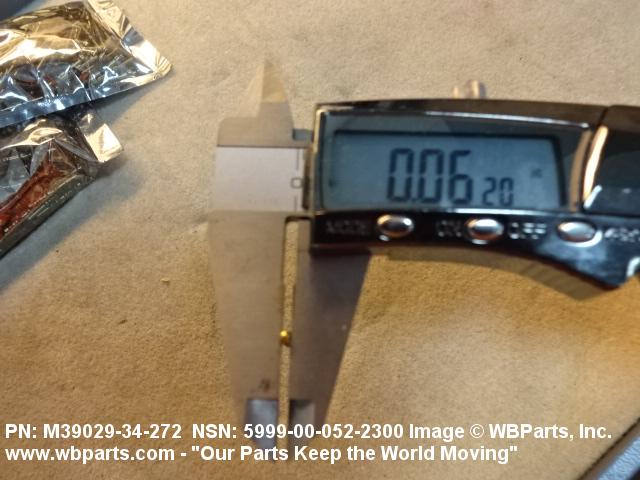

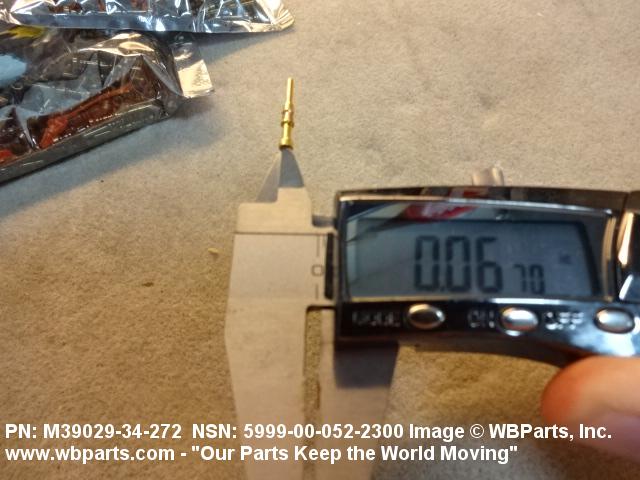

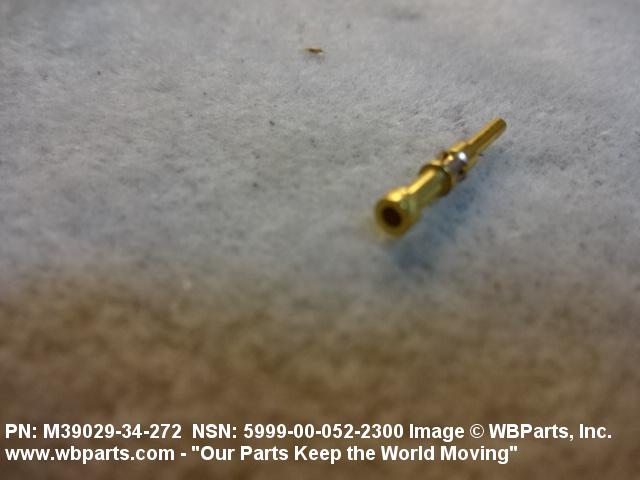

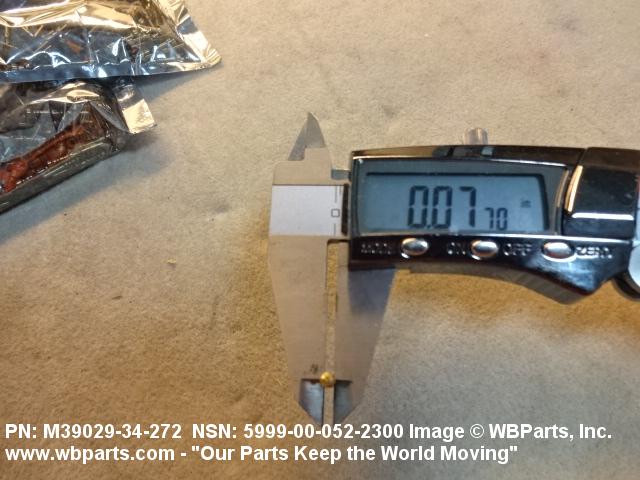

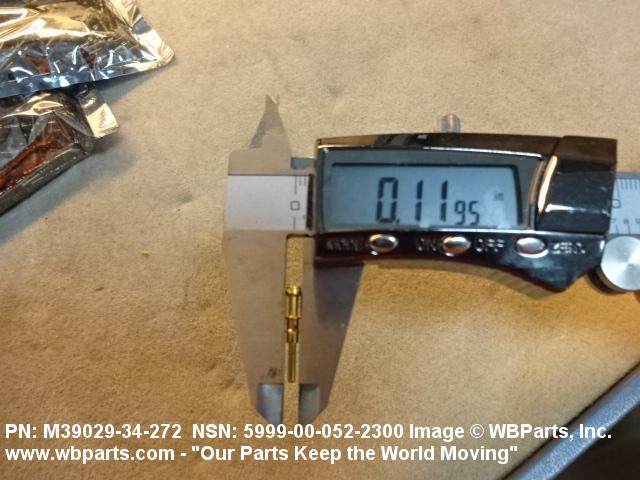

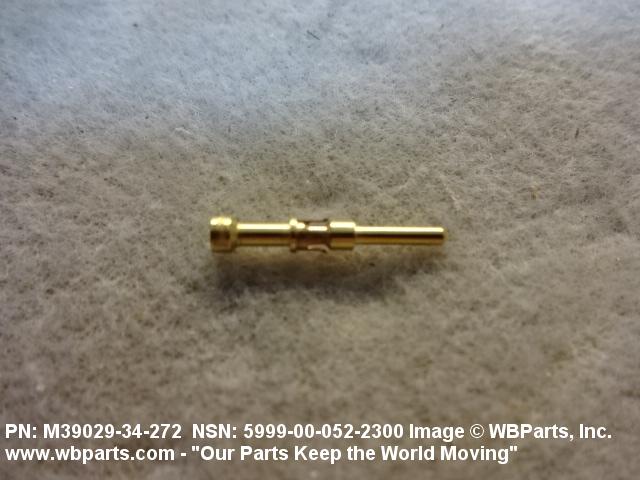

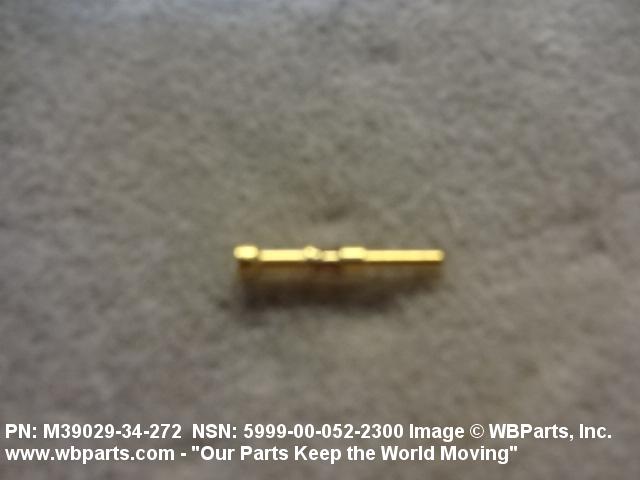

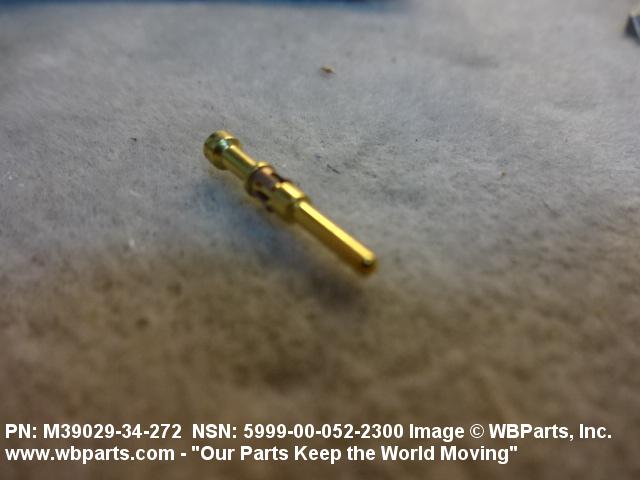

Drawings & Photos | NSN 5999-00-052-2300

Part Number	Request Date	QTY	Origin
5999-00-052-2300	2021-07-189	4026	DIBBS
5999-00-052-2300	2021-06-174	4026	DIBBS
5999-00-052-2300	2018-06-165	6500	DIBBS
5999-00-052-2300	2018-06-154	6500	DIBBS
MS178031620	2013-08-241	1000	United States
5999-00-052-2300	2012-03-62	8900	DIBBS

Cross Reference | NSN 5999-00-052-2300

Part Number	Cage Code	Manufacturer
0523034	30874	INTERNATIONAL BUSINESS MACHINES CORP
100R-1020P95	96169	ELECTRIC BOAT CORPORATION
100R0915P95	95238	WINCHESTER ELECTRONICS CORPORATION DBA WINCHESTER ELECTRONICS
204902-0003	06KW9	LUCENT TECHNOLOGIES INC DBA FEDERAL MARKETING GROUP
204902-3	14028	SYPRIS ELECTRONICS, LLC
2500P6A20	95238	WINCHESTER ELECTRONICS CORPORATION DBA WINCHESTER ELECTRONICS
2505P6A20	95238	WINCHESTER ELECTRONICS CORPORATION DBA WINCHESTER ELECTRONICS
276-2094P4	49956	RAYTHEON COMPANY DBA RAYTHEON
30-867-6285-01	K5294	GE AVIATION SYSTEMS LTD
337397-1	02769	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
337397-1	56232	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
350272-1	80249	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC.
352250015222	H0203	THALES NEDERLAND B.V. DBA THALES LAND & JOINT SYSTEMS
40-100-1020P	81312	WINCHESTER ELECTRONICS CORPORATION
401-5487371	53711	NAVAL SEA SYSTEMS COMMAND
499-008-018	07421	INTERSTATE ELECTRONICS CORPORATION DBA L-3 INTERSTATE ELECTRONICS
5238	52389	FERRIS MFG. CORP.
7228368P007	03538	LOCKHEED MARTIN CORPORATION DIV MST
7228368P007	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
7228368P007	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
9198284	18876	U S ARMY AVIATION AND MISSILE COMMAND
B65050-412	K5861	BRIDGEPORT BRASS LTD
BIN-272	16236	DLA LAND AND MARITIME
BIN272	81312	WINCHESTER ELECTRONICS CORPORATION
DX517810-7	08241	LOCKHEED MARTIN CORP LOCKHEED MARTIN MISSION SYSTEMS
GX17810-7	14418	UNISYS CORP DEFENSE SYSTEMS
L01942	16236	DLA LAND AND MARITIME
M39029/34-272	81312	WINCHESTER ELECTRONICS CORPORATION
M39029/34-272	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
M39029/34-272	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M39029/35-272	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-C-39029/34	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS17803-16-20	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS39029/34-272	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
NE27-22	H0203	THALES NEDERLAND B.V. DBA THALES LAND & JOINT SYSTEMS
R1546-20R50	97954	U S COMPONENTS INC
SAE AS39029/34	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5999-00-052-2300

Compare

Related Products | NSN 5999-00-052-2300

5999-00-052-2301, 5999-00-052-2302, 5999-00-052-2573, 5999-00-052-2916, 5999-00-052-2919

Technical Data | NSN 5999-00-052-2300

Characteristic	Specifications
STYLE DESIGNATOR	A10 PIN CONTACT

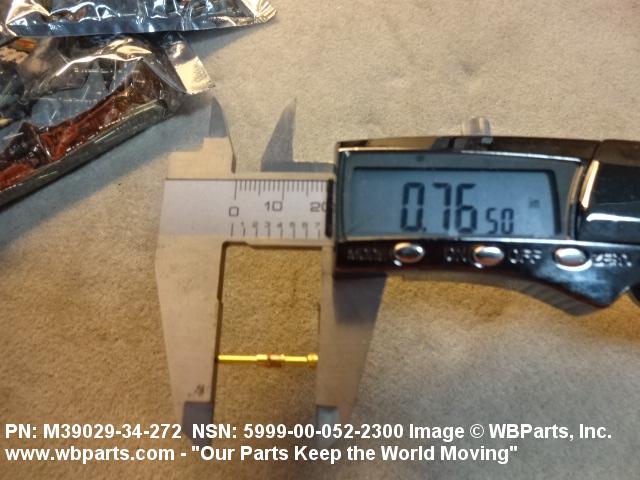

OVERALL LENGTH	0.764 INCHES NOMINAL
OVERALL DIAMETER	0.120 INCHES NOMINAL
MATERIAL	COPPER ALLOY BODY AND CONTACT
MATERIAL DOCUMENT AND CLASSIFICATION	SAE CA187 ASSN STD SINGLE MATERIAL RESPONSE BODY AND CONTACT
SURFACE TREATMENT	GOLD CONTACT GOLD BODY
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-G-45204,TY 2,CL 1 MIL SPEC SINGLE TREATMENT RESPONSE CONTACT MIL-G-45204,TY 2,CL 1 MIL SPEC SINGLE TREATMENT RESPONSE BODY
IDENTIFICATION CODE COLOR	RED AND VIOLET AND RED
TERMINAL TYPE AND QUANTITY	1 CRIMP END OPPOSITE CONTACT
MOUNTING METHOD	FORCE FIT

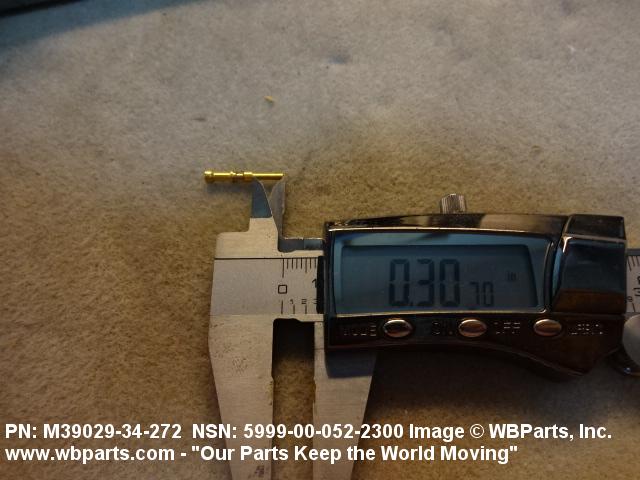

PIN LENGTH	0.309 INCHES NOMINAL
PIN DIAMETER	0.0635 INCHES NOMINAL
CABLE ENTRANCE DIAMETER	0.070 INCHES NOMINAL
RETENTION GROOVE DIAMETER	0.048 INCHES NOMINAL
SPECIAL FEATURES	BASIC ITEM IDENTIFICATION NUMBER BIN-272
TEST DATA DOCUMENT	81349-MIL-C-39029 SPECIFICATION
SPECIFICATION/STANDARD DATA	81349-MIL-C-39029/34 GOVERNMENT SPECIFICATION
III PRECIOUS MATERIAL	GOLD
III PRECIOUS MATERIAL AND WEIGHT	0.010 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION	OUTER SURFACES GOLD
III CRIMPING TOOL IDENTIFYING NUMBER	M22520/1-01
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-C-39029/34
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M39029/34-272

Restrictions/Controls & Freight Information | NSN 5999-00-052-2300

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	G	Item contains gold
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	98	DLIS-LFF Battle Creek, MI 49037-3084
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5999-00-052-2300

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	A	Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each
