NSN 5998-01-469-1508 20E0111AA, 20E01-1-1AA, 8128862
Product Details | ELECTRICAL CARD RETAINER-EJECTOR
5998-01-469-1508 A device having the dual function of providing restraint for, and facilitating the removal of CIRCUIT CARD ASSEMBLY; or PRINTED CIRCUIT BOARD. Excludes HOLDER, ELECTRICAL CARD.
Part Alternates: 20E0111AA, 20E01-1-1AA, 8128862, 812886-2, 5998-01-469-1508, 01-469-1508, 5998014691508, 014691508
Electrical and Electronic Equipment Components | Electrical and Electronic assemblies, Boards, Cards, and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 04 NOV 1999 | 01-469-1508 | 31931 ( RETAINER-EJECTOR, ELECTRICAL CARD ) |

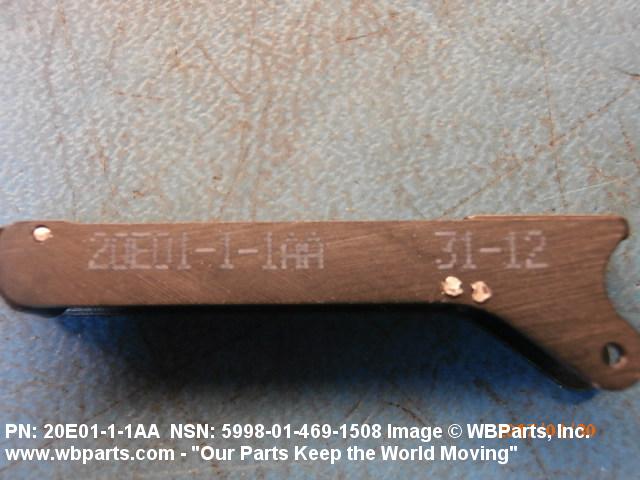

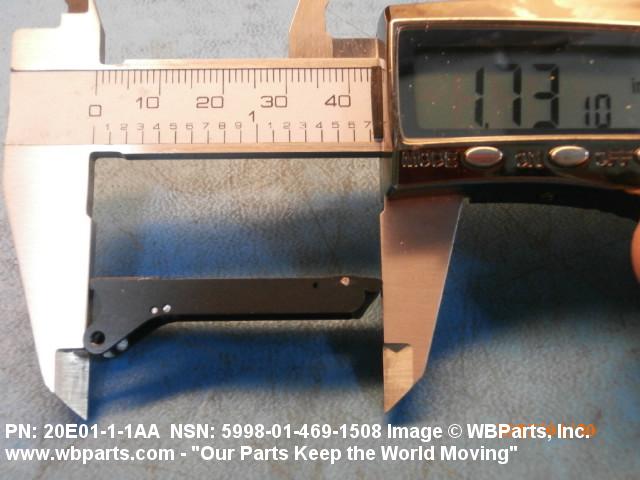

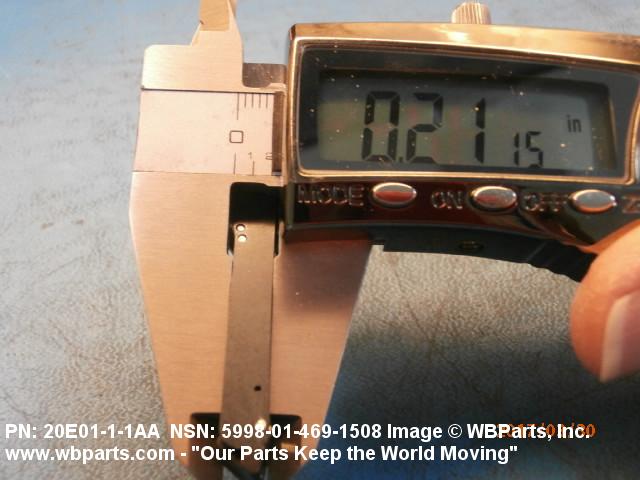

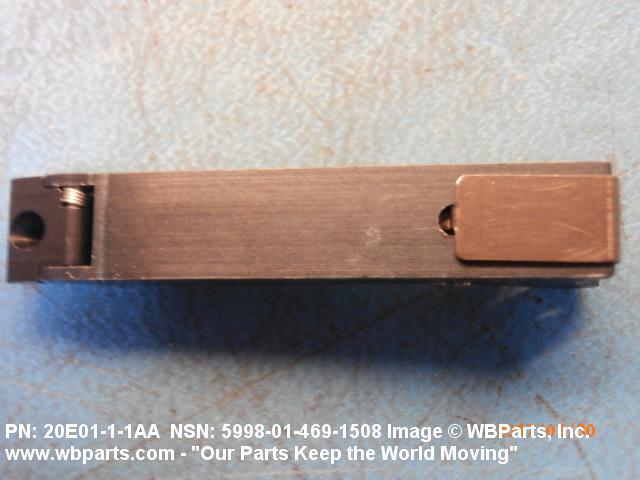

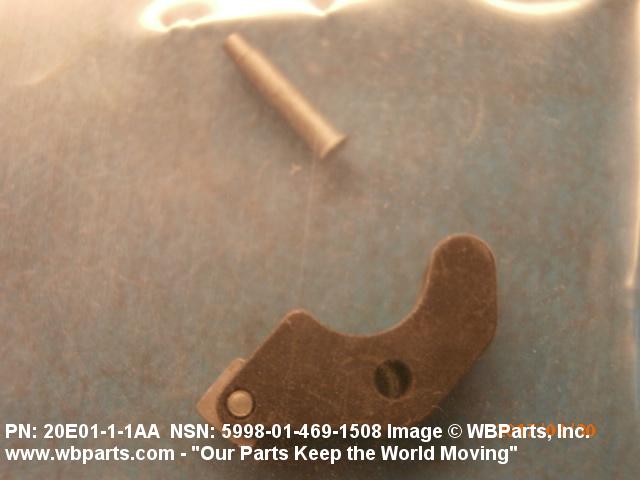

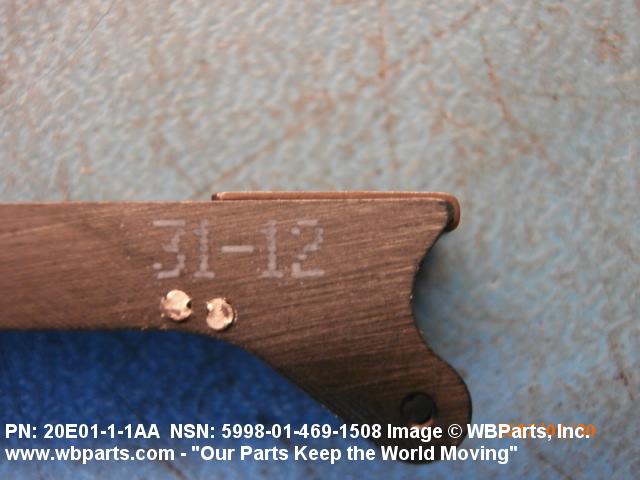

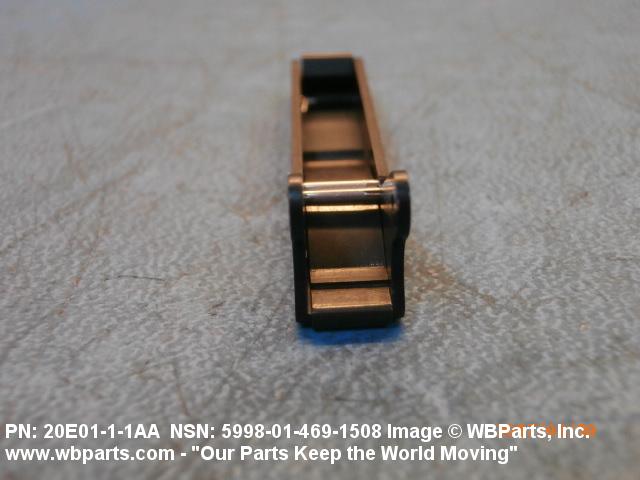

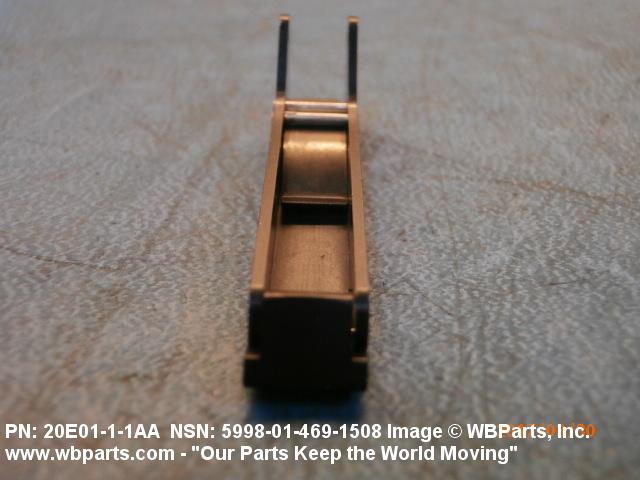

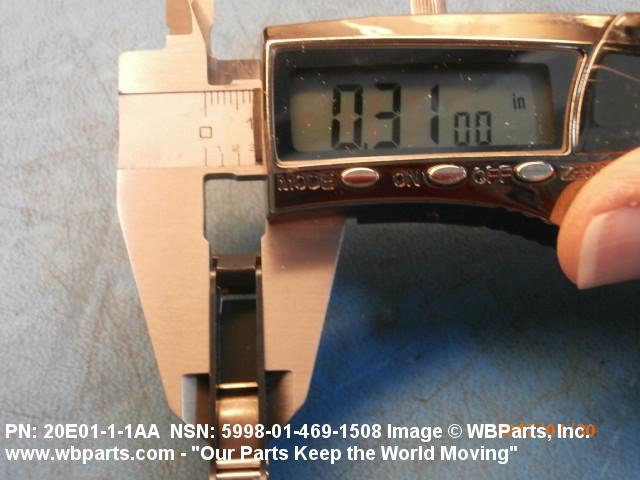

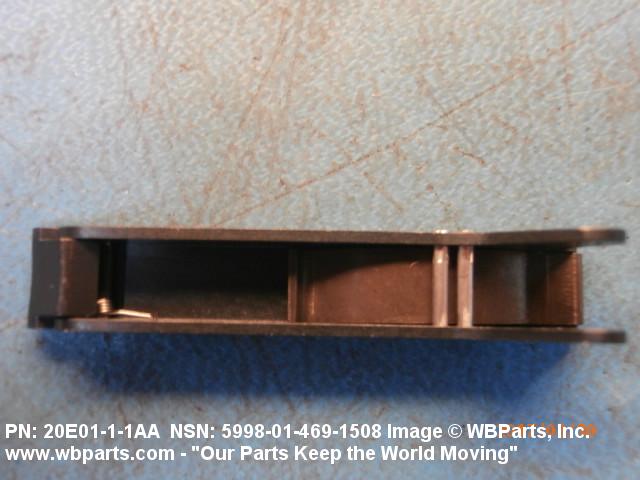

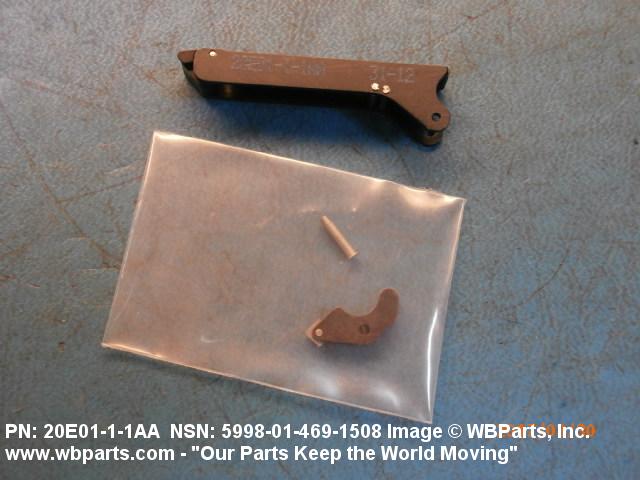

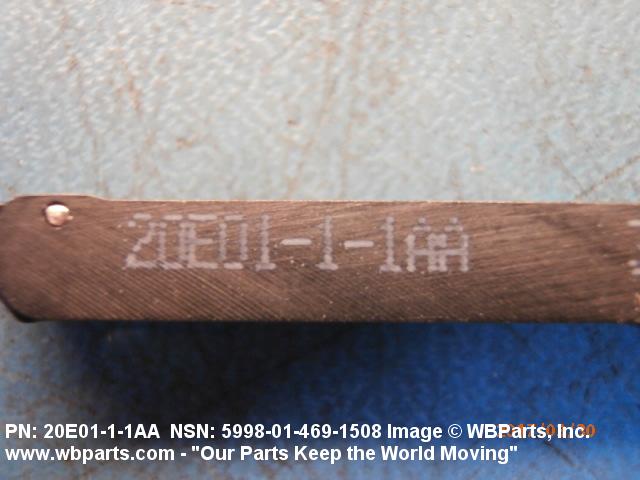

Drawings & Photos | NSN 5998-01-469-1508
Demand History | NSN 5998-01-469-1508
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 20E01-1-1AA | 2019-01-31 | 21 | DIBBS |
| 5998-01-469-1508 | 2018-12-340 | 10 | DIBBS |
| 5998-01-469-1508 | 2018-11-324 | 10 | DIBBS |
| 5998-01-469-1508 | 2017-03-80 | 10 | United States |
| 20E0111AA | 2016-08-221 | 2 | us |
| 20E0111AA | 2016-08-221 | 30 | us |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5998-01-469-1508
Related Products | NSN 5998-01-469-1508
Technical Data | NSN 5998-01-469-1508
| Characteristic | Specifications |
|---|---|

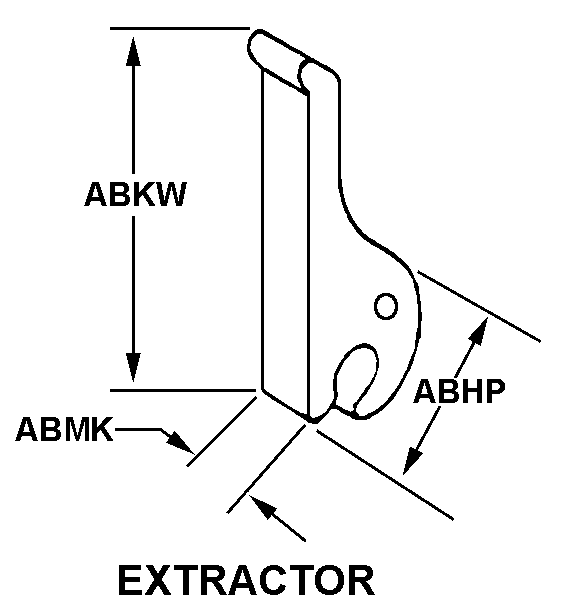

| BODY STYLE | 17C EXTRACTOR |
| OVERALL LENGTH | 0.3750 INCHES NOMINAL |
| OVERALL HEIGHT | 1.6900 INCHES NOMINAL |
| OVERALL WIDTH | 0.1750 INCHES MINIMUM AND 0.4100 INCHES MAXIMUM |
| COLOR | NATURAL |
| MATERIAL | ALUMINUM AND STEEL |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 SPRING SINGLE MOUNTING FACILITY |
| III END ITEM IDENTIFICATION | F-18 E/F |
| MANUFACTURERS CODE | 73030 |
| MFR SOURCE CONTROLLING REFERENCE | 812886-2 |
Restrictions/Controls & Freight Information | NSN 5998-01-469-1508
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 116030 | MACHINES ETC DATA PROCESSING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5998-01-469-1508
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | QE | FIGHTERAIRCRAFT-FIRST(F18 E/F) |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
