NSN 5998-01-385-2867 CP-26, S-202, R1002A
Product Details | ELECTRICAL CARD RETAINER-EJECTOR
5998-01-385-2867 A device having the dual function of providing restraint for, and facilitating the removal of CIRCUIT CARD ASSEMBLY; or PRINTED CIRCUIT BOARD. Excludes HOLDER, ELECTRICAL CARD.
Part Alternates: CP-26, S-202, R1002A, R-1002-A, S202, 5003, 55281691, 5528169-1, 8302303B, 83023-03B, 962, 96-2, 9662, CP26, 5998-01-385-2867, 01-385-2867, 5998013852867, 013852867
Electrical and Electronic Equipment Components | Electrical and Electronic assemblies, Boards, Cards, and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 07 JAN 1994 | 01-385-2867 | 31931 ( RETAINER-EJECTOR, ELECTRICAL CARD ) |
Drawings & Photos | NSN 5998-01-385-2867
Demand History | NSN 5998-01-385-2867
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5998-01-385-2867 | 2024-09-263 | 34 | DIBBS |
| 5998-01-385-2867 | 2023-05-124 | 7 | DIBBS |
| 5998-01-385-2867 | 2023-03-82 | 2 | DIBBS |
| 5998-01-385-2867 | 2017-01-23 | 1 | DIBBS |
| 5998-01-385-2867 | 2016-11-326 | 2 | DIBBS |
Cross Reference | NSN 5998-01-385-2867
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5003 | 13103 | THERMALLOY CO INC |
| 5528169-1 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 83023-03B | 16236 | DLA LAND AND MARITIME |
| 83023-03B | 52094 | CALMARK CORPORATION |
| 83023-03B | 61081 | PEP WEST INC. DBA PENTAIR TECHNICAL PRODUCTS DIV |
| 96-2 | 18915 | PEP WEST, INC. DBA PENTAIR TECHNICAL PRODUCTS USE |
| 9662 | 24227 | TEKNATIONAL THERMAL INSULATION AND HARDWARE, INC |
| CP-26 | 32559 | BIVAR INC |
| R-1002-A | 53507 | AIR QUIP INC ROBLEYCO DIV |
| S-202 | 18677 | SCANBE MFG CO DIV OF ZERO CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5998-01-385-2867
Related Products | NSN 5998-01-385-2867
Technical Data | NSN 5998-01-385-2867
| Characteristic | Specifications |
|---|---|

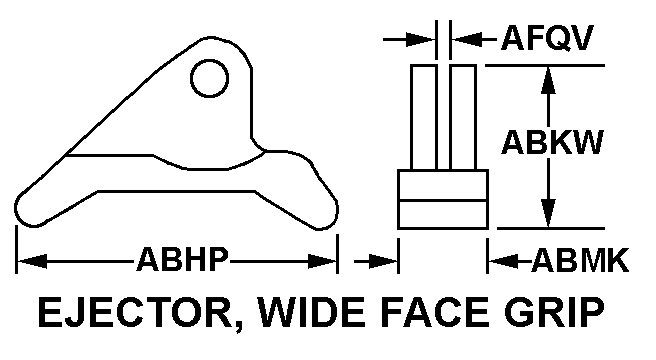

| BODY STYLE | 7C EJECTOR, WIDE FACE GRIP |
| OVERALL LENGTH | 1.120 INCHES NOMINAL |
| OVERALL HEIGHT | 0.600 INCHES NOMINAL |
| OVERALL WIDTH | 0.250 INCHES NOMINAL |
| COLOR | BLACK |
| MATERIAL | PLASTIC POLYAMIDE |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 UNTHREADED HOLE SINGLE MOUNTING FACILITY |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.088 INCHES MINIMUM AND 0.098 INCHES MAXIMUM SINGLE MOUNTING FACILITY |
Restrictions/Controls & Freight Information | NSN 5998-01-385-2867
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 116030 | MACHINES ETC DATA PROCESSING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5998-01-385-2867
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
