Product Details | ELECTRICAL CARD HOLDER

5998-01-385-3508 A device specifically designed to retain CIRCUIT CARD ASSEMBLY or PRINTED CIRCUIT BOARD in their installed position. Excludes, RETAINER-EJECTOR, ELECTRICAL CARD; and HOLDER, PRINTED CIRCUIT BOARD.

Part Alternates: 384501, 38450-1, 5998-01-385-3508, 01-385-3508, 5998013853508, 013853508

Electrical and Electronic Equipment Components | Electrical and Electronic assemblies, Boards, Cards, and Associated Hardware

Supply Group (FSG) NSN Assign. NIIN
59 10 JAN 1994 01-385-3508

Drawings & Photos | NSN 5998-01-385-3508


Cross Reference | NSN 5998-01-385-3508

Part Number Cage Code Manufacturer
38450-1 07148 UNITED TECHNOLOGIES CORP HAMILTON SUNDSTRAND CORP
38450-1 73030 HAMILTON SUNDSTRAND CORPORATION

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5998-01-385-3508

Technical Data | NSN 5998-01-385-3508

Characteristic Specifications

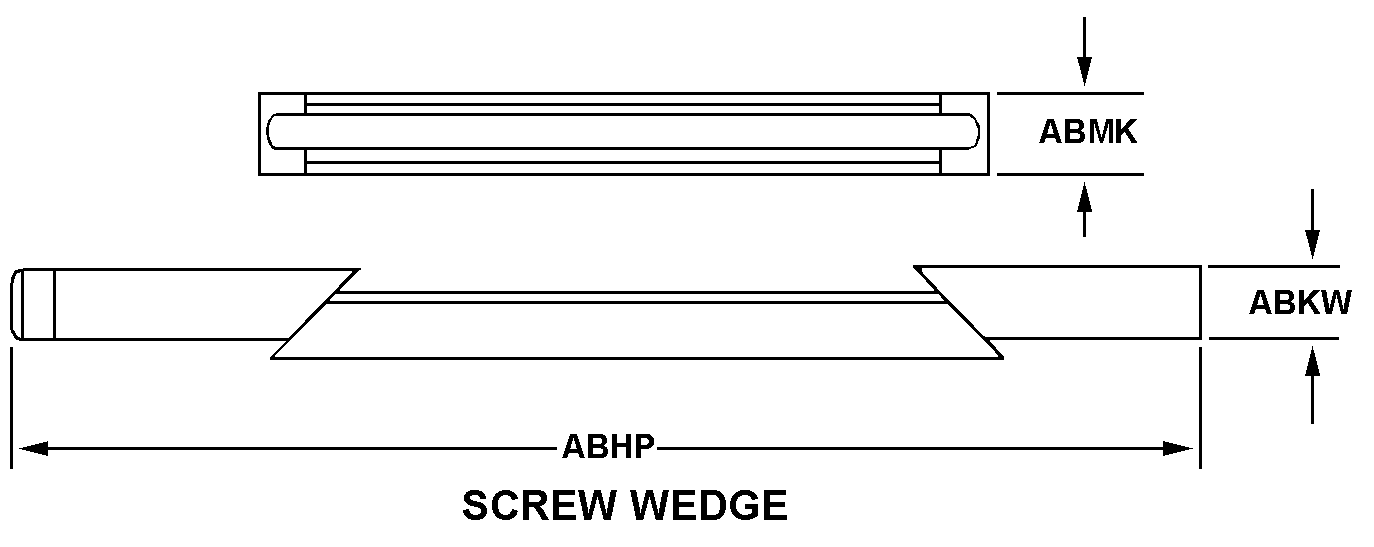

BODY STYLE 7D SCREW WEDGE
OVERALL LENGTH 2.485 INCHES MAXIMUM
OVERALL HEIGHT 0.460 INCHES MINIMUM AND 0.465 INCHES MAXIMUM
OVERALL WIDTH 0.735 INCHES MAXIMUM
MATERIAL ALUMINUM ALLOY 6061
MOUNTING FACILITY TYPE AND QUANTITY 2 SCREW ALL MOUNTING FACILITIES
THREAD SERIES DESIGNATOR UNC ALL MOUNTING FACILITIES
NOMINAL THREAD SIZE 0.112 INCHES ALL MOUNTING FACILITIES
THREAD CLASS 2B ALL MOUNTING FACILITIES
SPECIAL FEATURES NHA 38322-1, USED ON 11325-1 INTERFACE UNIT, MISS, NSN 1430-01-355-1121
III END ITEM IDENTIFICATION PACER DAWN
MANUFACTURERS CODE 73030
DESIGN CONTROL REFERENCE 38450-1

Restrictions/Controls & Freight Information | NSN 5998-01-385-3508

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
No Freight Information
