NSN 5998-01-070-6626 SIY004, SIY-004, R3570782
Product Details | ELECTRICAL CARD HOLDER
5998-01-070-6626 A device specifically designed to retain CIRCUIT CARD ASSEMBLY or PRINTED CIRCUIT BOARD in their installed position. Excludes, RETAINER-EJECTOR, ELECTRICAL CARD; and HOLDER, PRINTED CIRCUIT BOARD.
Part Alternates: SIY004, SIY-004, R3570782, R357078-2, 11909-300-1, 125C38573, 125C3857-3, 15204010, 15204-010, 3172666, 351543B2043, 35-1543B-2043, 3518243, 35-18-2-4-3, 351B243, 35-1B-2-4-3, 35-1B2-4-3, 579R647H10, 11019100-1, 85020004C, 85020-004-C, 5998-01-070-6626, 01-070-6626, 5998010706626, 110191001, 119093001, 010706626
Electrical and Electronic Equipment Components | Electrical and Electronic assemblies, Boards, Cards, and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 17 JAN 1979 | 01-070-6626 | 31930 ( HOLDER, ELECTRICAL CARD ) |

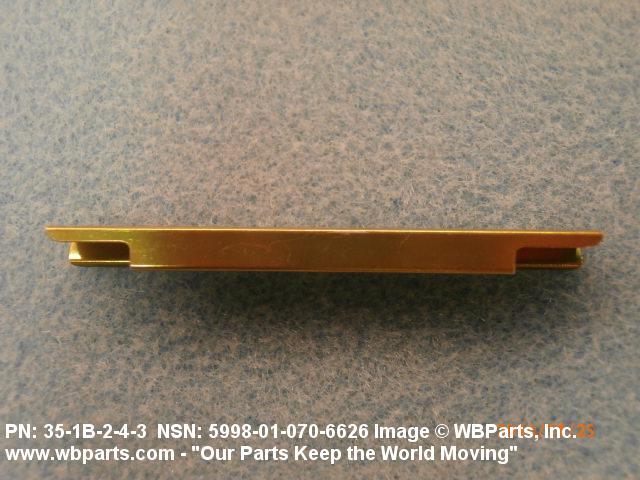

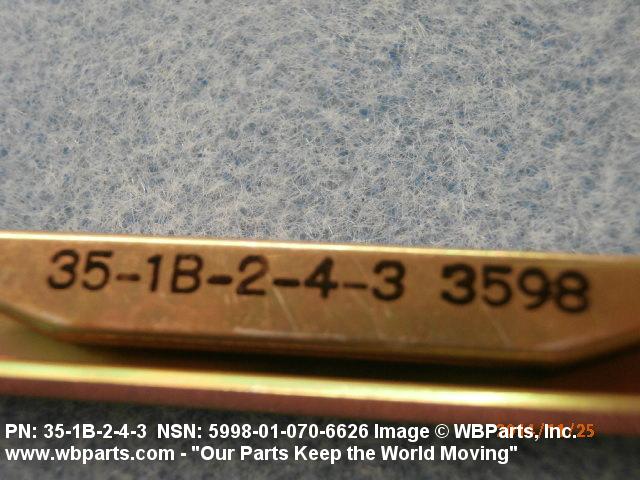

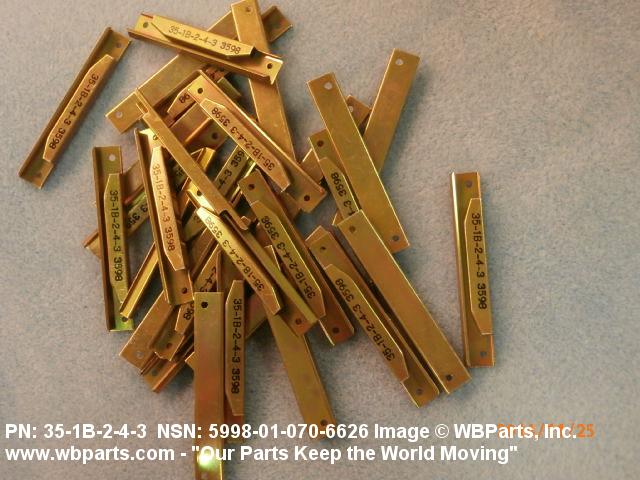

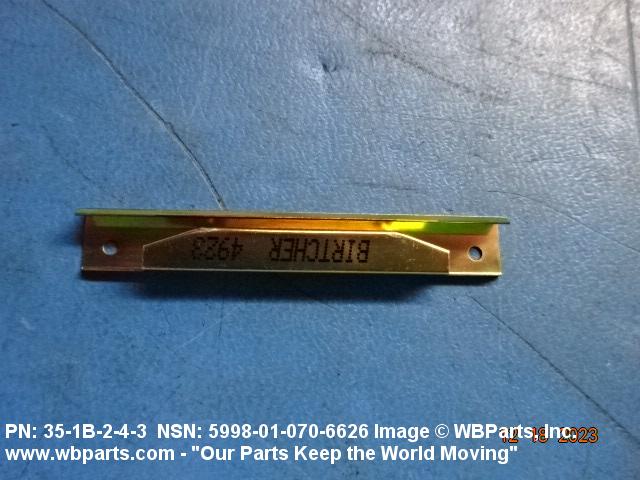

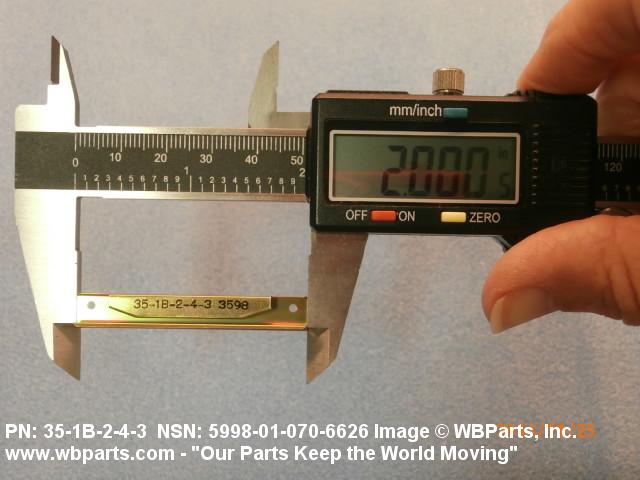

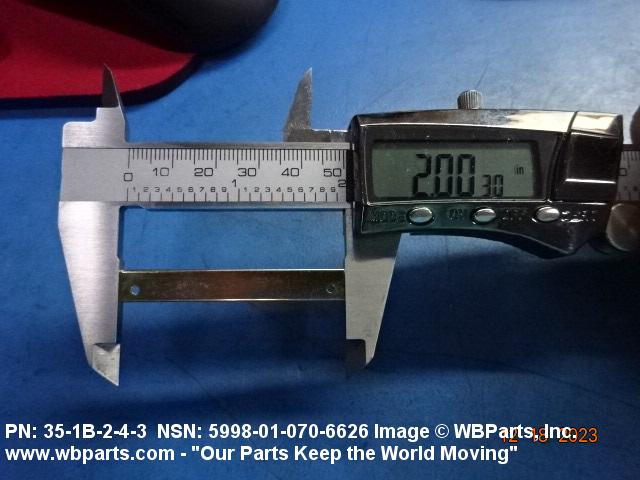

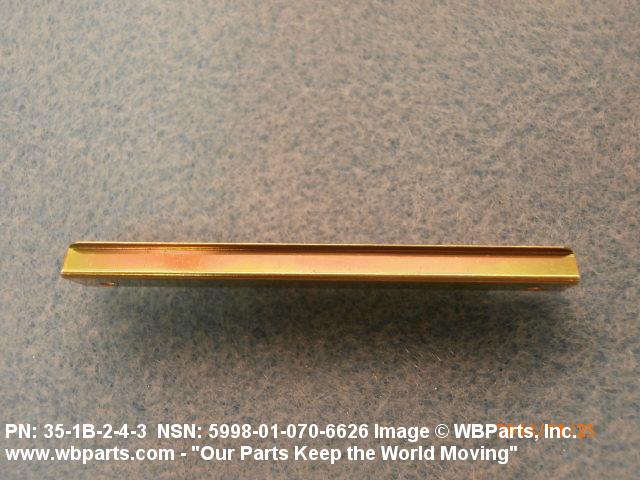

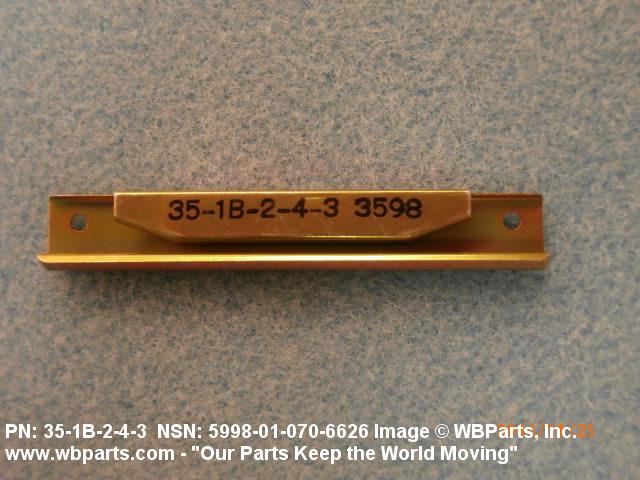

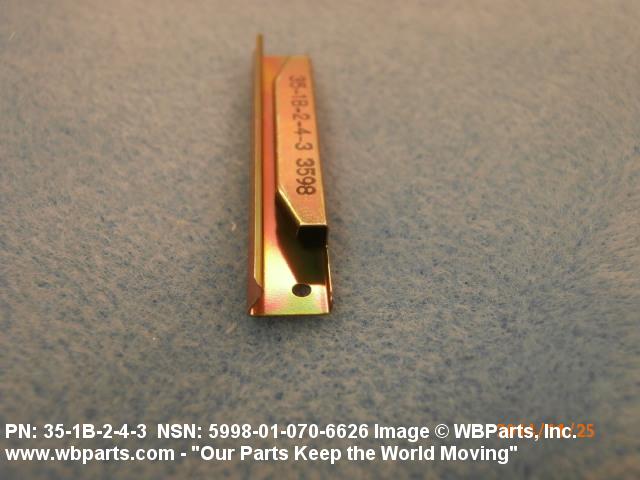

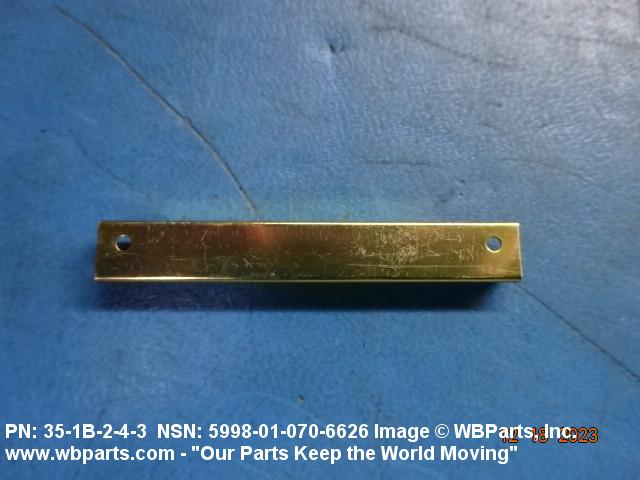

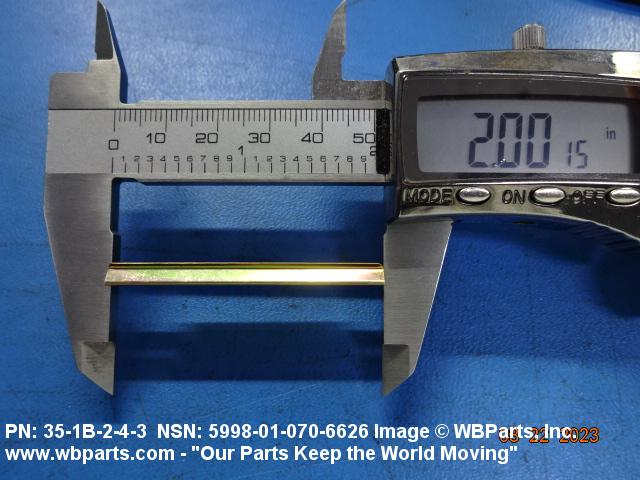

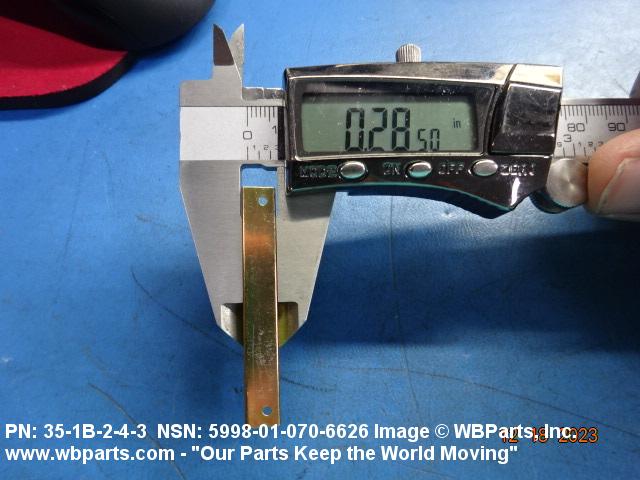

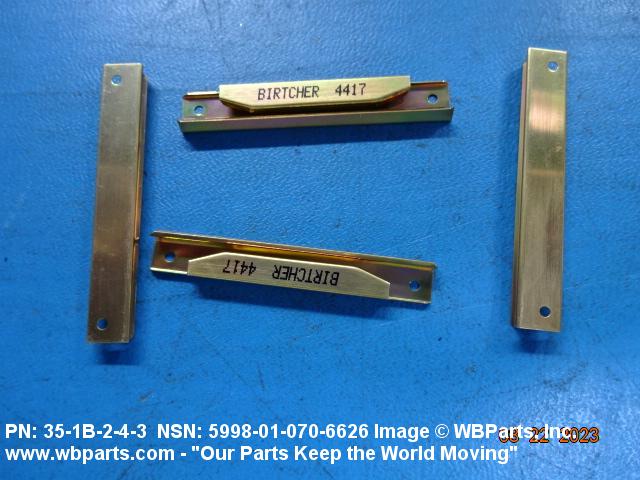

Drawings & Photos | NSN 5998-01-070-6626
Demand History | NSN 5998-01-070-6626
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5998-01-070-6626 | 2024-11-310 | 10 | US |
| 5998-01-070-6626 | 2024-07-183 | 100 | United States |
| 5998-01-070-6626 | 2023-08-226 | 80 | United States |
| 5998-01-070-6626 | 2017-10-282 | 244 | DIBBS |
| 119093001 | 2017-08-226 | 24 | AE |
| 119093001 | 2016-12-356 | 70 | United Arab Emirates |
| 351B243 | 2015-11-314 | 50 | US |
| 351B243 | 2015-05-124 | 105 | United States |
| 351B243 | 2014-11-309 | 90 | United States |
Cross Reference | NSN 5998-01-070-6626
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11019100-1 | 34860 | NORTHROP GRUMMAN GUIDANCE AND ELECTRONICS COMPANY, INC. |
| 11909-300-1 | 99378 | ATLEE OF DELAWARE, INCORPORATED |
| 125C3857-3 | 05606 | GENERAL DYNAMICS-OTS, INC. DBA GD-OTS (WILLISTON) |
| 15204-010 | 10138 | ASTRONAUTICS CORPORATION OF AMERICA |
| 3172666 | 59364 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 3172666 | 77068 | ALLIED-SIGNAL INC DBA ALLIED-SIGNAL AEROSPACE CO |
| 35-1543B-2043 | 18915 | PEP WEST, INC. DBA PENTAIR TECHNICAL PRODUCTS USE |
| 35-18-2-4-3 | 18915 | PEP WEST, INC. DBA PENTAIR TECHNICAL PRODUCTS USE |
| 35-1B-2-4-3 | 18915 | PEP WEST, INC. DBA PENTAIR TECHNICAL PRODUCTS USE |
| 35-1B-2-4-3 | 33692 | CODE-A-PHONE CORP SUB OF CONRAC CORP |
| 35-1B2-4-3 | 07387 | BIRTCHER CORP |
| 579R647H10 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS |
| 85020-004-C | 037Z3 | DLA LAND AND MARITIME OPNS SUPPORT GROUP |
| R357078-2 | 04071 | RAYTHEON COMPANY DBA RAYTHEON |
| SIY-004 | 65884 | SIGMATION INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5998-01-070-6626
Technical Data | NSN 5998-01-070-6626
| Characteristic | Specifications |
|---|---|

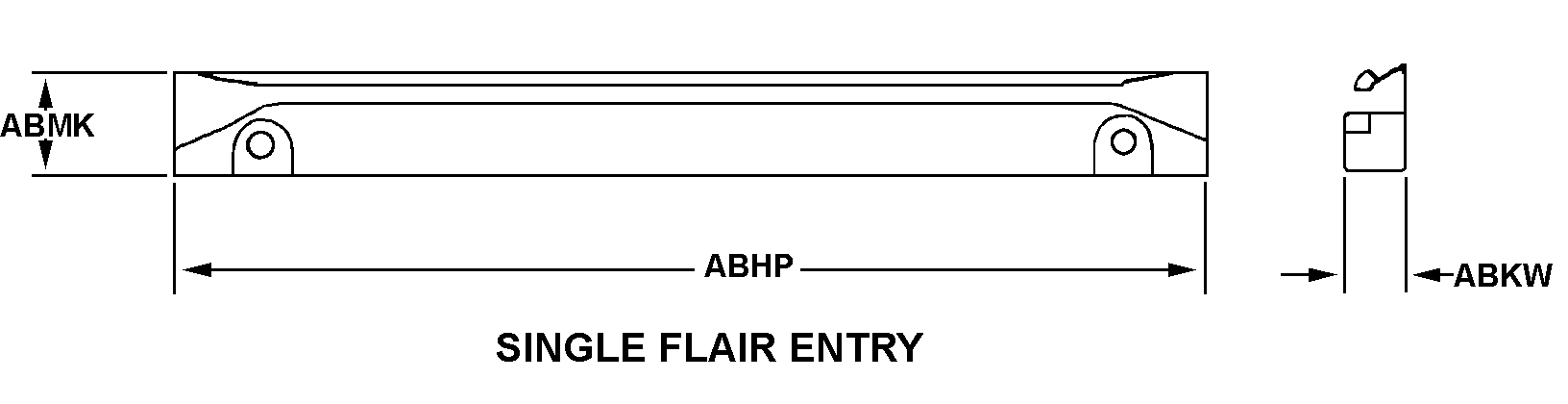

| BODY STYLE | 2D SINGLE FLAIR ENTRY |
| OVERALL LENGTH | 1.080 INCHES MINIMUM AND 2.020 INCHES MAXIMUM |

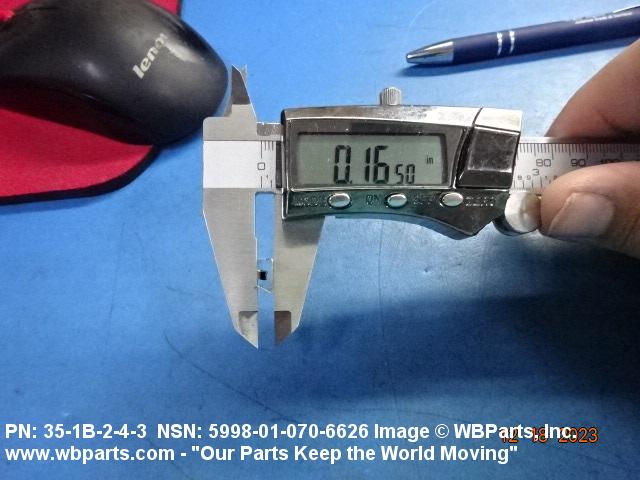

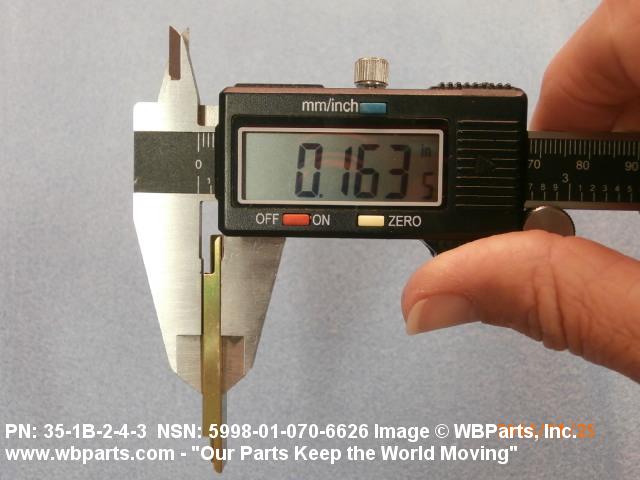

| OVERALL HEIGHT | 0.180 INCHES NOMINAL |

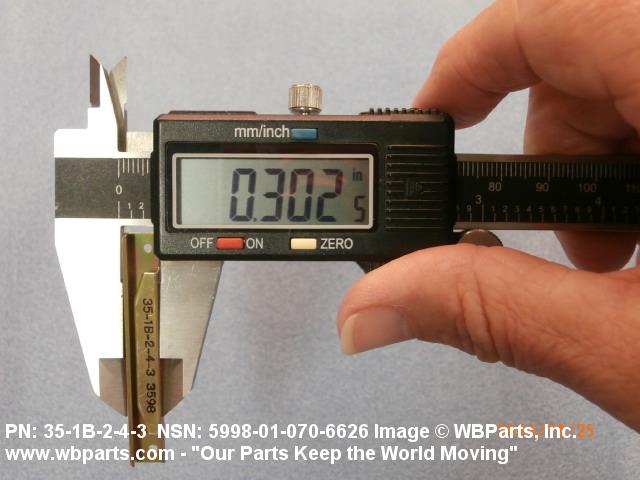

| OVERALL WIDTH | 0.330 INCHES NOMINAL |
| MATERIAL | COPPER ALLOY 172 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-C-533 FED SPEC SINGLE MATERIAL RESPONSE |

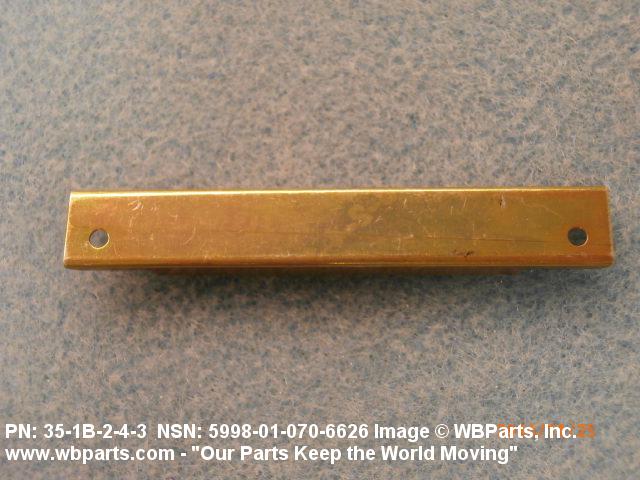

| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE ALL MOUNTING FACILITIES |

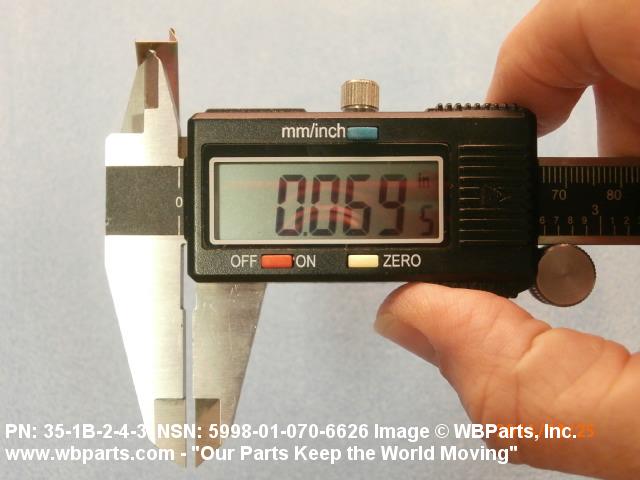

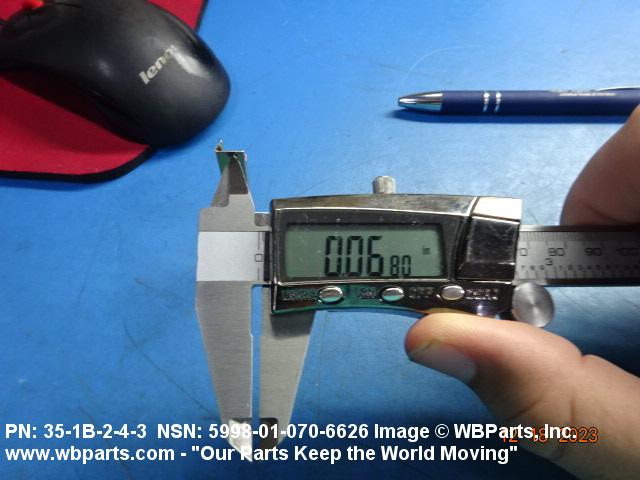

| UNTHREADED MOUNTING HOLE DIAMETER | 0.066 INCHES MINIMUM AND 0.070 INCHES MAXIMUM ALL MOUNTING FACILITIES |
Restrictions/Controls & Freight Information | NSN 5998-01-070-6626
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | B | ESD sensitivity |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061400 | CONDENSERS/PARTS NOI/CAPACITORS |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TA | Sacramento Air Logistics Center McClellan AFB, CA 95652-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
