NSN 5995-00-823-2726 CX4720VRC10FT, SMD415550, SM-D-415550
Product Details | ELECTRICAL POWER CABLE ASSEMBLY
5995-00-823-2726 A definite continuous length of CABLE, POWER, ELECTRICAL having one or both ends processed and/or terminated in fittings which provide for connection to other items. Excludes CABLE AND CONDUIT ASSEMBLY, ELECTRICAL and items having branches or forks. See also WIRING HARNESS.20511150037Nuclear Warheads and Warhead Sections11350043Fuzing and Firing Devices, Nuclear Ordnance11900057Specialized Test and Handling Equipment, Nuclear Ordnance5995000061500055Miscellaneous Electric Power and Distribution Equipment
Part Alternates: CX4720VRC10FT, SMD415550, SM-D-415550, F63464, 8182191, 818219-1, 5995-00-823-2726, 00-823-2726, 5995008232726, 008232726
Electrical and Electronic Equipment Components | Cable, Cord, and Wire Assemblies: Communication Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-823-2726 | 00485 ( CABLE ASSEMBLY, POWER, ELECTRICAL ) |

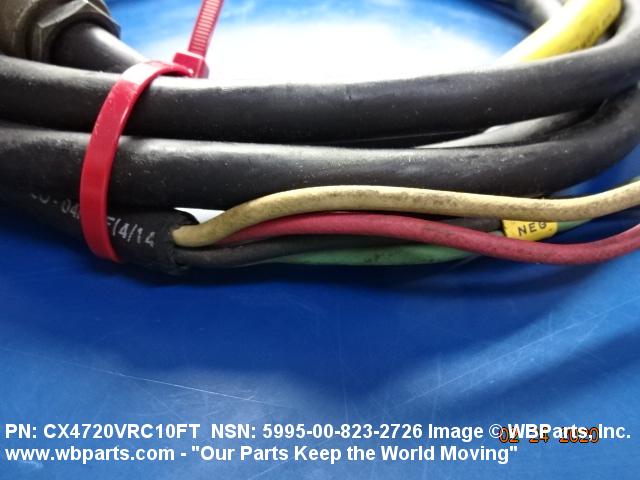

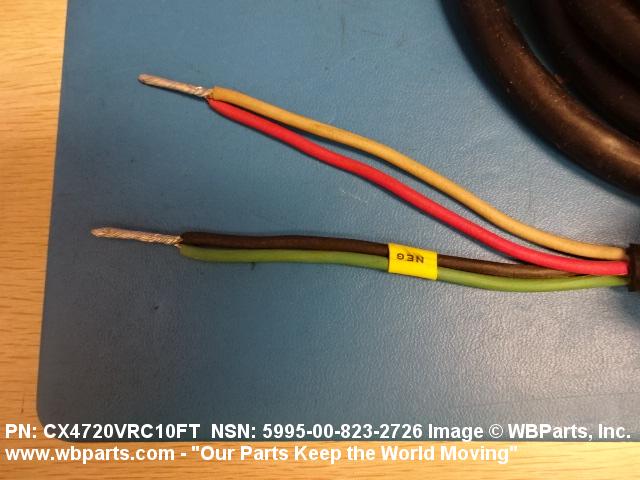

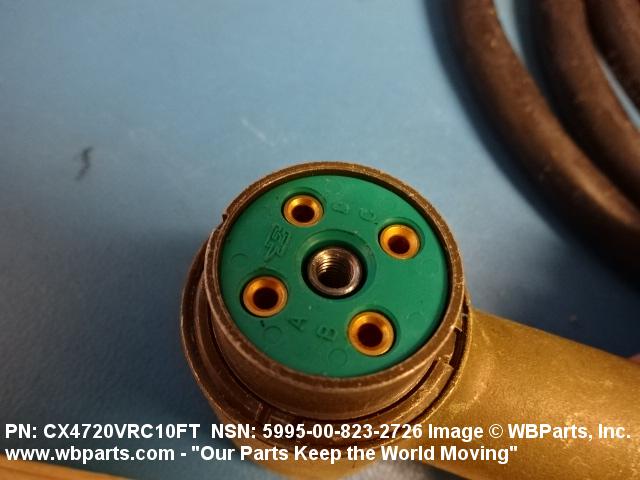

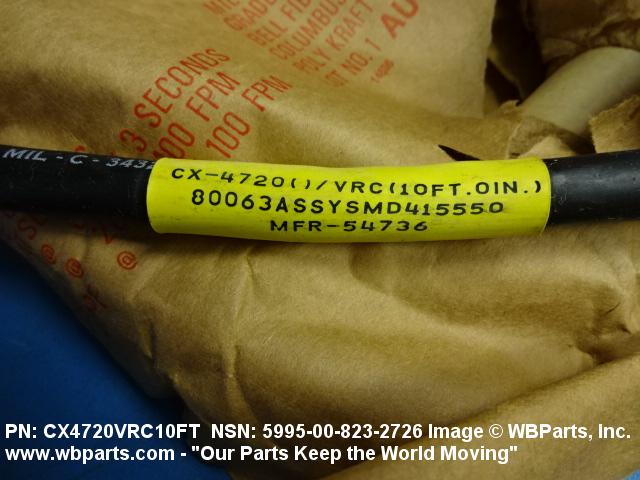

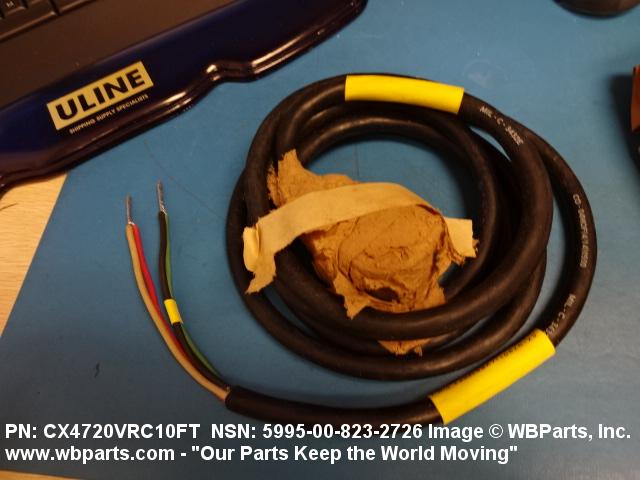

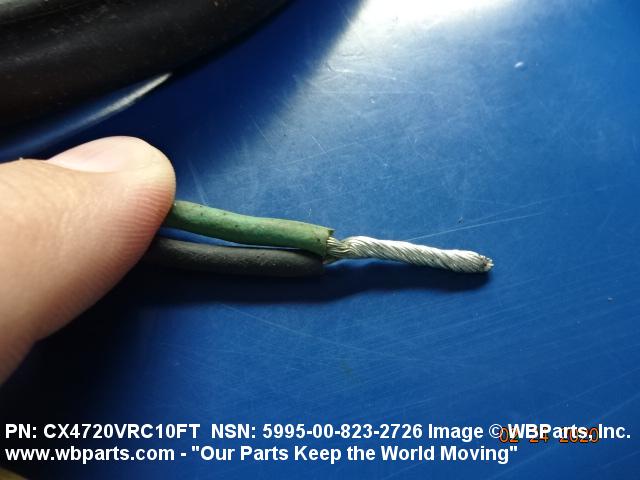

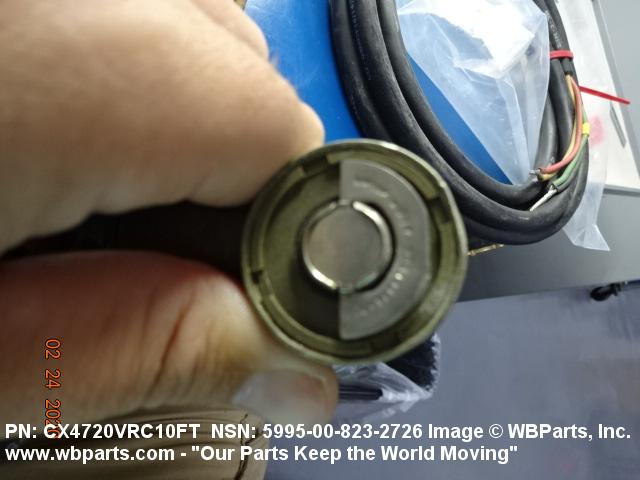

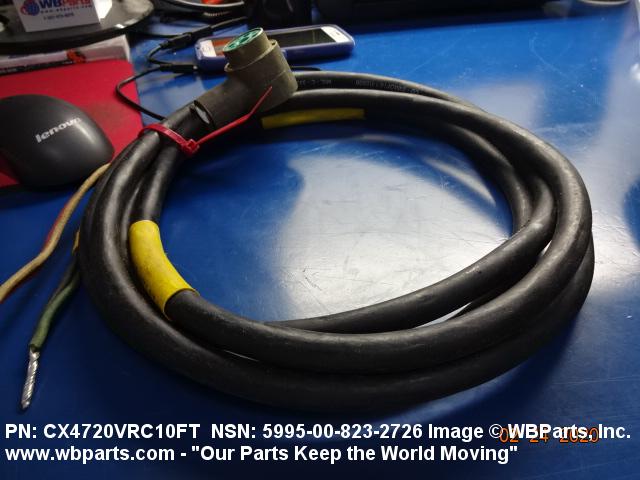

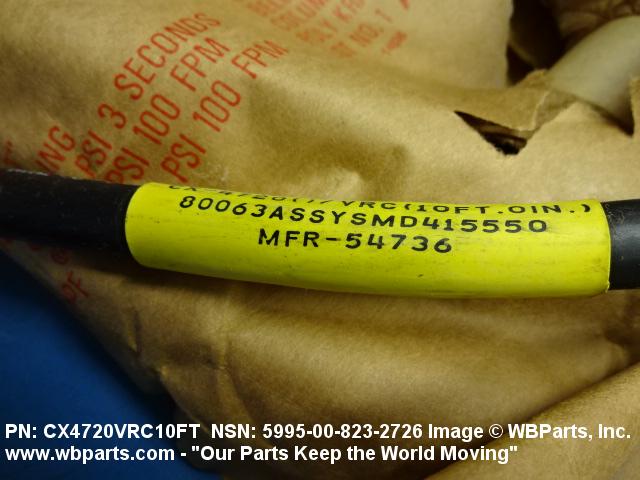

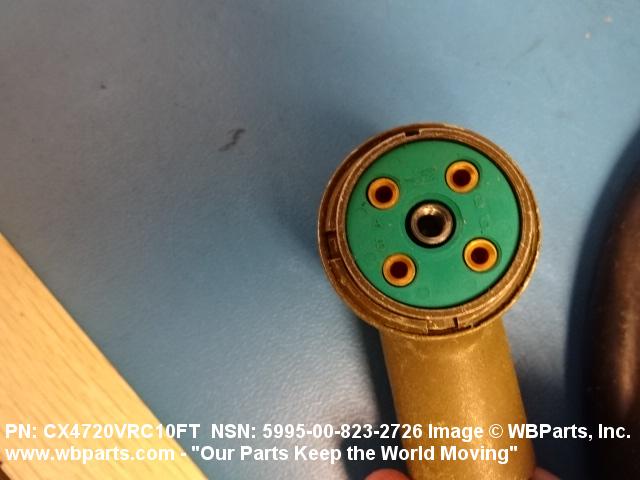

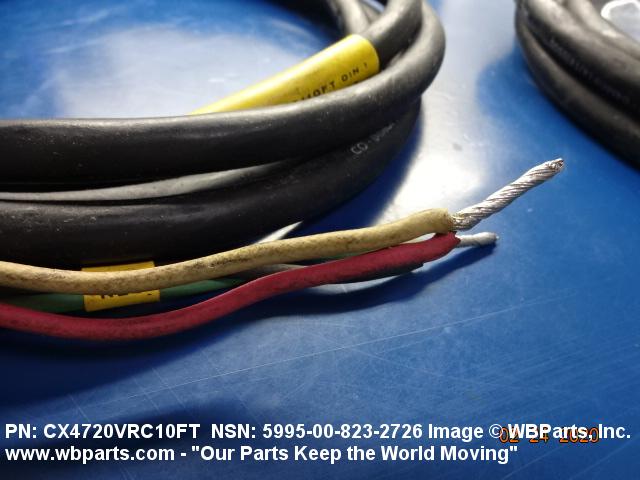

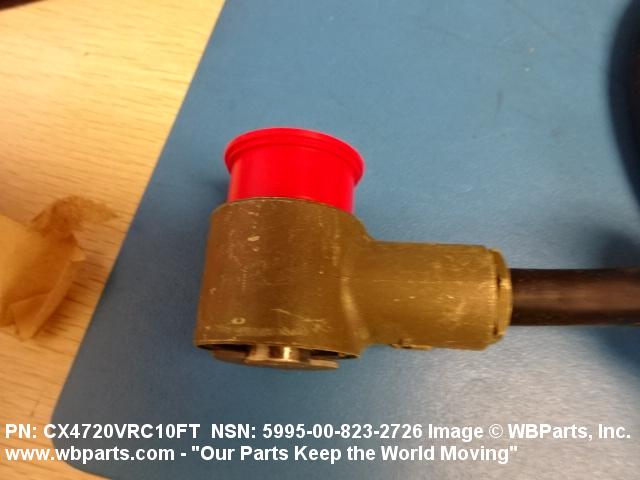

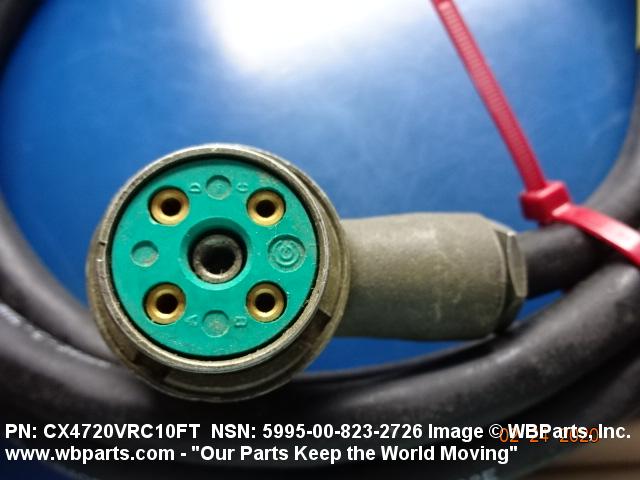

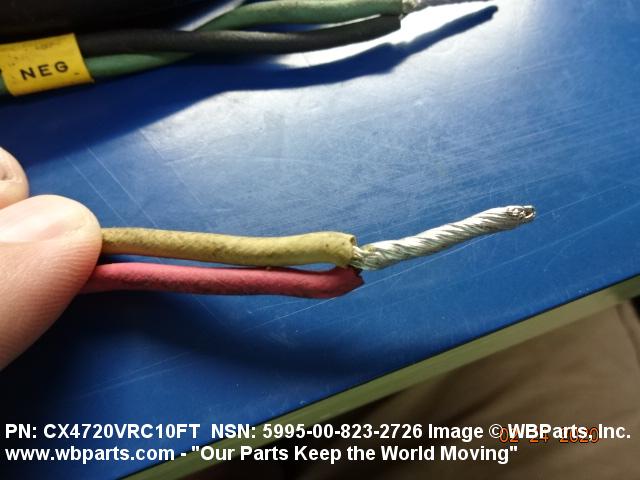

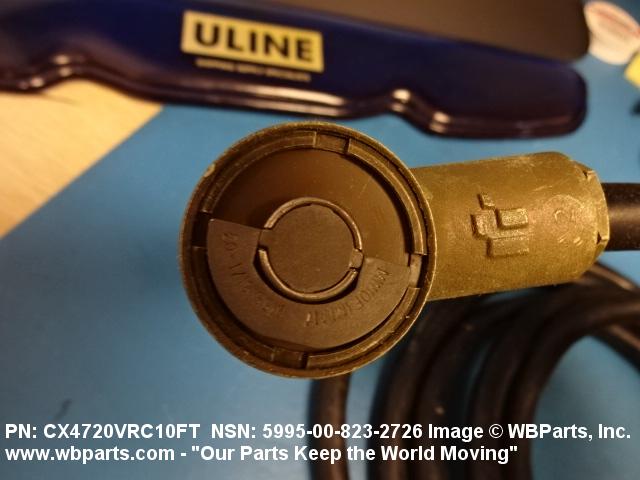

Drawings & Photos | NSN 5995-00-823-2726
Demand History | NSN 5995-00-823-2726
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| CX4720VRC10FT | 2019-12-345 | 2 | United States |
Cross Reference | NSN 5995-00-823-2726
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5995008232726 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 818219-1 | 80045 | L-3 COMMUNICATIONS CINCINNATI ELECTRONICS CORPORATION |
| CX4720VRC10FT | 80058 | JOINT ELECTRONICS TYPE DESIGNATION SYSTEM |
| F63464 | 96344 | CODALEX LTD |
| SM-D-415550 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5995-00-823-2726
Related Products | NSN 5995-00-823-2726
Technical Data | NSN 5995-00-823-2726
| Characteristic | Specifications |
|---|---|
| CONDUCTOR QUANTITY | 4 |
| CONDUCTOR FORM | STRANDED ALL CONDUCTORS |
| MATERIAL | COPPER CORE CONDUCTOR ALL CONDUCTORS RUBBER BUTADIENE-STYRENE CLASS SBR 1ST POSITION PRIMARY INSULATION ALL CONDUCTORS RUBBER CHLOROPRENE CLASS CR 1ST POSITION JACKET CABLE |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-W-343,SOFT FED SPEC SINGLE MATERIAL RESPONSE CORE CONDUCTOR ALL CONDUCTORS MIL-I-3930,TYPE IS MIL SPEC SINGLE MATERIAL RESPONSE 1ST POSITION PRIMARY INSULATION ALL CONDUCTORS MIL-I-3930,TYPE JN MIL SPEC SINGLE MATERIAL RESPONSE 1ST POSITION JACKET CABLE |
| ROUND CONDUCTOR SIZE | 14 AWG ALL CONDUCTORS |
| STRAND QUANTITY PER CONDUCTOR | 41 ALL CONDUCTORS |
| STRAND AWG SIZE PER CONDUCTOR | 30 ALL CONDUCTORS |
| CONDUCTOR ARRANGEMENT AND QUANTITY | 4 SINGLES |
| VOLTAGE RATING | 600.0 AC MAXIMUM RATED WORKING VOLTAGE ALL CONDUCTORS |
| STYLE DESIGNATOR | 48 STRIPPED |
| OVERALL LENGTH | 10.000 FEET |
| CROSS-SECTIONAL SHAPE STYLE | 6 ROUND |

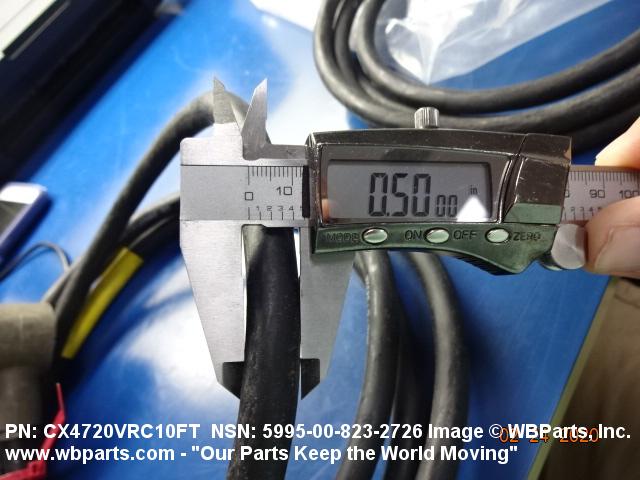

| CROSS SECTION OUTSIDE DIAMETER | 0.500 INCHES NOMINAL |
| TEMP RATING | -40.0 DEG CELSIUS AND 65.0 DEG CELSIUS |
| TERMINAL MANUFACTURER IDENTIFYING REFERENCE NUMBER | MW10F/M/A17 1ST END ALL CONDUCTORS |
| TERMINAL COMMERCIAL AND GOVERNMENT ENTITY CODE | 81349 1ST END ALL CONDUCTORS |
| INDIVIDUAL CONDUCTOR LENGTH | 6.000 INCHES NOMINAL 2ND END ALL CONDUCTORS |
| SPECIAL FEATURES | CABLE,JETDS,CX 4720VRC |
| MANUFACTURERS CODE | 80058 |
| DESIGN CONTROL REFERENCE | CX4720VRC10FT |
Restrictions/Controls & Freight Information | NSN 5995-00-823-2726
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061130 | CABLE ASSEMBLY |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 743 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5995-00-823-2726
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | R | Tactical and Strategic Communications |
| Weapons Systems/End Item or Homogeneous Group | RU | Vehicular and EPLRS IKs |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | B | Consumable Repair Parts |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
