NSN 5995-00-162-0405 GH695053, GH69505-3, 00-162-0405
Product Details | ELECTRICAL CORD ASSEMBLY
5995-00-162-0405 A definite length of CORD, ELECTRICAL having one or both ends processed and/or terminated in fittings which provide for connection to another item. It is generally used with telephone and communication equipment, such as headsets, category cable and switchboard patch cable. See also CABLE ASSEMBLY, (as modified and LEAD (as modified.
Part Alternates: GH695053, GH69505-3, 5995-00-162-0405, 00-162-0405, 5995001620405, 001620405
Electrical and Electronic Equipment Components | Cable, Cord, and Wire Assemblies: Communication Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-162-0405 | 00856 ( CORD ASSEMBLY, ELECTRICAL ) |
Drawings & Photos | NSN 5995-00-162-0405
Cross Reference | NSN 5995-00-162-0405
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GH69505-3 | 04773 | GTE COMMUNICATION SYSTEMS CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5995-00-162-0405
Technical Data | NSN 5995-00-162-0405
| Characteristic | Specifications |
|---|---|
| CONDUCTOR QUANTITY | 2 |
| CONDUCTOR FORM | STRANDED ALL CONDUCTORS |
| MATERIAL | RUBBER 1ST POSITION PRIMARY INSULATION ALL CONDUCTORS RUBBER 1ST POSITION JACKET CORD |
| ROUND CONDUCTOR SIZE | 18 AWG ALL CONDUCTORS |
| CONDUCTOR ARRANGEMENT AND QUANTITY | 2 SINGLES |
| STYLE DESIGNATOR | 30 INTERNAL AND EXTERNAL ANGLE CONNECTOR |
| OVERALL LENGTH | 10.485 FEET |
| TERMINATION TYPE | PLUG TELEPHONE 1ST END ALL CONDUCTORS TERMINAL LUG 2ND END ALL CONDUCTORS |
| TERMINAL COMMERCIAL AND GOVERNMENT ENTITY CODE | 80063 BOTH ENDS ALL CONDUCTORS |

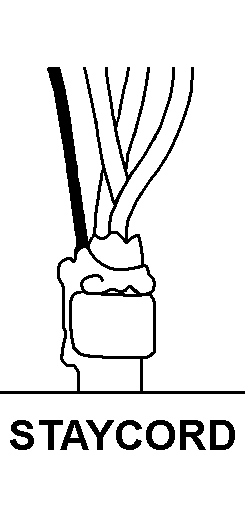

| STRAIN RELIEF STYLE | 2 STAYCORD 2ND END |
| SPECIAL TEST FEATURES | MIL-C-3884,TYPE COS-2 CORD |
Restrictions/Controls & Freight Information | NSN 5995-00-162-0405
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 030310 | CABLE OR WIRE |
| Less than car load rating | S | 60 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 743 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
