NSN 5995-00-081-0777 10176208, 82077, 00-081-0777
Product Details | ELECTRICAL CORD ASSEMBLY

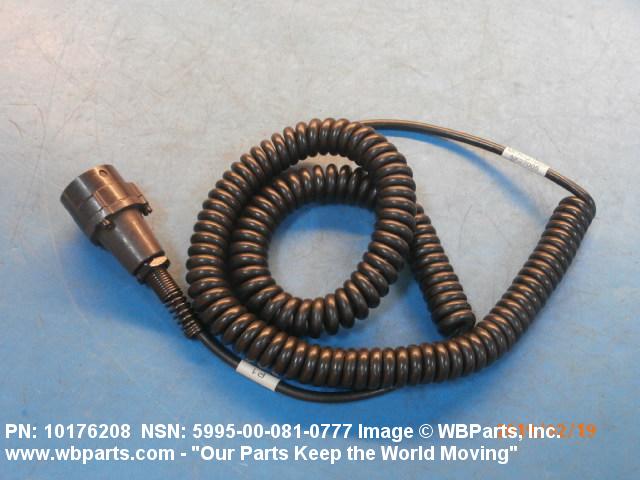

5995-00-081-0777 A definite length of CORD, ELECTRICAL having one or both ends processed and/or terminated in fittings which provide for connection to another item. It is generally used with telephone and communication equipment, such as headsets, category cable and switchboard patch cable. See also CABLE ASSEMBLY, (as modified and LEAD (as modified.
Part Alternates: 10176208, 82077, 5995-00-081-0777, 00-081-0777, 5995000810777, 000810777
Electrical and Electronic Equipment Components | Cable, Cord, and Wire Assemblies: Communication Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 24 NOV 1972 | 00-081-0777 | 00856 ( CORD ASSEMBLY, ELECTRICAL ) |

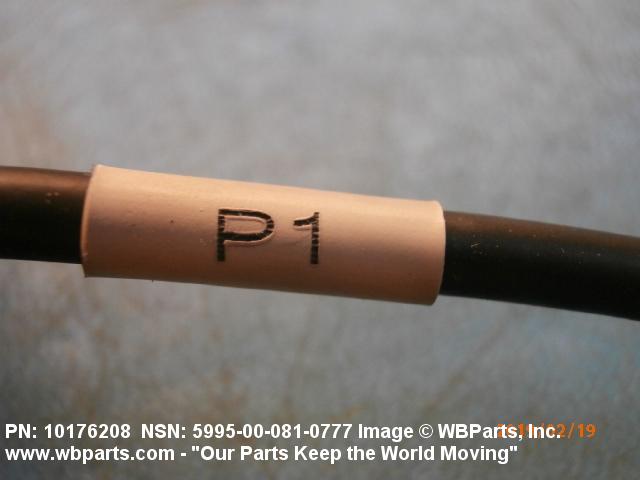

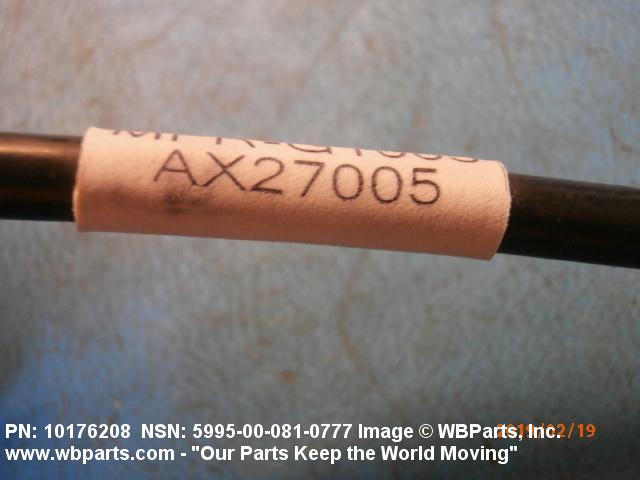

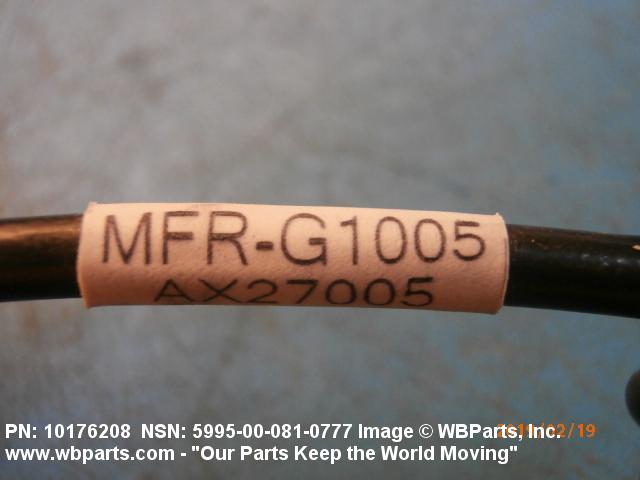

Drawings & Photos | NSN 5995-00-081-0777
Demand History | NSN 5995-00-081-0777
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5995-00-081-0777 | 2020-06-155 | 10 | United States |
| 5995-00-081-0777 | 2020-03-66 | 3 | United States |
| 5995-00-081-0777 | 2018-10-284 | 14 | United States |
| 5995-00-081-0777 | 2018-04-94 | 28 | United States |
| 5995-00-081-0777 | 2015-03-70 | 6 | United States |
| 5995-00-081-0777 | 2011-11-305 | 5 | Taiwan |
Cross Reference | NSN 5995-00-081-0777
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10176208 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 10176208 | 19976 | FEDERAL PRISON INDUSTRIES INC DBA UNICOR |
| 10176208 | 27784 | BROWN PRECISION, INC. |
| 10176208 | 33426 | WPI-BOSTON DIVISION, INC. DBA COOPER INTERCONNECT |
| 10176208 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| 10176208 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 10176208 | 60080 | FAB-TECH CO |
| 10176208 | 63883 | FEDERAL PRISON INDUSTRIES INC DBA UNICOR |
| 10176208 | 71483 | DAVID CLARK COMPANY INCORPORATED |
| 82077 | 79566 | WHITNEY BLAKE COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5995-00-081-0777
Related Products | NSN 5995-00-081-0777
Technical Data | NSN 5995-00-081-0777
| Characteristic | Specifications |
|---|---|
| CONDUCTOR QUANTITY | 6 |
| CONDUCTOR FORM | STRANDED ALL CONDUCTORS |
| MATERIAL | RUBBER POLYISOPRENE NATURAL CLASS NR 1ST POSITION PRIMARY INSULATION ALL CONDUCTORS RUBBER BUTADIENE-STYRENE CLASS SBR 1ST POSITION JACKET CORD |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-I-3930 TYPE IS MIL SPEC SINGLE MATERIAL RESPONSE 1ST POSITION PRIMARY INSULATION ALL CONDUCTORS |
| ROUND CONDUCTOR SIZE | 28 AWG ALL CONDUCTORS |

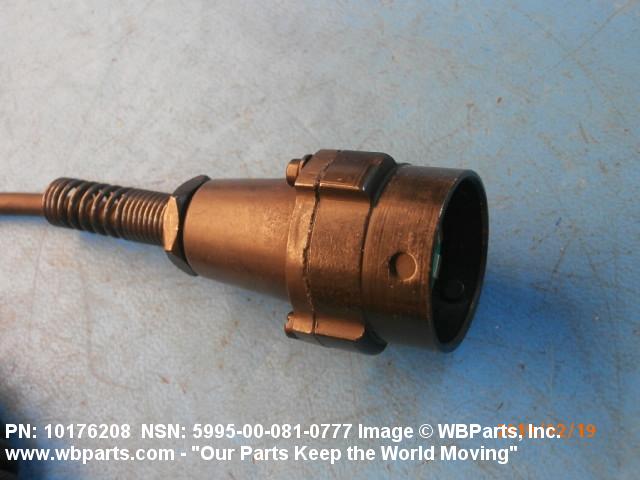

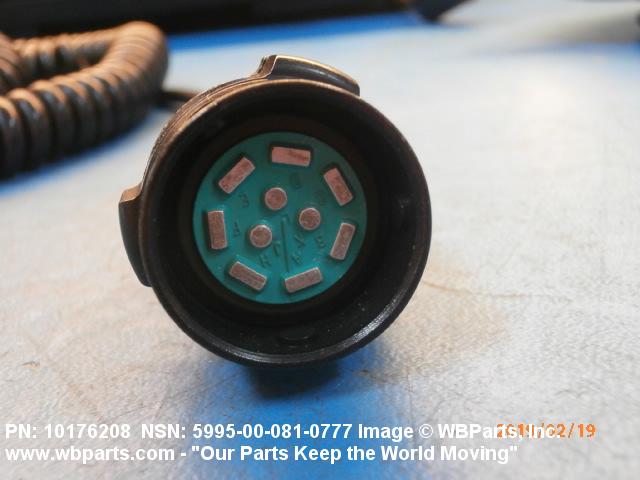

| STYLE DESIGNATOR | 58 EXTERNAL CONNECTOR |
| EXTENDED LENGTH | 12.000 FEET |

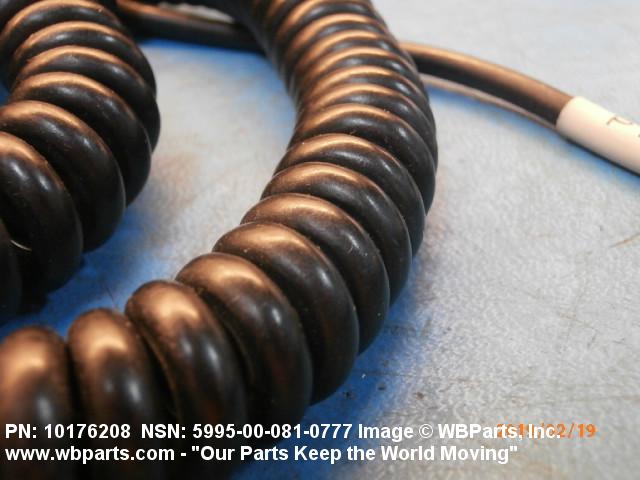

| CROSS-SECTIONAL SHAPE STYLE | 1 COIL/CORD |

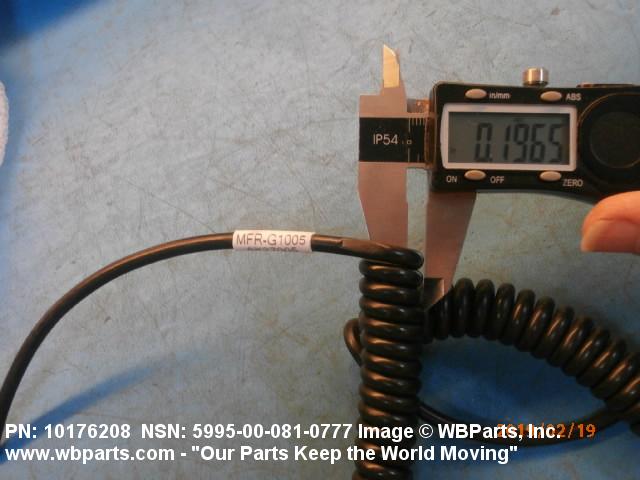

| CROSS SECTION OUTSIDE DIAMETER | 0.250 INCHES NOMINAL |
| TEMP RATING | -40.0 DEG CELSIUS AND 60.0 DEG CELSIUS |
| TERMINAL COMMERCIAL AND GOVERNMENT ENTITY CODE | 81349 1ST END ALL CONDUCTORS |
| III END ITEM IDENTIFICATION | W/S: GUIDED MISSILE, INTERCEPT |
| MANUFACTURERS CODE | 18876 |
| DESIGN CONTROL REFERENCE | 10176208 |
Restrictions/Controls & Freight Information | NSN 5995-00-081-0777
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061130 | CABLE ASSEMBLY |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 743 | unknown |
| Originating Activity Code | BD | U.S. Army Aviation and Missile Command Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5995-00-081-0777
Army
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
