NSN 5990-01-221-0609 CT90948006 , 72172213503, 7-217221350-3
Product Details | ELECTRICAL RESOLVER
5990-01-221-0609 An item consisting of a rotor and a stator inductively coupled. It usually has two rotor windings displaced from each other by 90 degrees and two stator windings similarly displaced. The output voltage(s) is a trigonometric function of the input voltage(s) and the angular displacement of the rotor with respect to the stator. See also SYNCHRO (as modified) and GONIOMETER, ELECTRICAL. Excludes TRANSOLVER, ELECTRICAL and potentiometer sine/cosine electrical resolvers.
Part Alternates: CT90948006 , 72172213503, 7-217221350-3, 5990-01-221-0609, 01-221-0609, 5990012210609, 012210609
Electrical and Electronic Equipment Components | Synchros and Resolvers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 23 NOV 1985 | 01-221-0609 | 22966 ( RESOLVER, ELECTRICAL ) |
Drawings & Photos | NSN 5990-01-221-0609
Demand History | NSN 5990-01-221-0609
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5990-01-221-0609 | 2018-03-64 | 41 | DIBBS |
| 5990-01-221-0609 | 2018-02-51 | 41 | DIBBS |
| 5990-01-221-0609 | 2018-02-38 | 41 | DIBBS |
| 5990-01-221-0609 | 2017-09-264 | 40 | DIBBS |
| 5990-01-221-0609 | 2017-07-211 | 11 | DIBBS |
| 5990-01-221-0609 | 2017-05-138 | 53 | DIBBS |
| 5990-01-221-0609 | 2017-05-129 | 53 | DIBBS |
| 5990-01-221-0609 | 2017-03-65 | 27 | DIBBS |
| 5990-01-221-0609 | 2017-02-58 | 27 | US |
| 5990-01-221-0609 | 2017-02-53 | 27 | DIBBS |
| 5990-01-221-0609 | 2017-02-41 | 1 | DIBBS-RFPs |
| 5990-01-221-0609 | 2016-03-74 | 1 | DIBBS |
| 5990-01-221-0609 | 2016-03-62 | 1 | DIBBS |
| 5990-01-221-0609 | 2016-02-32 | 25 | DIBBS |
| 5990-01-221-0609 | 2016-01-19 | 25 | DIBBS |
| 5990-01-221-0609 | 2015-12-362 | 5 | DIBBS |
| 5990-01-221-0609 | 2015-12-351 | 5 | DIBBS |
| 5990-01-221-0609 | 2015-12-343 | 8 | DIBBS |
| 5990-01-221-0609 | 2015-12-341 | 17 | DIBBS |
| 5990-01-221-0609 | 2015-12-341 | 6 | DIBBS |
| 5990-01-221-0609 | 2015-11-330 | 17 | DIBBS |
| 5990-01-221-0609 | 2015-08-230 | 2 | DIBBS |
| 5990-01-221-0609 | 2015-08-216 | 2 | DIBBS |
| 5990-01-221-0609 | 2015-06-160 | 1 | DIBBS-RFPs |
| 5990-01-221-0609 | 2015-01-05 | 4 | DIBBS |
| 5990-01-221-0609 | 2014-11-309 | 4 | DIBBS |
| 5990-01-221-0609 | 2014-07-202 | 84 | DIBBS |
| 5990-01-221-0609 | 2014-07-198 | 1 | DIBBS-RFPs |
| 5990-01-221-0609 | 2014-07-190 | 84 | DIBBS |
| 5990-01-221-0609 | 2014-05-126 | 27 | DIBBS |
| 5990-01-221-0609 | 2012-07-185 | 38 | DIBBS |
| 5990-01-221-0609 | 2012-02-59 | 68 | DIBBS |
| 5990-01-221-0609 | 2012-02-52 | 2 | DIBBS |
| 5990-01-221-0609 | 2011-12-341 | 51 | DIBBS |
| 5990-01-221-0609 | 2011-11-322 | 50 | DIBBS |
| 5990-01-221-0609 | 2011-09-245 | 50 | DIBBS |
| 5990-01-221-0609 | 2011-07-201 | 39 | DIBBS |
| 5990-01-221-0609 | 2011-05-136 | 30 | DIBBS |
Cross Reference | NSN 5990-01-221-0609
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5990-01-221-0609
Related Products | NSN 5990-01-221-0609
Technical Data | NSN 5990-01-221-0609
| Characteristic | Specifications |
|---|---|
| STATOR INPUT VOLTAGE RATING IN VOLTS | NOT RATED |
| STATOR INPUT CURRENT RATING | NOT RATED |
| STATOR INPUT ELECTRICAL POWER RATING | NOT RATED |
| ROTOR INPUT VOLTAGE RATING IN VOLTS | NOT RATED |
| ROTOR INPUT CURRENT RATING | NOT RATED |
| ROTOR INPUT ELECTRICAL POWER RATING | NOT RATED |
| FREQUENCY IN HERTZ | 400.0 NOMINAL |
| COMPENSATION METHOD | RESISTOR COMPENSATED AND WINDING COMPENSATED |
| PHASE SHIFT ANGLE IN DEG | 0.000 INPUT TO OUTPUT NOMINAL |
| MAXIMUM TEMP RISE | 20.0 DEG CELSIUS |
| BODY STYLE | A7 STANDARD ROUND, ROTATABLE HOUSING |
| SHOULDER DIAMETER | 1.4400 INCHES NOMINAL |
| OVERALL LENGTH | 2.4840 INCHES NOMINAL |
| FLANGE DIAMETER | 1.4400 INCHES NOMINAL |
| FLANGE THICKNESS | 0.0930 INCHES NOMINAL |
| BODY DIAMETER | 1.4400 INCHES NOMINAL |
| SHOULDER LENGTH | 0.0400 INCHES NOMINAL |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 1.9070 INCHES NOMINAL |
| SPLINE TOOTH QUANTITY | 21 SINGLE SHAFT |
| SPLINE TOOTH DIAMETRAL PITCH | 120 SINGLE SHAFT |
| BODY MATERIAL | STEEL, CORROSION RESISTING |
| SPECIAL FEATURES | MOUNTING HOLES ARE THREADED TO NO. 4-40UNJF-2B; SHAFT SPLINE DATA: PITCH=120; PITCH DIA.=0.175 IN.; OUTSIDE DIA.=0.1872 IN.; PRESSURE ANGLE=20.0 DEG.; ROOT DIA. MAX.=0.155 IN.; TOOTH FORM=FULL DEPTH INVOLUTE |
| III SHAFT MAXIMUM RADIAL PLAY | 0.0008 INCHES |

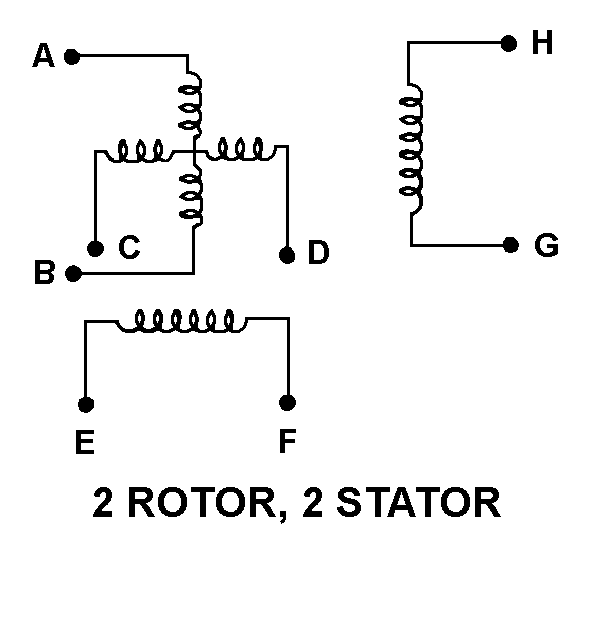

| III SCHEMATIC DIAGRAM DESIGNATOR | D32 TWO ROTOR, TWO STATOR |
| III CUBIC MEASURE | 5.15082 CUBIC INCHES |
| MANUFACTURERS CODE | 02731 |
| MFR SOURCE CONTROLLING REFERENCE | 7-217221350-3 |
Restrictions/Controls & Freight Information | NSN 5990-01-221-0609
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | M | 85 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | BF | U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5990-01-221-0609
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | H | Individual and Crew-Served Weapons |
| Weapons Systems/End Item or Homogeneous Group | H3 | Armament Subsystem, 30mm, XM139 |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
