NSN 5990-01-492-4837 CM41084025, 01-492-4837, 014924837
Product Details | ELECTRICAL RESOLVER
5990-01-492-4837 An item consisting of a rotor and a stator inductively coupled. It usually has two rotor windings displaced from each other by 90 degrees and two stator windings similarly displaced. The output voltage(s) is a trigonometric function of the input voltage(s) and the angular displacement of the rotor with respect to the stator. See also SYNCHRO (as modified) and GONIOMETER, ELECTRICAL. Excludes TRANSOLVER, ELECTRICAL and potentiometer sine/cosine electrical resolvers.
Part Alternates: CM41084025, 5990-01-492-4837, 01-492-4837, 5990014924837, 014924837
Electrical and Electronic Equipment Components | Synchros and Resolvers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 29 NOV 2001 | 01-492-4837 | 22966 ( RESOLVER, ELECTRICAL ) |

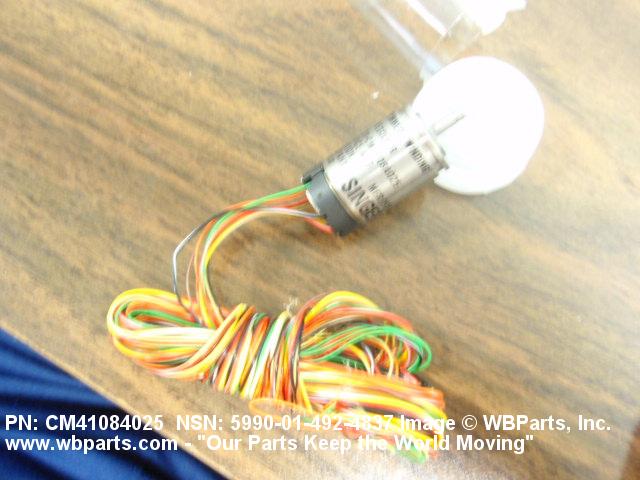

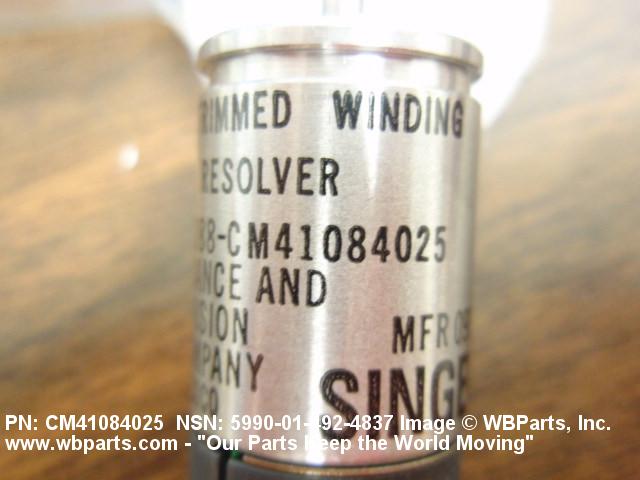

Drawings & Photos | NSN 5990-01-492-4837
Demand History | NSN 5990-01-492-4837
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5990-01-492-4837 | 2024-06-159 | 1 | United States |
| 5990-01-492-4837 | 2022-06-172 | 4 | US |
| CM41084025 | 2020-05-128 | 4 | US |
| CM41084025 | 2011-05-132 | 17 | Taiwan |
| 5990-01-492-4837 | 2011-01-25 | 2 | US |
| 5990-01-492-4837 | 2009-09-251 | 10 | Taiwan |
Cross Reference | NSN 5990-01-492-4837
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CM41084025 | 88818 | KEARFOTT CORPORATION DBA KEARFOTT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5990-01-492-4837
Technical Data | NSN 5990-01-492-4837
| Characteristic | Specifications |
|---|---|
| SPECIAL FEATURES | RESOLVER, ELECTRICAL, TRIMMED |
Restrictions/Controls & Freight Information | NSN 5990-01-492-4837
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
