NSN 5990-01-068-1651 8RC300M1C, 8RC-300-M-1C, 01-068-1651
Product Details | ELECTRICAL RESOLVER
5990-01-068-1651 An item consisting of a rotor and a stator inductively coupled. It usually has two rotor windings displaced from each other by 90 degrees and two stator windings similarly displaced. The output voltage(s) is a trigonometric function of the input voltage(s) and the angular displacement of the rotor with respect to the stator. See also SYNCHRO (as modified) and GONIOMETER, ELECTRICAL. Excludes TRANSOLVER, ELECTRICAL and potentiometer sine/cosine electrical resolvers.
Part Alternates: 8RC300M1C, 8RC-300-M-1C, 5990-01-068-1651, 01-068-1651, 5990010681651, 010681651
Electrical and Electronic Equipment Components | Synchros and Resolvers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 16 NOV 1978 | 01-068-1651 | 22966 ( RESOLVER, ELECTRICAL ) |
Drawings & Photos | NSN 5990-01-068-1651
Cross Reference | NSN 5990-01-068-1651
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8RC-300-M-1C | 06989 | API HAROWE INC DBA API MOTION DIV API |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5990-01-068-1651
Technical Data | NSN 5990-01-068-1651
| Characteristic | Specifications |
|---|---|
| BODY SIZE | 8 |
| FREQUENCY IN HERTZ | 400.0 NOMINAL |
| BODY STYLE | A1 STANDARD ROUND A |
| PILOT DIAMETER | 0.5000 INCHES MAXIMUM |
| OVERALL LENGTH | 1.6300 INCHES MAXIMUM |
| FLANGE DIAMETER | 0.7500 INCHES MAXIMUM |
| FLANGE THICKNESS | 0.0620 INCHES NOMINAL |
| UNDERCUT DIAMETER | 0.6910 INCHES MAXIMUM |
| UNDERCUT WIDTH | 0.0620 INCHES NOMINAL |
| PILOT LENGTH | 0.0400 INCHES NOMINAL |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 1.2400 INCHES MAXIMUM |
| SHAFT TYPE | ROUND, SLOTTED SINGLE SHAFT |
| SHAFT DIAMETER | 0.0900 INCHES MAXIMUM SINGLE SHAFT |
| SHAFT LENGTH | 0.3350 INCHES NOMINAL SINGLE SHAFT |
| SHAFT SLOT DEPTH | 0.0200 INCHES NOMINAL SINGLE SHAFT |
| SHAFT SLOT WIDTH | 0.0250 INCHES NOMINAL SINGLE SHAFT |
| TERMINAL TYPE AND QUANTITY | 7 WIRE LEAD |
| TERMINAL LOCATION | REAR |
| BODY MATERIAL | STEEL, STAINLESS |
| III SHAFT MAXIMUM RADIAL PLAY | 0.0010 INCHES |
| III SHAFT RADIAL PLAY TEST POINT | 0.125 INCHES MAXIMUM |
| III SHAFT RADIAL PLAY DETERMINING WEIGHT | 4.0 OUNCES |
| III SHAFT END PLAY | 0.0005 INCHES MAXIMUM |
| III SHAFT END PLAY DETERMINING WEIGHT | 8.0 OUNCES |
| III SHAFT MAXIMUM RUNOUT | 0.0010 INCHES |

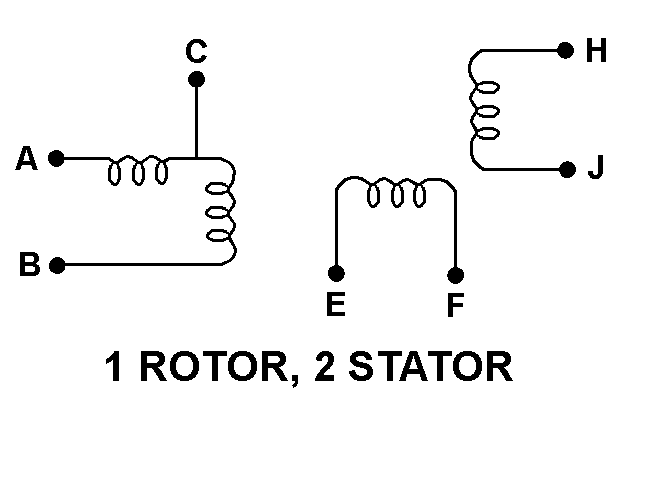

| III SCHEMATIC DIAGRAM DESIGNATOR | D23 ONE ROTOR, TWO STATOR |
| III UNPACKAGED UNIT WEIGHT | 1.340 OUNCES |
| III FRAGILITY FACTOR | MODERATELY RUGGED |
Restrictions/Controls & Freight Information | NSN 5990-01-068-1651
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062120 | GENERATORS/MOTORS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
